Manitowoc SPA162 Touchless Ice Dispenser 120 lb Storage for 22" Ice Machines ADA Compliant Ice Machine Sold Separately

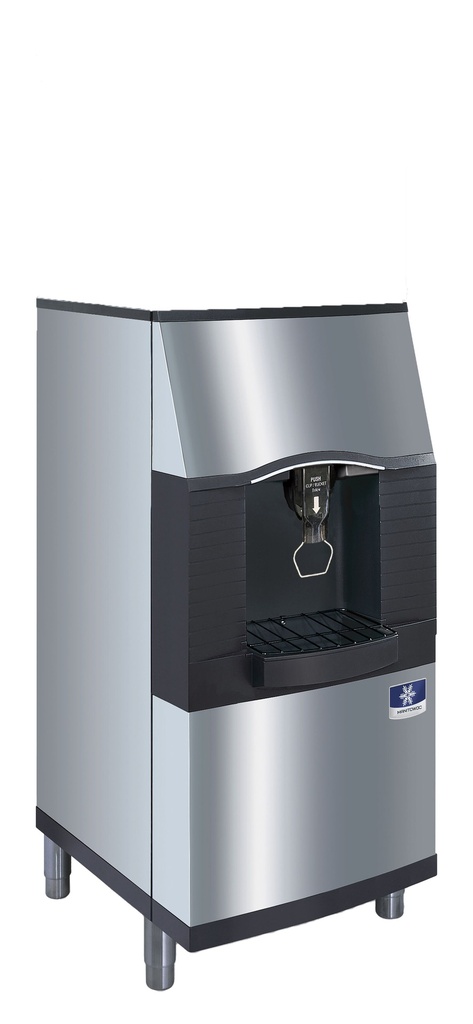

Manitowoc SPA162 — 120 lb Touchless Ice Dispenser for 22" Ice Machines
The Manitowoc SPA162 is a floor-standing, ADA-compliant ice dispenser built for hotel ice rooms, hospital corridors and break rooms where guests serve themselves. It stores 120 lbs. (54.4 kg) of ice in a cabinet only 22" wide and 31" deep, and a touchless lever is pushed by the ice bucket or glass rather than a hand, so no one has to touch the machine to get ice. A built-in agitator keeps the bin moving for 100% dispensing, an oversized drain pan catches overflow, and the DuraTech stainless exterior resists fingerprints and corrosion. The SPA162 accepts a single 22" wide Manitowoc ice machine on top; this listing is for the dispenser only and the ice machine is ordered separately.
Key Features of the SPA162
The SPA162 is designed around unattended, hands-off use: guests fill a bucket or glass, the agitator keeps ice flowing, and the cabinet stays clean in a public space.
Touchless Lever Activation
The ice chute lever is pushed by the bucket or glass, not a hand, cutting down on cross-contamination at a self-serve station used by dozens of guests a day.
Built-In Agitator, 100% Dispensing
An agitator driven by a permanently lubricated 1.6-amp motor keeps the full 120 lb. of stored ice loose, so the last pound dispenses as easily as the first.
ADA-Compliant Design
The SPA162 is ADA compliant, with a 9.5" (24.13 cm) clearance from grate to chute and touchless operation suited to public guest floors.
Fits 22" Manitowoc Ice Machines

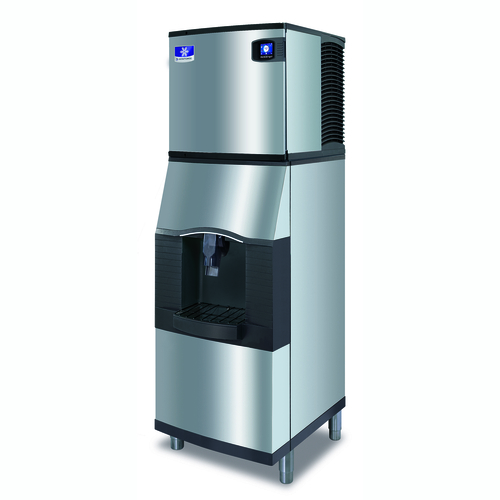

The cabinet accepts a single 22" wide Manitowoc machine such as the Indigo NXT iT0420 or iT0620 series, in dice or half-dice cubes, for about 75.5" total height.
DuraTech Stainless Exterior
DuraTech offers superior corrosion resistance, and its clear-coated stainless finish resists the fingerprints and dirt that build up on a dispenser in a busy hallway.
Oversized Drain Pan
A larger drain pan under the chute collects more spilled ice and meltwater, draining through a 1/2" F.P.T. melting tray connection so the floor stays dry.
Ice machine not included: the SPA162 is sold as a dispenser only. Order a 22" wide Manitowoc ice machine separately to mount on top. The dispenser has no minimum clearance of its own; when installing the machine and dispenser together, follow the clearance requirements of the ice machine being installed.
Ideal Applications
Anywhere guests, patients or staff fill their own ice and hygiene matters more than speed of a scoop.
Optional Accessories
Manitowoc lists these accessories for the SPA162 and the 22" ice machine it supports; each is sold separately.
SPA162 Specifications
| Model | Manitowoc SPA162 (SPA-162) |
|---|---|
| Type | Floor-model touchless ice dispenser, ice only |
| What's Included | Dispenser only; ice machine sold separately |
| Ice Storage Capacity | 120 lbs. (54.4 kg) |
| Compatible Ice Machines | Single 22" wide Manitowoc machine (e.g. Indigo NXT iT0420 / iT0620 series), dice or half-dice |
| Width | 22" (55.88 cm) |
| Depth | 31.19" (79.22 cm) |
| Dispenser Height | 54" (48" cabinet on 6" legs) |
| Height with Ice Machine | 75.5" (191.77 cm) with a 21.5" tall machine |
| Grate-to-Chute Clearance | 9.5" (24.13 cm) |
| Activation | Touchless lever, activated by bucket or glass |
| Dispenser Electrical | 115/60/1 (208-230/60/1 and 230/50/1 also available) |
| Maximum Fuse Size | 15 amps (HACR-type breakers acceptable) |
| Power Cord | 6', 16-3, NEMA 5-15P plug |
| Agitator Motor | 1.6 amps max, permanently lubricated |
| Drain | 1/2" F.P.T. melting tray pan drain; 13" floor to drain with 6" legs |
| Exterior | DuraTech stainless with clear-coat finish |
| Accessibility | ADA compliant |
| Warranty | 3 years parts & labor on dispenser components |
Frequently Asked Questions
Does the Manitowoc SPA162 come with an ice machine?
No. The SPA162 is the dispenser only. A 22" wide Manitowoc ice machine is ordered separately and mounted on top of the dispenser.
Which ice machines fit on the SPA162?
It accepts a single 22" wide Manitowoc ice machine, such as the Indigo NXT iT0420 or iT0620 series, in dice or half-dice cubes.
What is the difference between the SPA162 and the SFA192?
Both use the same 22" cabinet with 120 lb. of storage. The SPA162 dispenses ice only, while the SFA192 adds a built-in water valve to dispense both ice and water.
How much ice does the SPA162 hold?
The dispenser stores 120 lbs. (54.4 kg) of ice, and its built-in agitator keeps that ice moving for 100% dispensing.
How tall can a bucket be under the chute?
Clearance from the grate to the bottom of the chute is 9.5" (24.13 cm), which fits standard hotel ice buckets and glasses.
What electrical connection does the SPA162 need?
The dispenser runs on 115/60/1 with a 15-amp maximum fuse and ships with a 6' cord and NEMA 5-15P plug. The ice machine has its own separate electrical requirements.
