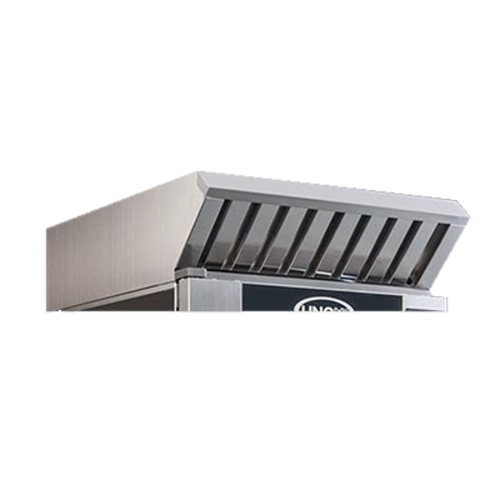

UNOX XAVHC-HC11 Ventless Exhaust System

The UNOX XAVHC-HC11 is a ventless hood designed for use with ChefTop MIND.Maps Plus ovens. It is an electric steam condensing hood that partially eliminates steam and odors from cooking fumes. The hood features automatic washing of the integrated filters and is suitable for kitchens where fumes can be directed to a ceiling hood or outside the building. It does not impact the performance of the oven it is used with.

Specifications

Weight: 50.70 lbs
Dimensions: 29.50 x 10.19 x 37.63 in
Voltage: 208-240 V
Phase: ~1PH+PE
Frequency: 60 Hz
Total power: 0.1 kW
Maximum Amp Draw: 0.5 A

Applications

Reducing steam and odors in restaurant kitchens
Use in commercial kitchens with limited ventilation options
Installation in food service operations requiring steam condensation

Certifications

NSF Certified

This item has been certified by NSF International to meet applicable product standards on public safety, health, or the environment.

From The Manufacturer

Ventless Hood for ChefTop MIND.Maps™ Plus, (WxDxH) 29 1/2" x 37 5/8" x 9 7/16" , 4 3/4" exhaust chimney diameter, includes (1) 1m hose & (2) hose clamps, 0.1kW, 208-240v/60/1-ph, for models XAVC-0511-EPL, XAVC-0511-EPR, XAVC-1011-EPL, XAVC-1011-EPR, UL, NSF ("Reduces smoke, odors, grease latent vapors and lowers exhaust temperatures. Does not replace Type II exhaust hoods. Adhere to local codes”)
