UNOX ChefTop MIND.Maps Plus XAVHC-HCFS Ventless Hood Exhaust System

Free Shipping

Description
Specifications

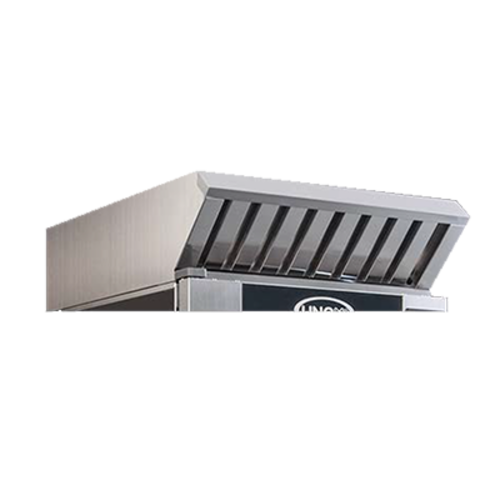

UNOX XAVHC-HCFS Ventless Exhaust System

The UNOX XAVHC-HCFS is a ventless hood designed for use with ChefTop MIND.Maps Plus countertop electric ovens. It is constructed with a stainless steel rigid unibody design and features a steam condensing hood that partially eliminates steam and odors from cooking fumes. The system includes automatic washing capabilities for the integrated filters and condensation chamber, ensuring efficient operation without impacting oven performance.

Specifications

Dimensions: 33.88 x 10.19 x 45.06 inches
Weight: 55.11 lbs
Voltage: 208-240 V
Frequency: 60 Hz
Total power: 0.1 kW
Maximum Amp Draw: 0.5 A
Plug: NEMA 6-15P
Water inlet: 3/4" NPT

The ventless hood features intelligent power control with automatic, continuously variable adjustment of the extraction power to the quantity of steam emitted.

Applications

Reducing steam and odors in commercial kitchens
Use in kitchens with limited ventilation options
Integration with ChefTop MIND.Maps Plus ovens
Facilitating compliance with local ventilation codes

Certifications

NSF Certified

This item has been certified by NSF International to meet applicable product standards on public safety, health, or the environment.

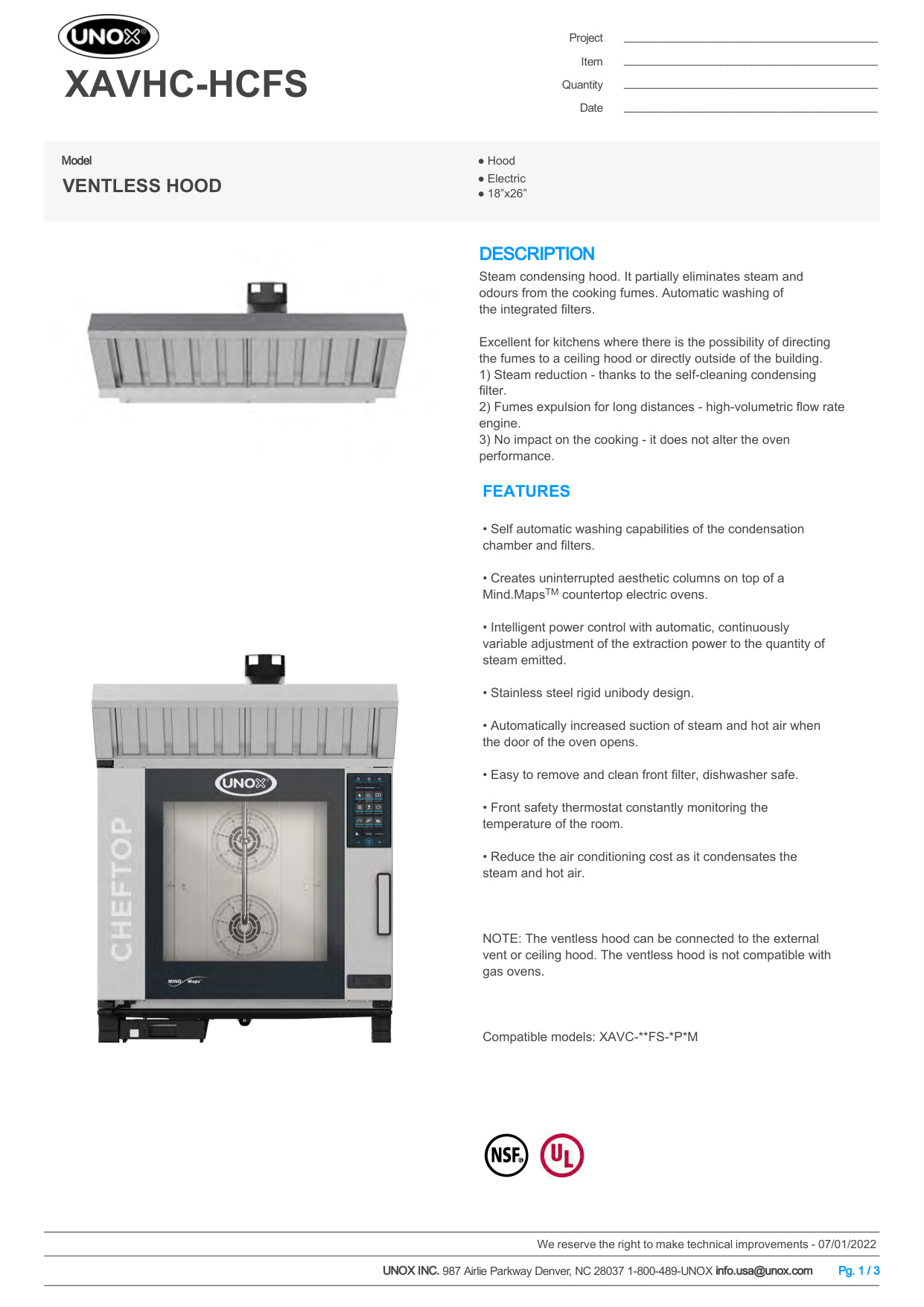

From The Manufacturer

Ventless Hood for ChefTop MIND.Maps™ Plus, (WxDXH) 33-7/8" x 45 1/16" x 9 7/16", 4 3/4" exhaust chimney diameter, includes (1) 1-1/2m hose & (2) hose clamps, 0.1kW, 208-240v/60/1-ph, for models XAVC-10FS-EPLM, XAVC-10FS-EPRM, XAVC-10FS-HPLM, XAVC-10FS-HPRM, XAVC-06FS-EPLM, XAVC-06FS-EPRM, XAVC-06FS-HPLM, XAVC-06FS-HPRM. UL, NSF ("Reduces smoke, odors, grease latent vapors and lowers exhaust temperatures. Does not replace Type II exhaust hoods. Adhere to local codes”)
