UNOX XHC012 Water Filtration System for Steam Equipment

UNOX XHC012 Water Filtration System, for Steam Equipment

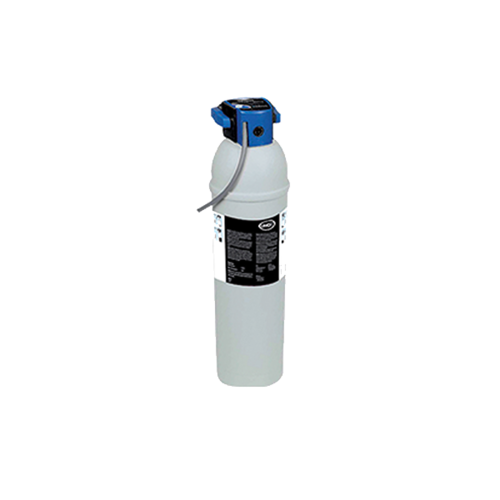

The UNOX XHC012 is a resin-based water filtration system designed to eliminate substances that contribute to limescale formation. It is specifically used for feeding the steam production line in CHEFTOP MIND.Maps™ Unox ovens. The system features a lock handle that secures the filter cartridge in place and manages water flow. The filtration process selectively removes calcium, magnesium, and heavy metals, while also reducing cloudiness, organic impurities, and chlorine residues.

Specifications

• Capacity: Up to 5,690 liters
• Operating pressure: 2 bar – max. 8.6 bar (29 psi - max. 124.7 psi)
• Rated service flow: 1.7 liters per minute
• Water intake temperature: 4 °C to 30 °C (39.2°F to 86°F)
• Dimensions: 144 x 144 x 557 mm (5 11/16” x 5 11/16” x 21 15/16”)
• Weight (dry): 4.6 kg (10.1 lbs)
• Weight (wet): 6.9 kg (15.2 lbs)

Applications

• Filtering water for steam production in commercial ovens
• Reducing limescale formation in food service equipment
• Improving water quality for culinary applications in restaurant kitchens
