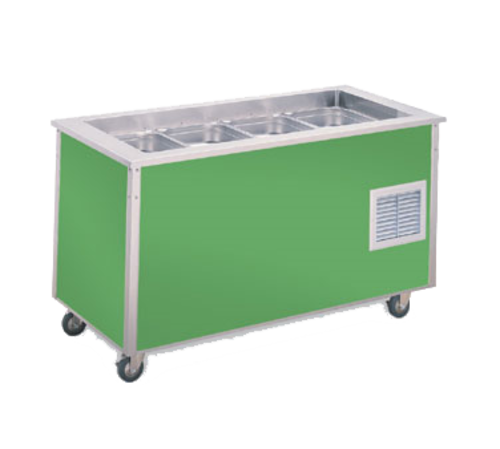

4-Series Signature Server® 36166 Serving Counter Stainless Steel
Vollrath/Anvel 36166 Serving Counter, Cold Food
The 4-Series Signature Server® Model 36166 is a serving counter designed for cold food applications. It features a stainless steel countertop with integrated NSF7 cold station capabilities. The unit is equipped with self-contained refrigeration and recessed wells that display pans below the work surface, minimizing ambient air impact. The construction includes polyurethane foam insulation and a seamless display pan well opening.
Specifications
- Weight: 586.00 lbs
- Dimensions: 60.00 x 30.00 x 28.00 in
- Voltage: 120v/60/1-ph
- Amperage: 5.2 amps
- Refrigerant: R290
The serving counter utilizes R290 refrigerant, which has a lower Global Warming Potential (GWP) than many previously-used refrigerants.
Applications
- Displaying chilled beverages in bar and cafe settings
- Storing fresh ingredients in commercial deli operations
- Maintaining cold food temperatures in buffet lines
Certifications
This product has been certified by UL to meet applicable safety standards required for use in the United States and Canada.
This item has been certified by NSF International to meet applicable product standards on public safety, health, or the environment.
Warranty

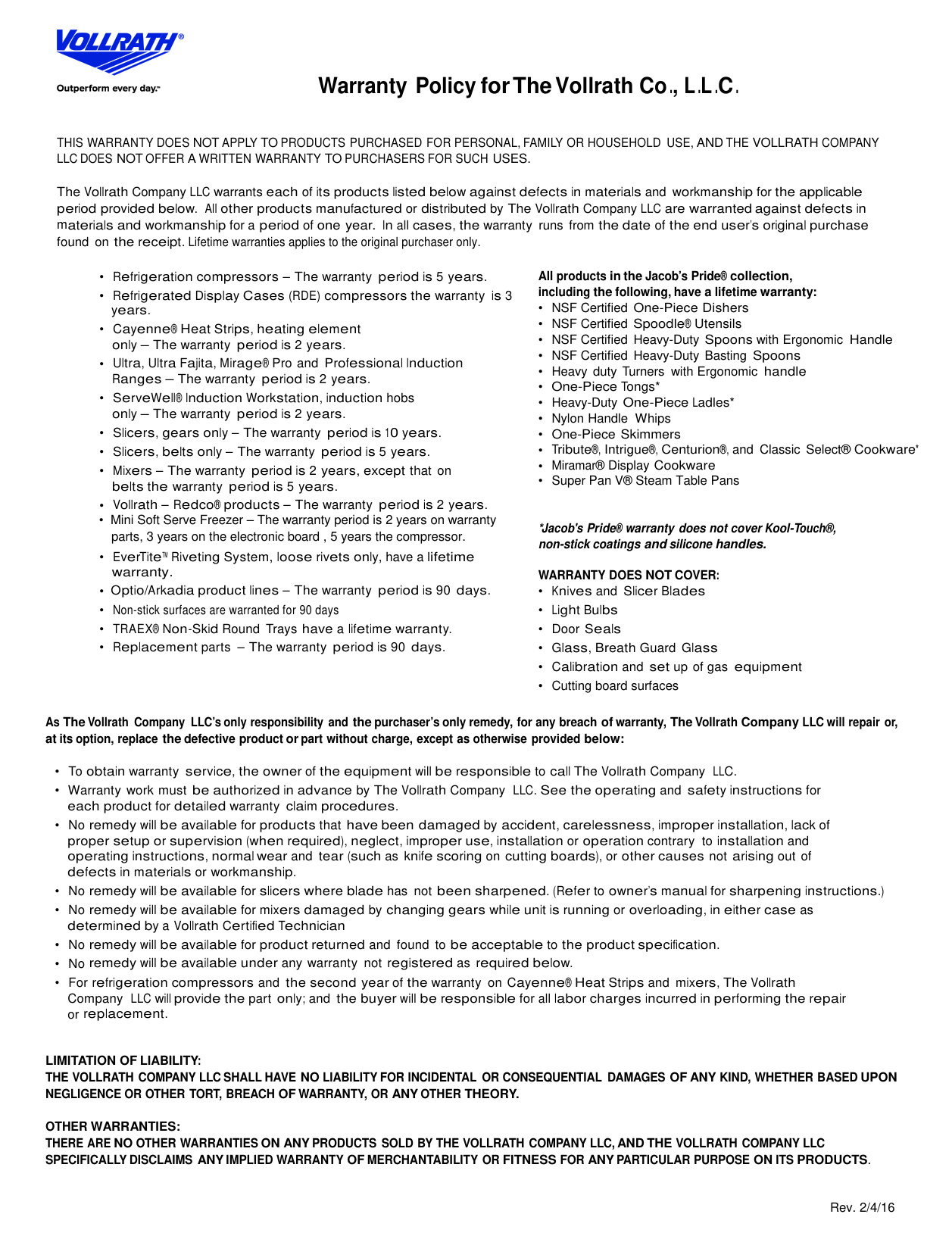

The Vollrath Company LLC warrants each of its products against defects in materials and workmanship for a period of one year from the date of the end user’s original purchase found on the receipt.
From The Manufacturer
- 4-Series Signature Server® Stainless Steel Countertop with NSF7 Cold Station
- self contained refrigeration
- 60"W x 28"D x 30"H
- Bloomington-style recessed well displays pans 3" below work surface
- coils surround sidewalls
- accommodates 6" deep pans
- polyurethane foam insulation
- standard well drains
- seamless display pan well opening 50-1/4"W x 19-7/8"D x 6-5/8" deep
- 1/4 HP
- 5.2 amps
- NEMA 5-15P
- 120v/60/1-ph
- cULus
- NSF
- Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
| Brand | Vollrath/Anvel |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | 36166 |
| Brand | Vollrath/Anvel |
| Weight | 586.00 lbs |
| Dimensions (HxWxD) | 30.00 x 60.00 x 28.00 inches |
| Height | 30.00 |
| Width | 60.00 |
| Depth | 28.00 |
| Cooling Type | refrigerated |
| Base Design | fully enclosed |
| Pan Capacity | (4) pan |
| Top Construction | stainless steel top |
| Base Finish | specify |
| Mobile or Stationary | mobile |
| Overall Width (side - side) | 55" - 60" |
| Base Construction | vinyl covered steel |
| Working Height | 30" |
|
