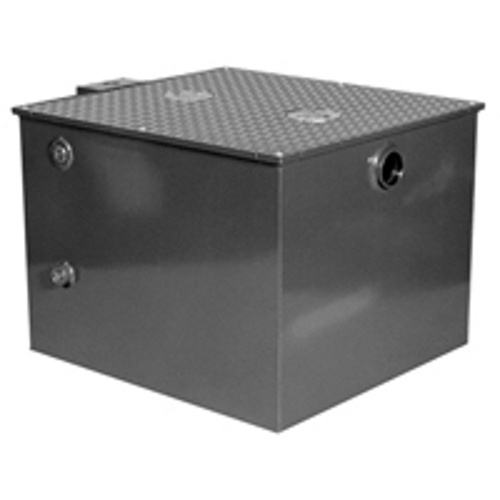

Zurn Z1188-ST-300 GPM Oil Interceptor with Integral Storage Tank

These large capacity oil interceptors withIntegral Storage Tank feature: an acid resistant coat on the exterior and interior, steel construction, bronze cleanout plug and visible double wall trap seal, removable combination pressure equalizing/flow diffusing baffle and sediment bucket, horizontal baffle, adjustable oil draw-off and vent connections either side. Secured gasketed non-skid cover complete with flow control fitting. Regularly furnished with threaded inlet and outlet in high position.

This Zurn Z1188 oil interceptor is furnished with a 1-1/2" NPT adjustable oil draw-off assembly. Since oils are lighter than water, gravity causes the oil to rise to the surface of the water. The oil draw-off assembly allows the separated oils, and other similar light density substances, to be automatically drained out through a properly adjusted internal stand pipe. A pipe connection from the internal adjustable standpipe is connected to an oil drain line leading from the oil interceptor to an oil storage tank. The adjustable sleeve in the stand pipe must be adjusted so the opening is 1/8" above the top of the normal water flow level in the interceptor chamber. The oil that floats to the surface will drain off by gravity flow as waste water flows through the interceptor. When the adjustable sleeve in the standpipe is set correctly, no water will drain off with the oil. There is no need for manual removal or skimming of the oil.

Dimensions:

Model Z1188-ST-300 Oil Interceptor Heavy Duty Commercial

664 Gal Water Capacity 300 GPM
Number Of Oil Storage Tanks 2
Oil Storage Tank Capacity 400 Gal
Outlet Pipe Size 5"
Width Front to Back 92-3/8"
Length Side to Side (Inlet to Oulet) 82-3/8"
Height Floor to top 46-1/4"
Bottom to Center of Inlet 39-5/8"
Number Of Covers 2
3400 Lbs
** Free Freight to Comercial Address no special services

Made in USA
