Zurn Z1188- 300 GPM Large Capacity Oil Interceptor With Level Sensor

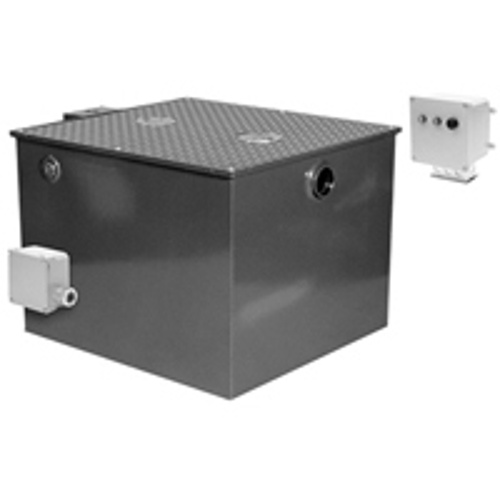

These Large Capacity Oil Interceptors Feature: an acid resistant coat on the exterior and interior, fabricated steel construction with fiberglass sensor box containing an electronic oil lever sensor (*specify left or right side), a fiberglass display box with one green power light, red oil level light, audible alarm and junction box. Complete with bronze cleanout plug and visible double wall trap seal, removable combination pressure equalizing/flow diffusing baffle and sediment bucket, horizontal baffle and sediment bucket, horizontal baffle, and vent connections either side. Secured gasketed non-skid cover complete with flow control fitting. Regularly furnished with threaded inlet and outlet in high position.
All Zurn oil interceptors with oil level sensors must be installed sitting on the floor or recessed into a pit. If a pit installation is necessary then the pit must be kept relatively dry by means of a drain or sump pump.
Perfect for: parking garages, maintenance shops, oil spill areas, service stations, and wash-down areas. Drain water enters through one or more floor drains plumbed to flow to the inlet of the oil interceptor.

Dimensions:

Model Z1198-300 GPM Large Capacity Oil Interceptor With Level Sensor

  • 660 Gal Water Capacity 300 GPM
  • 80 Gal Oil Capcity
  • Outlet Pipe Size 5"
  • Width   Front to Back 58-3/8"
  • Length Side to Side (Inlet to Oulet)  80"
  • Height Floor to top    46-1/4"
  • Bottom to Center of Inlet  39-5/8"
  • Number Of Covers   2
  • 1840 Lbs

Made in USA






Spec Sheet
SKU Z1198-300
Brand Zurn
