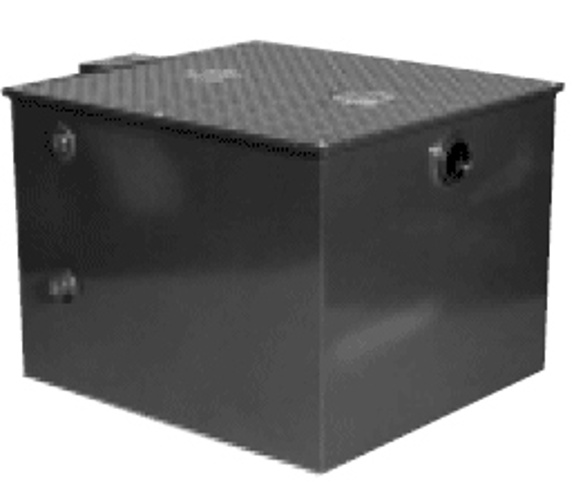

Zurn Z1198-ST-300 GPM Oil Interceptor with Integral Storage Tank & Oil Level Float Sensor
|
These large capacity oil interceptors withIntegral Storage Tank feature & Level Float Sensor: an Acid Resistant Coated interior and exterior fabricated steel oil interceptor with fiberglass sensor box containing an electronic oil level sensor,
fiberglass display box with audio and visual alarms and junction box. Complete with bronze cleanout plug and visible double wall trap seal,
removable combination pressure equalizing/flow diffusing baffle and sediment bucket, adjustable oil draw-off, vent connections, secured
gasketed non-skid cover, flow control fitting and left hand integral storage tank. Regularly furnished with inlet and outlet in high position.
Note: location of outlet from bottom of interceptor cannot be changed.
|
Dimensions:
Model Z1198-ST-300 LG Oil Interceptor With Intagral Storage Tank & Oil Level Float Sensor
- 664 Gal Water Capacity 300 GPM
- Number Of Oil Storage Tanks 2
- Oil Storage Tank Capacity 400 Gal
- Outlet Pipe Size 5"
- Width Front to Back 92-3/8"
- Length Side to Side (Inlet to Oulet) 82-3/8"
- Height Floor to top 46-1/4"
- Bottom to Center of Inlet 39-5/8"
- Number Of Covers 2
- 3400 Lbs
- ** Free Freight to Comercial Address no special services
