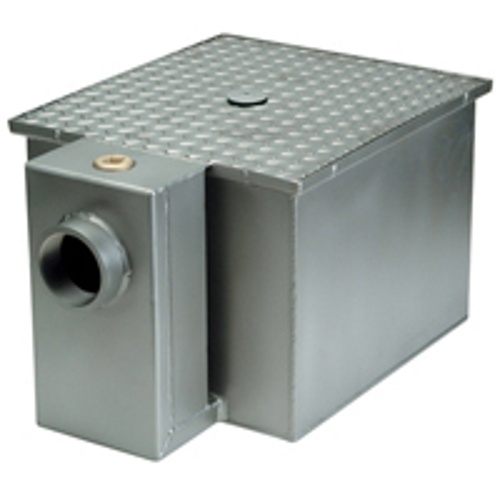

Zurn ZS1170-100 8 Lb All Stainless Grease Trap Interceptor 4 GPM

Zurn ZS1170-100 8# All Stainless Grease Trap Interceptor 4 gpm

ENGINEERING SPECIFICATION: ZURN ZS1170-100

All type 304 fabricated stainless steel grease interceptor, PDI, rated at 4 GPM and 8 Lbs grease capacity, with internal air relief by-pass, stainless steel cleanout plug and visible double wall trap seal with removable combination pressure equalizing/flow diffusing baffle and sediment tray. Gasketed non-skid secured cover, complete with Z1108 flow control fitting. Regularly furnished inlet and outlet in high position.

 Note: Location of outlet from bottom of interceptor cannot be changed.

Certified by the Plumbing & Drainage Institute

Dimensions:

Model Z1170-100 8 LB All Stainless Grease Trap | Interceptor 4 GPM w 2" Inlet

• 4 GPM
• Inlet 2"
• Width   Front to Back 9-7/8"
• Length Side to Side  20-3/8"
• Height Floor to top    10"
• Bottom to Center of Inlet  7-1/4"
• 42 Lbs



Click on ZURN Informational Video Below.

http://youtu.be/fVooeJDermg
