Grease Trap 30 lb Smith Interceptor 800-Y02-15

Need help with this product?

Mon–Sat 9am–5pm EST

Description
Specifications

Grease Trap Capacity 30 Lb 15 GPM JR Smith 800-Y02-15

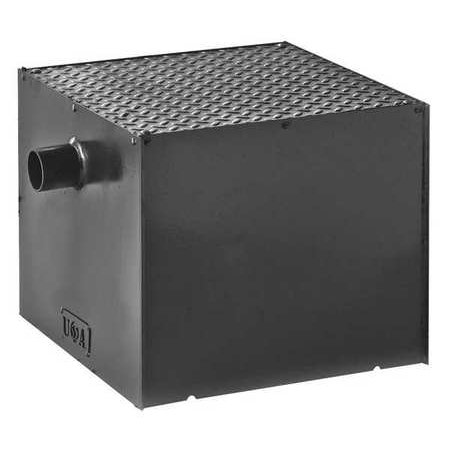

Product Description: Recommended for removing, then retaining fat, oil, and grease from waste water in kitchen and restaurant areas where food is prepared. The 800 series grease interceptor is constructed of coated corrosion-resistant fabricated steel with no-hub connections and separate no-hub flow control; a one-piece removablebaffle;

diamond plate,non-skid cover; and a unique, combination cover locking/lifting device.

Features and Benefits:

• Slip-resistant diamond plate cover

• Designed to be installed in above-the-floor installations or recessed where space is limited

• One piece removable baffle assembly

• Combination cover locking/lifting device

• Constructed of fabricated steel, corrosion-resistant coated

• Regularly furnished with no-hub inlet and outlet, threaded available

• Conforms to PDI Grease Interceptor Standard PDI-G101

• IAPMO Listed, File No. 2697 and C-3878

Specifications:

Inlet 2"

Length Left to Right- 19"

Width Front to Back- 19"

Height Top to Bottom- 14-3/4"

Bottom to center of Inlet 11-1/4"

Weight- 67 lbs

Spec Sheet
