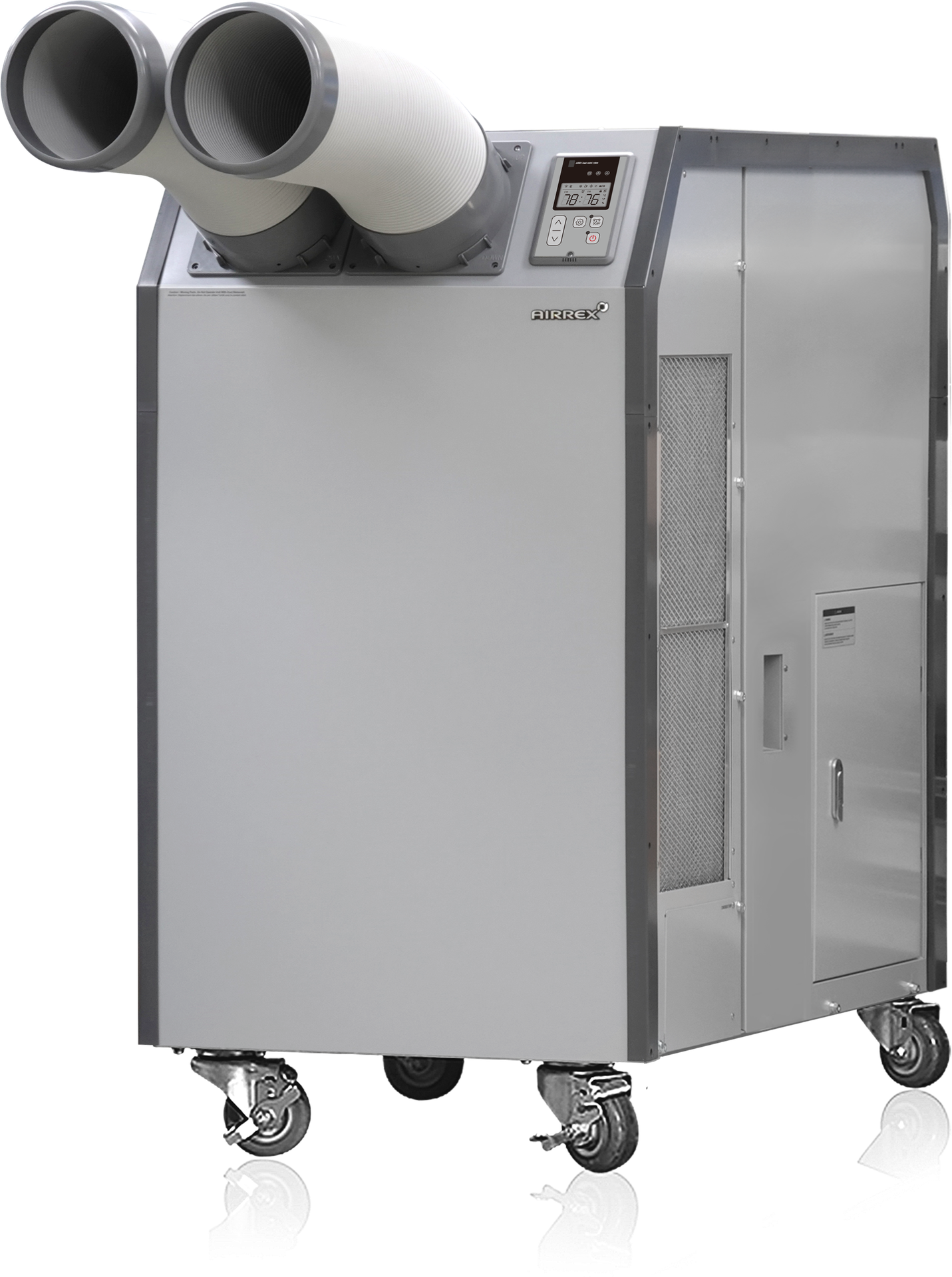

Airrex AHSC-60R 480/3 Portable Heat Pump 5 Ton 60000 BTU Cooling 60000 BTU Heating R-454B Refrigerant 460V 3-Phase ETL Listed
Airrex AHSC-60R 480/3 Portable Heat Pump — 5-Ton, R-454B, 460V 3-Phase
The Airrex AHSC-60R 480/3 is a heavy-duty 5-ton portable heat pump that brings true year-round climate control to commercial and industrial spaces — with 60,000 BTU of cooling and 60,000 BTU of heating from a single self-contained unit. It runs on modern, low-GWP R-454B refrigerant and is configured for 460V 3-phase power (391-506V operating range), making it suitable for facilities with 480V hookups. With 1,950 CFM indoor airflow, 3,240 CFM outdoor airflow, and a flexible ductable layout (12" supply, 16" return, 26" top exhaust), it handles large warehouse, manufacturing, and event-space climate jobs without a permanent install. ETL listed. 4-locking-caster mobility for serious portability.
Key Features
Engineered for dependable performance with the features that matter most.
5-Ton Cool & Heat from One Unit
60,000 BTU cooling (65-118°F) and 60,000 BTU heating (50-81°F) with a 4-way reversing valve — true year-round climate control from a single portable unit.
Eco-Friendly R-454B Refrigerant
Runs on low-GWP R-454B refrigerant, meeting current environmental standards while delivering strong, efficient performance in demanding conditions.
460V 3-Phase Power
Designed for 460V 3-phase service (391-506V operating range, 30A fuse, 8.3/8.8 A current draw) — efficient for large commercial and industrial facilities.
Ductable Airflow Layout
12" supply flange + 16" return flange + 26" top exhaust (optional 20" reducer) — flexible for ducted spot cooling, ceiling exhaust, or open-air operation.
Removable, Washable Filters
Aluminum + stainless mesh indoor filters slide out for quick cleaning — no replacement-filter cost, no maintenance downtime.
Protected Compressor & ETL Listed
Thermostatically protected compressor with high/low-pressure switches, 3-minute delay timer, and fan motor protection. ETL listed for commercial use.
Note: The AHSC-60R 480/3 is wired for 460V 3-phase service per NEMA standards — it operates across a 391-506V range, so it works on both 460V and 480V hookups. In tightly enclosed spaces, a fresh air supply may be needed for optimal performance.
Ideal Applications
Heavy-duty cooling and heating where 460V 3-phase power is available — manufacturing, large facilities, and back-of-house industrial sites.
Specifications
| Model | Airrex AHSC-60R 480/3 |
|---|---|
| Cooling Capacity | 60,000 BTU/h |
| Heating Capacity | 60,000 BTU/h |
| Refrigerant | R-454B (low-GWP) |
| Power Supply | 460V, 3-Phase, 60 Hz |
| Voltage Range | 391-506V (works on 460V and 480V hookups) |
| Current (Cooling / Heating) | 8.3 A / 8.8 A |
| Power Consumption (Cool / Heat) | 5.3 kW / 5.7 kW |
| Fuse Size | 30 A |
| Cooling Temperature Range | 65°F to 118°F |
| Heating Temperature Range | 50°F to 81°F |
| Dehumidification (Max / Nominal) | 76 / 54 gal/day |
| Indoor Airflow | 1,950 CFM |
| Outdoor Airflow | 3,240 CFM |
| Supply Flange | 12" diameter |
| Return Flange | 16" diameter |
| Top Exhaust | 26" diameter (optional 20" reducer) |
| Indoor Air Filter | Aluminum + Stainless Mesh (removable, washable) |
| Safety | High/low pressure switches, 3-min compressor delay, thermostat protector, fan motor protection |
| Sound Level (Without Exhaust Duct) | 76 dB |
| Mobility | Four 5" swivel casters (4 locking) |
| Dimensions (W × D × H) | 29" × 57" × 51" |
| Net Weight | 586 lbs |
| Condensate Pump | Optional (quick-connect) |
| Certification | ETL Listed |
| Warranty | 1 year unit, 3 years compressor |
Frequently Asked Questions
Does the AHSC-60R 480/3 work on 480V hookups?
Yes. While the model is labeled for 460V 3-phase (NEMA standard), its operating voltage range is 391-506V, so it works on both 460V and 480V 3-phase commercial/industrial service.
Does the AHSC-60R 480/3 both cool and heat?
Yes. It's a true portable heat pump with a 4-way reversing valve, delivering 60,000 BTU of cooling and 60,000 BTU of heating from a single unit. Cools 65-118°F, heats 50-81°F.
What refrigerant does this unit use?
The AHSC-60R 480/3 uses modern, low-GWP R-454B refrigerant — meeting current environmental standards while delivering reliable cooling and heating performance.
Can the AHSC-60R 480/3 be ducted?
Yes. It has a 12" supply flange, a 16" return flange, and a 26" top exhaust (with optional 20" reducer) — supporting ducted spot cooling, ceiling exhaust, and flexible installation configurations.
What's the difference between this and the 220/1 model?
Same 5-ton cooling and heating capacity, same R-454B refrigerant — but different electrical service. The 480/3 version is designed for facilities with 460V/480V 3-phase power (lower current draw, smaller wiring). The 220/1 version runs on single-phase 220V service.
What's the warranty?
The AHSC-60R 480/3 ships with a 1-year warranty on the unit and 3 years of additional coverage on the compressor, plus an ETL listing for commercial safety compliance.
