Atosa USA AEFF-50-2 Double Vat Electric Fryer, (2) 50 lb, Built-In Filtration, 208V 3-Phase, Stainless Steel
Atosa USA AEFF-50-2 — Double 50 lb Electric Fryer Battery with Built-In Filtration
The AEFF-50-2 is a two-vat electric fryer battery holding 50 lb of oil in each stainless steel tank, with a built-in filtration system and pump in the same 31" wide frame. Each vat is rated 17 kW on 208V three phase and runs under fully programmable electronic controls, and the battery ships with two fryer baskets per tank.
Key Features of the AEFF-50-2
Two vats is the point where a fry station stops being a compromise: one pot can stay dedicated while the other carries the volume.
Two 50 lb Stainless Vats
Two independent full vats at 50 lb each mean fish and fries never share oil, and one vat can be dropped out of service for a boil-out without closing the station.

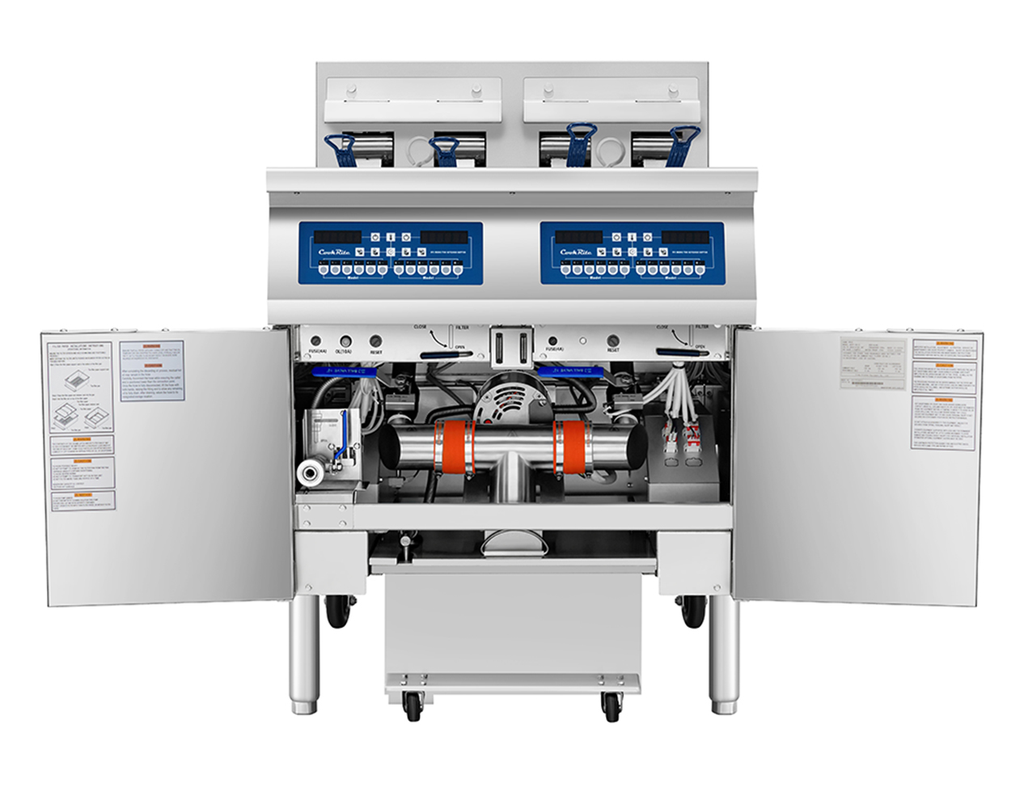

Built-In Filtration with Pump
The filtration system and its pump are built into the battery, so oil is filtered where it sits at the end of service instead of being moved to a separate filter machine.
Fully Programmable Electronic Controls
Cook times and temperatures are programmed per product rather than dialled in by eye, which is what keeps a second cook's results matching the first's.
17 kW Per Vat, 208V 3 Phase
Each vat carries a 17 kW element on 208V three phase at 48 A per wire, so oil temperature comes back quickly after a full basket goes in.
Four Fryer Baskets Included
Two baskets per tank ship with the battery, so both vats can run split loads from the first day without a separate basket order.
Two Rear Casters, Two Front Legs
Double battery models come with two casters at the rear and two legs at the front — the battery pulls forward for cleaning behind it and sits firm in service.
Electrical note: the AEFF-50-2 requires 208V three phase with a minimum wire size of 6/4 AWG and 48 A per wire. Both vats are rated 17 kW each. Confirm the service at the install site before ordering.
Ideal Applications
A double battery suits a kitchen whose fry volume has outgrown one pot but that does not have the line space or the service for three.
AEFF-50-2 Specifications
| Model | AEFF-50-2 |
|---|---|
| Brand | Atosa USA |
| Type | Double full vat electric fryer battery with built-in filtration |
| Number of Vats | 2 (full vat) |
| Oil Capacity | 50 lb per vat (100 lb total) |
| Baskets | 2 per tank (4 total) |
| Tank Material | Stainless steel |
| Filtration | Built-in filtration system with pump |
| Controls | Fully programmable electronic controls |
| Power | 17 kW per vat (34 kW total) |
| Voltage | 208V, 3 phase |
| Amps Per Wire | 48 A |
| Minimum Wire Size | 6/4 AWG |
| Casters / Legs | 2 casters at the rear, 2 legs at the front |
| Exterior Dimensions (W x D x H) | 31" x 31" x 45-3/8" |
| Packing Dimensions (W x D x H) | 34-1/4" x 34-5/8" x 51-1/4" |
| Net Weight | 310 lb |
| Gross Weight | 410 lb |
| Filter Paper | FP-1728-5 (17" x 22", 100 sheets per box) |
| Related Models | AEFF-50-1 (single), AEFF-50-3 (triple), AEFF-50-2T (double with split vat), AEFF-50-2B (double with auto lift), AEFF-50-2TB (double split vat with auto lift) |
| Warranty | 1 year parts and labor |
Optional Accessories
Filter paper is the consumable the built-in filtration runs on; the rest are optional add-ons Atosa lists for the AEFF-50 series.
| FP-1728-5 | Filter paper, 17" x 22", 100 sheets per box |
|---|---|
| Fryer Mesh Screen | Optional |
| Vessel Covers | Optional |
| Side Splash | Optional |
Frequently Asked Questions
How much oil does the AEFF-50-2 hold?
50 lb per vat across two full vats, so 100 lb of oil in total.
Does the AEFF-50-2 include oil filtration?
Yes. A built-in filtration system with a pump is standard across the AEFF-50 series, so oil is filtered in place. It uses FP-1728-5 filter paper, 17" x 22", 100 sheets per box.
What electrical service does it need?
208V three phase, 48 A per wire, on a minimum 6/4 AWG supply. Each vat is rated 17 kW, for 34 kW across the battery.
How many baskets come with it?
Two fryer baskets per tank, so four baskets with the two-vat battery.
How much space does the AEFF-50-2 need?
The battery measures 31" wide x 31" deep x 45-3/8" high and weighs 310 lb net. Crated it ships at 34-1/4" x 34-5/8" x 51-1/4" and 410 lb.
How does the AEFF-50-2 compare to the AEFF-50-2T and AEFF-50-2B?
All three are 31" wide double batteries. The AEFF-50-2 has two full 50 lb vats at 17 kW each. The AEFF-50-2T runs a full vat on the left and a split vat on the right, rated 50 lb plus 2 x 25 lb at 17 kW plus 2 x 8.5 kW. The AEFF-50-2B matches the AEFF-50-2 but adds the auto lift system, which raises it to 33-3/4" deep and 48-1/2" high.
