Atosa USA AEFF-50-3TB Triple Vat Electric Fryer with Auto Lift, 2 Full + 1 Split Vat, Built-In Filtration, 208V 3-Phase

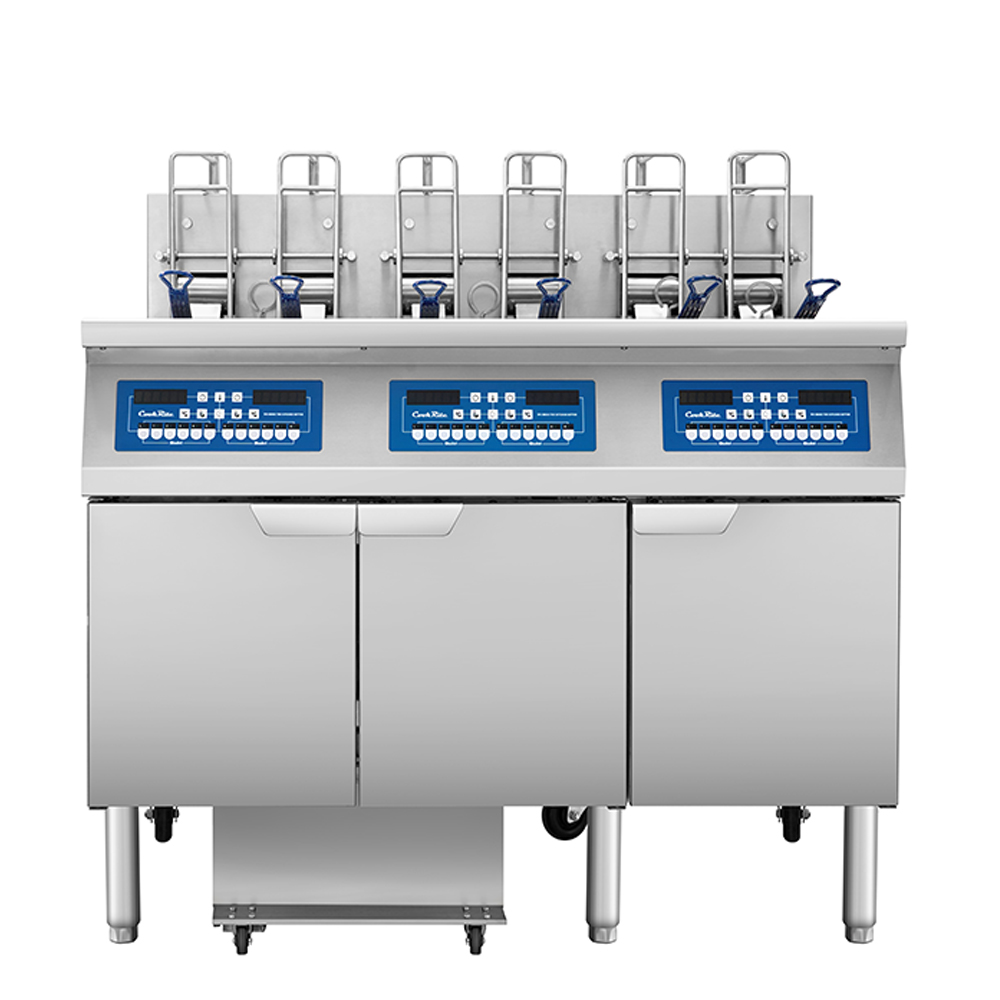

Atosa USA AEFF-50-3TB — Triple Split-Vat Electric Fryer Battery with Auto Lift
The AEFF-50-3TB is a three-tank electric fryer battery running two full 50 lb vats on the left and middle and a split vat on the right holding 25 lb per side — 150 lb of oil in total. It carries the auto lift system and built-in filtration with a pump, and every tank is stainless steel under fully programmable electronic controls.
Key Features of the AEFF-50-3TB
The split vat is what separates this battery from a straight triple: four cooking wells in three tanks, so small-batch items get their own oil without giving up a full pot to them.
Two Full Vats Plus a Split Vat
Left and middle are full 50 lb vats at 17 kW each. The right tank is split into two 25 lb wells at 8.5 kW each, so two low-volume items can run side by side in their own oil.
Auto Lift System
Baskets rise automatically at the end of the programmed cycle, so nothing sits in hot oil waiting for a cook to come back to it.

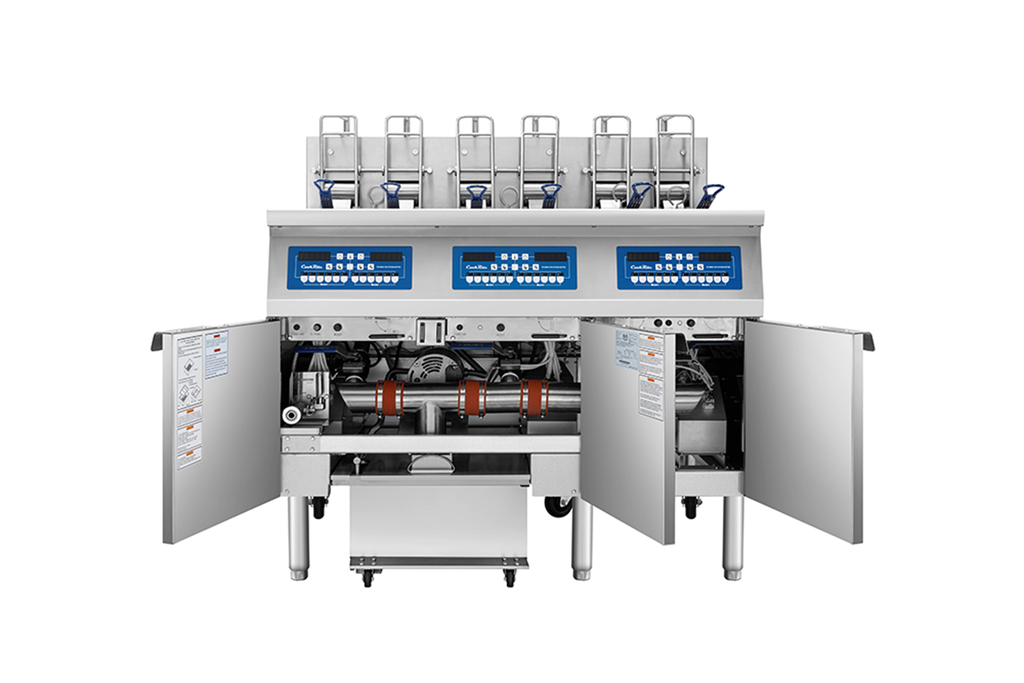

Built-In Filtration with Pump
The filtration system and pump are part of the battery, so oil is cleaned in place at the end of service rather than moved to a separate filter machine.
Fully Programmable Electronic Controls
Each well is programmed independently, which matters most on a split vat where the two sides are usually running different products at different times.
51 kW on 208V Three Phase
Two 17 kW full vats and two 8.5 kW split wells add up to 51 kW, drawn at 48 A per wire on a minimum 6/4 AWG supply.
Three Casters, Three Legs
Triple battery models ship with three casters at the rear and three legs at the front, so the battery rolls forward for cleaning and sits level in service.
Electrical note: the AEFF-50-3TB requires 208V three phase with a minimum wire size of 6/4 AWG and 48 A per wire. The two full vats are rated 17 kW each and the two split wells 8.5 kW each. Confirm the service at the install site before ordering.
Ideal Applications
This configuration suits a menu with two high-volume fry items and a handful of low-volume ones that still need their own oil.
AEFF-50-3TB Specifications
| Model | AEFF-50-3TB |
|---|---|
| Brand | Atosa USA |
| Type | Triple vat electric fryer battery with auto lift system (left and middle full vat, right split vat) |
| Vat Configuration | 2 full vats + 1 split vat (2 wells) |
| Oil Capacity | 2 x 50 lb + 2 x 25 lb (150 lb total) |
| Baskets | 2 fryer baskets per tank |
| Tank Material | Stainless steel |
| Filtration | Built-in filtration system with pump |
| Controls | Fully programmable electronic controls |
| Power | 2 x 17 kW + 2 x 8.5 kW (51 kW total) |
| Voltage | 208V, 3 phase |
| Amps Per Wire | 48 A |
| Minimum Wire Size | 6/4 AWG |
| Casters / Legs | 3 casters at the rear, 3 legs at the front |
| Exterior Dimensions (W x D x H) | 46-1/2" x 33-3/4" x 48-1/2" |
| Packing Dimensions (W x D x H) | 51" x 37-5/8" x 54-3/8" |
| Net Weight | 573 lb |
| Gross Weight | 708 lb |
| Filter Paper | FP-1728-5 (17" x 22", 100 sheets per box) |
| Related Models | AEFF-50-3B (triple full vat with auto lift), AEFF-50-3T (triple split vat, no auto lift), AEFF-50-1TB (single split vat with auto lift), AEFF-50-2TB (double split vat with auto lift) |
| Warranty | 1 year parts and labor |
Optional Accessories
Filter paper is the consumable the built-in filtration runs on; the rest are optional add-ons Atosa lists for the AEFF-50 series.
| FP-1728-5 | Filter paper, 17" x 22", 100 sheets per box |
|---|---|
| Fryer Mesh Screen | Optional |
| Vessel Covers | Optional |
| Side Splash | Optional |
Frequently Asked Questions
How is the AEFF-50-3TB configured?
Left and middle are full 50 lb vats; the right tank is a split vat with two 25 lb wells. That is 150 lb of oil across four cooking wells.
What does TB mean in AEFF-50-3TB?
T indicates the split-vat configuration and B the auto lift system. Built-in filtration with a pump is standard across the whole AEFF-50 series.
What electrical service does it need?
208V three phase, 48 A per wire, on a minimum 6/4 AWG supply. The full vats are 17 kW each and the split wells 8.5 kW each, for 51 kW total.
How much space does the AEFF-50-3TB take?
46-1/2" wide x 33-3/4" deep x 48-1/2" high, at 573 lb net. Crated it ships at 51" x 37-5/8" x 54-3/8" and 708 lb.
Which filter paper does it use?
FP-1728-5, 17" x 22", supplied 100 sheets per box.
How does the AEFF-50-3TB differ from the AEFF-50-3T?
Both are triple split-vat batteries rated 2 x 50 lb plus 2 x 25 lb at 2 x 17 kW plus 2 x 8.5 kW. The AEFF-50-3TB adds the auto lift system, and with it the cabinet grows from 46-1/2" x 31" x 45-3/8" and 496 lb to 46-1/2" x 33-3/4" x 48-1/2" and 573 lb.
