Atosa USA AEFF-50-2B Electric Fryer Battery with Auto Lift, Double Full Vat, 2 x 50 lb, Built-In Filtration, 208V 3-Ph
Atosa USA AEFF-50-2B — Double Full Vat Electric Fryer with Auto Lift
The AEFF-50-2B is a double full vat electric fryer battery with the auto lift system: two 50 lb tanks at 17 kW each, 100 lb of oil in total, in a 31" wide battery. Baskets rise on their own at the end of the programmed cycle, built-in filtration with a pump is standard, and every tank comes with two baskets.
Key Features of the AEFF-50-2B
Two full vats and an auto lift answer the same question in different ways: one gives the volume, the other takes the timing out of the cook's hands.
Two 50 lb Full Vats
Both tanks are full 50 lb vats at 17 kW each, so the battery carries 100 lb of oil and two high-volume products can run at full output side by side.
Auto Lift System
Baskets rise automatically at the end of the programmed cycle, so nothing sits in hot oil waiting for a cook to come back to it.

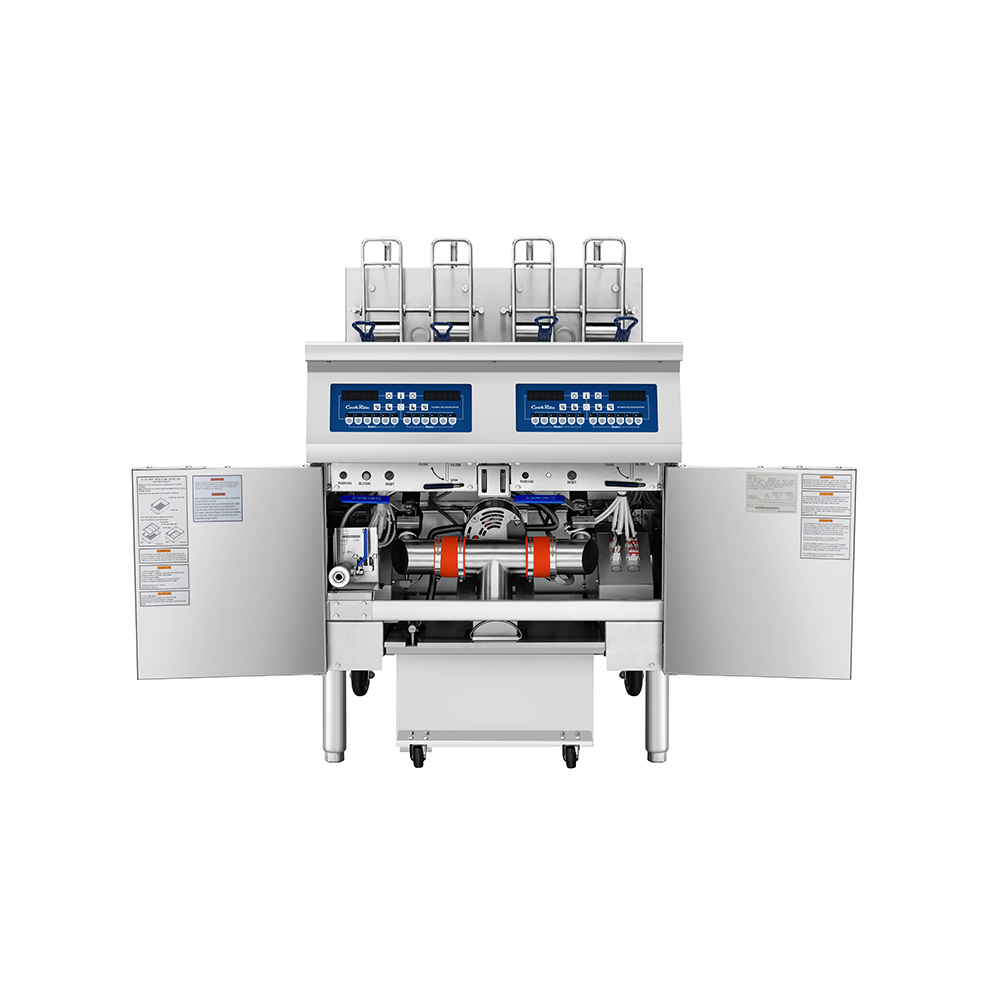

Built-In Filtration with Pump
The filtration system and pump are part of the battery, so oil is cleaned in place at the end of service rather than moved to a separate filter machine.
Fully Programmable Electronic Controls
Each vat is programmed independently, so one tank can run a long cycle for breaded product while the other holds a short one for fries.
34 kW on 208V Three Phase
Two 17 kW vats add up to 34 kW, drawn at 48 A per wire on a minimum 6/4 AWG supply.
Two Casters, Two Legs
Single and double battery models ship with two casters at the rear and two legs at the front, so the battery rolls forward for cleaning and sits level in service.
Electrical note: the AEFF-50-2B requires 208V three phase with a minimum wire size of 6/4 AWG and 48 A per wire. Each vat is rated 17 kW, for 34 kW in total. Confirm the service at the install site before ordering.
Ideal Applications
Two full vats is the configuration for a menu where fried product is the volume, not a side item.
AEFF-50-2B Specifications
| Model | AEFF-50-2B |
|---|---|
| Brand | Atosa USA |
| Type | Double full vat electric fryer battery with auto lift system |
| Vat Configuration | 2 full vats |
| Oil Capacity | 2 x 50 lb (100 lb total) |
| Auto Lift | Standard |
| Baskets | 2 fryer baskets per tank |
| Tank Material | Stainless steel |
| Filtration | Built-in filtration system with pump |
| Controls | Fully programmable electronic controls |
| Power | 2 x 17 kW (34 kW total) |
| Voltage | 208V, 3 phase |
| Amps Per Wire | 48 A |
| Minimum Wire Size | 6/4 AWG |
| Casters / Legs | 2 casters at the rear, 2 legs at the front |
| Exterior Dimensions (W x D x H) | 31" x 33-3/4" x 48-1/2" |
| Packing Dimensions (W x D x H) | 34-1/4" x 37-5/8" x 54-3/8" |
| Net Weight | 401 lb |
| Gross Weight | 551 lb |
| Filter Paper | FP-1728-5 (17" x 22", 100 sheets per box) |
| Related Models | AEFF-50-2 (double full vat without auto lift), AEFF-50-2TB (left full / right split vat with auto lift), AEFF-50-1B (single full vat with auto lift), AEFF-50-3B (triple full vat with auto lift) |
| Warranty | 1 year parts and labor |
Optional Accessories
Filter paper is the consumable the built-in filtration runs on; the rest are optional add-ons Atosa lists for the AEFF-50 series.
| FP-1728-5 | Filter paper, 17" x 22", 100 sheets per box |
|---|---|
| Fryer Mesh Screen | Optional |
| Vessel Covers | Optional |
| Side Splash | Optional |
Frequently Asked Questions
How is the AEFF-50-2B configured?
Two full vats of 50 lb each, 100 lb of oil in total, both fitted with the auto lift system.
What does the auto lift system do?
It raises the baskets out of the oil automatically when the programmed cycle ends, so product does not keep cooking while a cook is somewhere else on the line.
What are the electrical requirements?
208V three phase, 48 A per wire, on a minimum 6/4 AWG supply. Each vat is 17 kW, for 34 kW in total.
Does it include a filtration system?
Yes. A built-in filtration system with a pump is standard, and it runs on FP-1728-5 filter paper, 17" x 22", 100 sheets per box.
How many baskets come with the AEFF-50-2B?
Two fryer baskets per tank, so four in total.
How does the AEFF-50-2B differ from the AEFF-50-2?
The AEFF-50-2B adds the auto lift system. That also changes the body: the B model is 33-3/4" deep and 48-1/2" high at 401 lb, against 31" deep and 45-3/8" high at 310 lb for the AEFF-50-2.
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | AEFF-50-2B |
| Brand | Atosa USA |
| Weight | 551.00 lbs |
| Dimensions (HxWxD) | 55.00 x 34.00 x 38.00 inches |
| Height | 55.00 |
| Width | 34.00 |
| Depth | 38.00 |
| Fryer Quantity | (2) tanks |
| With or without basket lifts | with basket(s) |
| Fat Capacity (approximate) | 50 lbs each |
| Filter | built-in filter |
| Fry pot | stainless steel |
| Exterior Finish | all stainless steel exterior |
|
