Atosa USA AWR27SD Worktop Refrigerator, 1 Door, 27-1/2"W, 6.53 cu. ft., Stainless Steel, R290, ENERGY STAR

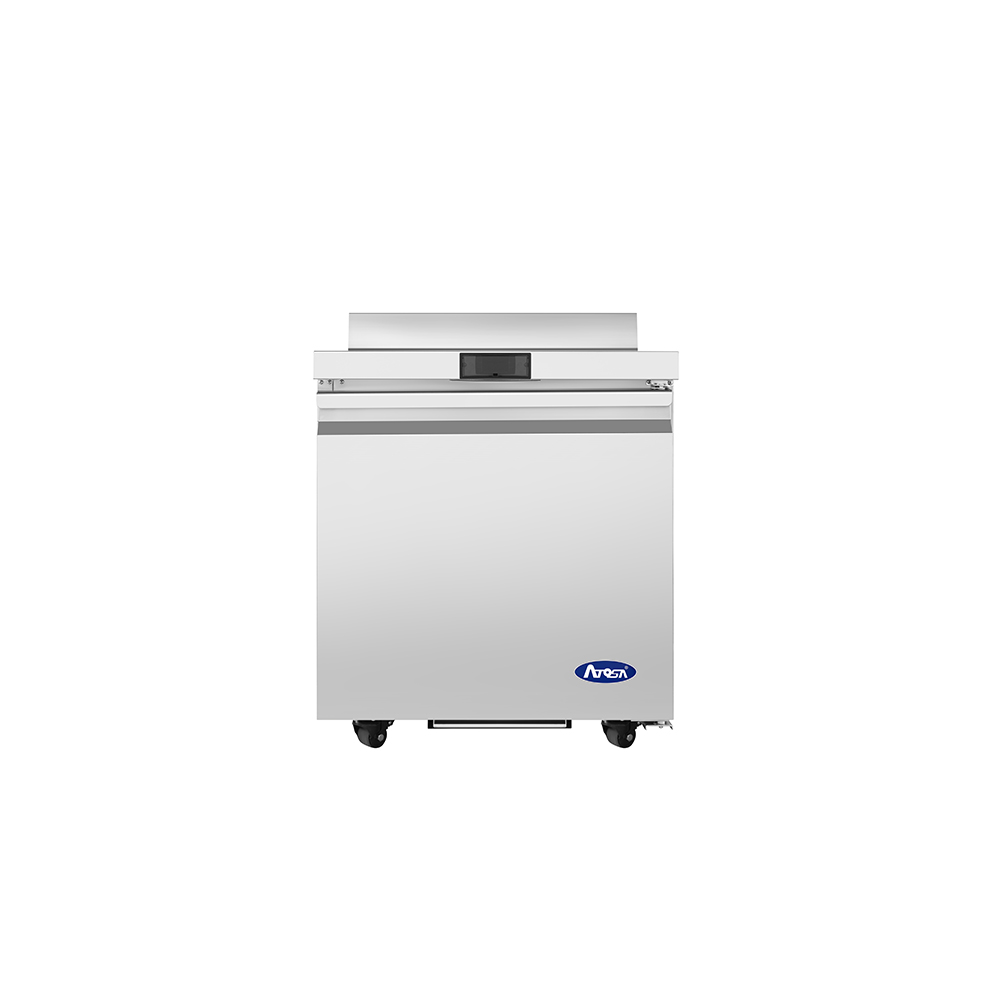

Atosa USA AWR27SD — 27" Worktop Refrigerator, 1 Door
The AWR27SD puts 6.53 cu. ft. of refrigerated storage under a reinforced stainless steel top with a foamed-in-place backsplash, in a 27-1/2" wide cabinet holding 35°F to 38°F. One field reversible door opens onto two epoxy shelves, a 1/7+ HP R290 system runs under an electronic controller, and the cabinet is ENERGY STAR qualified.
Key Features of the AWR27SD
A worktop unit has to be a work surface and a refrigerator at the same time, which means the top has to survive prep and the cabinet has to hold temperature under it.
Reinforced Top with Backsplash
The top is reinforced stainless steel with a foamed-in-place backsplash, so it takes prep work directly and keeps splatter off the wall behind it.
One Field Reversible Door
The door reverses on site so the swing suits the aisle, and it self-closes with a stay open feature for loading with both hands.
35°F to 38°F on R290
An environmentally friendly R290 system on a 1/7+ HP compressor holds the cabinet in the 35°F to 38°F band Atosa recommends for food preservation.
Electronic Temperature Controller
The set point is read and adjusted directly on an electronic controller instead of being estimated from a dial, so drift is caught early.
Self-Closing Door, Magnetic Gasket
A magnetic gasket is standard for a positive seal, which matters on a cabinet that is opened from the prep side all through service.
Pre-Installed 5" Casters
It ships on 5" casters for a 38-7/8" overall height, so the top lands at standing work height and the unit still rolls out for cleaning.
Placement note: leave the unit room to breathe and clean the condenser frequently so it keeps drawing fresh air through the rear grate. Atosa recommends a refrigerator set point between 35°F and 38°F. The unit runs on 115V, 60 Hz, single phase and draws 3.4 A through a 15A / 125V outlet.
Ideal Applications
A 27" worktop is the narrow run of counter that still has to double as cold storage for the station standing at it.
AWR27SD Specifications
| Model | AWR27SD |
|---|---|
| Brand | Atosa USA |
| Type | Worktop refrigerator with backsplash |
| Doors | 1, field reversible, self-closing with stay open feature |
| Capacity | 6.53 cu. ft. |
| Shelves | 2, epoxy coated |
| Temperature Range | 35°F - 38°F |
| Refrigerant | R290 |
| Horsepower | 1/7+ HP |
| Voltage | 115V / 60 Hz / 1 phase |
| Current | 3.4 A |
| Outlet Rating | 15A / 125V |
| Controller | Electronic temperature controller |
| Gaskets | Magnetic, standard |
| Construction | Stainless steel exterior and interior with reinforced stainless steel top and foamed-in-place backsplash |
| Casters | 5", pre-installed |
| Exterior Dimensions (W x D x H) | 27-1/2" x 30" x 38-7/8" |
| Net Weight | 143 lb |
| Gross Weight | 198 lb |
| Certifications | ENERGY STAR qualified |
| Related Models | AWR36SD (2 doors, 8.97 cu ft), AWR48SD (2 doors, 12.22 cu ft), AWR60SD (2 doors, 15.5 cu ft), AWR72SD (3 doors, 18.89 cu ft); AWF27SD is the matching freezer |
| Warranty | Extended warranty available up to 5 years |
Optional Accessories
Coverage can be extended beyond the standard term, and the same cabinet is built as a freezer.
| Extended Warranty | Available up to 5 years |
|---|---|
| AWF27SD | Same 27-1/2" worktop cabinet built as a freezer, -8°F to 0°F |
Frequently Asked Questions
How much does the AWR27SD hold?
6.53 cu. ft. in a single section, with two epoxy coated shelves.
What temperature does the AWR27SD hold?
Between 35°F and 38°F on an electronic temperature controller, the range Atosa recommends for food preservation.
Can food be prepared on top of the AWR27SD?
Yes. The top is reinforced stainless steel with a foamed-in-place backsplash, built as a work surface, and on its pre-installed 5" casters the unit stands 38-7/8" high. The door is field reversible and self-closing with a magnetic gasket.
Is the AWR27SD ENERGY STAR qualified?
Yes. The AWR27SD is ENERGY STAR qualified.
What are the electrical requirements?
115V, 60 Hz, single phase, drawing 3.4 A on a 15A / 125V outlet. The compressor is 1/7+ HP on R290 refrigerant.
How does the AWR27SD compare to the other AWR worktops?
The AWR27SD is 27-1/2" wide with 1 door and 6.53 cu ft. The AWR36SD is 36-3/8" with 2 doors and 8.97 cu ft, the AWR48SD is 48-1/4" with 2 doors and 12.22 cu ft, the AWR60SD is 60-1/4" with 2 doors and 15.5 cu ft, and the AWR72SD is 72-5/8" with 3 doors and 18.89 cu ft. All are 30" deep and 38-7/8" high.
