Atosa USA AEFF-50-2TB Electric Fryer Battery with Auto Lift, Double Vat, Left Full / Right Split, 50 + 2(25) lb, Built-In Filtration

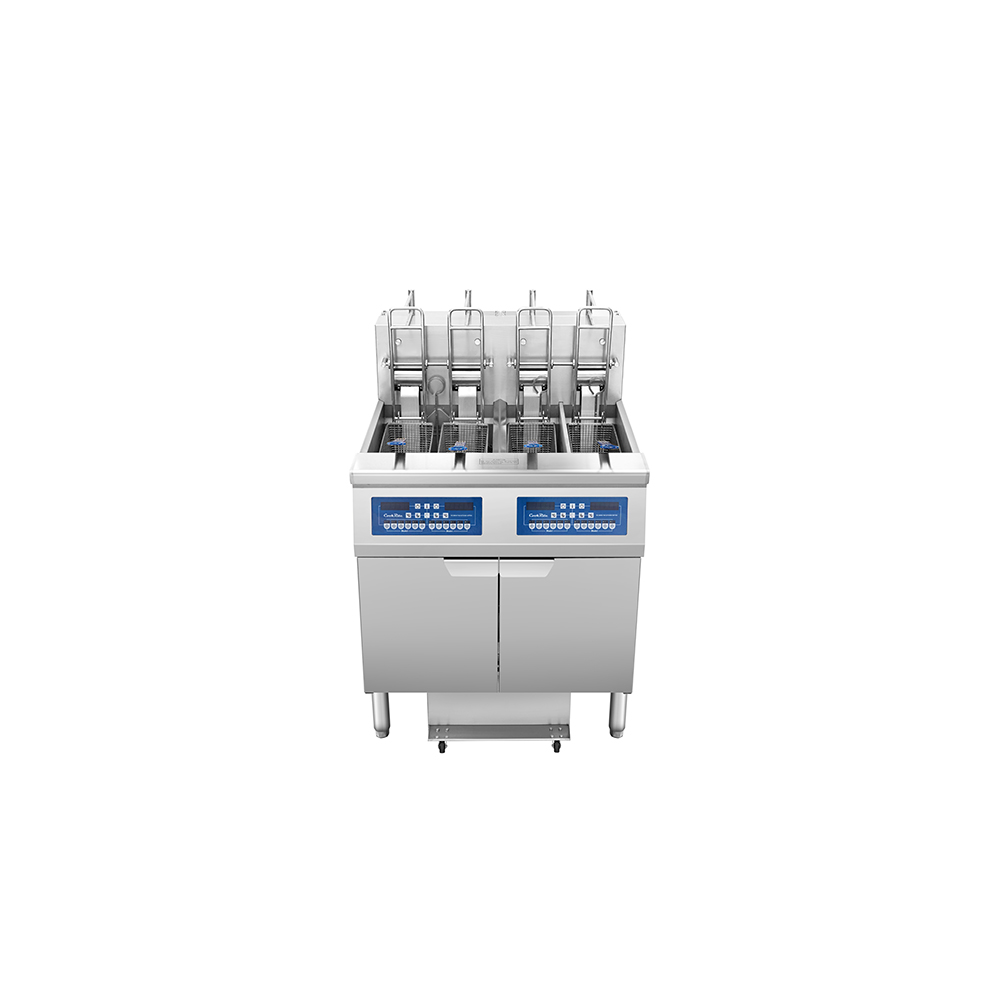

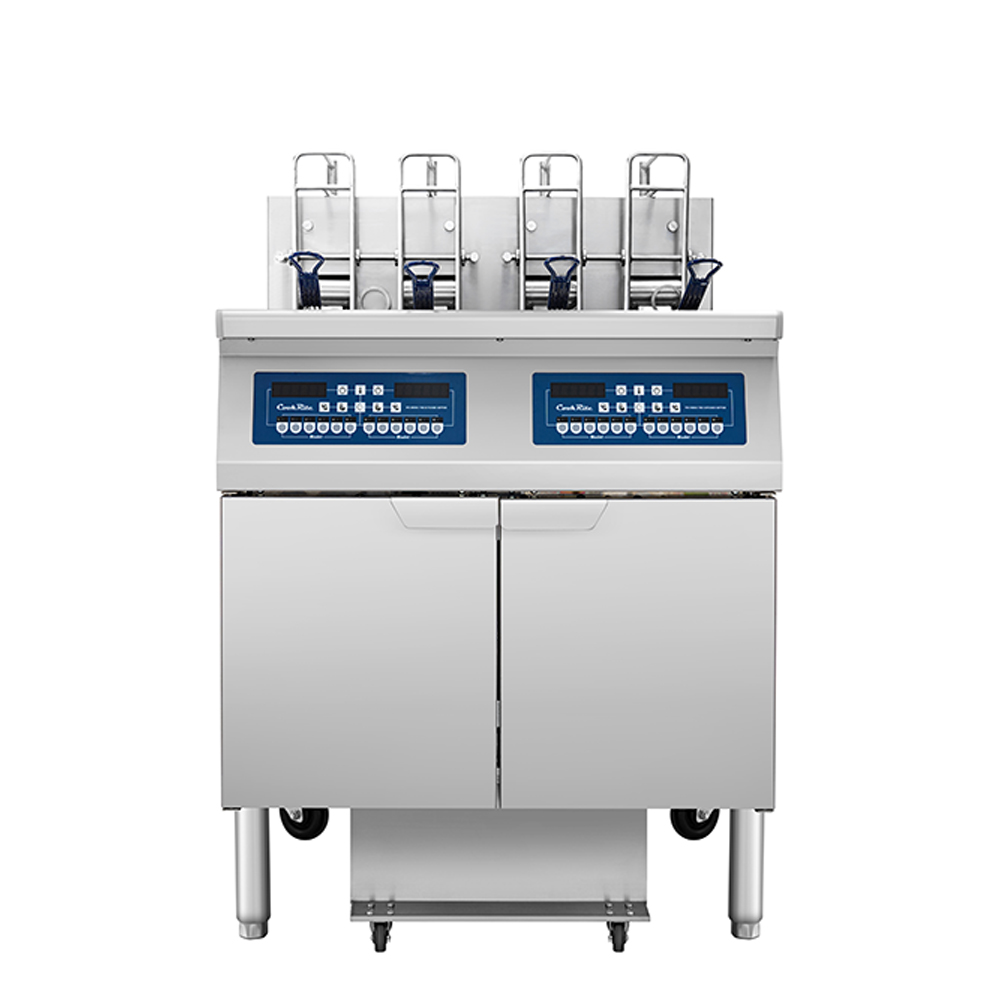

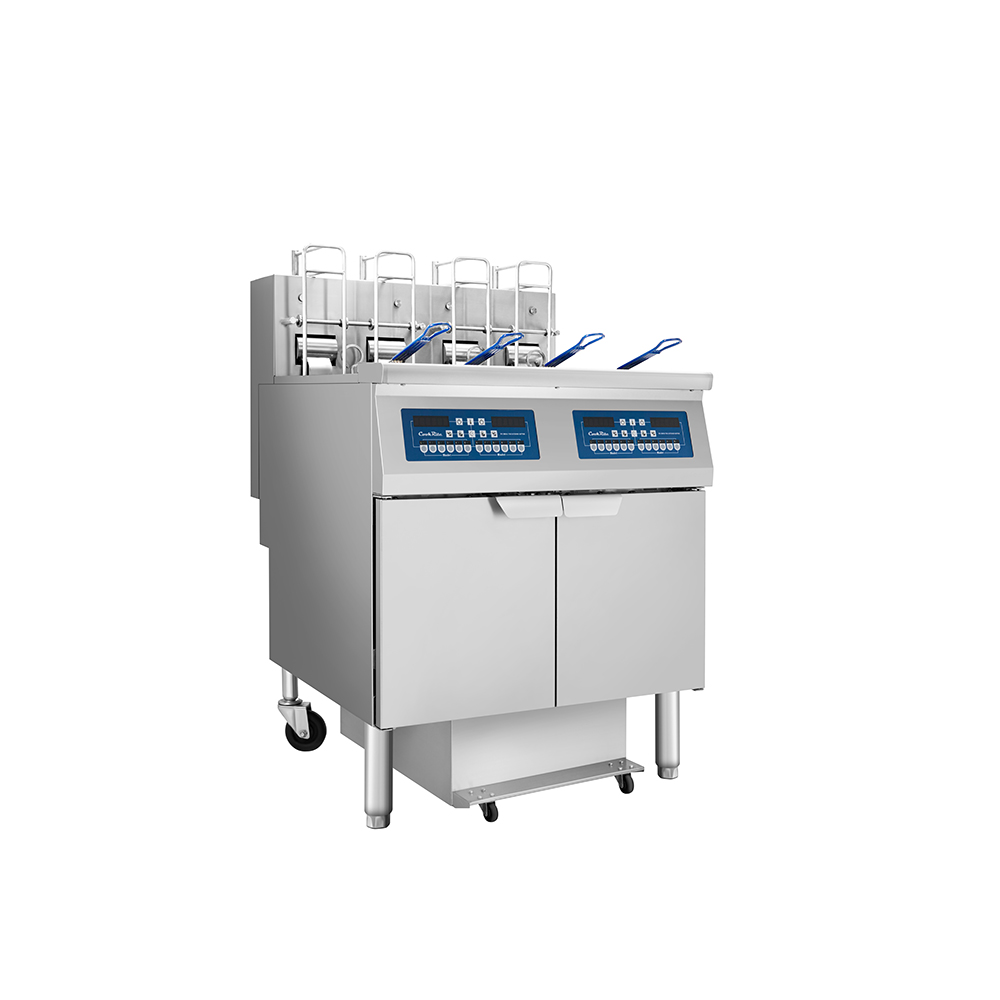

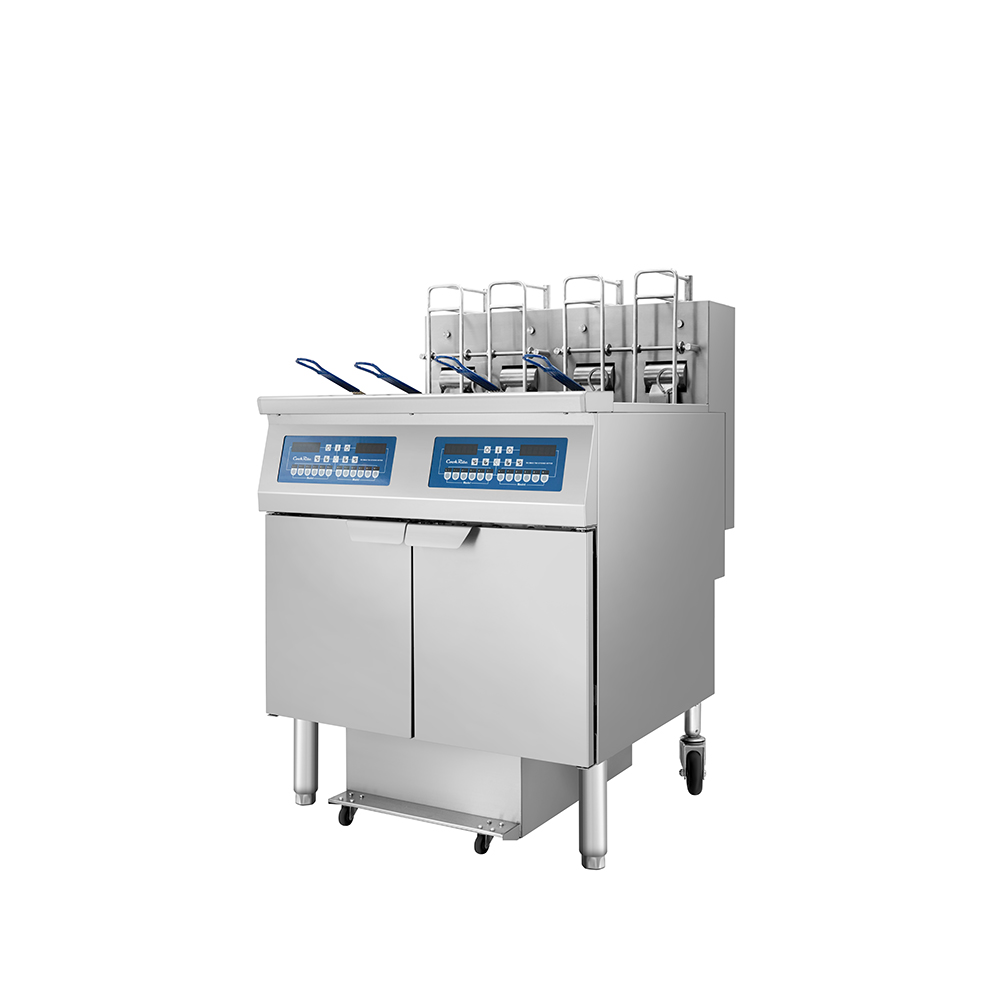

Atosa USA AEFF-50-2TB — Double Vat Electric Fryer with Auto Lift, Left Full / Right Split
The AEFF-50-2TB is a double vat electric fryer battery with the auto lift system: a 50 lb full vat on the left and a split vat on the right divided into two 25 lb wells, giving three independently programmed cooking wells. Baskets rise on their own at the end of the cycle, built-in filtration with a pump is standard, and every tank comes with two baskets.
Key Features of the AEFF-50-2TB
A split vat plus an auto lift covers two problems at once: small-batch items get their own oil, and nothing overcooks because the station got busy.
One Full Vat Plus a Split Vat
The left tank is a full 50 lb vat at 17 kW. The right tank is split into two 25 lb wells at 8.5 kW each, so two low-volume items can run side by side in their own oil.
Auto Lift System
Baskets rise automatically at the end of the programmed cycle, so nothing sits in hot oil waiting for a cook to come back to it.

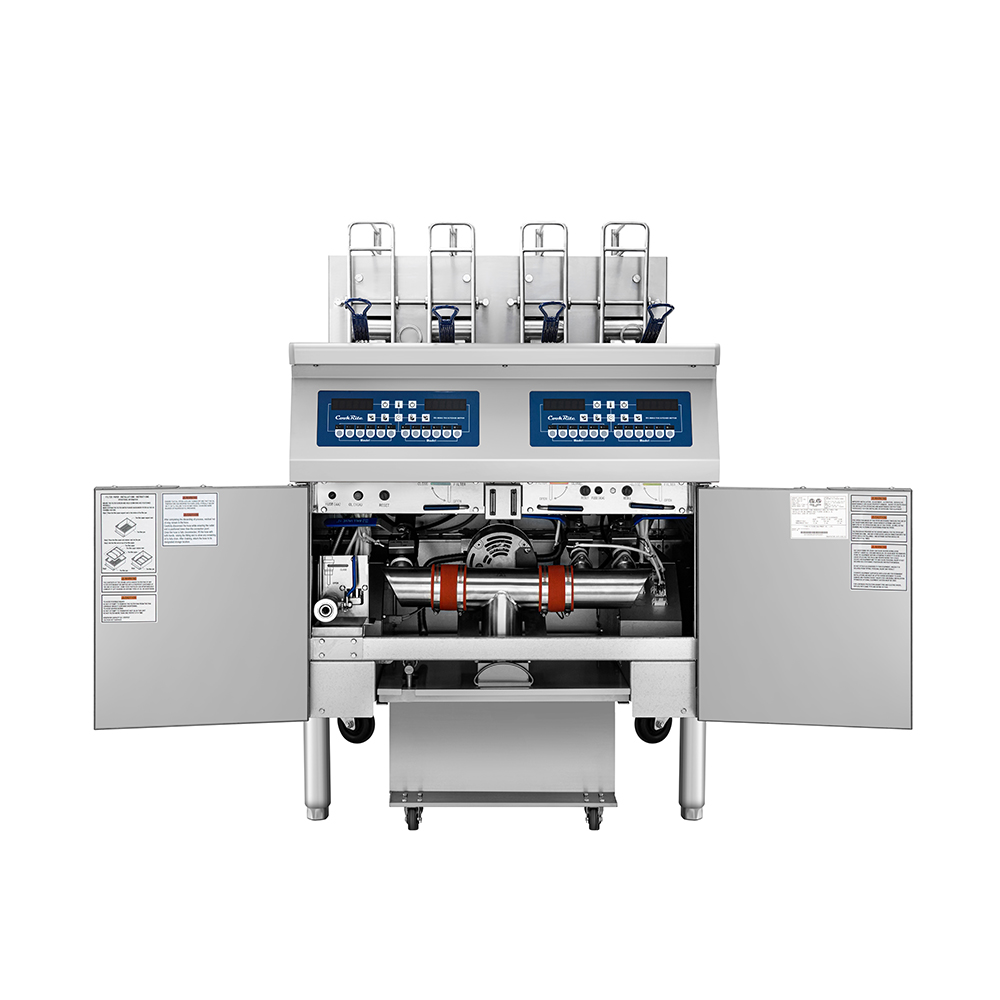

Built-In Filtration with Pump
The filtration system and pump are part of the battery, so oil is cleaned in place at the end of service rather than moved to a separate filter machine.
Fully Programmable Electronic Controls
Each well is programmed independently, which matters most on a split vat where the two sides are usually running different products at different times.
34 kW on 208V Three Phase
One 17 kW full vat and two 8.5 kW split wells add up to 34 kW, drawn at 48 A per wire on a minimum 6/4 AWG supply.
Two Casters, Two Legs
Single and double battery models ship with two casters at the rear and two legs at the front, so the battery rolls forward for cleaning and sits level in service.
Electrical note: the AEFF-50-2TB requires 208V three phase with a minimum wire size of 6/4 AWG and 48 A per wire. The full vat is rated 17 kW and the two split wells 8.5 kW each. Confirm the service at the install site before ordering.
Ideal Applications
This configuration suits a menu with one high-volume fry item and a couple of low-volume ones that still need their own oil.
AEFF-50-2TB Specifications
| Model | AEFF-50-2TB |
|---|---|
| Brand | Atosa USA |
| Type | Double vat electric fryer battery with auto lift system (left full vat, right split vat) |
| Vat Configuration | 1 full vat + 1 split vat (2 wells) |
| Oil Capacity | 50 lb + 2 x 25 lb (100 lb total) |
| Auto Lift | Standard |
| Baskets | 2 fryer baskets per tank |
| Tank Material | Stainless steel |
| Filtration | Built-in filtration system with pump |
| Controls | Fully programmable electronic controls |
| Power | 17 kW + 2 x 8.5 kW (34 kW total) |
| Voltage | 208V, 3 phase |
| Amps Per Wire | 48 A |
| Minimum Wire Size | 6/4 AWG |
| Casters / Legs | 2 casters at the rear, 2 legs at the front |
| Exterior Dimensions (W x D x H) | 31" x 33-3/4" x 48-1/2" |
| Packing Dimensions (W x D x H) | 34-1/4" x 37-5/8" x 54-3/8" |
| Net Weight | 419 lb |
| Gross Weight | 529 lb |
| Filter Paper | FP-1728-5 (17" x 22", 100 sheets per box) |
| Related Models | AEFF-50-2T (same configuration without auto lift), AEFF-50-2B (double full vat with auto lift), AEFF-50-1TB (single split vat with auto lift), AEFF-50-3TB (triple, right split vat, with auto lift) |
| Warranty | 1 year parts and labor |
Optional Accessories
Filter paper is the consumable the built-in filtration runs on; the rest are optional add-ons Atosa lists for the AEFF-50 series.
| FP-1728-5 | Filter paper, 17" x 22", 100 sheets per box |
|---|---|
| Fryer Mesh Screen | Optional |
| Vessel Covers | Optional |
| Side Splash | Optional |
Frequently Asked Questions
How is the AEFF-50-2TB configured?
Two tanks: a 50 lb full vat on the left and a split vat on the right divided into two 25 lb wells. That gives three independently programmed cooking wells and 100 lb of oil in total.
What does the auto lift system do?
It raises the baskets out of the oil automatically when the programmed cycle ends, so product does not keep cooking while a cook is somewhere else on the line.
What are the electrical requirements?
208V three phase, 48 A per wire, on a minimum 6/4 AWG supply. The full vat is 17 kW and each split well is 8.5 kW, for 34 kW in total.
Does it include a filtration system?
Yes. A built-in filtration system with a pump is standard, and it runs on FP-1728-5 filter paper, 17" x 22", 100 sheets per box.
How many baskets come with the AEFF-50-2TB?
Two fryer baskets per tank.
What optional accessories are available?
Atosa lists an optional fryer mesh screen, vessel covers and a side splash for the AEFF-50 series.
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | AEFF-50-2TB |
| Brand | Atosa USA |
| Weight | 529.00 lbs |
| Dimensions (HxWxD) | 55.00 x 34.00 x 38.00 inches |
| Height | 55.00 |
| Width | 34.00 |
| Depth | 38.00 |
| Fryer Quantity | (3) tanks |
| With or without basket lifts | with basket(s) |
| Fat Capacity (approximate) | 50 lbs each |
| Filter | built-in filter |
| Fry pot | stainless steel |
| Exterior Finish | all stainless steel exterior |
|
