Atosa USA MGF8462GR Chef Base Freezer, 2 Drawers, 60"W, 4.3 cu. ft., Stainless Steel, R290, ENERGY STAR
Chef Base Freezer
60" Two-Drawer Chef Base Freezer with a Reinforced Equipment Top

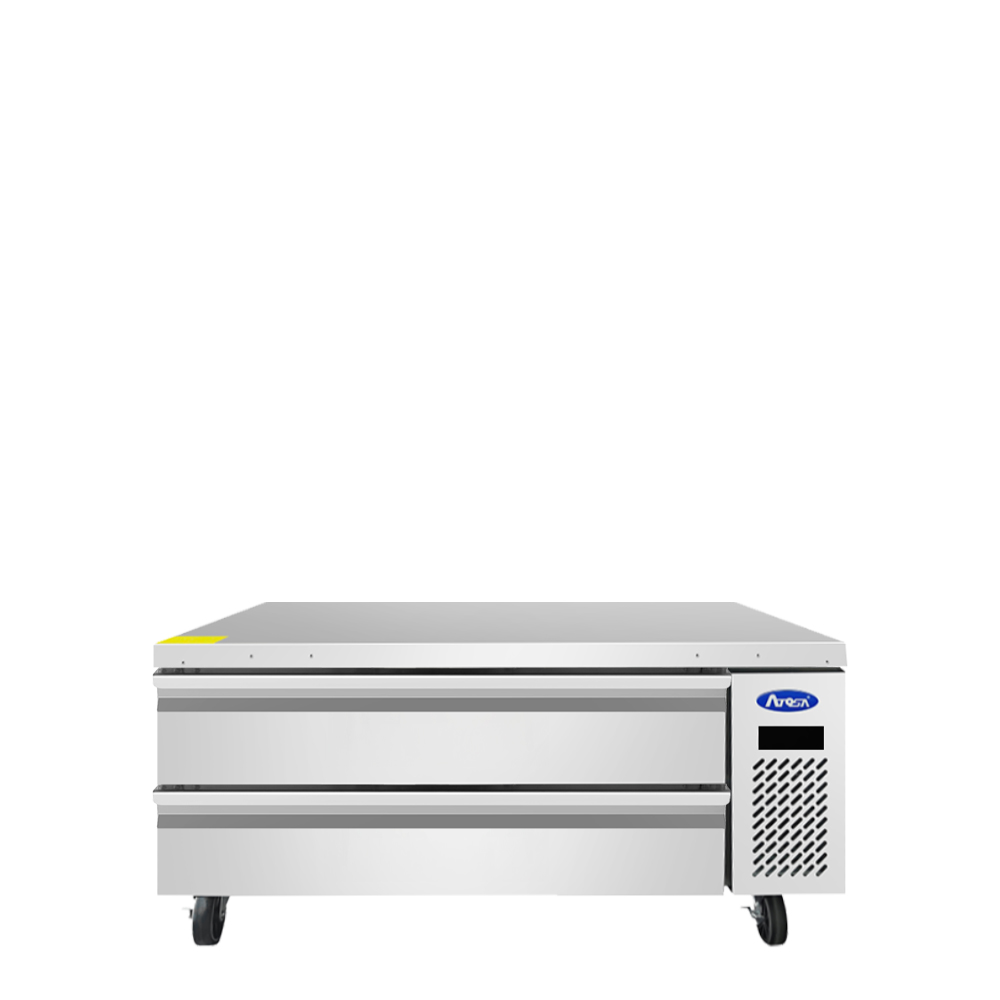

The Atosa USA MGF8462GR turns the space under a countertop cooking line into 4.3 cubic feet of frozen storage. A one-piece heavy duty reinforced stainless steel top carries the charbroiler, griddle or fryer battery above, while two full-width drawers below hold six 12" × 20" pans of frozen product at -8°F to 1°F. It is 60" wide and 26-1/4" high — equipment-stand height, so the cooking surface lands where the crew expects it.
Built to Carry Equipment
Reinforced One-Piece Top
A one-piece heavy duty reinforced stainless steel top is built to support countertop cooking equipment, not just act as a lid on a cold box.
Six 12" × 20" Pans
The two drawers hold and include six 6" deep 12" × 20" stainless steel pans — full-size hotel pans, ready to load on delivery.
-8°F to 1°F Holding
An electronic temperature controller holds the cabinet between -8°F and 1°F, with a heavy duty compressor on R290 refrigerant.
Heavy Duty Drawer Slides
Heavy duty stainless steel drawer slides and rollers under a loaded 12" × 20" pan, with magnetic drawer gaskets sealing each one on close.
Corner Guards Included
Corner guards and pull out handles are included — the parts that take the abuse when a rack cart comes around the corner.
5" Casters Pre-Installed
Ships on pre-installed 5" casters, so a loaded cook line can still be rolled forward to clean behind and underneath.
Give the base room to breathe and clean the condenser frequently — a chef base sits under hot equipment, and airflow across the coil is what keeps it holding -8°F.
Where It Works
Specifications
| Model | MGF8462GR |
|---|---|
| Type | Chef base freezer / refrigerated equipment stand |
| Drawers | 2 |
| Capacity | 4.3 cu. ft. |
| Pans per Unit | 6 × 12" × 20", 6" deep stainless steel, included |
| Temperature Range | -8°F – 1°F |
| Exterior Dimensions | 60"W × 32"D × 26-1/4"H |
| Refrigerant | R290 |
| Power | 600 W |
| Rated Current | 6 A |
| Electrical | 115V / 60 Hz / 1-ph, NEMA 5-15P |
| Casters | 5", pre-installed |
| Construction | Stainless steel exterior and interior, one-piece reinforced stainless top, corner guards |
| Net Weight | 269 lb |
| Gross Weight | 344 lb |
Covered by a 3 year parts and labor warranty plus a 5 year compressor part warranty. Extended warranty coverage up to 5 years is available.
Frequently Asked Questions
How much does the MGF8462GR hold?
4.3 cubic feet across two drawers, with six 12" × 20" pans per unit.
Are pans included?
Yes. The drawers hold and include 6" deep 12" × 20" stainless steel pans.
Can it support cooking equipment on top?
Yes — that is what it is built for. The top is a one-piece heavy duty reinforced stainless steel top designed to support countertop equipment.
What temperature does it maintain?
An electronic temperature controller maintains the cabinet between -8°F and 1°F, which is also the range Atosa recommends for best food preservation.
What electrical does it require?
115V/60Hz/1-phase on a NEMA 5-15P plug, drawing 6 amps at 600 watts, with R290 refrigerant.
What warranty comes with it?
A 3 year parts and labor warranty plus a 5 year compressor part warranty, with extended warranty up to 5 years available.
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
