Atosa USA AUF24SD Undercounter Freezer, 1 Door, 23-7/8"W, 3.7 cu. ft., Stainless Steel, R290

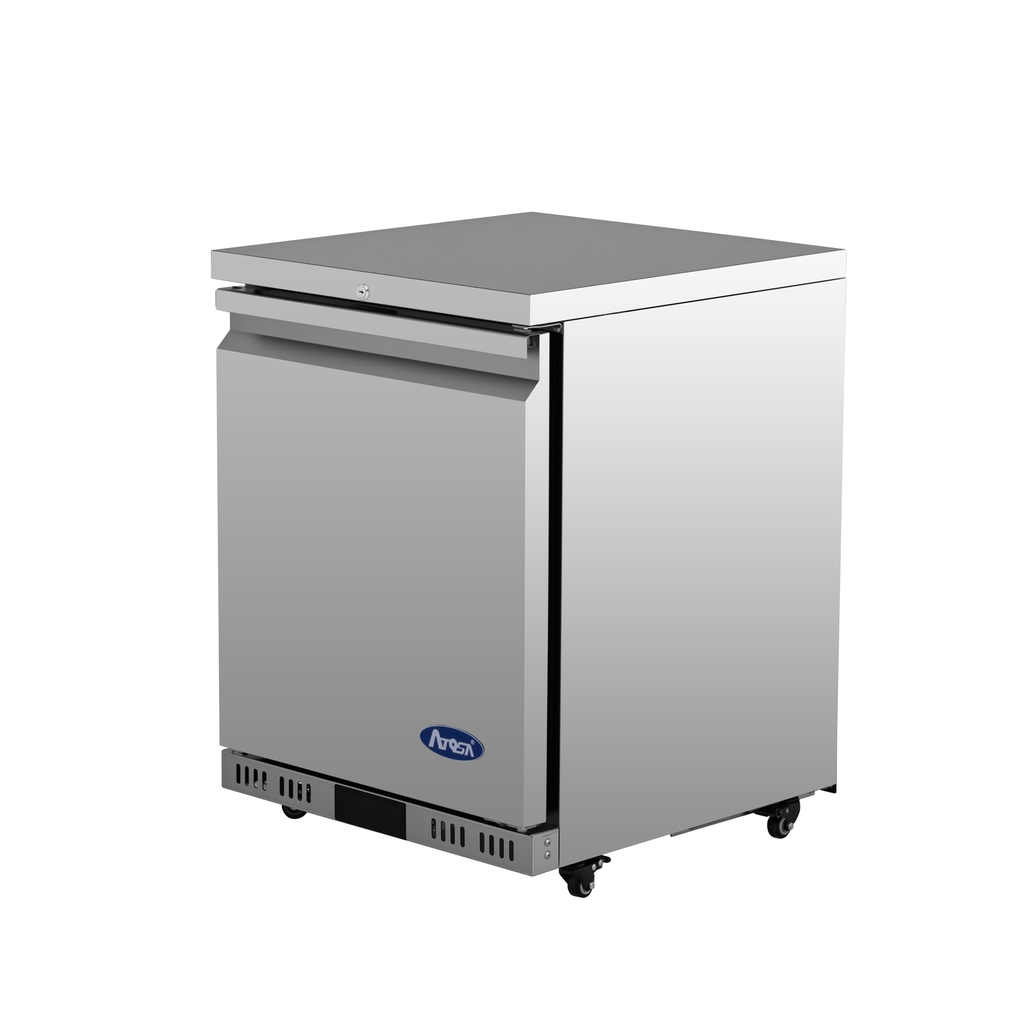

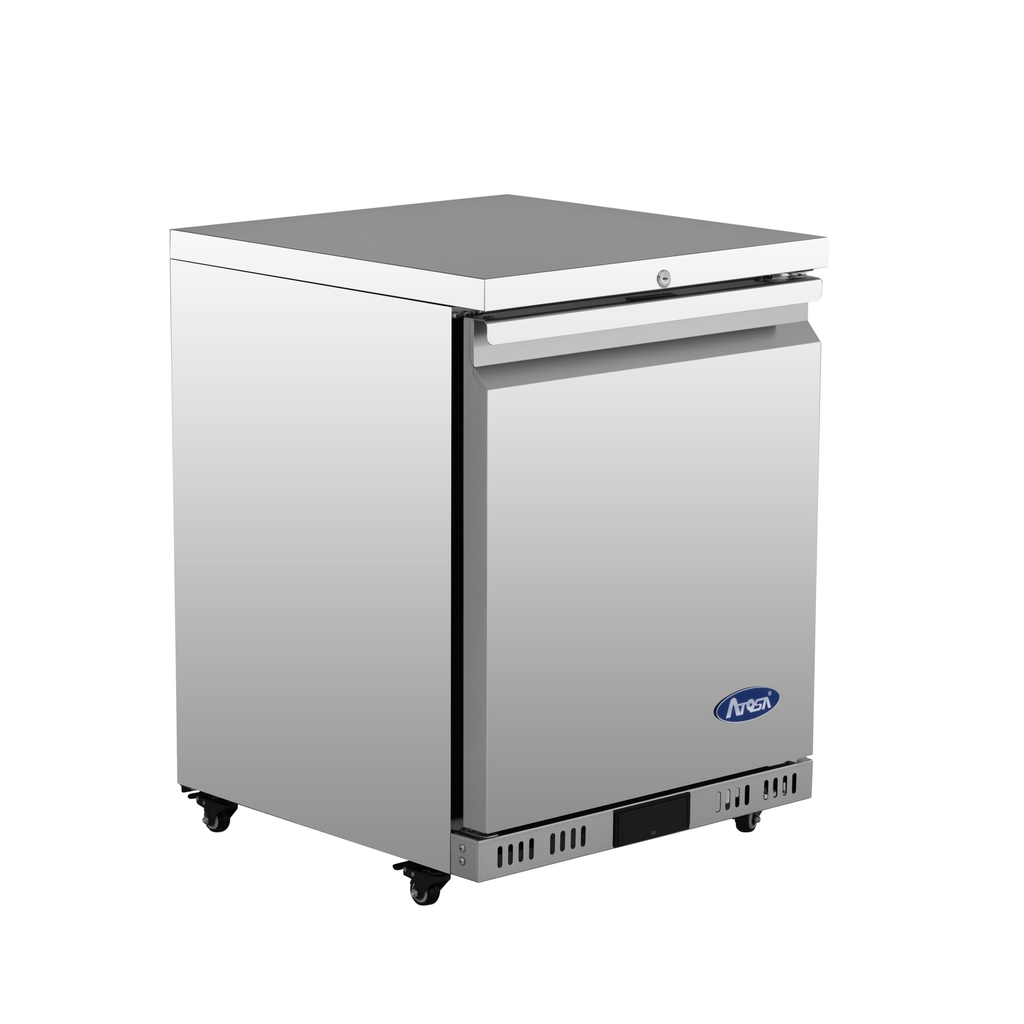

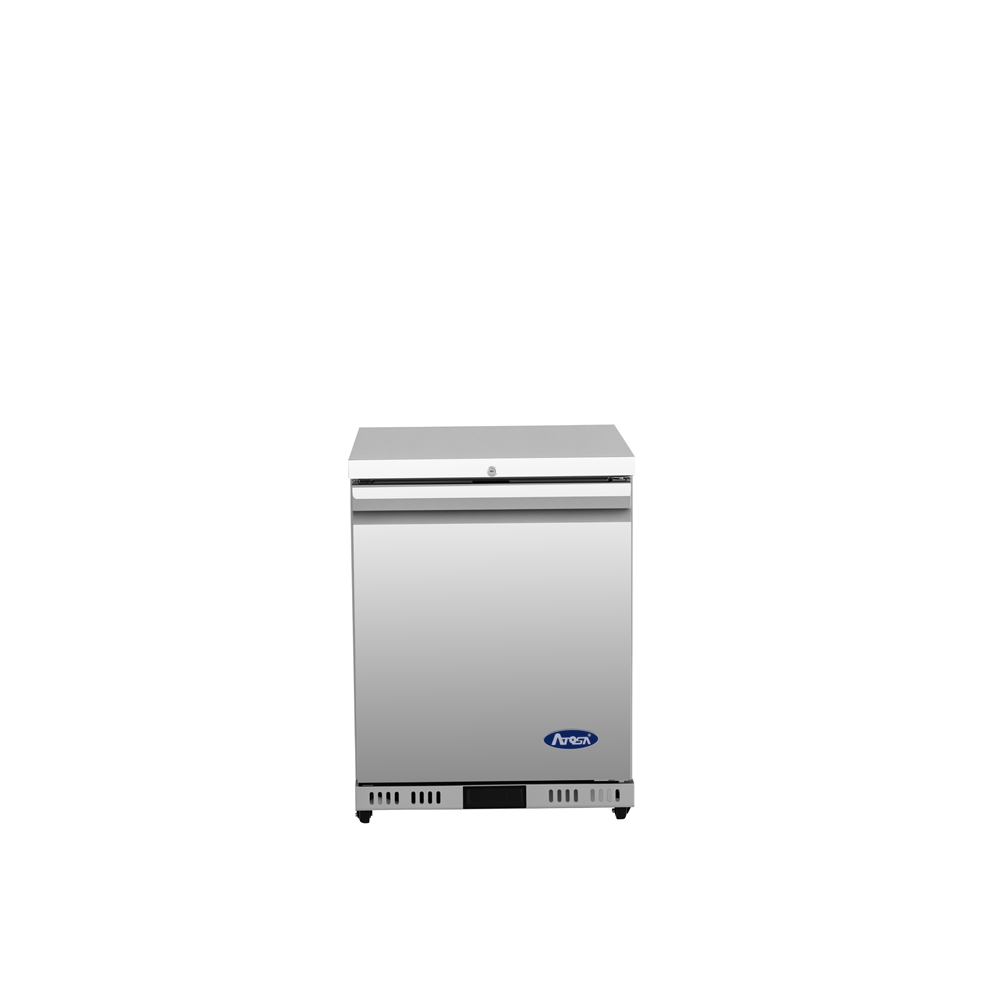

Atosa USA AUF24SD — 24" Undercounter Freezer, 1 Door
The AUF24SD is the narrowest cabinet in Atosa's AUF undercounter freezer line: 3.7 cu. ft. behind one field reversible door in a 23-7/8" wide stainless steel cabinet that is only 26" deep — four inches shallower than the rest of the series. A 1/5 HP R290 system holds -8°F to 0°F under an electronic controller, and two epoxy coated shelves come pre-installed.
Key Features of the AUF24SD
When the only free space is a narrow gap under a bar or the end of a prep run, cabinet width and depth decide the purchase before anything else does.
One Field Reversible Door
The door reverses on site so the swing suits the aisle, and it is self-closing with a stay open feature for loading with both hands.
-8°F to 0°F on R290
An environmentally friendly R290 system on a 1/5 HP compressor holds the cabinet in the -8°F to 0°F band Atosa recommends for food preservation.
Electronic Temperature Controller
The set point is read and adjusted directly on an electronic controller instead of being estimated from a dial, so drift is caught early.
26" Deep Cabinet
At 23-7/8" wide and 26" deep this is the compact body in the AUF SD line; the AUF27SD and everything above it are 30" deep.

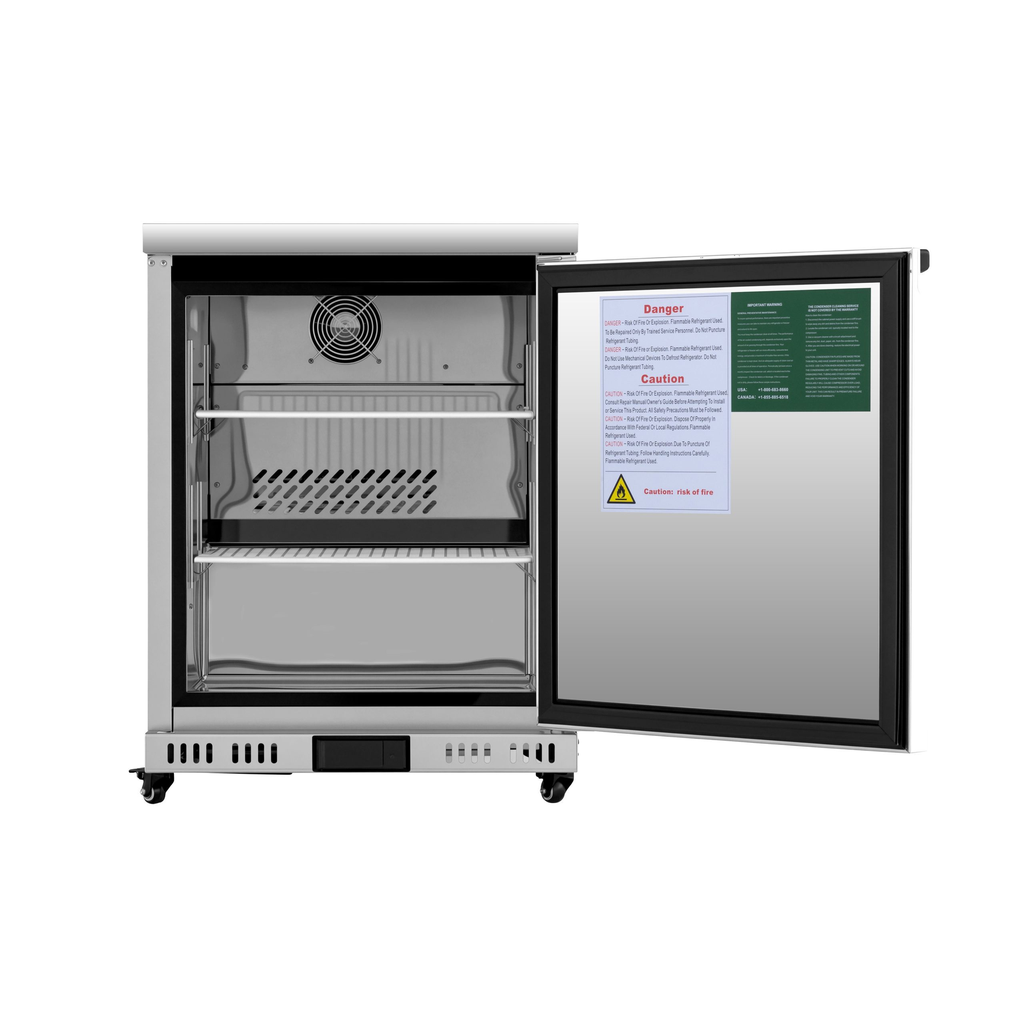

Two Epoxy Coated Shelves
Two pre-installed shelves split the section on three levels, so small packages stay reachable instead of being buried under everything loaded after them.
Pre-Installed 2" Casters
It ships on 2" heavy duty swivel plate casters, so the cabinet rolls out for cleaning behind and underneath.
Placement note: leave the unit room to breathe and clean the condenser frequently so it keeps drawing fresh air. Atosa recommends a freezer set point between -8°F and 0°F. The unit plugs into a standard NEMA 5-15P outlet at 115V, 15A and draws 2.4 A.
Ideal Applications
A 24" undercounter freezer is the frozen back-up for a station that has no floor space left for a reach-in.
AUF24SD Specifications
| Model | AUF24SD |
|---|---|
| Brand | Atosa USA |
| Type | Undercounter freezer |
| Doors | 1, field reversible, self-closing with stay open feature |
| Capacity | 3.7 cu. ft. |
| Shelves | 2 epoxy coated, pre-installed |
| Temperature Range | -8°F - 0°F |
| Refrigerant | R290 |
| Horsepower | 1/5 HP |
| Voltage | 115V / 60 Hz / 1 phase |
| Current | 2.4 A |
| Plug Type | NEMA 5-15P (15A / 125V) |
| Controller | Electronic temperature controller |
| Gaskets | Magnetic, standard |
| Construction | Stainless steel exterior and interior |
| Casters | 2" heavy duty swivel plate, pre-installed |
| Exterior Dimensions (W x D x H) | 23-7/8" x 26" x 32-1/2" |
| Net Weight | 108 lb |
| Gross Weight | 138 lb |
| Related Models | AUF27SD (1 door, 6.4 cu ft), AUF36SD (2 doors, 8.6 cu ft), AUF48SD (2 doors, 11.8 cu ft), AUF60SD (2 doors, 15 cu ft) |
| Warranty | 3 year parts and labor; 5 year compressor part |
Optional Accessories
Caster height changes the overall height of the cabinet, and coverage can be extended beyond the standard term.
| R06001000228 / R06001000229 | 1.2" swivel plate casters (with / without brake) — 31-1/4" overall height |
|---|---|
| R06001000063 | 1.5" swivel plate caster (with brake) — 31-7/8" overall height |
| B0604434 / B0604433 | 2" heavy duty swivel plate casters (with / without brake) — 32-3/8" overall height, standard |
| B0604421 / B0604413 | 4" swivel stem casters (with / without brake) — 34-3/8" overall height |
| B0604007 / B0604006 | 5" swivel stem casters (with / without brake) — 35-1/4" overall height |
| Extended Warranty | Available up to 5 years |
Frequently Asked Questions
How much does the AUF24SD hold?
3.7 cu. ft. behind a single door, with two epoxy coated shelves pre-installed.
What temperature does the AUF24SD hold?
Between -8°F and 0°F on an electronic temperature controller, the range Atosa recommends for the best results in food preservation.
How deep is the AUF24SD?
26" deep and 23-7/8" wide, with a cabinet height of 32-1/2" on the standard 2" casters. It is the only model in the AUF SD line that is not 30" deep.
Can the door be reversed?
Yes. The door is field reversible, self-closing with a stay open feature, and fitted with a magnetic gasket for a positive seal.
What are the electrical requirements?
115V, 60 Hz, single phase, drawing 2.4 A through a NEMA 5-15P plug rated 15A / 125V. The compressor is 1/5 HP on R290 refrigerant.
How does the AUF24SD compare to the other AUF undercounter freezers?
The AUF24SD is 23-7/8" wide with 1 door and 3.7 cu ft. The AUF27SD is 27-1/2" with 1 door and 6.4 cu ft, the AUF36SD is 36-3/8" with 2 doors and 8.6 cu ft, the AUF48SD is 48-1/4" with 2 doors and 11.8 cu ft, and the AUF60SD is 60-1/4" with 2 doors and 15 cu ft.
