Atosa USA AUF27SD Undercounter Freezer, 1 Solid Door, 27-1/2"W, 6.4 cu. ft., Stainless Steel, R290, ETL

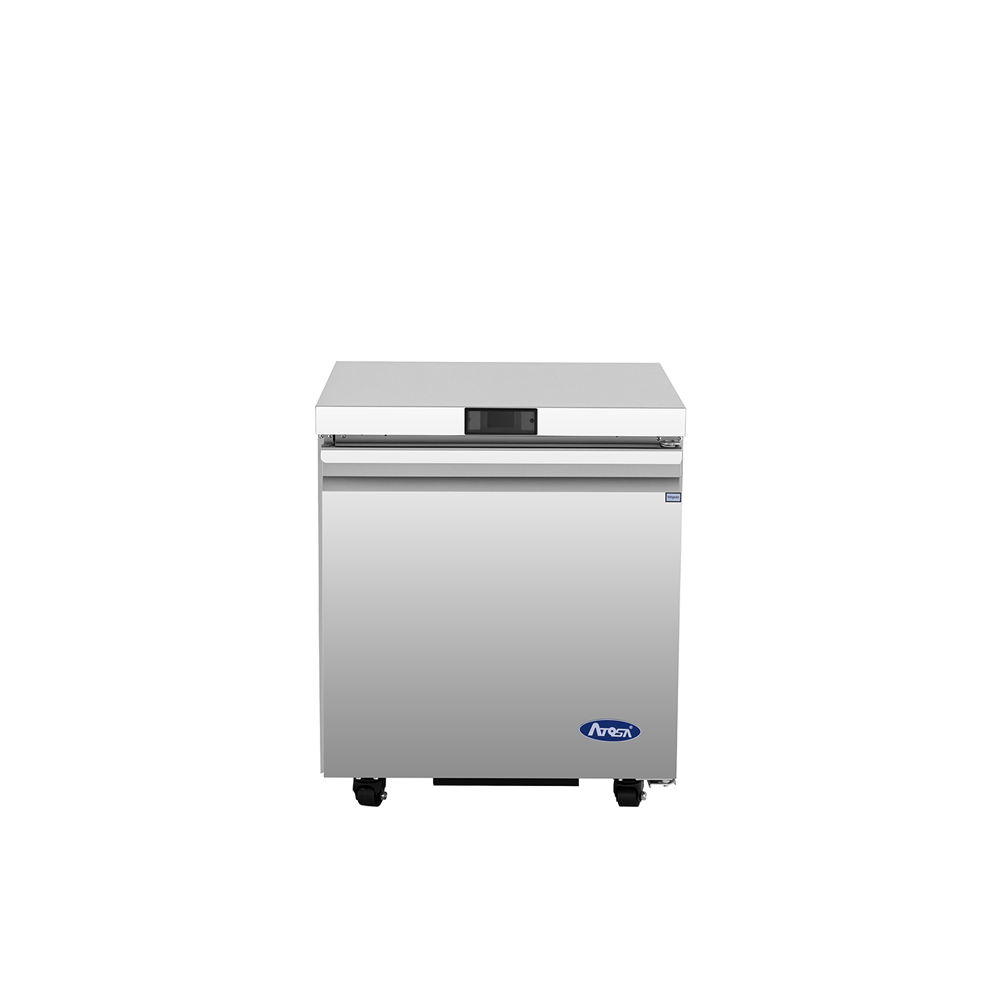

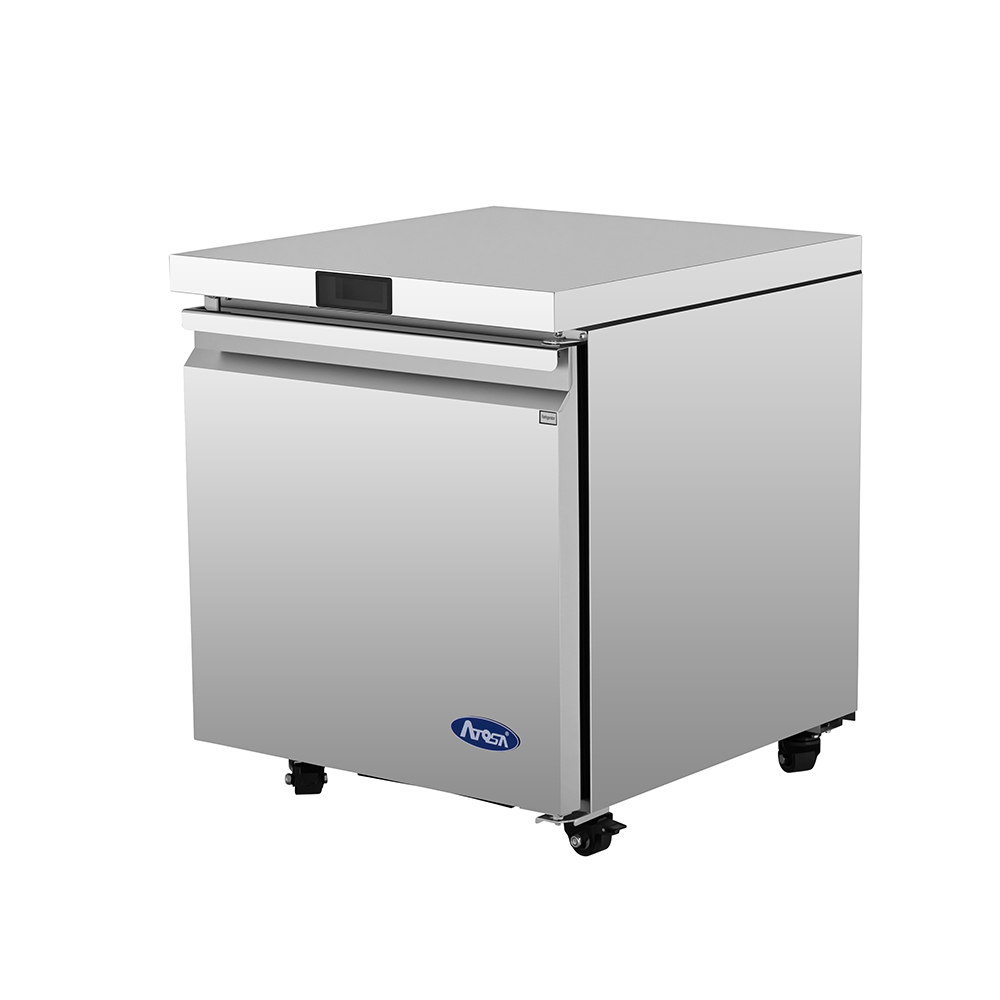

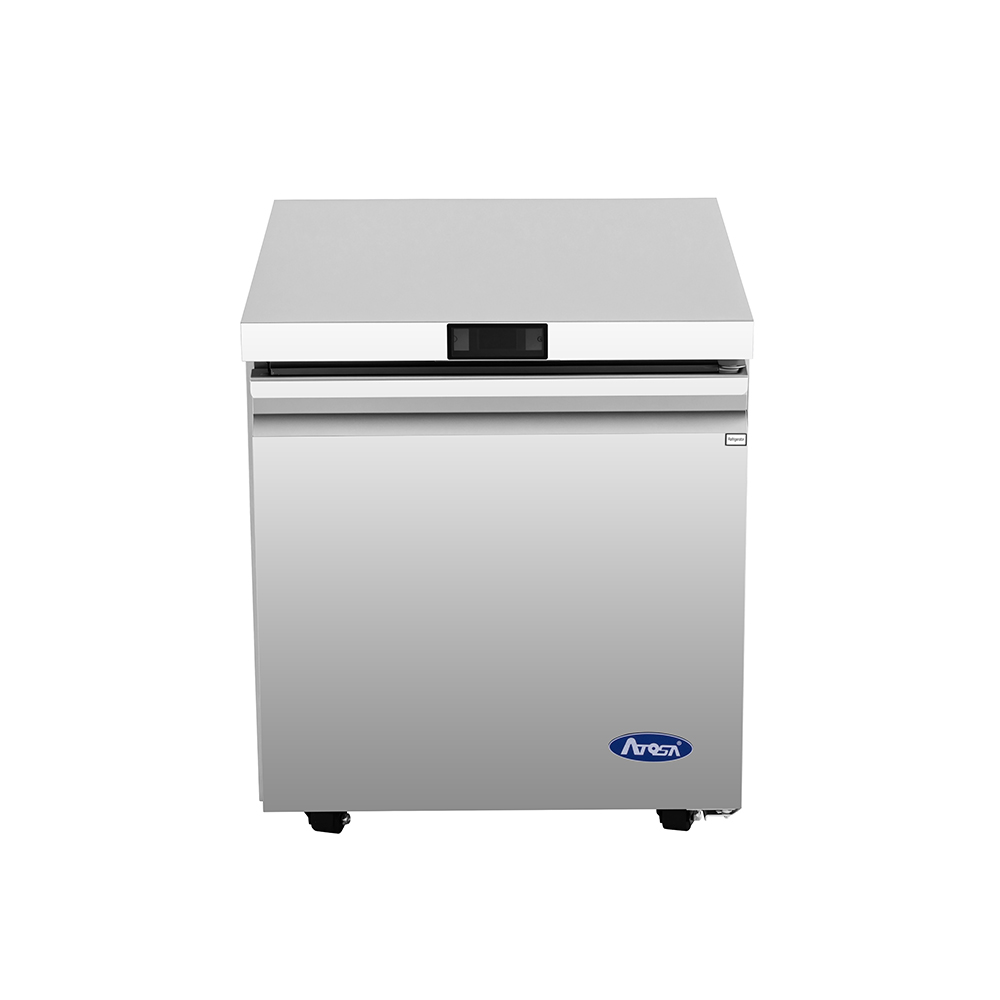

Atosa USA AUF27SD — 27-1/2" One-Door Undercounter Freezer
The AUF27SD is a one-section, 6.4 cu. ft. undercounter freezer with a single solid door, two adjustable epoxy-coated shelves and stainless steel construction inside and out. Rear-mounted self-contained refrigeration on R290 hydrocarbon refrigerant holds -8°F to 0°F under digital control, and the door is field reversible and self-closing with a stay-open feature.
Key Features of the AUF27SD
An undercounter freezer has to pull down and recover in the hottest part of the kitchen while staying out of the way. Here is how the AUF27SD manages it.
Holds -8°F to 0°F
An electronic temperature controller with digital readout keeps the cabinet between -8°F and 0°F, the range Atosa recommends for the best food preservation results.
Field Reversible, Self-Closing Door
The solid door can be hinged on either side in the field, closes itself after a quick reach, and has a stay-open feature for loading. A magnetic gasket holds the seal a freezer depends on.
R290 Refrigerant, Rear-Mounted System
Environmentally friendly R290 hydrocarbon refrigerant on a 1/5 HP rear-mounted self-contained system draws just 2.6 amps, with automatic evaporation of condensate.
Two Adjustable Epoxy Shelves
Two epoxy-coated shelves come pre-installed and adjust to what the station freezes, from boxed product to tall containers.
Stainless Steel Inside and Out
Stainless steel exterior and interior with a galvanized steel back — a cabinet built for wash-down and years of service on the line.
Casters Pre-Installed
Ships on 2" heavy duty swivel plate casters — B0604434 with brake, B0604433 without — so the unit rolls out for cleaning underneath and behind.
Installation and care: The unit vents through a rear grate, so leave it room to breathe and clean the condenser frequently to give it more fresh air. For the best food preservation results, set the freezer between -8°F and 0°F.
Optional Casters and Overall Height
The AUF27SD ships on 2" casters for a 32-3/8" overall height. Four other caster sets are available when the cabinet has to line up under an existing counter.
| 1.2" swivel plate casters (R06001000228 brake / R06001000229 no brake) | Overall height 31-1/4" |
|---|---|
| 1.5" swivel plate caster (R06001000063, with brake) | Overall height 31-7/8" |
| 2" heavy duty swivel plate casters (B0604434 brake / B0604433 no brake) — standard | Overall height 32-3/8" |
| 4" swivel stem casters (B0604421 brake / B0604413 no brake) | Overall height 34-3/8" |
| 5" swivel stem casters (B0604007 brake / B0604006 no brake) | Overall height 35-1/4" |
Ideal Applications
A single-door undercounter freezer belongs wherever frozen product is pulled often enough that walking to the walk-in costs time.
AUF27SD Specifications
| Model | AUF27SD |
|---|---|
| Type | Undercounter reach-in freezer, one section |
| Doors | (1) hinged solid door, field reversible, self-closing with stay open feature |
| Capacity | 6.4 cu. ft. |
| Shelves | (2) adjustable epoxy-coated, pre-installed |
| Exterior Dimensions (W x D x H) | 27-1/2" x 30" x 32-1/2" |
| Temperature Range | -8°F – 0°F |
| Refrigeration | Rear-mounted, self-contained, automatic evaporation |
| Refrigerant | R290 hydrocarbon |
| Horsepower | 1/5 HP |
| Electrical | 115V / 60 Hz / 1-phase, 2.6 amps, NEMA 5-15P |
| Construction | Stainless steel exterior and interior, galvanized steel back |
| Casters | 2" heavy duty swivel plate, pre-installed |
| Venting | Rear grate |
| Certifications | cETLus, ETL Sanitation |
| Net Weight | 106 lb |
| Gross Weight | 137 lb |
| Brand | Atosa USA |
Frequently Asked Questions
What are the dimensions of the Atosa AUF27SD?
Exterior dimensions are 27-1/2" wide x 30" deep x 32-1/2" high. Net weight is 106 lb and gross shipping weight is 137 lb.
How cold does the AUF27SD get?
The electronic temperature controller maintains the cabinet between -8°F and 0°F, which is the range Atosa recommends for the best food preservation results.
Can the door be hinged on the other side?
Yes. The solid door is field reversible, so it can be re-hung to open away from the aisle or the next piece of equipment.
How many shelves come with it?
Two adjustable epoxy-coated shelves are pre-installed.
What electrical connection does it need?
It runs on 115V / 60 Hz / 1-phase, draws 2.6 amps and plugs into a standard NEMA 5-15P receptacle. The compressor is 1/5 HP on R290 refrigerant.
How does the AUF27SD compare to the other AUF models?
The AUF27SD is the 27-1/2", 1-door, 6.4 cu. ft. model. The series also includes the AUF24SD (1 door, 3.7 cu. ft.), AUF36SD (2 doors, 8.6 cu. ft.), AUF48SD (2 doors, 11.8 cu. ft.) and AUF60SD (2 doors, 15 cu. ft.). The matching AUR27SD is the refrigerator version of this cabinet.
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | AUF27SD |
| Brand | Atosa USA |
| Weight | 137.00 lbs |
| Dimensions (HxWxD) | 32.50 x 27.50 x 30.00 inches |
| Height | 32.50 |
| Width | 27.50 |
| Depth | 30.00 |
| Width | 24" - 32" |
| Exterior Finish | galvanized & stainless steel exterior |
| Size | 1 section |
| Compressor HP | 1/5 HP |
| Refrigeration | self-contained, rear mounted |
| Doors | solid door(s) |
| Access Type | doors |
|
