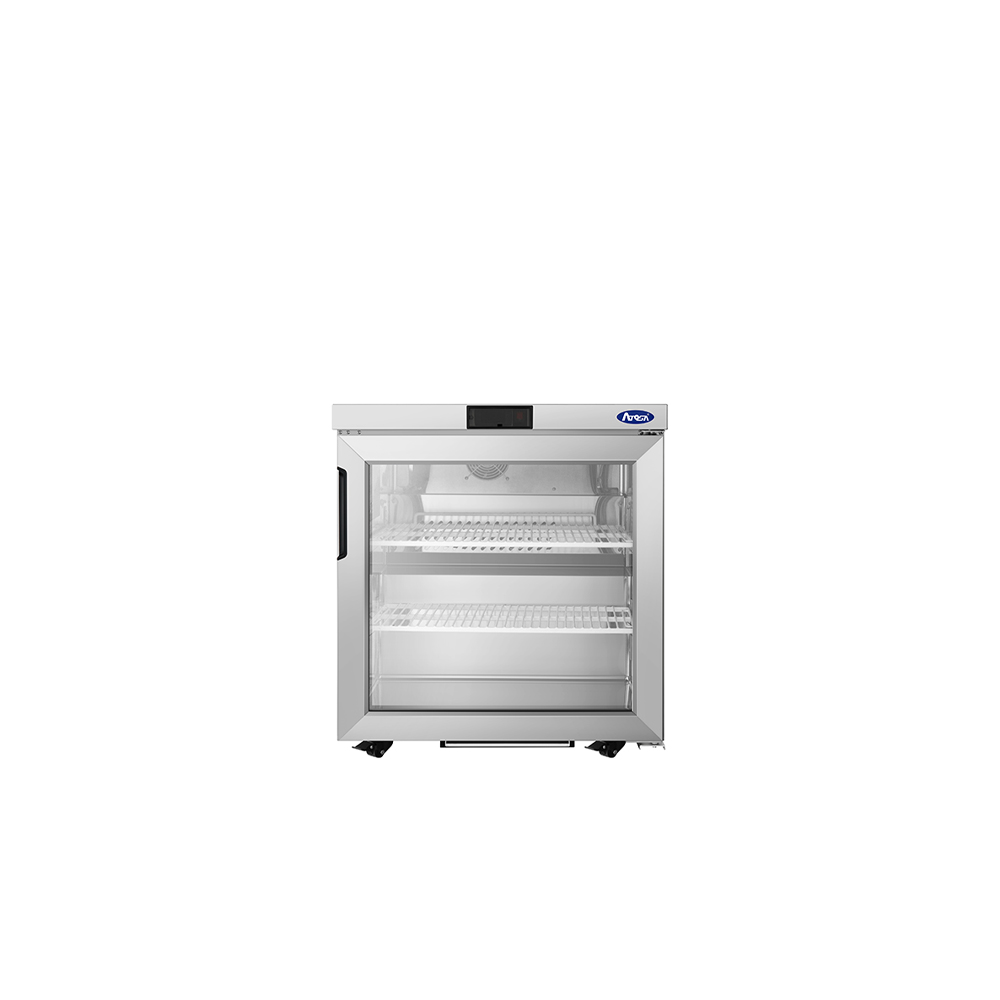

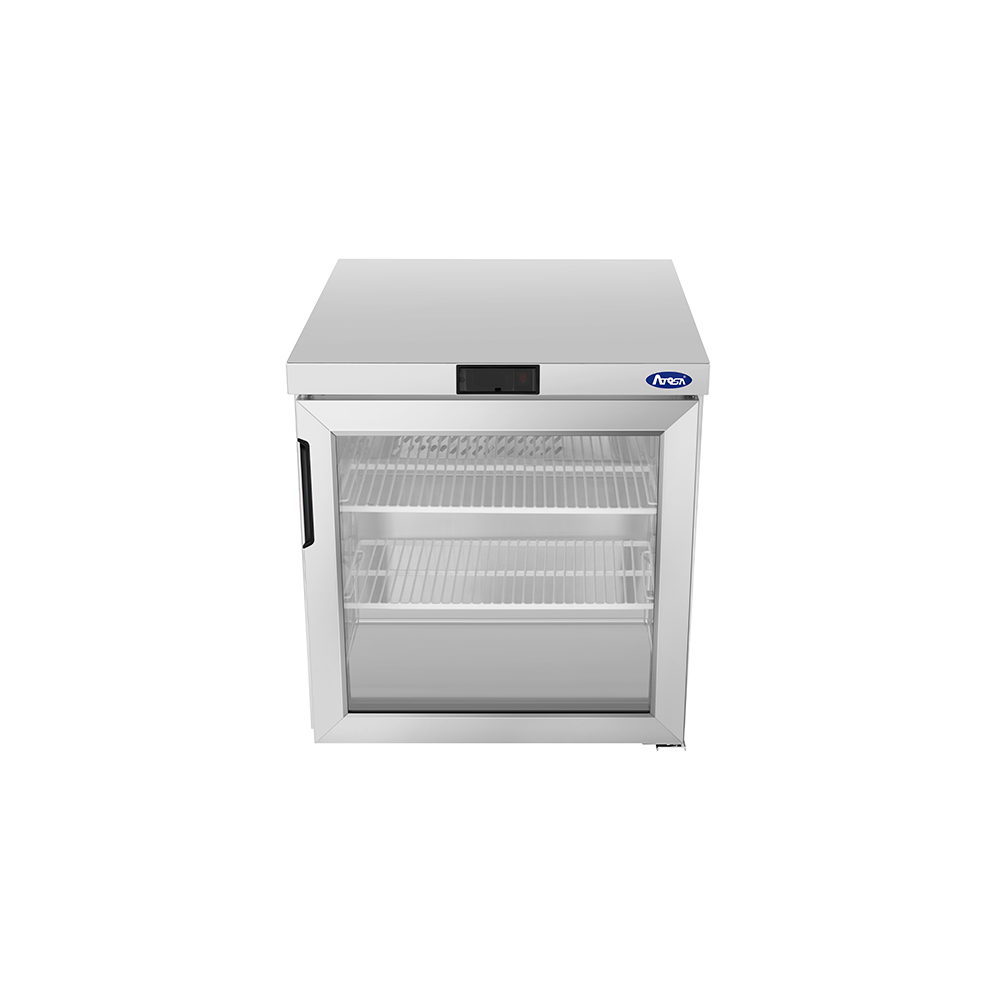

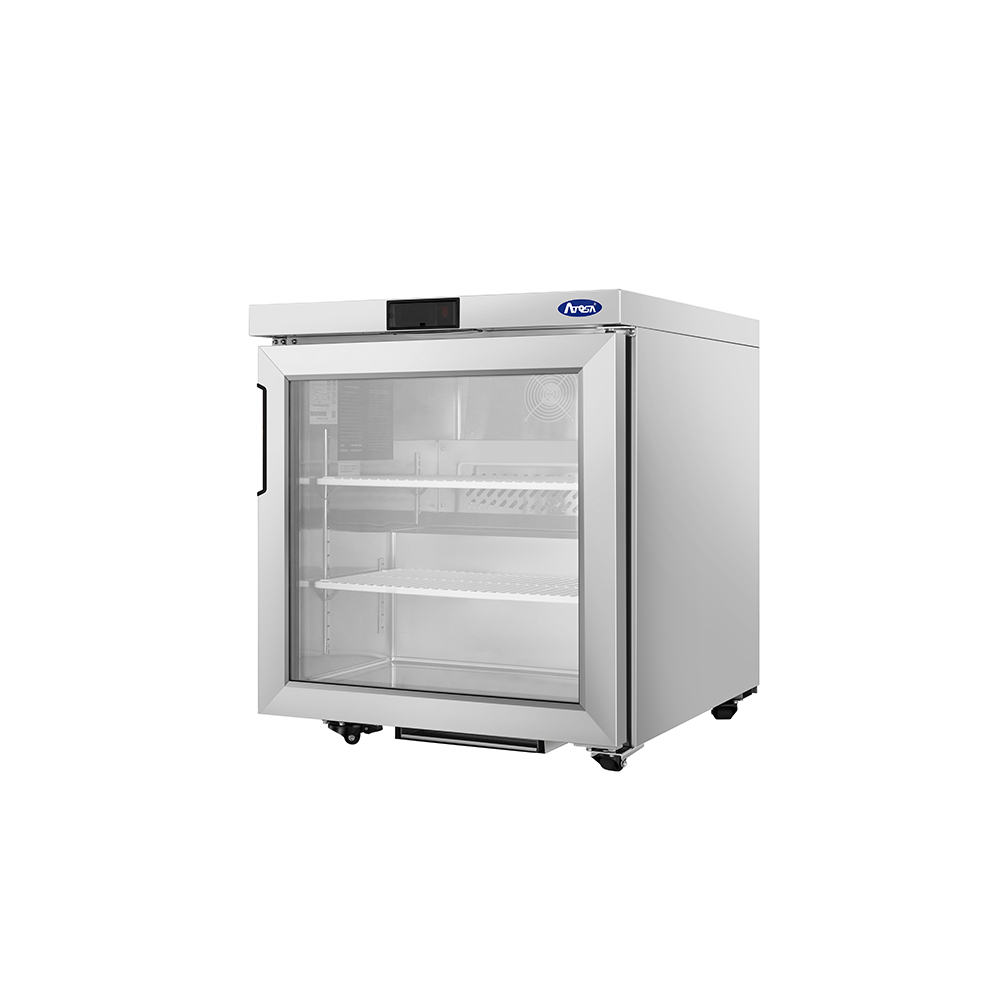

Atosa USA AUR27GD Undercounter Refrigerator, 1 Glass Door, 27-1/2"W, 6.4 cu. ft., Stainless Steel, R290, ETL
Atosa USA AUR27GD — 27-1/2" Glass Door Undercounter Refrigerator
The AUR27GD is a 6.4 cu. ft. undercounter refrigerator with a single glass door, so staff and guests can see the product without opening the cabinet. Stainless steel inside and out, it runs environmentally friendly R290 refrigerant on a 1/6 HP system with an electronic temperature controller holding 35°F to 38°F, and the door is self-closing with a stay-open feature.
Key Features of the AUR27GD
A glass door earns its place when product needs to be seen — but it still has to hold temperature in a hot kitchen. Here is how this cabinet manages both.
Glass Door, Self-Closing
The glass door shows what is inside without opening it, closes itself after a quick reach, and has a stay-open feature for restocking. A magnetic gasket gives a positive seal.
Electronic Control, 35°F–38°F
An electronic temperature controller maintains 35°F to 38°F, the range Atosa recommends for the best food preservation results.
R290 Refrigerant, 1/6 HP
Environmentally friendly R290 refrigerant on a 1/6 HP system draws just 2.3 amps from a standard 115V circuit.
Epoxy-Coated Shelf
One pre-installed epoxy shelf divides the cabinet and adjusts to the product being merchandised, whether that is bottles, cans or prepared containers.
Stainless Steel Inside and Out
Stainless steel exterior and interior — a cabinet built for wash-down and for looking presentable in a customer-facing position.
Casters Pre-Installed
Ships on 2" heavy duty swivel plate casters — B0604434 with brake, B0604433 without — so the unit rolls out for cleaning underneath and behind.
Installation and care: The unit vents through a rear grate, so leave it room to breathe and clean the condenser frequently to give it more fresh air. For the best food preservation results, set the refrigerator between 35°F and 38°F.
Optional Casters and Overall Height
The AUR27GD ships on 2" casters for a 32-3/8" overall height. Four other caster sets are available when the cabinet has to line up under an existing counter.
| 1.2" swivel plate casters (R06001000228 brake / R06001000229 no brake) | Overall height 31-1/4" |
|---|---|
| 1.5" swivel plate caster (R06001000063, with brake) | Overall height 31-7/8" |
| 2" heavy duty swivel plate casters (B0604434 brake / B0604433 no brake) — standard | Overall height 32-3/8" |
| 4" swivel stem casters (B0604421 brake / B0604413 no brake) | Overall height 34-3/8" |
| 5" swivel stem casters (B0604007 brake / B0604006 no brake) | Overall height 35-1/4" |
Ideal Applications
A glass door undercounter belongs wherever the product itself does the selling, or where staff need to find something without opening the door.
AUR27GD Specifications
| Model | AUR27GD |
|---|---|
| Type | Glass door undercounter refrigerator |
| Doors | (1) glass, self-closing with stay open feature |
| Capacity | 6.4 cu. ft. |
| Shelves | (1) epoxy coated, pre-installed |
| Exterior Dimensions (W x D x H) | 27-1/2" x 30" x 32-1/2" |
| Temperature Range | 35°F – 38°F |
| Refrigerant | R290 |
| Horsepower | 1/6 HP |
| Electrical | 115V / 60 Hz / 1-phase, 2.3 amps, NEMA 5-15P |
| Construction | Stainless steel exterior and interior |
| Casters | 2" heavy duty swivel plate, pre-installed |
| Venting | Rear grate |
| Optional | Field installable drawer cartridges |
| Certifications | cETLus, ETL Sanitation |
| Net Weight | 137 lb |
| Gross Weight | 168 lb |
| Brand | Atosa USA |
Frequently Asked Questions
What are the dimensions of the Atosa AUR27GD?
Exterior dimensions are 27-1/2" wide x 30" deep x 32-1/2" high. Net weight is 137 lb and gross shipping weight is 168 lb.
How many shelves come with it?
One pre-installed epoxy coated shelf. Field installable drawer cartridges are available as an option if drawers suit the station better.
What temperature does it hold?
The electronic temperature controller maintains 35°F to 38°F, which is the range Atosa recommends for the best food preservation results.
What electrical connection does it need?
It runs on 115V / 60 Hz / 1-phase, draws 2.3 amps and plugs into a standard NEMA 5-15P receptacle. The compressor is 1/6 HP on R290 refrigerant.
Can the overall height be changed?
Yes. The standard 2" heavy duty swivel plate casters give a 32-3/8" overall height. Optional 1.2" and 1.5" low profile plate casters lower it to 31-1/4" or 31-7/8", and optional 4" or 5" swivel stem casters raise it to 34-3/8" or 35-1/4".
How does the AUR27GD compare to the other glass door models?
The AUR27GD is the 27-1/2", 1-door, 6.4 cu. ft. model. The series continues with the AUR36GD (2 doors, 8.6 cu. ft.), AUR48GD (2 doors, 11.8 cu. ft.), AUR60GD (2 doors, 15 cu. ft.) and AUR72GD (3 doors, 18.2 cu. ft.).
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | AUR27GD |
| Brand | Atosa USA |
| Weight | 168.00 lbs |
| Dimensions (HxWxD) | 38.00 x 30.00 x 33.00 inches |
| Height | 38.00 |
| Width | 30.00 |
| Depth | 33.00 |
| Refrigeration | self-contained, rear mounted |
| Exterior Finish | stainless steel exterior |
| Size | 1 section |
| Width | 24" - 35" |
| Door Type | glass (display) |
| Access Type | doors |
|
