Atosa USA ATG-6024-S CookRite Polished Steel Gas Griddle, 60"W, 60" x 24" Plate, 5 Burners, 150,000 BTU, Thermostatic

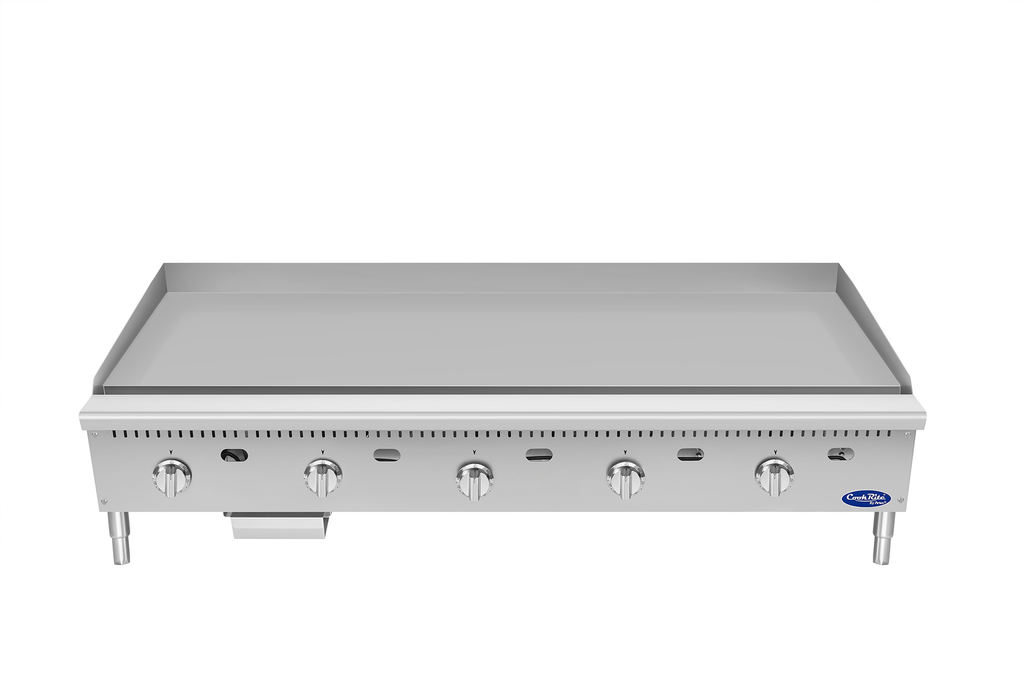

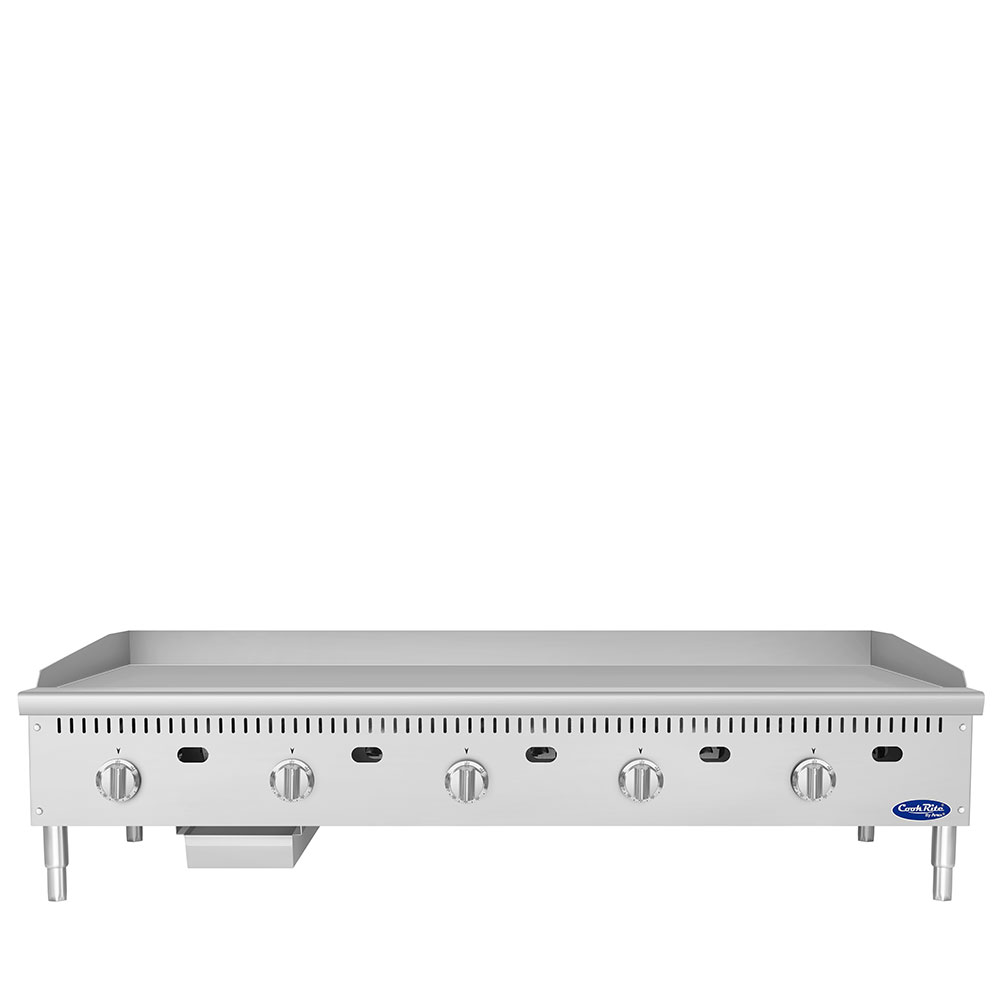

Atosa USA ATG-6024-S — 60" Thermostatic Gas Griddle
The ATG-6024-S is a 60" countertop gas griddle with a 1" thick polished steel plate over five 30,000 BTU U-shaped burners — 150,000 BTU/h in total. Each 12" section has its own snap-action thermostat covering 200°F to 450°F, so five zones can be held at five different temperatures across one 60" x 24" cooking surface.
Key Features of the ATG-6024-S
A thermostatic griddle is bought for control: the plate has to recover fast and hold the number the thermostat is set to, zone by zone, through a full service.
1" Thick Polished Steel Plate
A heavy duty 1" polished steel plate stores heat, so the surface does not collapse in temperature when a full load of cold product hits it.
Independent Thermostat per 12" Section
Snap-action thermostatic controls run each 12" section on its own, so eggs at 300°F and smash burgers at 450°F share the same plate.
Five 30,000 BTU U-Shaped Burners
U-shaped burners spread 30,000 BTU across each 12" section for 150,000 BTU/h in total, with standby pilots holding a flame between cycles.
Standing Pilot with Gas Shut-Off
Standing pilot ignition includes automatic gas shut-off if the pilot goes out, so gas is not left flowing to a burner that will not light.
4-Quart Stainless Grease Drawer
A 6-3/4" x 17-1/2" x 2-1/2" stainless drawer holds 4 quarts, so grease is pulled out and emptied instead of overflowing mid service.
12-3/4" Working Height
The protruding front edge design keeps the operator's arms away from the hot plate area at a 12-3/4" working height, over standard stainless steel legs.
Installation note: clearance to combustible construction is 6" at the rear and 4" to 6" at the sides depending on model; clearance to non-combustible construction is 0". Gas connects at a 3/4" NPT rear fitting and a regulator is standard — 4" w.c. for natural gas or 10" w.c. for propane.
Ideal Applications
A 60" plate with five independent zones is the largest griddle in the line, built for a station that never gets a quiet minute.
ATG-6024-S Specifications
| Model | ATG-6024-S |
|---|---|
| Brand | Atosa USA |
| Type | Countertop gas griddle, thermostatic |
| Burners | 5, U-shaped, one per 12" section |
| BTU per Burner | 30,000 BTU/h |
| Total Input | 150,000 BTU/h |
| Control Method | Independent snap-action thermostatic control per 12" section |
| Temperature Range | 200°F - 450°F |
| Griddle Plate | 1" thick polished steel |
| Splashes | 2mm thick 14-gauge stainless steel, rear and sides |
| Work Area | 60" x 24" |
| Grease Drawer | Stainless steel, 6-3/4"W x 17-1/2"D x 2-1/2"H, 4 qt |
| Ignition | Standing pilot with automatic gas shut-off; standby pilots |
| Gas Connection | 3/4" NPT rear, regulator standard |
| Gas Pressure | Natural gas 4" w.c.; propane 10" w.c. |
| Working Height | 12-3/4" with protruding front edge design |
| Legs | Stainless steel, standard |
| Clearance to Combustibles | Rear 6"; sides 4" - 6" depending on model |
| Clearance to Non-Combustibles | 0" |
| Construction | Stainless steel exterior and interior |
| Exterior Dimensions (W x D x H) | 60" x 32" x 15-1/4" |
| Net Weight | 536 lb |
| Gross Weight | 618 lb |
| Certifications | Conforms to ANSI Z83.11 / CSA 1.8; certified to NSF/ANSI STD. 4 |
| Related Models | ATG-2424-S (24", 2 burners, 60,000 BTU), ATG-3624-S (36", 3 burners, 90,000 BTU), ATG-4824-S (48", 4 burners, 120,000 BTU) |
| Warranty | 1 year parts and labor |
Optional Accessories
Gas type is set at order, and coverage can be extended beyond the standard term.
| Gas Type | Specify natural gas (4" w.c.) or propane (10" w.c.) at order |
|---|---|
| Extended Warranty | Available up to 5 years |
Frequently Asked Questions
How many burners does the ATG-6024-S have?
Five U-shaped burners, one per 12" section, rated 30,000 BTU/h each for 150,000 BTU/h in total.
Can different parts of the griddle run at different temperatures?
Yes. Each 12" section has its own independent snap-action thermostatic control, so the five zones can be set separately anywhere from 200°F to 450°F.
How thick is the griddle plate?
1" polished steel, with 2mm thick 14-gauge stainless steel rear and side splashes.
What gas connection does the ATG-6024-S need?
A 3/4" NPT rear connection with the supplied regulator. Natural gas runs at 4" w.c. and propane at 10" w.c.
What clearances does the griddle need?
6" at the rear and 4" to 6" at the sides from combustible construction, and 0" from non-combustible construction.
How does the ATG-6024-S compare to the other ATG thermostatic griddles?
The ATG-6024-S is the 60" model with 5 burners and 150,000 BTU/h — the largest in the line. The ATG-2424-S is 24" with 2 burners and 60,000 BTU/h, the ATG-3624-S is 36" with 3 burners and 90,000 BTU/h, and the ATG-4824-S is 48" with 4 burners and 120,000 BTU/h. All four are 24" deep on the plate and 15-1/4" high.
| Warranty Option | 1-Year Parts & Labor Warranty or 2-Year Parts & Labor Warranty or 3-Year Parts & Labor Warranty or 4-Year Parts & Labor Warranty or 5-Year Parts & Labor Warranty |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | ATG-6024-S |
| Brand | Atosa USA |
| Weight | 618.00 lbs |
| Dimensions (HxWxD) | 21.00 x 62.00 x 34.00 inches |
| Height | 21.00 |
| Width | 62.00 |
| Depth | 34.00 |
| Cooking Surface Depth (front - back) | 24" - 29" |
| Cooking Surface Width (side - side) | 55" - 60" |
| Controls | thermostat / solid state controls |
| Exterior Finish | all stainless steel exterior |
| Griddle Plate Finish | stainless steel |
| Plate Thickness | 1" |
|
