Atosa USA SS2424F31N 3-Compartment Sink, 77"W, (3) 24" x 24" x 14" Bowls, 18 GA 304 Stainless, NSF
Atosa USA SS2424F31N — Three Compartment Sink, 24" x 24" x 14" Bowls

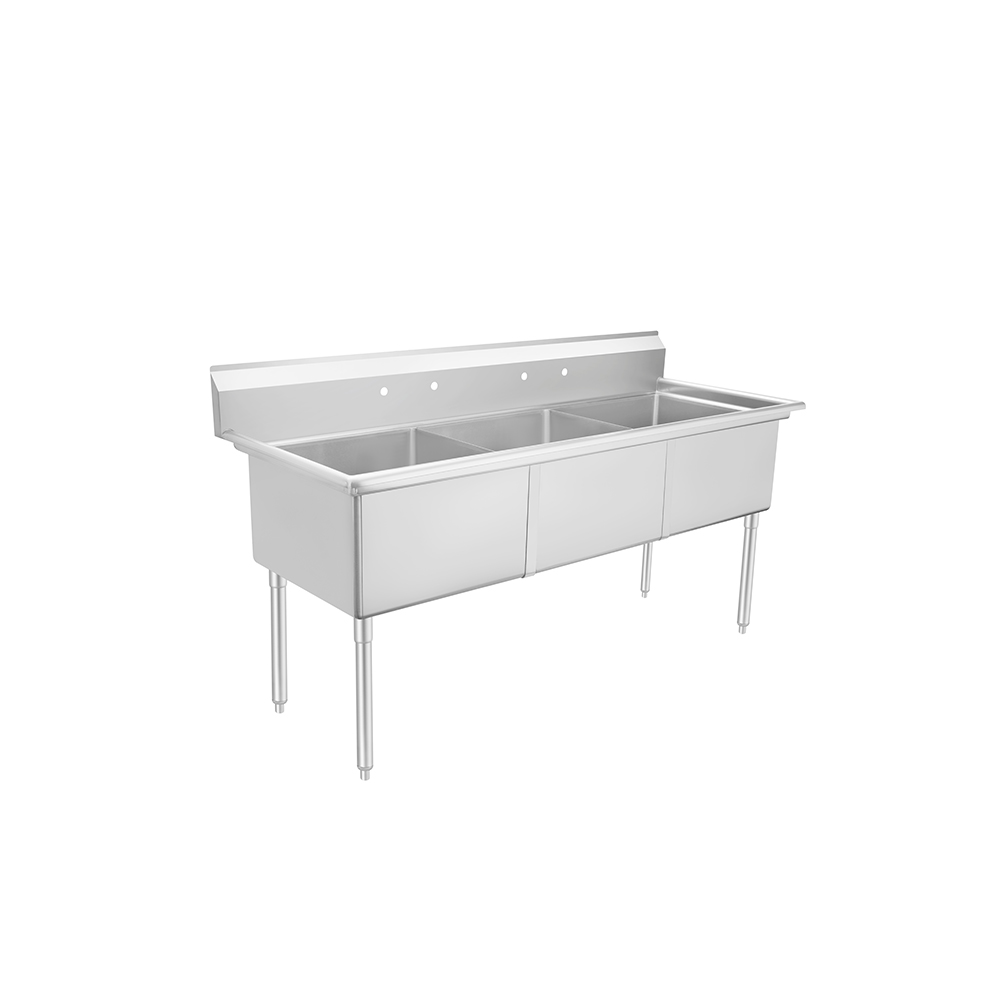

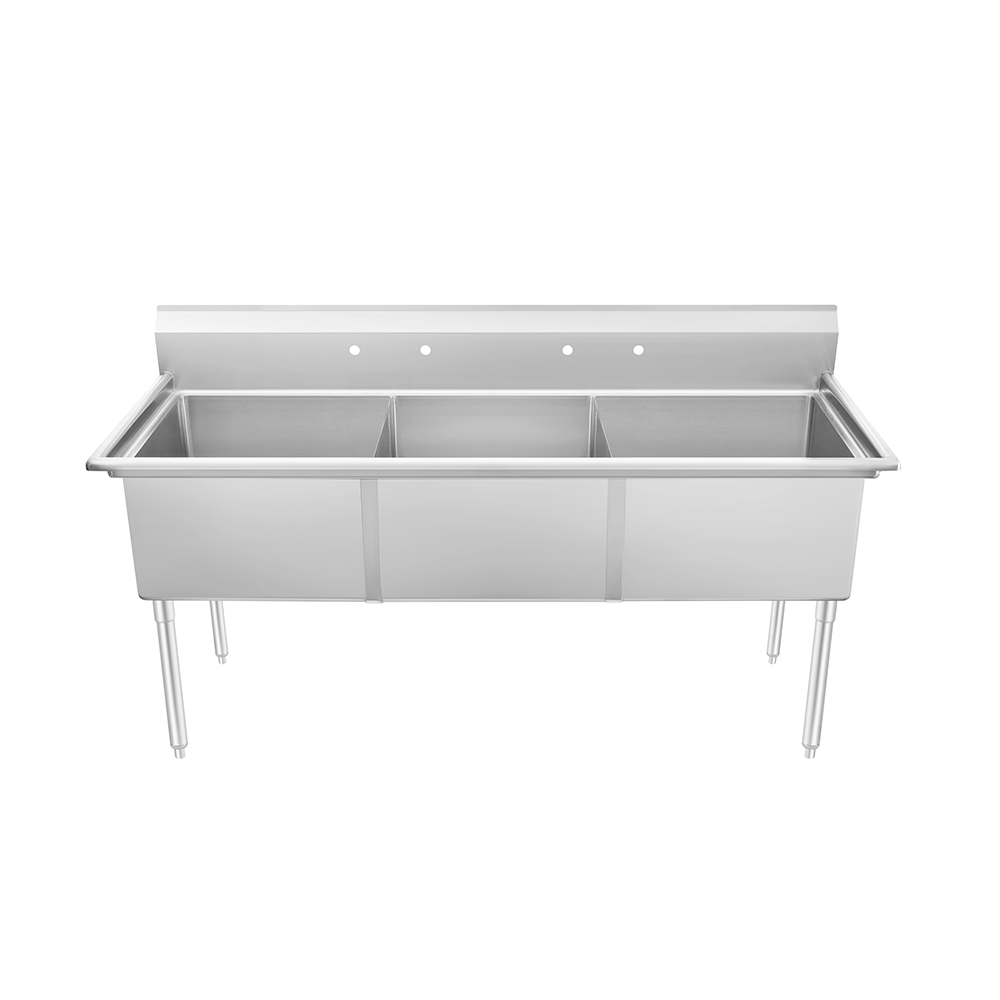

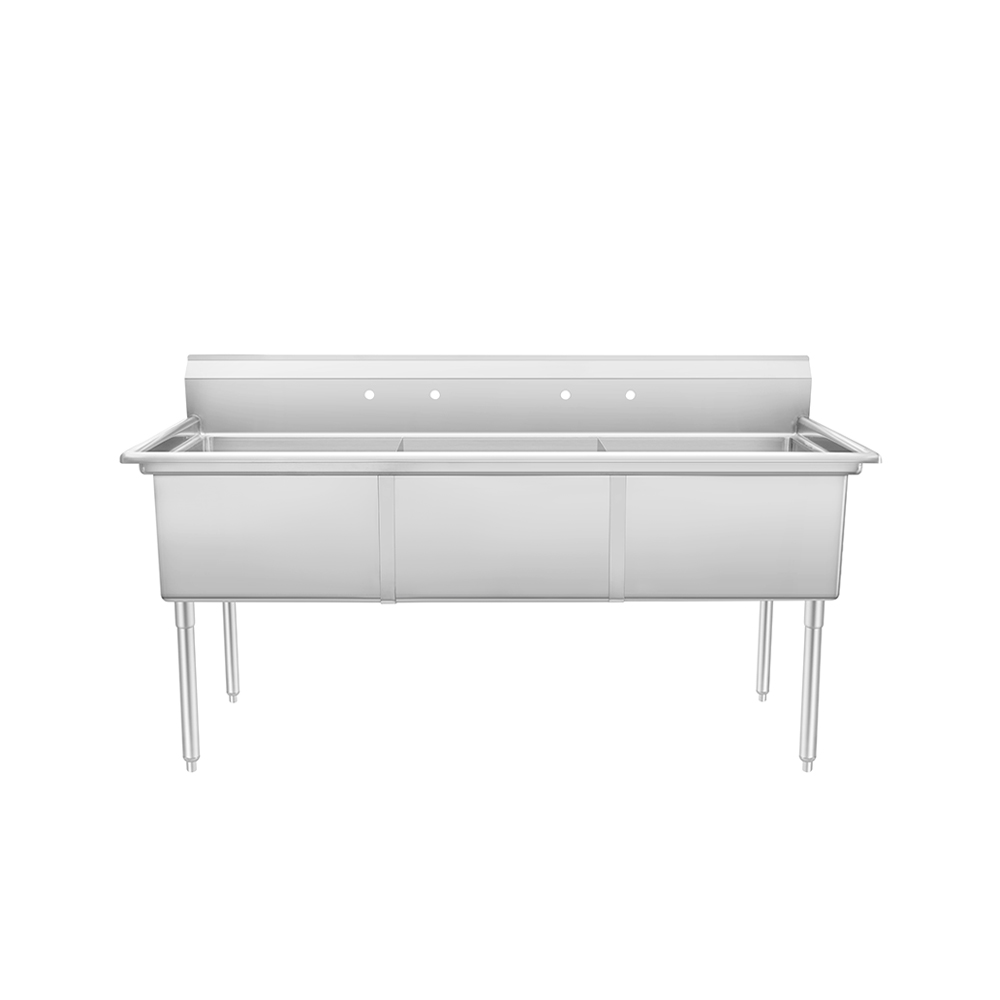

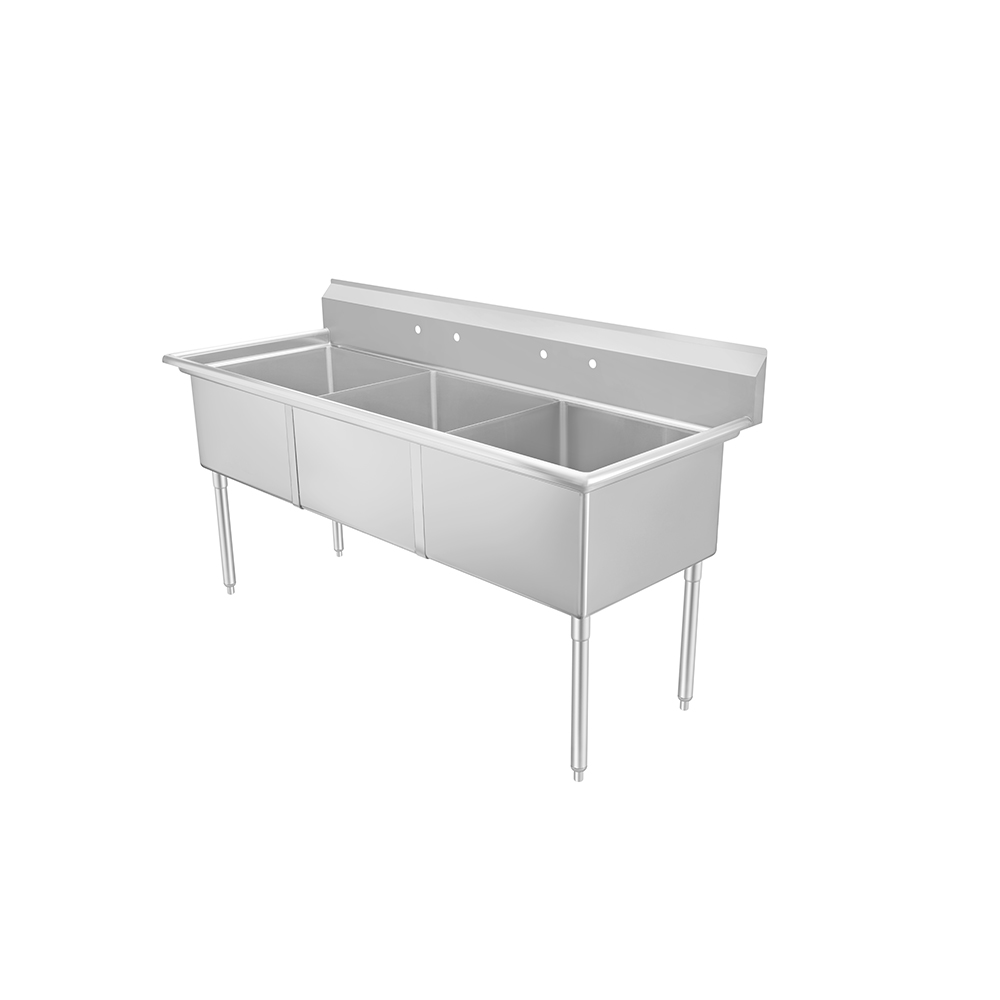

The SS2424F31N is a three compartment sink with no drainboards, built on the largest bowl in the Atosa line: 24" x 24" x 14" per compartment. The entire sink is formed from a single sheet of 18 gauge 304 stainless steel, fused and polished into a one-piece sanitary unit on stainless legs, and each bowl ships with a 3.5" drain basket.
Key Features of the SS2424F31N
A three compartment sink is inspected equipment. How it is formed, welded and finished is what decides whether it passes and how long it lasts.
One-Piece Sanitary Construction
The entire sink is formed from a single sheet, then fused and polished into one sanitary unit — there are no assembled seams between the bowls to trap soil.
Large Radius Corners
Every corner carries a large radius, vertically and horizontally, so there is no square inside corner where a brush cannot reach.
Welds Ground and Polished Smooth
All exposed welds are ground smooth and polished to blend with the adjacent surfaces in a satin finish, so the sink reads as a single continuous piece.
24" x 24" x 14" Bowls
The deepest and widest bowl Atosa offers in this series — big enough for full sheet pans, stock pots and sheet pan racks in a three-step wash, rinse and sanitise cycle.
3.5" Drain Baskets Included
Standard 3.5" drain baskets ship with the sink, so nothing else needs to be sourced to get the bowls draining on install day.
Stainless Legs with Adjustable Feet
Stainless steel legs and sockets on 1" adjustable bullet feet level the sink on an uneven floor and keep the base off the wet floor.
Ordering note: This sink must be purchased in quantities of five each, unless the order is a will-call pick up. Faucets are sold separately, so specify the faucet with the order.

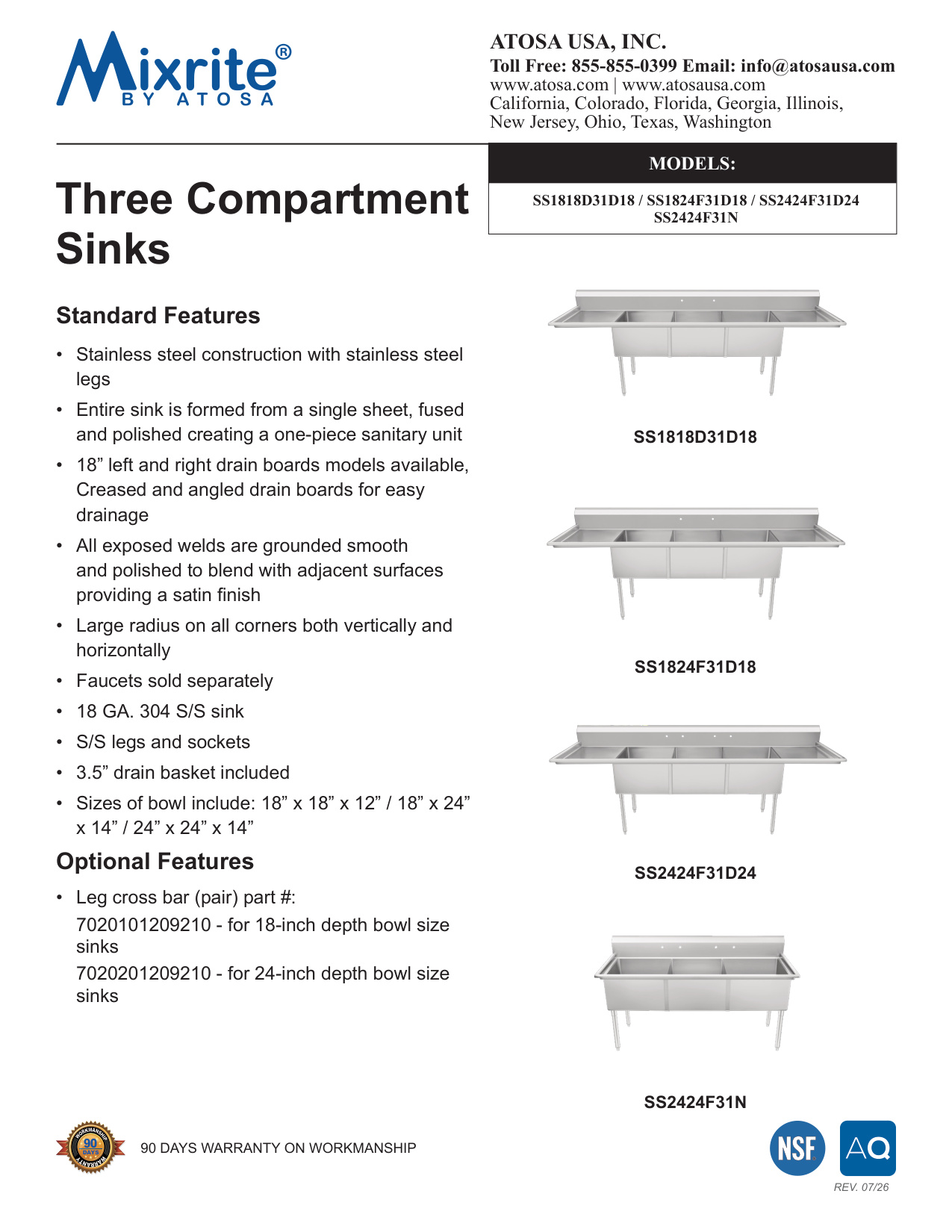

The Three Compartment Series
The SS2424F31N is the no-drainboard version. The same bowl sizes are available with drainboards when counter space allows.
| SS2424F31N — this model | 24" x 24" x 14" bowls, no drainboards, 77" x 29-1/2" x 43-3/4" |
|---|---|
| SS2424F31D24 | 24" x 24" x 14" bowls, 24" drainboards both sides, 120" x 29-1/2" x 43-3/4" |
| SS1824F31D18 | 18" x 24" x 14" bowls, 18" drainboards both sides, 90" x 29-1/2" x 43-3/4" |
| SS1818D31D18 | 18" x 18" x 12" bowls, 18" drainboards both sides, 90" x 23-1/2" x 43-3/4" |
| Optional leg cross bar (pair) | Part 7020201209210 for 24" depth bowl sinks; part 7020101209210 for 18" depth bowl sinks |
Ideal Applications
Three compartments is the health-code standard for manual warewashing, and 24" bowls handle the largest equipment a kitchen washes by hand.
SS2424F31N Specifications
| Model | SS2424F31N |
|---|---|
| Type | Three compartment sink, no drainboards |
| Compartments | 3 |
| Bowl Dimensions (W x D x H) | 24" x 24" x 14" |
| Overall Dimensions (W x D x H) | 77" x 29-1/2" x 43-3/4" |
| Material | 18 gauge 304 stainless steel |
| Construction | Formed from a single sheet, fused and polished into a one-piece sanitary unit; exposed welds ground smooth and polished to a satin finish |
| Legs | Stainless steel legs and sockets, 22-1/2" leg size, 1" adjustable bullet feet |
| Drain Baskets | 3.5", included |
| Faucets | Sold separately |
| Certification | NSF |
| Net Weight | 100 lb |
| Gross Weight | 115 lb |
| Brand | Atosa USA |
Frequently Asked Questions
What are the bowl and overall dimensions of the SS2424F31N?
Each of the three bowls measures 24" x 24" x 14" deep. Overall the sink is 77" wide x 29-1/2" deep x 43-3/4" high, with a net weight of 100 lb.
Does it have drainboards?
No. The N in the model number is the no-drainboard configuration. The SS2424F31D24 is the same sink with 24" drainboards on both sides, 120" wide overall.
Are faucets included?
No, faucets are sold separately on this series and should be specified with the order.
What is included with the sink?
The sink comes with 3.5" drain baskets, stainless steel legs and sockets, and 1" adjustable bullet feet. A leg cross bar pair is available as an option, part 7020201209210 for the 24" bowl depth.
What gauge and grade of stainless steel is it?
18 gauge 304 stainless steel — the food-service grade — formed from a single sheet and polished into a one-piece unit.
Is there a minimum order quantity?
Yes. This sink must be purchased in quantities of five each, unless the order is a will-call pick up.
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | SS2424F31N |
| Brand | Atosa USA |
| Weight | 116.20 lbs |
| Dimensions (HxWxD) | 90.00 x 77.00 x 30.00 inches |
| Height | 90.00 |
| Width | 77.00 |
| Depth | 30.00 |
| Base Type | legs |
| Overall Length | 73" - 84" |
| Compartment (front - back) | 24" |
| Base Construction | stainless steel |
| Compartment Width (side - side) | 24" |
| Top Stainless Series | 300 series |
| Top Gauge | 18 gauge |
| Package | 12 pieces in package |
|
