Atosa USA AUF36D2 Undercounter Freezer, 2 Drawers, 36-3/8"W, 9 cu. ft., Stainless Steel, R290, ETL

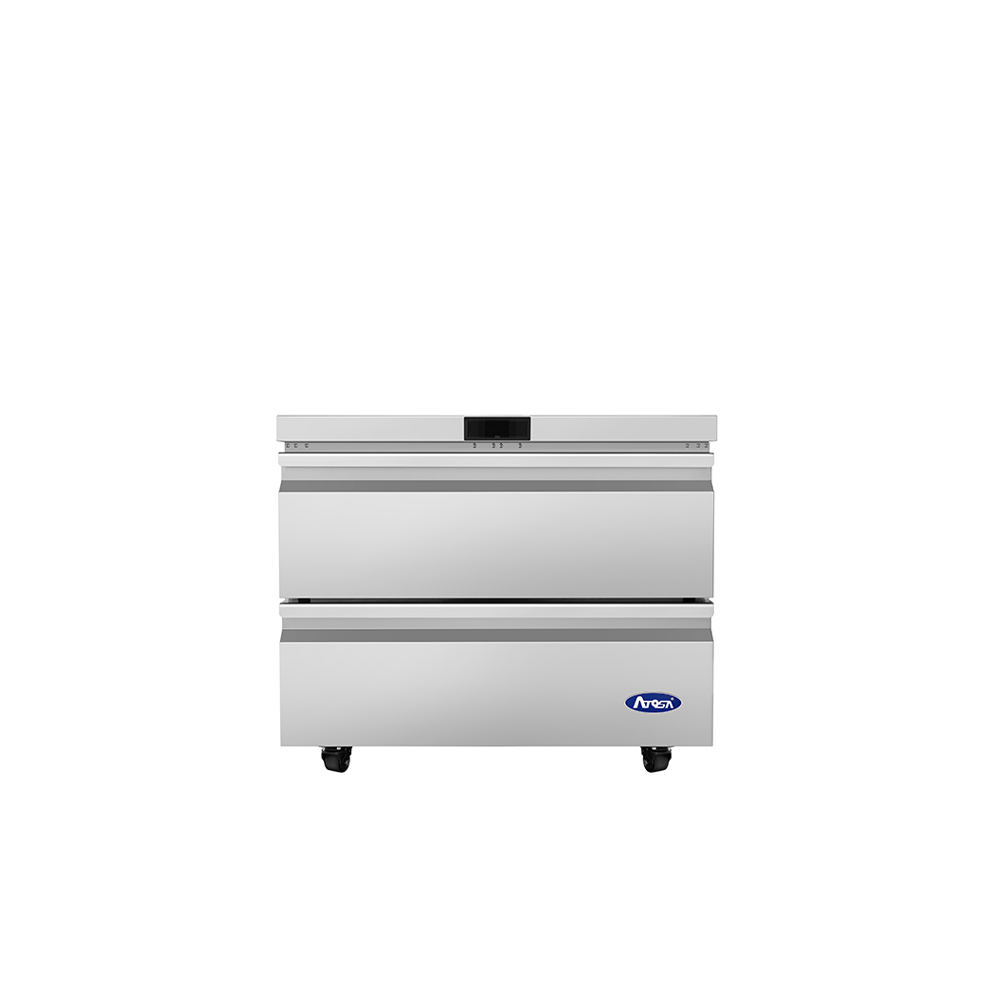

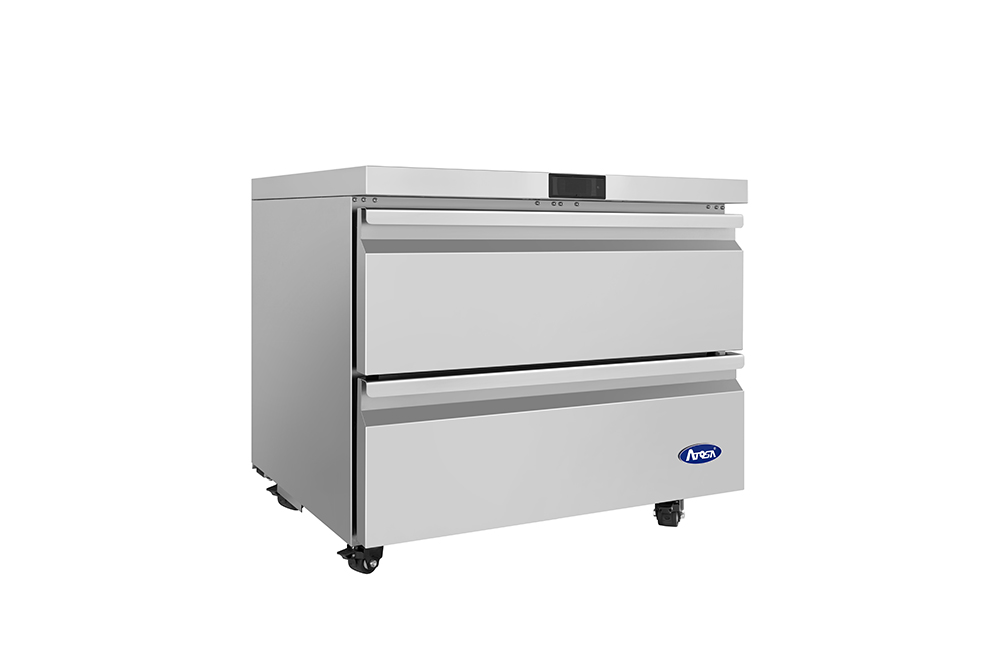

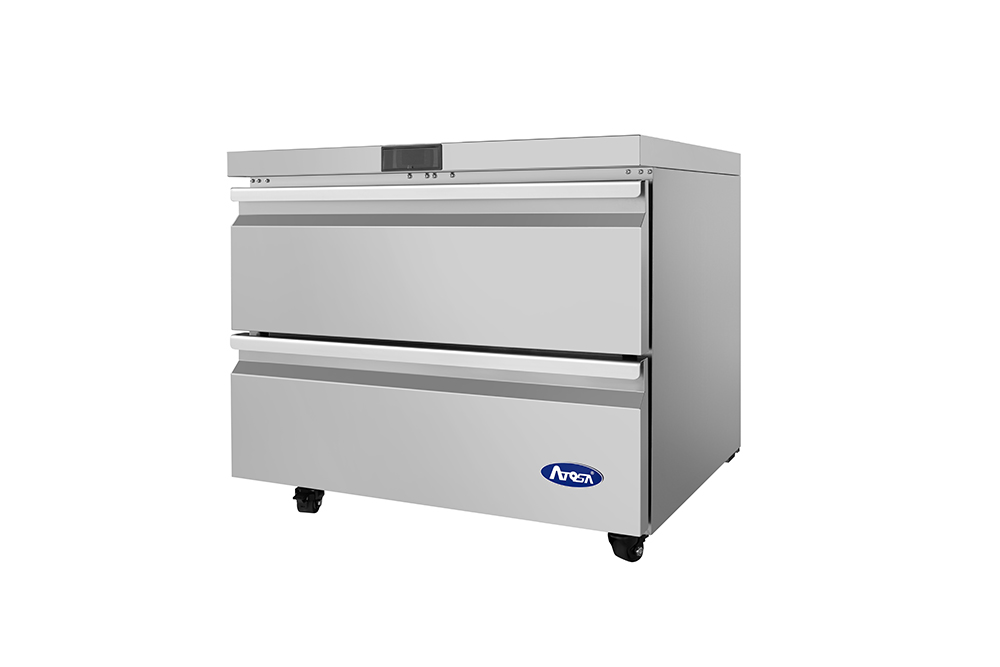

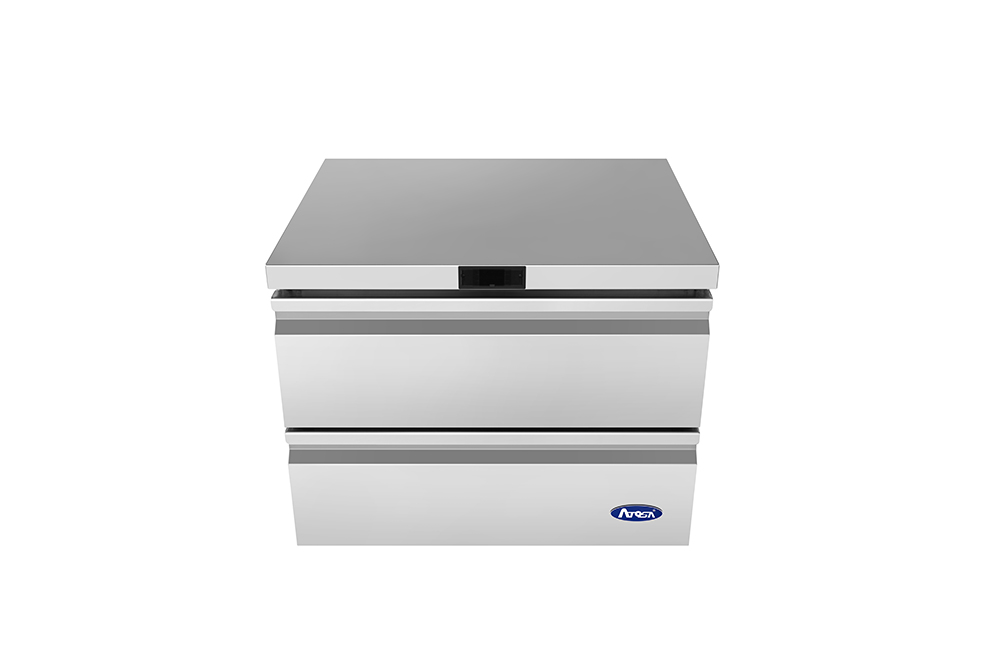

Atosa USA AUF36D2 — 36-3/8" Two-Drawer Undercounter Freezer
The AUF36D2 is a 9 cu. ft. undercounter freezer with two wide drawers in place of a swing door, so frozen product comes out without a cook leaving the station. Stainless steel inside and out under a reinforced stainless top, it runs environmentally friendly R290 refrigerant on a 1/3 HP system and holds -8°F to 1°F under an electronic temperature controller. 1/6 size pans ship standard.
Key Features of the AUF36D2
A drawer freezer has a harder job than a reach-in: it has to recover fast every time a drawer opens, and do it in an undercounter footprint. Here is how the AUF36D2 is built for it.
Holds -8°F to 1°F
An electronic temperature controller keeps the cabinet between -8°F and 1°F. Atosa recommends a setting of -8°F to 0°F for the best food preservation results.

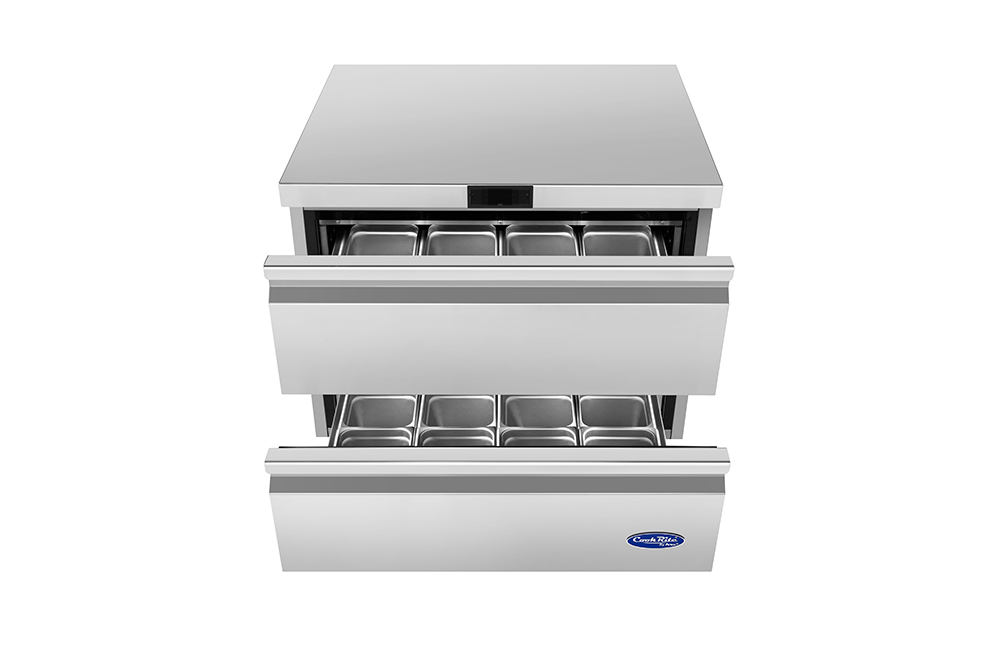

Two Wide Drawers, 20 Pans
In the standard configuration the top drawer holds twelve 1/6 size pans and the bottom drawer eight — and each unit comes standard with 1/6 size pans.
R290 Refrigerant, 1/3 HP
Environmentally friendly R290 refrigerant on a 1/3 HP compressor gives the pull-down power a 9 cu. ft. freezer needs while drawing 4.8 amps on 115V.
Stainless Steel, Reinforced Top
Stainless steel exterior and interior with a reinforced stainless steel top, so the cabinet can carry counter-top equipment and take daily line abuse.
Casters Pre-Installed
Ships on 2" heavy duty swivel plate casters — B0604434 with brake, B0604433 without — so the unit rolls out for floor cleaning behind the line.
Magnetic Gaskets, Recessed Handles
Magnetic drawer gaskets hold the seal that a freezer depends on and pull out for washing, while recessed handles keep the front face flush in a tight aisle.
Installation and care: The unit vents through a rear grate, so leave it room to breathe and clean the condenser frequently to give it more fresh air. For the best food preservation results Atosa recommends setting the freezer between -8°F and 0°F.
Optional Casters and Overall Height
The AUF36D2 ships on 2" casters for a 32-3/8" overall height, and four other caster sets are available when it has to line up under an existing counter.
| 1.2" swivel plate casters (R06001000228 brake / R06001000229 no brake) | Overall height 31-1/4" |
|---|---|
| 1.5" swivel plate caster (R06001000063, with brake) | Overall height 31-7/8" |
| 2" heavy duty swivel plate casters (B0604434 brake / B0604433 no brake) — standard | Overall height 32-3/8" |
| 4" swivel stem casters (B0604421 brake / B0604413 no brake) | Overall height 34-3/8" |
| 5" swivel stem casters (B0604007 brake / B0604006 no brake) | Overall height 35-1/4" |
Ideal Applications
Drawer freezers earn their place wherever frozen product is pulled often and the walk-in is too far away to open every few minutes.
AUF36D2 Specifications
| Model | AUF36D2 |
|---|---|
| Type | Undercounter freezer with drawers |
| Drawers | 2 |
| Capacity | 9 cu. ft. |
| Exterior Dimensions (W x D x H) | 36-3/8" x 30" x 32-3/8" |
| Temperature Range | -8°F – 1°F |
| Top Drawer | Standard configuration holds (12) 1/6 size pans |
| Bottom Drawer | Standard configuration holds (8) 1/6 size pans |
| Refrigerant | R290 |
| Horsepower | 1/3 HP |
| Electrical | 115V / 60 Hz / 1-phase, 4.8 amps, NEMA 5-15P |
| Construction | Stainless steel exterior and interior, reinforced stainless steel top |
| Casters | 2" heavy duty swivel plate, pre-installed |
| Venting | Rear grate |
| Included | 1/6 size pans |
| Certifications | cETLus, ETL Sanitation |
| Net Weight | 207 lb |
| Gross Weight | 271 lb |
| Brand | Atosa USA |
Frequently Asked Questions
What are the dimensions of the Atosa AUF36D2?
Exterior dimensions are 36-3/8" wide x 30" deep x 32-3/8" high on the standard 2" casters. Net weight is 207 lb and gross shipping weight is 271 lb.
How cold does the AUF36D2 get?
The electronic temperature controller maintains the cabinet between -8°F and 1°F. For the best food preservation results Atosa recommends setting the freezer between -8°F and 0°F.
How many pans do the drawers hold?
In the standard configuration the top drawer holds twelve 1/6 size pans and the bottom drawer holds eight. Each unit comes standard with 1/6 size pans, and optional configurations using 1/1, 1/2, 1/3 and 1/4 size pans are supported.
What electrical connection does it need?
It runs on 115V / 60 Hz / 1-phase, draws 4.8 amps and plugs into a standard NEMA 5-15P receptacle. The compressor is 1/3 HP using R290 refrigerant.
Can the overall height be changed?
Yes. The standard 2" heavy duty swivel plate casters give a 32-3/8" overall height. Optional 1.2" and 1.5" low profile plate casters lower it to 31-1/4" or 31-7/8", and optional 4" or 5" swivel stem casters raise it to 34-3/8" or 35-1/4".
How does the AUF36D2 compare to the other AUF drawer models?
The AUF36D2 is the 36-3/8", 2-drawer, 9 cu. ft. model. The series also includes the AUF27D2 (2 drawers, 6.5 cu. ft.), AUF48D4 (4 drawers, 12.2 cu. ft.) and AUF60D4 (4 drawers, 15.5 cu. ft.).
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | AUF36D2 |
| Brand | Atosa USA |
| Weight | 271.00 lbs |
| Dimensions (HxWxD) | 38.00 x 39.00 x 33.00 inches |
| Height | 38.00 |
| Width | 39.00 |
| Depth | 33.00 |
| Compressor HP | 1/3 HP |
| Size | 2 section |
| Width | 36" - 44" |
| Refrigeration | self-contained, rear mounted |
| Exterior Finish | all stainless steel exterior |
| Access Type | drawers |
| Interior Finish | all stainless steel interior |
|

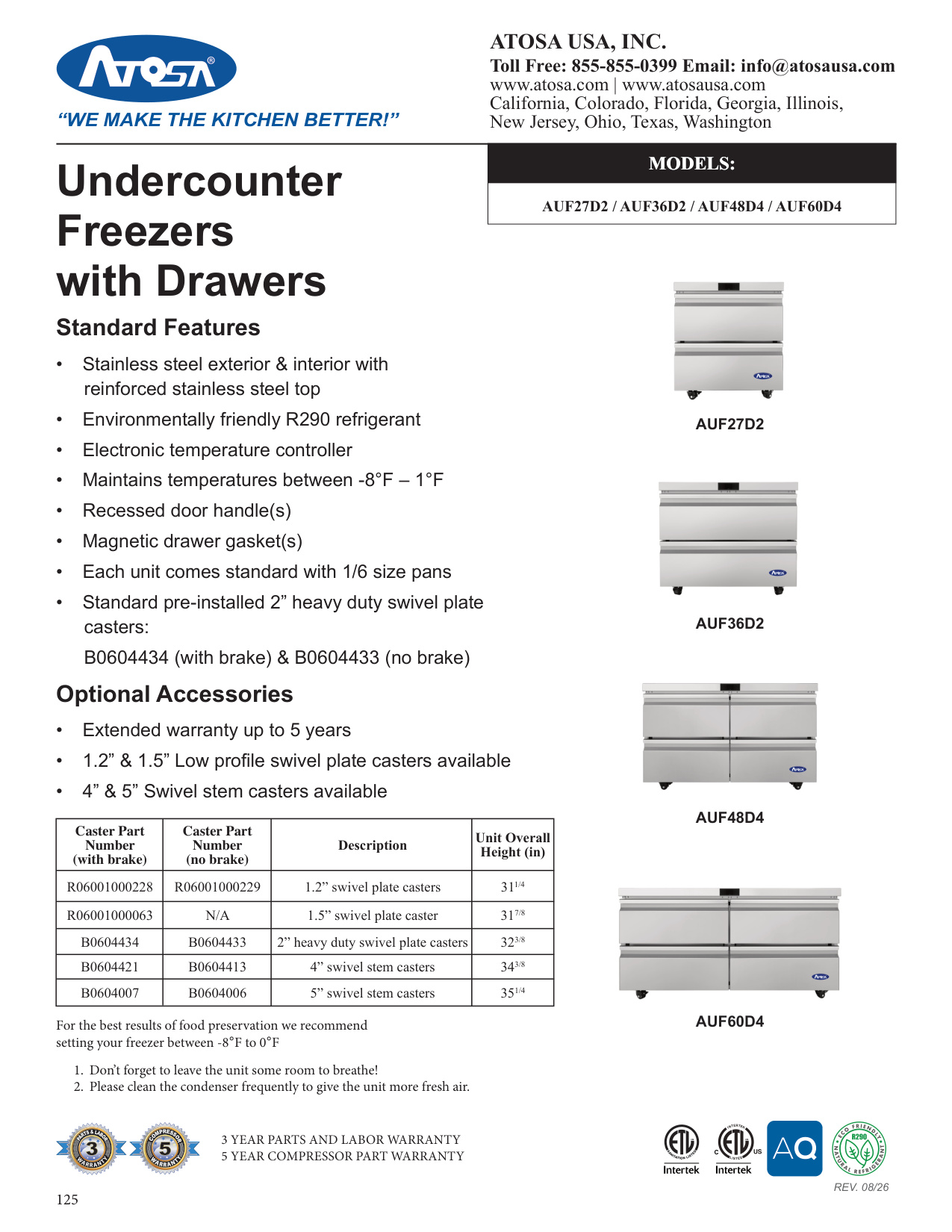

Resources
