Atosa USA MGF8460GR Chef Base Freezer, 2 Drawers, 48"W, 2.9 cu. ft., Stainless Steel, R290, ENERGY STAR

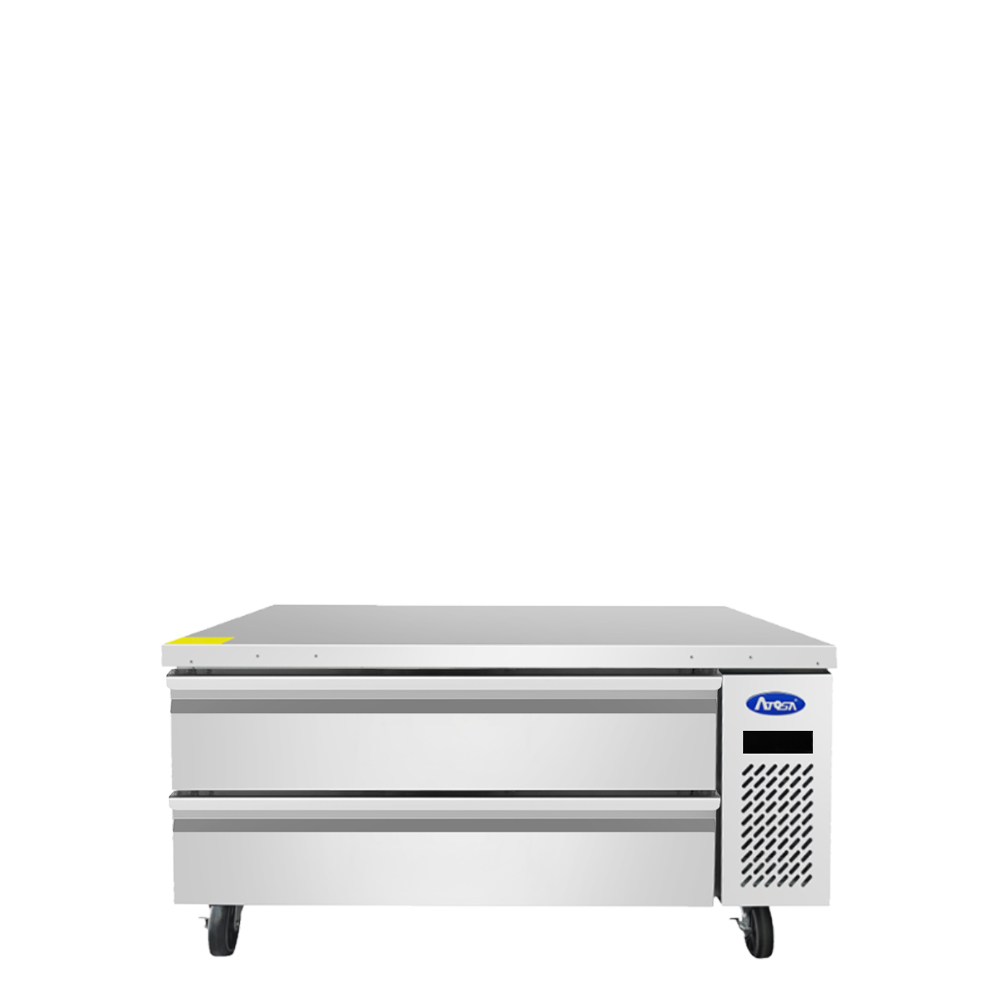

Atosa USA MGF8460GR — 48" Two-Drawer Chef Base Freezer
The MGF8460GR is a chef base freezer: a 48" equipment stand that carries a charbroiler, griddle or fryer on a one-piece heavy duty reinforced stainless steel top while holding 2.9 cu. ft. of frozen product at -8°F to 1°F in two drawers directly underneath. It runs a heavy duty compressor on environmentally friendly R290 refrigerant and is ENERGY STAR certified.
Key Features of the MGF8460GR
A chef base does two hard jobs at once: it carries the weight and heat of cooking equipment on top while holding a freezer below. These are the details that make it work.
One-Piece Reinforced Stainless Top
A one-piece heavy duty reinforced stainless steel top is built to support countertop cooking equipment, so a griddle or charbroiler can sit directly over the freezer.
Holds -8°F to 1°F Under Heat
A heavy duty compressor and electronic temperature controller hold -8°F to 1°F even with hot equipment running on the top all service.
Stainless Pans Included
The two drawers hold and include 6" deep stainless steel pans — four 12" x 20" pans plus six 1/6 size pans per unit.
Heavy Duty Slides and Rollers
Heavy duty stainless steel drawer slides and rollers carry a full load of frozen product and keep pulling smoothly after thousands of cycles.
Corner Guards and Pull-Out Handles
Corner guards protect the cabinet from cart and rack impacts in a tight line, and pull-out handles are included for moving the unit out from the wall.
5" Casters Pre-Installed
Pre-installed 5" casters set the working height at 26-1/4" and let the whole stand, equipment and all, roll clear for floor cleaning.
Installation and care: Leave the unit room to breathe and clean the condenser frequently to give it more fresh air — this matters more on a chef base than on a standard freezer, because it lives under hot equipment. For the best food preservation results Atosa recommends setting the freezer between -8°F and 1°F.
Ideal Applications
A chef base replaces an open equipment stand with usable frozen storage, which is why it earns its place on a crowded line.
MGF8460GR Specifications
| Model | MGF8460GR |
|---|---|
| Type | Chef base freezer / refrigerated equipment stand |
| Drawers | 2 |
| Capacity | 2.9 cu. ft. |
| Pans per Unit | (4) 12" x 20" and (6) 1/6 size, 6" deep stainless steel, included |
| Exterior Dimensions (W x D x H) | 48" x 32" x 26-1/4" |
| Temperature Range | -8°F – 1°F |
| Refrigerant | R290, heavy duty compressor |
| Rated Power | 560 watts |
| Electrical | 115V / 60 Hz / 1-phase, 5.6 amps, NEMA 5-15P |
| Top | One-piece heavy duty reinforced stainless steel, supports countertop equipment |
| Drawer Hardware | Heavy duty stainless steel slides and rollers, magnetic gaskets, recessed handles |
| Casters | 5", pre-installed |
| Included | Corner guards, pull out handles |
| Certifications | cETLus, ETL Sanitation, ENERGY STAR |
| Net Weight | 234 lb |
| Gross Weight | 295 lb |
| Brand | Atosa USA |
Frequently Asked Questions
What is a chef base?
A chef base is a refrigerated equipment stand: its reinforced top carries countertop cooking equipment such as a griddle, charbroiler or fryer, while the drawers underneath hold the product that equipment cooks. The MGF8460GR is the freezer version.
What are the dimensions of the MGF8460GR?
Exterior dimensions are 48" wide x 32" deep x 26-1/4" high on the pre-installed 5" casters. Net weight is 234 lb and gross shipping weight is 295 lb.
What pans come with it?
The drawers hold and include 6" deep stainless steel pans: four 12" x 20" pans plus six 1/6 size pans per unit.
What temperature does it hold?
The electronic temperature controller maintains -8°F to 1°F, which is the range Atosa recommends for the best food preservation results.
What electrical connection does it need?
It runs on 115V / 60 Hz / 1-phase at 560 watts, draws 5.6 amps and plugs into a standard NEMA 5-15P receptacle.
What other sizes are in the chef base series?
The line runs MGF8458GR (36", 2 drawers, 1.4 cu. ft.), MGF8460GR (48", 2 drawers, 2.9 cu. ft.), MGF8461GR (52", 2 drawers, 2.9 cu. ft.), MGF8462GR (60", 2 drawers, 4.3 cu. ft.), MGF8463GR (72", 4 drawers, 4.9 cu. ft.) and MGF8464GR (76", 4 drawers, 4.9 cu. ft.). All share the 32" depth and 26-1/4" height.
