Atosa USA AEFF-50-1B Electric Fryer, Single Full Vat, 50 lb, Auto Lift System, Built-In Filtration, 17 kW, 208V

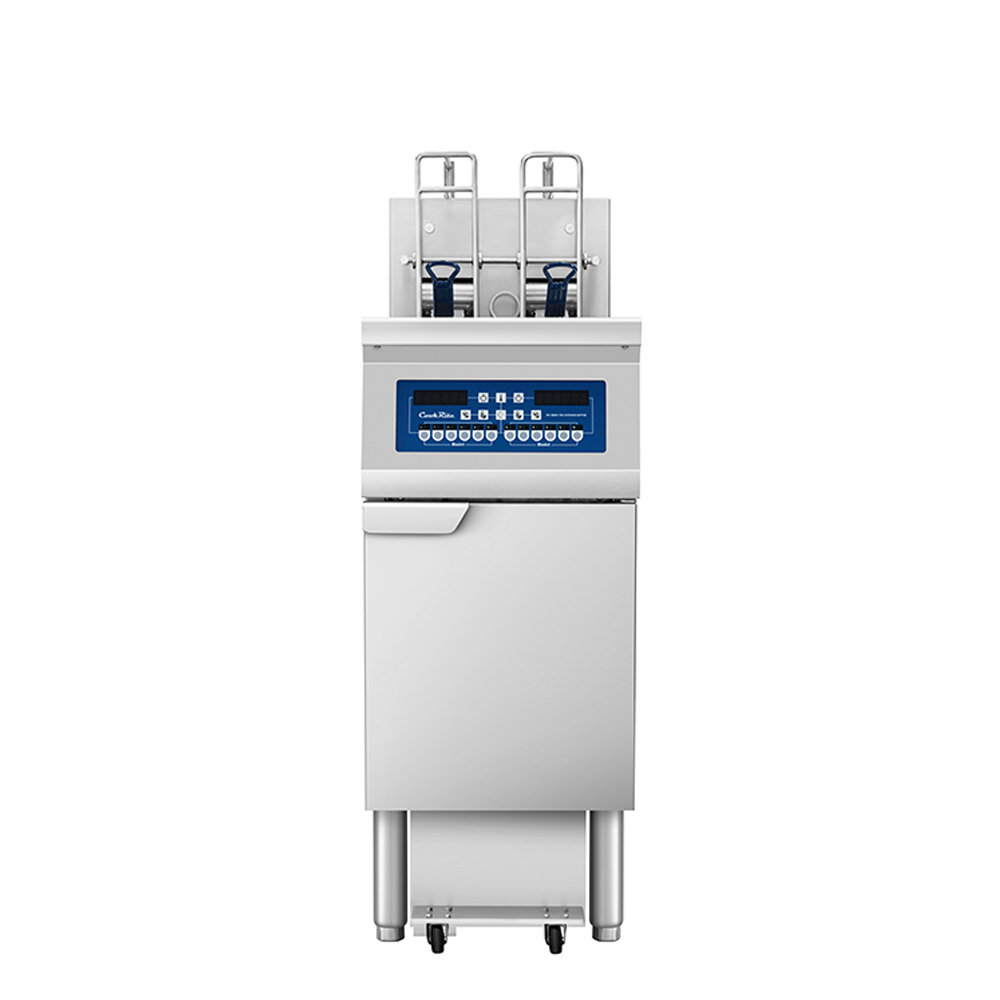

Atosa USA AEFF-50-1B — 50 lb Single Full Vat Electric Fryer with Auto Lift
The AEFF-50-1B is a single full vat electric fryer with a 50 lb oil capacity, an automatic basket lift system and a built-in filtration system with pump. Fully programmable electronic controls drop and raise the baskets on time, so the cook can leave the station and come back to a finished product. 17 kW on 208V three-phase, with two fryer baskets included.
Key Features of the AEFF-50-1B
Two things decide what a fry station costs to run: how consistent the product is, and how long the oil lasts. This fryer is built around both.
Automatic Basket Lift
The auto lift system raises the baskets out of the oil when the timer ends, so product does not overcook when the station gets busy — and the cook can work two jobs at once.
Built-In Filtration with Pump
A built-in filtration system with its own pump lets the crew filter the oil without carrying a hot pot anywhere, which is what actually keeps filtering from being skipped at close.
Fully Programmable Controls
Programmable electronic controls hold recipes by product, so fries, wings and breaded items each cook to their own time and temperature without anyone doing the math.
17 kW of Electric Heat
17 kW on 208V three-phase delivers the recovery a 50 lb vat needs when a full basket of frozen product drops in mid-rush.
Stainless Steel Tank
A stainless steel tank stands up to hot oil and daily boil-out, and cleans down without the pitting that shortens the life of a cheaper vat.
Rear Casters, Front Legs
Two casters at the rear and two legs at the front are standard on single-battery models, so the fryer tips back and rolls out for cleaning but stays put in service.
Electrical note: This fryer requires 208V three-phase service at 48 amps per wire, with a minimum 6/4 AWG wire size. Confirm the three-phase supply is in place before ordering — it is not a plug-in appliance.
Filter Paper and Accessories
The filtration system uses a sized filter paper, and three factory options tailor the fryer to the station.
| Filter paper | FP-1324-5, 10-1/4" x 22", 100 sheets per box |
|---|---|
| Fryer mesh screen | Optional |
| Vessel covers | Optional |
| Side splash | Optional |
Ideal Applications
Auto lift and on-board filtration are what high-volume, high-turnover fry programs buy — consistency without a dedicated fry cook.
AEFF-50-1B Specifications
| Model | AEFF-50-1B |
|---|---|
| Type | Single full vat electric fryer with auto lift system and built-in filtration |
| Capacity | 50 lb |
| Power | 17 kW |
| Electrical | 208V / 60 Hz / 3-phase, 48 amps per wire, minimum 6/4 AWG wire size |
| Controls | Fully programmable electronic |
| Tank | Stainless steel |
| Baskets | (2) fryer baskets |
| Filtration | Built-in system with pump; FP-1324-5 filter paper |
| Exterior Dimensions (W x D x H) | 15-1/2" x 33-3/4" x 48-1/2" |
| Packing Dimensions (W x D x H) | 18-3/4" x 37-5/8" x 54-3/8" |
| Support | (2) casters at the rear, (2) legs at the front |
| Optional | Fryer mesh screen, vessel covers, side splash |
| Certifications | ETL, cETLus |
| Net Weight | 235 lb |
| Gross Weight | 310 lb |
| Brand | Atosa USA |
Frequently Asked Questions
What does the B in AEFF-50-1B mean?
The B designates the auto lift system. Within this series, a plain number is the base fryer, T marks a split vat, and B marks the auto lift — so the AEFF-50-1B is a single full vat with auto lift, and the AEFF-50-1TB is a split vat with auto lift.
What electrical supply does it need?
208V, 60 Hz, three-phase at 48 amps per wire, with a minimum 6/4 AWG wire size. Rated power is 17 kW.
What are the dimensions and weight?
Exterior dimensions are 15-1/2" wide x 33-3/4" deep x 48-1/2" high. Packed for shipping it measures 18-3/4" x 37-5/8" x 54-3/8". Net weight is 235 lb and gross shipping weight is 310 lb.
What filter paper does the filtration system use?
FP-1324-5 filter paper, 10-1/4" x 22", sold 100 sheets per box.
How many baskets are included?
Two fryer baskets per tank. A fryer mesh screen, vessel covers and a side splash are available as options.
What other configurations are available?

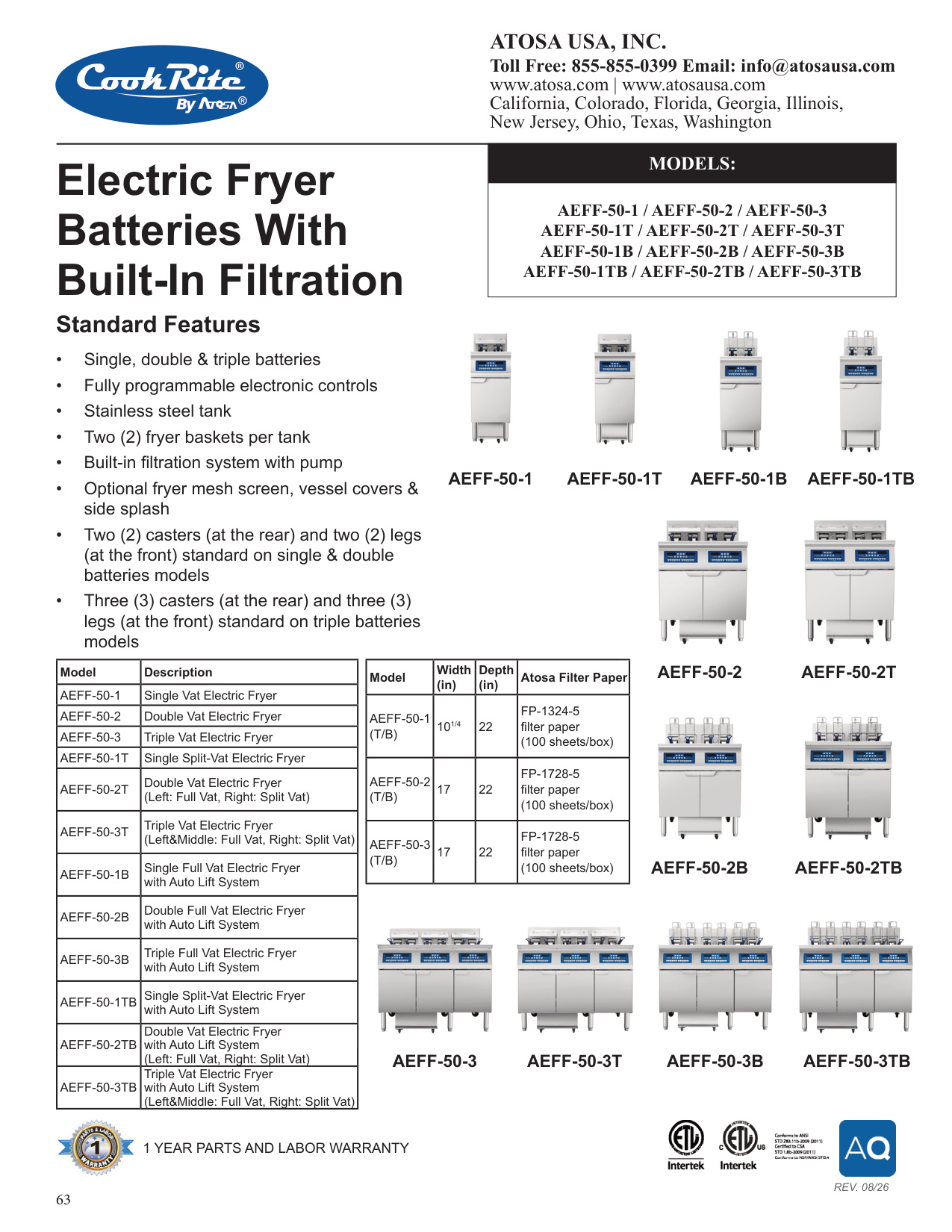

The AEFF-50 line covers single, double and triple batteries in full vat, split vat and auto lift combinations — AEFF-50-2B is the double full vat with auto lift ((2) 50 lb) and AEFF-50-3B the triple ((3) 50 lb). Single and double battery models stand on two rear casters and two front legs; triples use three of each.
