Atosa USA AUF48D4 Undercounter Freezer, 4 Drawers, 48-1/4"W, 12.2 cu. ft., Stainless Steel, R290

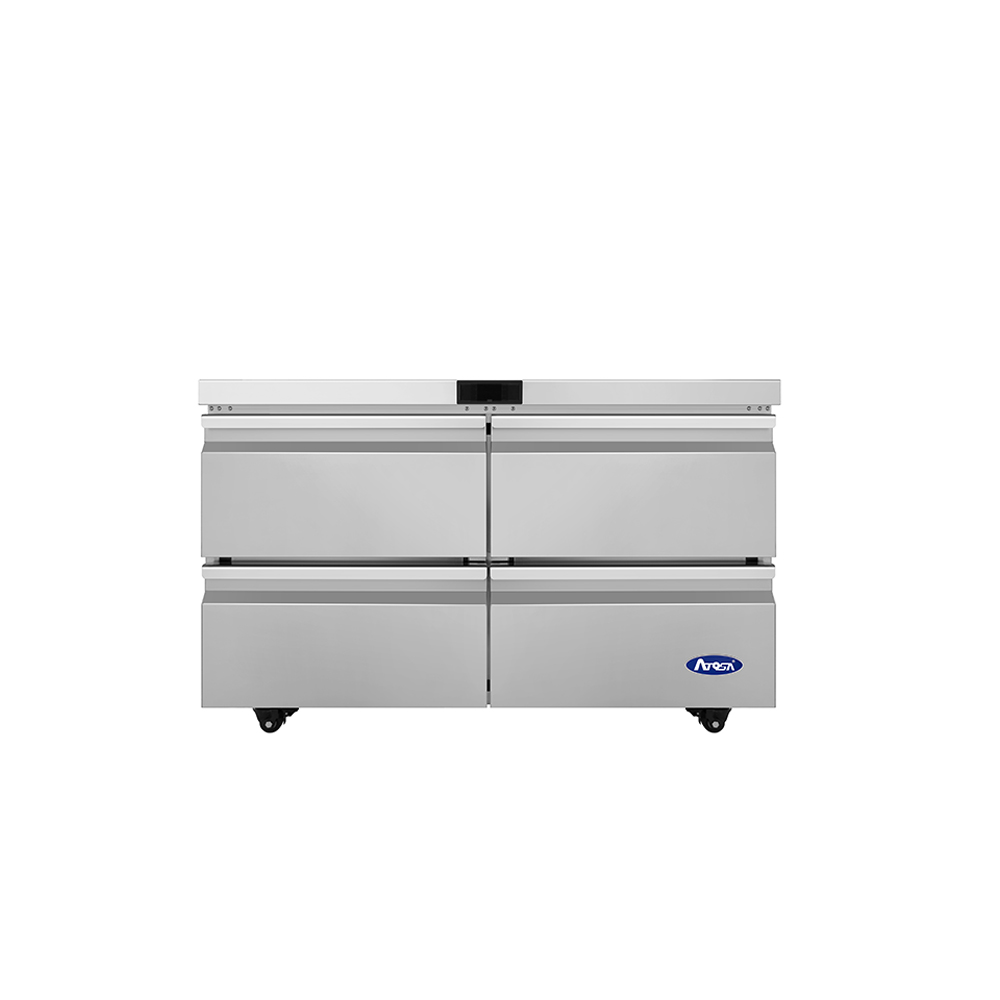

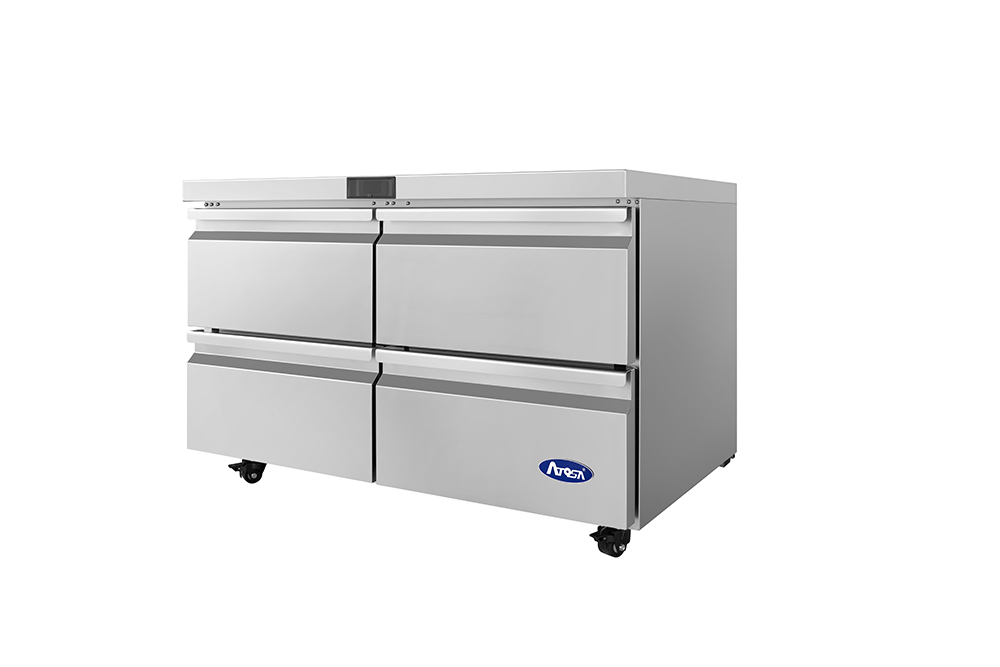

Atosa USA AUF48D4 — 48" Undercounter Freezer, 4 Drawers
The AUF48D4 is the 48" drawer freezer in Atosa's AUF undercounter line: 12.2 cu. ft. across four drawers in a 48-1/4" wide stainless cabinet holding -8°F to 1°F. A 1/3 HP R290 system runs under an electronic controller, the top is reinforced stainless, and every drawer seats 1/6 size pans as standard.
Key Features of the AUF48D4
Drawers are the reason to buy this cabinet instead of a door model: product sits at waist height in pans, and the cold stays put when a cook reaches in.

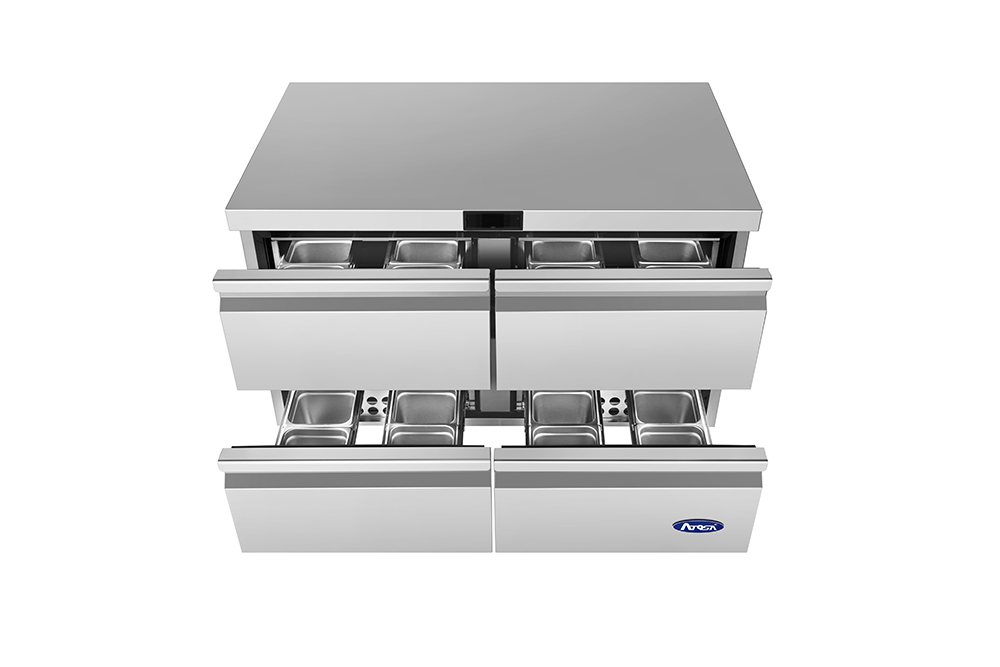

Four Pan Drawers
Four drawers replace swing doors, so a cook pulls a pan straight out at waist height instead of bending into a cabinet and holding a door open.
-8°F to 1°F on R290
An environmentally friendly R290 system on a 1/3 HP compressor holds true freezer temperature; Atosa recommends setting a freezer between -8°F and 0°F.
Electronic Temperature Controller
The set point is read and adjusted directly on an electronic controller instead of being estimated from a dial, so drift is caught early.

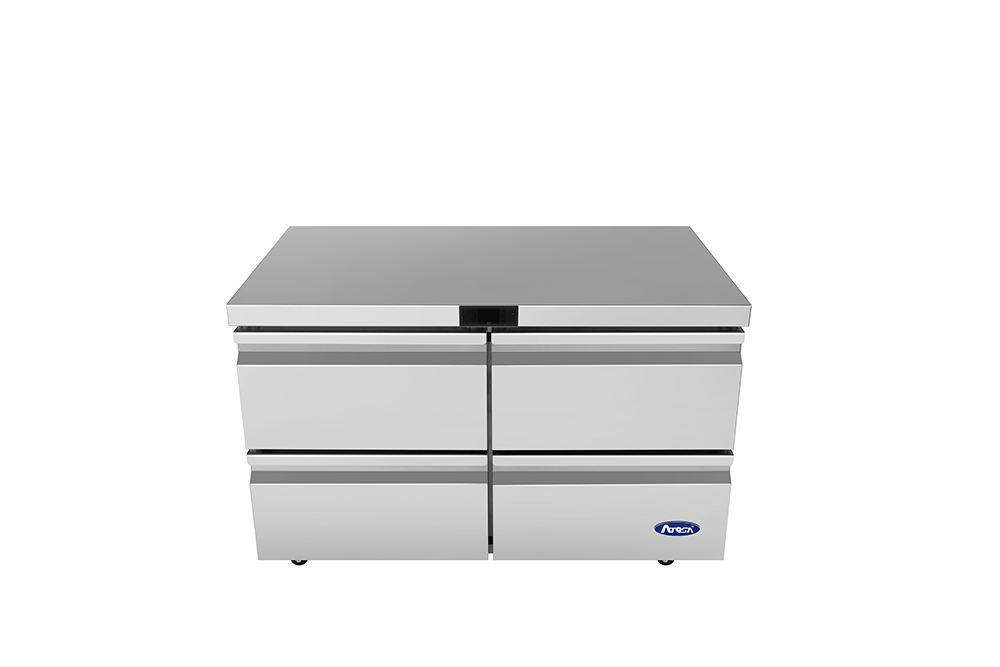

Reinforced Stainless Steel Top
Stainless inside and out with a reinforced stainless top, so the surface takes the knocks of a working line and wipes down without corroding.
Recessed Handles, Magnetic Gaskets
Recessed handles keep the drawer fronts flush in a tight aisle, and magnetic drawer gaskets pull the seal closed on every push.
Pre-Installed 2" Casters
It ships on 2" heavy duty swivel plate casters, so a 271 lb cabinet can be rolled out for cleaning behind the line.

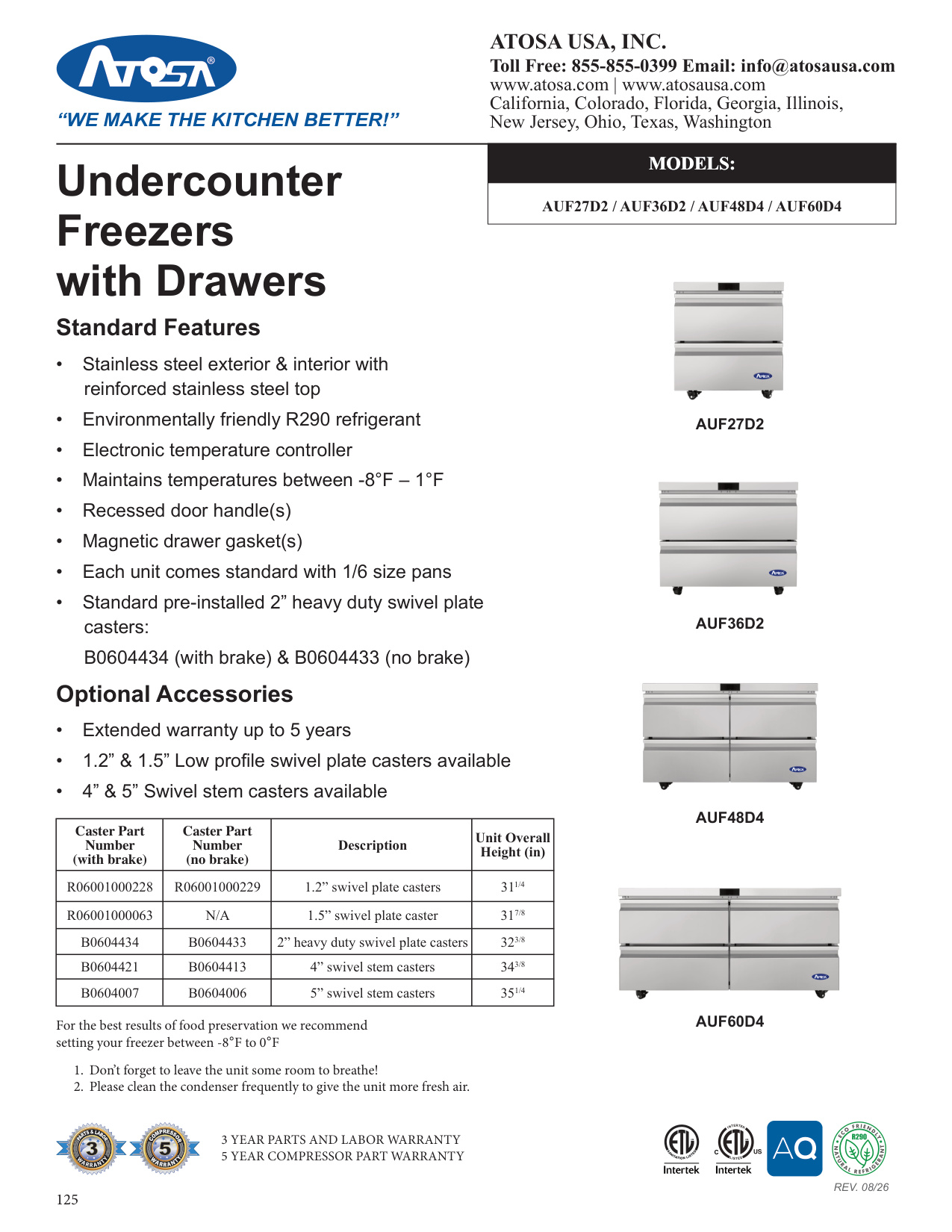

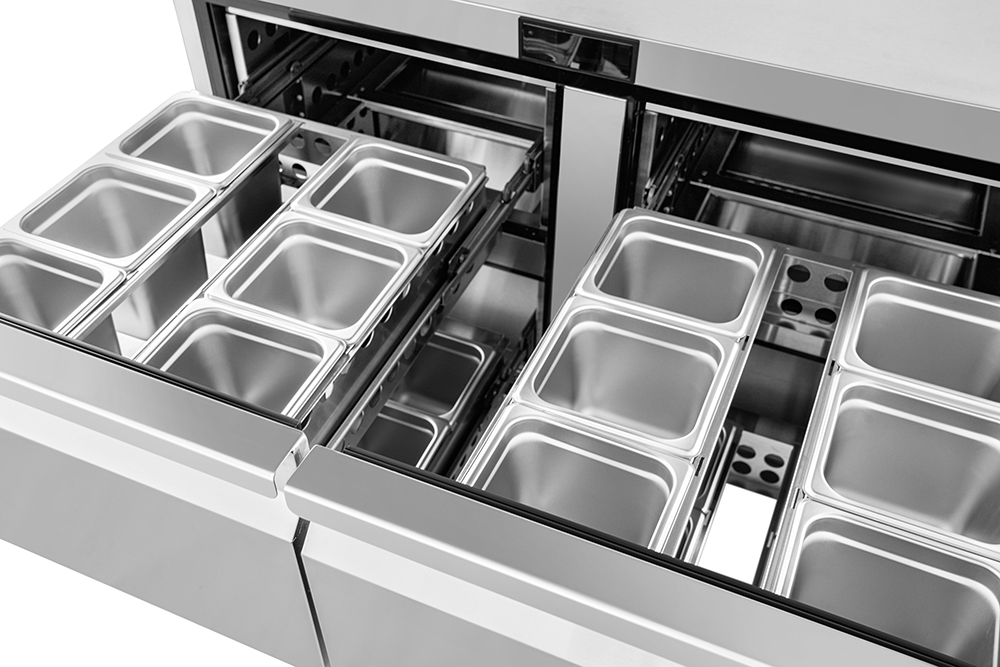

Pan configuration: each unit comes standard with 1/6 size pans. Atosa also publishes optional layouts for the AUF series using 1/1, 1/2, 1/3 and 1/4 pans — see the pan configuration page of the cutsheet for the arrangement you want. Leave the unit room to breathe and clean the condenser frequently so it keeps drawing fresh air.
Ideal Applications
A 48" drawer freezer is base equipment for a station that pulls frozen product all service long.
AUF48D4 Specifications
| Model | AUF48D4 |
|---|---|
| Brand | Atosa USA |
| Type | Undercounter freezer with drawers |
| Drawers | 4 |
| Capacity | 12.2 cu. ft. |
| Pans | 1/6 size pans standard |
| Temperature Range | -8°F - 1°F |
| Refrigerant | R290 |
| Horsepower | 1/3 HP |
| Voltage | 115V / 60 Hz / 1 phase |
| Current | 4.8 A |
| Plug Type | NEMA 5-15P (15A / 125V) |
| Controller | Electronic temperature controller |
| Handles | Recessed |
| Gaskets | Magnetic drawer gaskets |
| Construction | Stainless steel exterior and interior with reinforced stainless steel top |
| Casters | 2" heavy duty swivel plate, pre-installed |
| Exterior Dimensions (W x D x H) | 48-1/4" x 30" x 32-3/8" |
| Net Weight | 271 lb |
| Gross Weight | 348 lb |
| Related Models | AUF27D2 (2 drawers, 6.5 cu ft), AUF36D2 (2 drawers, 9 cu ft), AUF60D4 (4 drawers, 15.5 cu ft) |
| Warranty | 3 year parts and labor; 5 year compressor part |
Optional Accessories
Caster height changes the overall height of the cabinet, and coverage can be extended beyond the standard term.
| R06001000228 / R06001000229 | 1.2" swivel plate casters (with / without brake) — 31-1/4" overall height |
|---|---|
| R06001000063 | 1.5" swivel plate caster (with brake) — 31-7/8" overall height |
| B0604434 / B0604433 | 2" heavy duty swivel plate casters (with / without brake) — 32-3/8" overall height, standard |
| B0604421 / B0604413 | 4" swivel stem casters (with / without brake) — 34-3/8" overall height |
| B0604007 / B0604006 | 5" swivel stem casters (with / without brake) — 35-1/4" overall height |
| Optional Pan Configurations | 1/1, 1/2, 1/3 and 1/4 size pan layouts published for the AUF series |
| Extended Warranty | Available up to 5 years |
Frequently Asked Questions
How many drawers does the AUF48D4 have?
Four, in a 48-1/4" wide cabinet holding 12.2 cu. ft.
What temperature does the AUF48D4 hold?
Between -8°F and 1°F on an electronic temperature controller. Atosa recommends setting a freezer between -8°F and 0°F for the best results in food preservation.
What pans does the AUF48D4 take?
It comes standard with 1/6 size pans. Atosa also publishes optional AUF series layouts using 1/1, 1/2, 1/3 and 1/4 pans.
What are the electrical requirements?
115V, 60 Hz, single phase, drawing 4.8 A through a NEMA 5-15P plug rated 15A / 125V. The compressor is 1/3 HP on R290 refrigerant.
Can the caster height be changed?
Yes. It ships on 2" heavy duty swivel plate casters at 32-3/8" overall height. Low profile 1.2" and 1.5" plate casters drop it to 31-1/4" or 31-7/8", and 4" or 5" swivel stem casters raise it to 34-3/8" or 35-1/4".
How does the AUF48D4 compare to the other AUF drawer freezers?
The AUF48D4 is 48-1/4" wide with 4 drawers and 12.2 cu ft. The AUF27D2 is 27-1/2" with 2 drawers and 6.5 cu ft, the AUF36D2 is 36-3/8" with 2 drawers and 9 cu ft, and the AUF60D4 is 60-1/4" with 4 drawers and 15.5 cu ft. All four are 30" deep and 32-3/8" high.
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | AUF48D4 |
| Brand | Atosa USA |
| Weight | 348.00 lbs |
| Dimensions (HxWxD) | 38.00 x 51.00 x 33.00 inches |
| Height | 38.00 |
| Width | 51.00 |
| Depth | 33.00 |
| Size | 1 section |
| Access Type | drawers |
| Refrigeration | self-contained, rear mounted |
| Compressor HP | 1/3 HP |
| Interior Finish | all stainless steel interior |
| Exterior Finish | all stainless steel exterior |
| Width | 48"- 59" |
|
