Atosa USA AUR27SD Undercounter Refrigerator, 1 Solid Door, 27-1/2"W, 6.4 cu. ft., Stainless Steel, R290, ETL

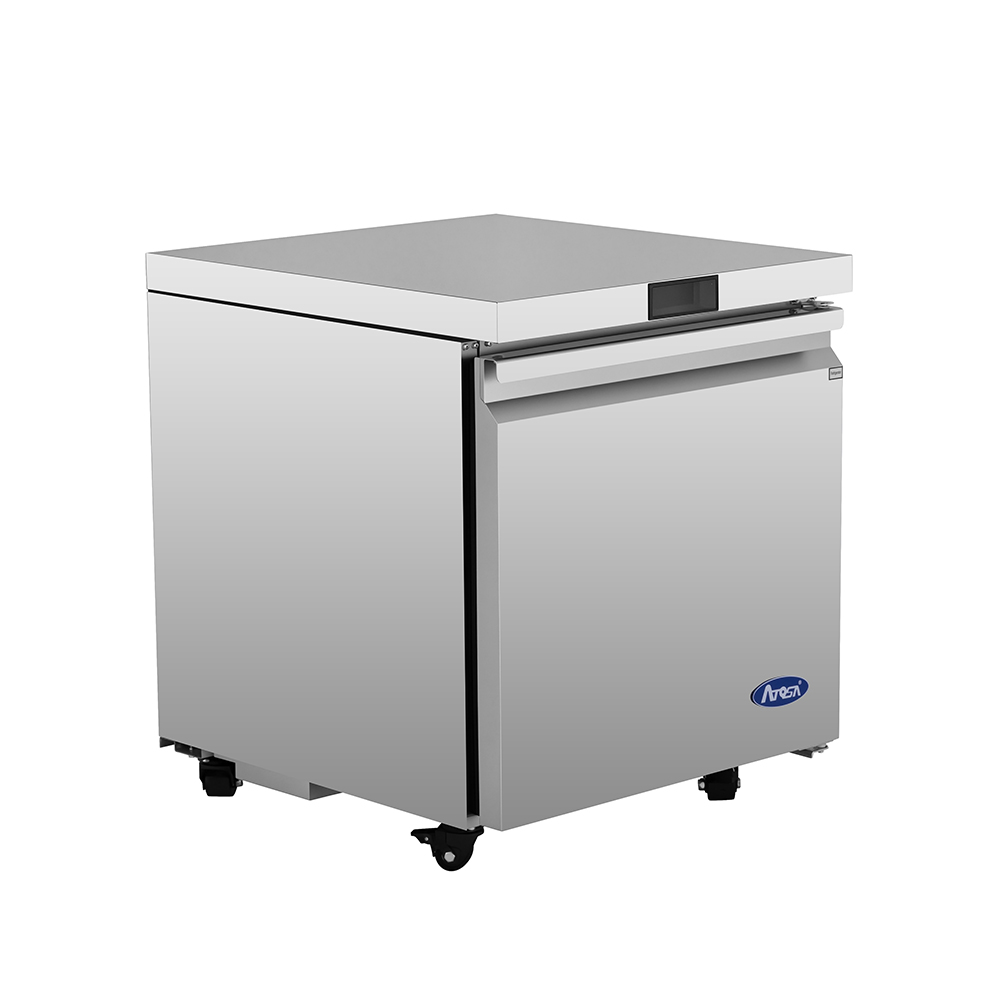

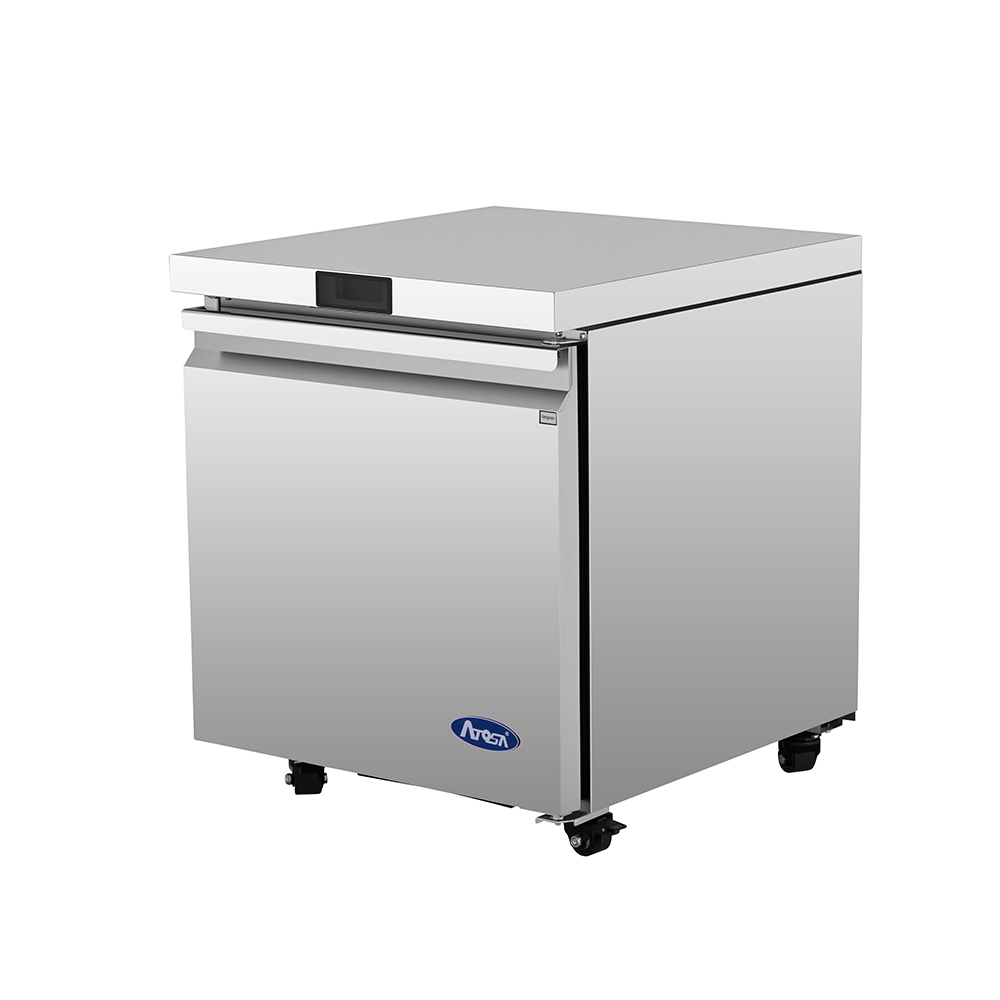

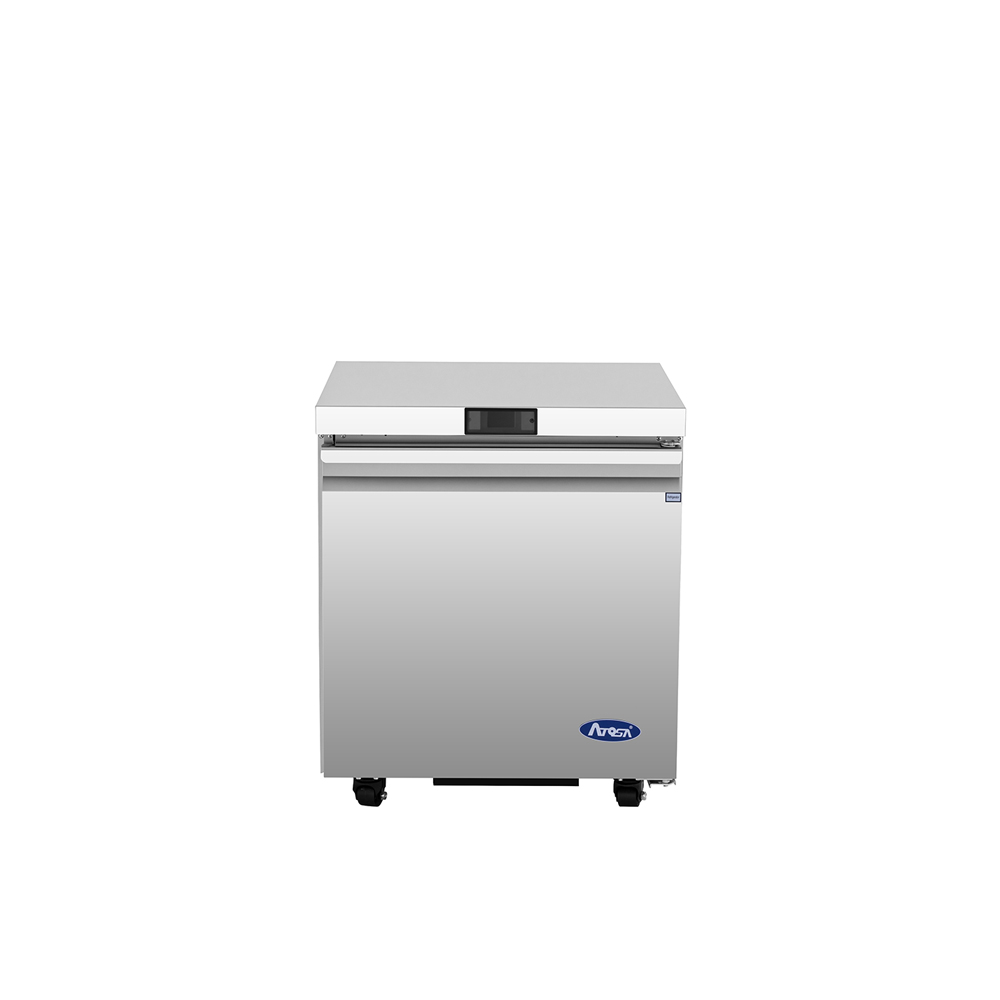

Atosa USA AUR27SD — 27-1/2" One-Door Undercounter Refrigerator
The AUR27SD is a one-section, 6.4 cu. ft. undercounter refrigerator with a single solid door, two adjustable shelves and stainless steel construction inside and out. Rear-mounted self-contained refrigeration on R290 hydrocarbon refrigerant holds 35°F to 38°F under digital temperature control, and the door is field reversible and self-closing with a stay-open feature.
Key Features of the AUR27SD
An undercounter refrigerator has to hold temperature in the hottest part of the kitchen while staying out of the way. Here is how the AUR27SD manages it.
Field Reversible, Self-Closing Door
The solid door can be hinged on either side in the field, closes itself after a quick reach, and has a stay-open feature for loading. A magnetic gasket gives a positive seal.
Digital Control, 35°F–38°F
An electronic temperature controller with digital readout maintains 35°F to 38°F, the range Atosa recommends for the best food preservation results.
R290 Refrigerant, Rear-Mounted System
Environmentally friendly R290 hydrocarbon refrigerant on a 1/6 HP rear-mounted self-contained system draws just 2.3 amps, with automatic evaporation of condensate.

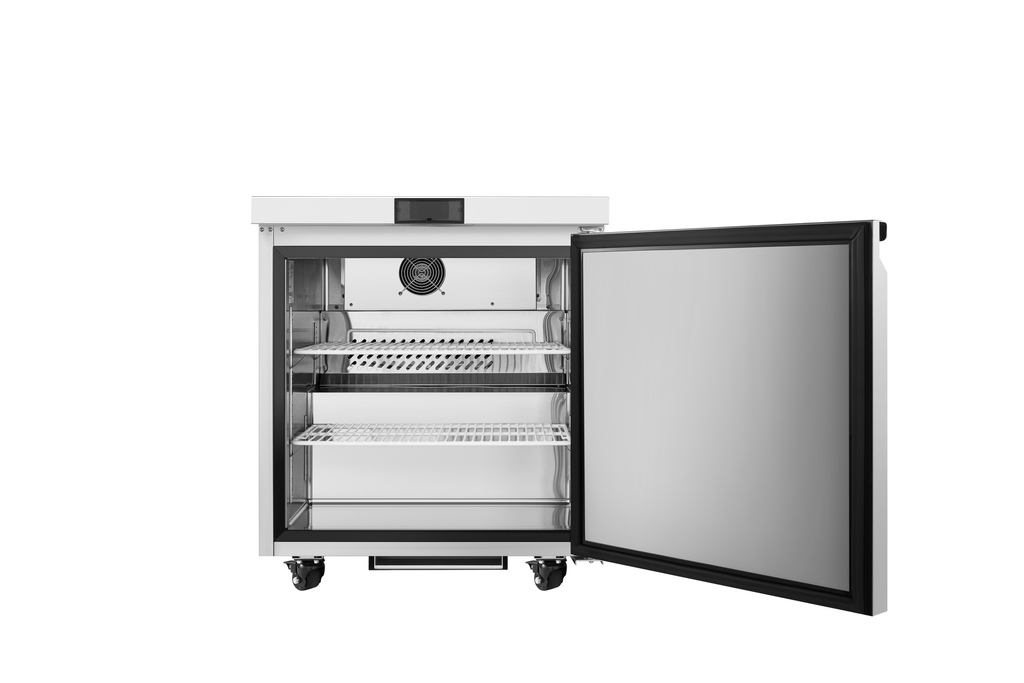

Two Adjustable Epoxy Shelves
Two shelves come pre-installed and adjust to the product being stored, whether that is sheet pans of prep or tall containers of stock.
Stainless Steel Inside and Out
Stainless steel exterior and interior with a galvanized steel back — a cabinet built for wash-down and years of service on the line.
Casters Pre-Installed
Ships on 2" heavy duty swivel plate casters — B0604434 with brake, B0604433 without — so the unit rolls out for cleaning underneath and behind.
Installation and care: The unit vents through a rear grate, so leave it room to breathe and clean the condenser frequently to give it more fresh air. For the best food preservation results, set the refrigerator between 35°F and 38°F.
Optional Casters and Overall Height
The AUR27SD ships on 2" casters for a 32-3/8" overall height. Four other caster sets are available when the cabinet has to line up under an existing counter.
| 1.2" swivel plate casters (R06001000228 brake / R06001000229 no brake) | Overall height 31-1/4" |
|---|---|
| 1.5" swivel plate caster (R06001000063, with brake) | Overall height 31-7/8" |
| 2" heavy duty swivel plate casters (B0604434 brake / B0604433 no brake) — standard | Overall height 32-3/8" |
| 4" swivel stem casters (B0604421 brake / B0604413 no brake) | Overall height 34-3/8" |
| 5" swivel stem casters (B0604007 brake / B0604006 no brake) | Overall height 35-1/4" |
Ideal Applications
At 27-1/2" wide with a single door, the AUR27SD is the cabinet for a station that needs its own cold storage without giving up a run of counter.
AUR27SD Specifications
| Model | AUR27SD |
|---|---|
| Type | Undercounter reach-in refrigerator, one section |
| Doors | (1) hinged solid door, field reversible, self-closing with stay open feature |
| Capacity | 6.4 cu. ft. |
| Shelves | (2) adjustable, pre-installed |
| Exterior Dimensions (W x D x H) | 27-1/2" x 30" x 32-1/2" |
| Temperature Range | 35°F – 38°F |
| Refrigeration | Rear-mounted, self-contained, automatic evaporation |
| Refrigerant | R290 hydrocarbon |
| Horsepower | 1/6 HP |
| Electrical | 115V / 60 Hz / 1-phase, 2.3 amps, cord with NEMA 5-15P |
| Construction | Stainless steel exterior and interior, galvanized steel back |
| Casters | 2" heavy duty swivel plate, pre-installed |
| Optional | Field installable drawer cartridges |
| Certifications | cETLus, ETL Sanitation |
| Net Weight | 137 lb |
| Gross Weight | 168 lb |
| Brand | Atosa USA |
Frequently Asked Questions
What are the dimensions of the Atosa AUR27SD?
Exterior dimensions are 27-1/2" wide x 30" deep x 32-1/2" high. Net weight is 137 lb and gross shipping weight is 168 lb.
Can the door be hinged on the other side?
Yes. The solid door is field reversible, so it can be re-hung to open away from the aisle or the next piece of equipment.
How many shelves come with it?
Two adjustable shelves are pre-installed. Field installable drawer cartridges are available as an option if drawers suit the station better.
What electrical connection does it need?
It runs on 115V / 60 Hz / 1-phase, draws 2.3 amps and plugs into a standard NEMA 5-15P receptacle with the supplied cord. The compressor is 1/6 HP on R290 refrigerant.
Can the overall height be changed?
Yes. The standard 2" heavy duty swivel plate casters give a 32-3/8" overall height. Optional 1.2" and 1.5" low profile plate casters lower it to 31-1/4" or 31-7/8", and optional 4" or 5" swivel stem casters raise it to 34-3/8" or 35-1/4".
How does the AUR27SD compare to the other AUR solid door models?
The AUR27SD is the 27-1/2", 1-door, 6.4 cu. ft. model. The series also includes the AUR24SD (1 door, 3.7 cu. ft.), AUR36SD (2 doors, 8.6 cu. ft.), AUR48SD (2 doors, 11.8 cu. ft.), AUR60SD (2 doors, 15 cu. ft.) and AUR72SD (3 doors, 18.2 cu. ft.).
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | AUR27SD |
| Brand | Atosa USA |
| Weight | 168.00 lbs |
| Dimensions (HxWxD) | 32.50 x 27.50 x 30.00 inches |
| Height | 32.50 |
| Width | 27.50 |
| Depth | 30.00 |
| Exterior Finish | stainless steel & galvanized steel |
| Door Type | solid |
| Refrigeration | self-contained, rear mounted |
| Width | 24" - 35" |
| Size | 1 section |
| Access Type | doors |
| Compressor HP | 1/6 HP |
|
