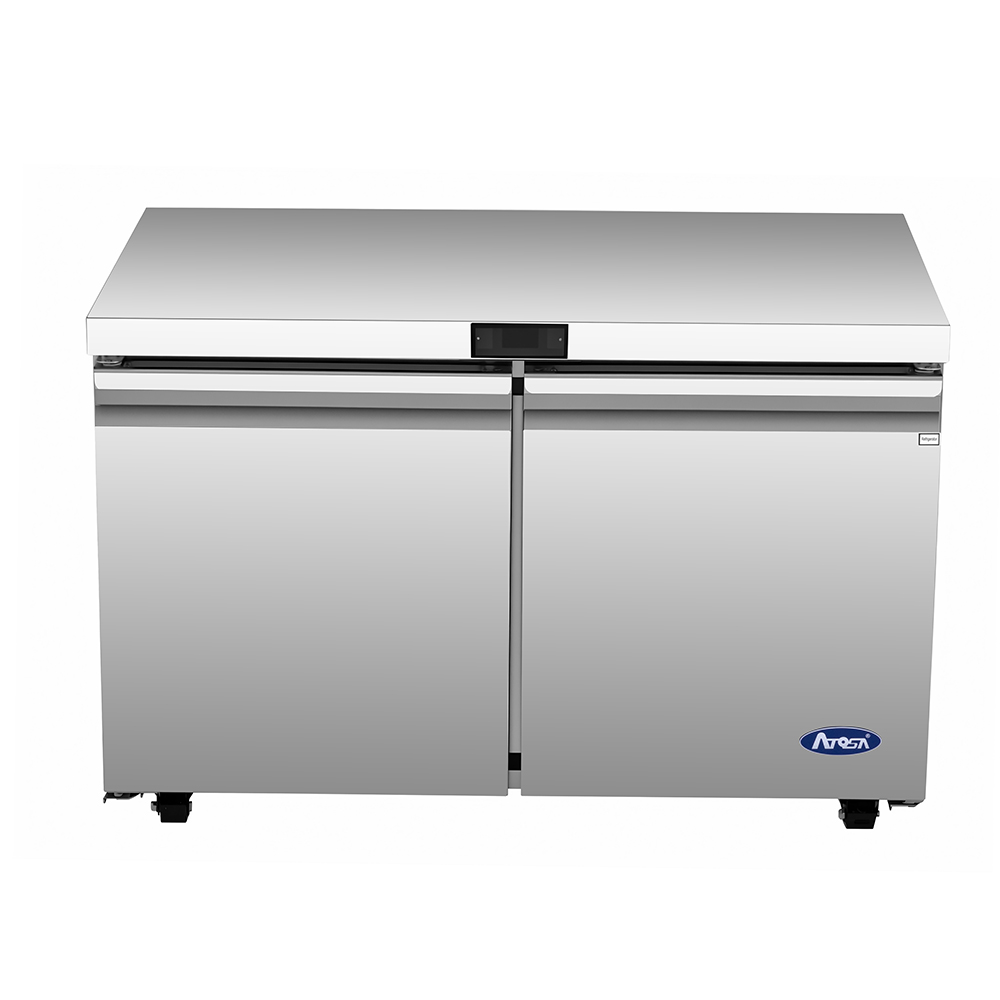

Atosa USA AUR48SD Undercounter Refrigerator, 2 Solid Doors, 48-1/4"W, 11.8 cu. ft., Stainless Steel, R290
Atosa USA AUR48SD — 48" Undercounter Refrigerator, 2 Doors
The AUR48SD is a two-door undercounter refrigerator holding 11.8 cu. ft. in a 48-1/4" wide stainless cabinet at 35°F to 38°F. A 1/6 HP system runs on R290 refrigerant under an electronic controller, four shelves come pre-installed, and the doors are field reversible, self-closing and magnetically gasketed. Field installable drawer cartridges are available if the station would rather have drawers than doors.
Key Features of the AUR48SD
Undercounter refrigeration lives or dies on two things: holding temperature under a hot line, and opening cleanly dozens of times a shift without losing the seal.
35°F to 38°F on R290
An environmentally friendly R290 system on a 1/6 HP compressor holds the cabinet in the 35°F to 38°F band Atosa recommends for food preservation.
Field Reversible, Self-Closing Doors
Both doors reverse on site so the swing suits the aisle, and they self-close with a stay open feature for loading with both hands.
Magnetic Door Gaskets
Magnetic gaskets are standard for a positive seal and lift out for cleaning, which matters on a cabinet that is opened all through service.
Electronic Temperature Controller
The set point is read and adjusted directly on an electronic controller instead of being estimated from a dial, so drift is caught early.
Four Epoxy Coated Shelves
Two pre-installed shelves per section — four in total — so both sides are ready for organized storage out of the crate.
Drawer Cartridges Available
Field installable drawer cartridges are an Atosa option, so the same cabinet can be converted to drawer storage for a pan-based station.
Placement note: leave the unit room to breathe and clean the condenser frequently so it keeps drawing fresh air. Atosa recommends a set point between 35°F and 38°F. The refrigerator plugs into a standard NEMA 5-15P outlet at 115V, 15A and draws 2.3 A.
Ideal Applications
Two doors at 48" is the size that keeps a shift's product under the station that uses it rather than in a reach-in across the kitchen.
AUR48SD Specifications
| Model | AUR48SD |
|---|---|
| Brand | Atosa USA |
| Type | Undercounter refrigerator |
| Doors | 2, field reversible, self-closing with stay open feature |
| Capacity | 11.8 cu. ft. |
| Shelves | 4 (2 per section), pre-installed |
| Temperature Range | 35°F - 38°F |
| Refrigerant | R290 |
| Horsepower | 1/6 HP |
| Voltage | 115V / 60 Hz / 1 phase |
| Current | 2.3 A |
| Plug Type | NEMA 5-15P (15A / 125V) |
| Controller | Electronic temperature controller |
| Gaskets | Magnetic, standard |
| Construction | Stainless steel exterior and interior |
| Casters | 2" heavy duty swivel plate, pre-installed |
| Exterior Dimensions (W x D x H) | 48-1/4" x 30" x 32-1/2" |
| Net Weight | 182 lb |
| Gross Weight | 249 lb |
| Related Models | AUR24SD (1 door, 3.7 cu ft), AUR27SD (1 door, 6.4 cu ft), AUR36SD (2 doors, 8.6 cu ft), AUR60SD (2 doors, 15 cu ft), AUR72SD (3 doors, 18.2 cu ft) |
| Warranty | 3 year parts and labor; 5 year compressor part |
Optional Accessories
Drawer cartridges convert the cabinet to pan drawers in the field, and caster height changes the overall height of the unit.
| Drawer Cartridges | Field installable, in place of shelves |
|---|---|
| R06001000228 / R06001000229 | 1.2" swivel plate casters (with / without brake) — 31-1/4" overall height |
| R06001000063 | 1.5" swivel plate caster (with brake) — 31-7/8" overall height |
| B0604434 / B0604433 | 2" heavy duty swivel plate casters (with / without brake) — 32-3/8" overall height, standard |
| B0604421 / B0604413 | 4" swivel stem casters (with / without brake) — 34-3/8" overall height |
| B0604007 / B0604006 | 5" swivel stem casters (with / without brake) — 35-1/4" overall height |
| Extended Warranty | Available up to 5 years |
Frequently Asked Questions
How much does the AUR48SD hold?
11.8 cu. ft. behind two doors, with four shelves — two per section — pre-installed.
What temperature does the AUR48SD hold?
Between 35°F and 38°F, the range Atosa recommends for food preservation, managed by an electronic temperature controller.
Can the AUR48SD be converted to drawers?
Yes. Atosa lists field installable drawer cartridges as an option for the AUR series.
What are the electrical requirements?
115V, 60 Hz, single phase, drawing 2.3 A through a NEMA 5-15P plug rated 15A / 125V. The compressor is 1/6 HP on R290 refrigerant.
Can the caster height be changed?
Yes. It ships on 2" heavy duty swivel plate casters at 32-3/8" overall height. Low profile 1.2" and 1.5" plate casters drop it to 31-1/4" or 31-7/8", and 4" or 5" swivel stem casters raise it to 34-3/8" or 35-1/4".
How does the AUR48SD compare to the other AUR undercounter refrigerators?
The AUR24SD is 23-7/8" wide with 1 door and 3.7 cu ft, the AUR27SD is 27-1/2" with 1 door and 6.4 cu ft, the AUR36SD is 36-3/8" with 2 doors and 8.6 cu ft, the AUR48SD is 48-1/4" with 2 doors and 11.8 cu ft, the AUR60SD is 60-1/4" with 2 doors and 15 cu ft, and the AUR72SD is 72-5/8" with 3 doors and 18.2 cu ft.
