Atosa USA ATFS-75ES-LP Gas Floor Fryer, 75 lb, Propane, 5 Burners, 110,000 BTU, Stainless Steel, ENERGY STAR
Atosa USA ATFS-75ES-LP — 5 Burner Propane Fryer, 110,000 BTU

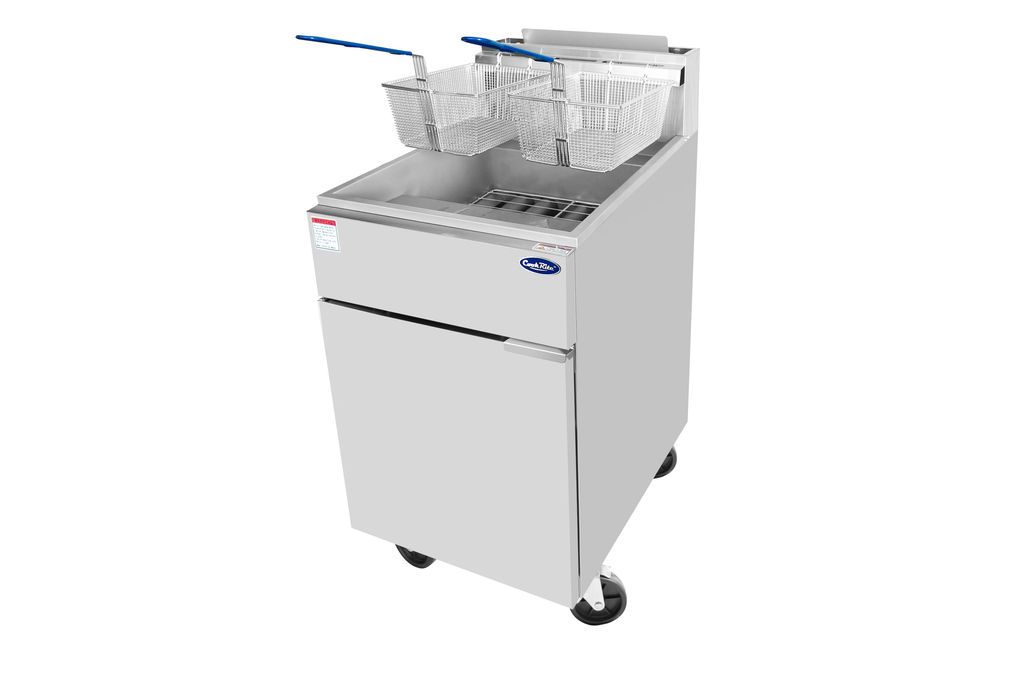

The ATFS-75ES-LP is the propane version of Atosa's largest ES series gas floor fryer: a 75 lb full-pot fryer with five heavy duty burners at 22,000 BTU/h each for 110,000 BTU/h total, feeding a welded stainless steel tank with an oil cooling zone in the bottom. A millivolt thermostat holds the set point anywhere from 200°F to 400°F, and the fryer ships with two nickel plated baskets, a crumb screen, a basket hanger and four casters.
Key Features of the ATFS-75ES-LP
At 110,000 BTU/h this is the biggest pot in the ES line, and the things that make it worth the extra width are recovery speed and how long the oil survives a heavy day.
Five 22,000 BTU Burners
Heavy duty burners with a standing flame and standby pilots, each rated 22,000 BTU/h and controlled independently, so a partly loaded pot does not have to burn full gas.
Millivolt Thermostat, 200°F to 400°F
A millivolt T-Stat holds the selected temperature automatically anywhere between 200°F and 400°F — and needs no electrical connection to do it.
Oil Cooling Zone
The cool zone at the bottom of the tank catches crumbs and food particles below the burner path, which is what keeps oil from darkening after a day of breaded product.
Safety Valve and High-Limit Reset
A safety valve with automatic voltage stabilising, plus a self-reset high temperature limiting device, shut the burners down before the oil gets away from the station.

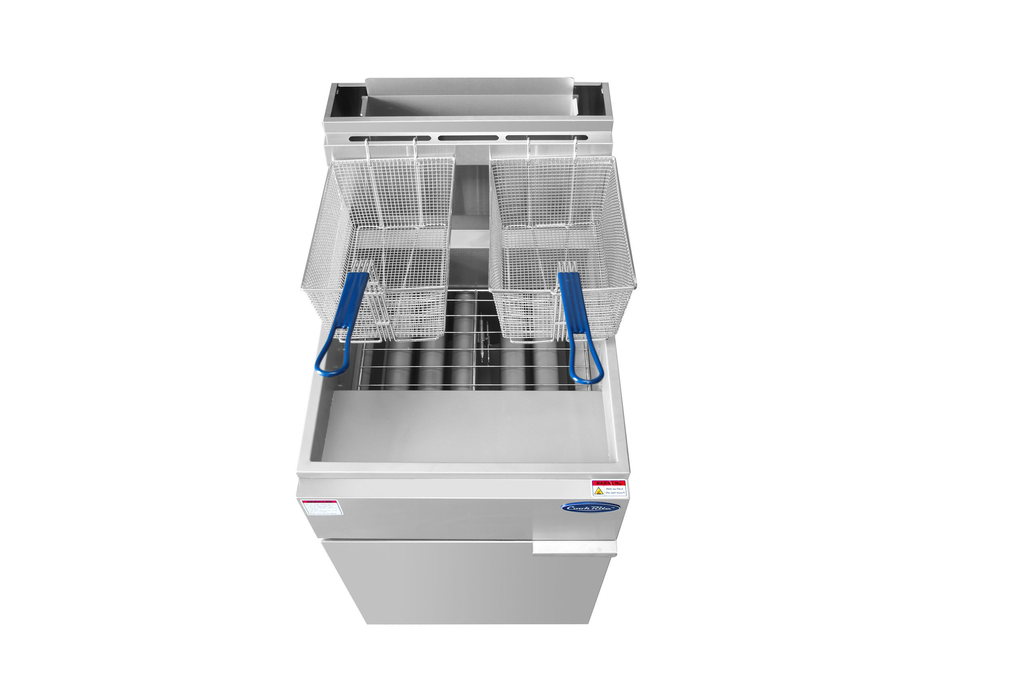

Two Baskets, Crumb Screen and Hanger
Two nickel plated baskets with coated handles, a wire mesh crumb screen and a basket hanger are all standard — nothing else to buy to put it into service.
Four Casters Standard
Four casters come fitted, so the fryer rolls out from the line for cleaning behind and underneath it. A leg kit is available if the install calls for legs instead.
Gas note: this is the propane (LP) version, supplied at 10" W.C. through a 3/4" NPT rear gas connection with a matching 10" w.c. regulator. The natural gas version of the same fryer runs at 4" W.C. Conforms to NSF/ANSI STD.4.
Ideal Applications
A 21-1/8" wide, 75 lb pot is what a kitchen steps up to when the fry station is the bottleneck rather than a side item.
ATFS-75ES-LP Specifications
| Model | ATFS-75ES-LP |
|---|---|
| Brand | Atosa USA |
| Type | Gas fryer, propane (LP) |
| Oil Capacity | 75 lb |
| Burners | 5, heavy duty with standing flame and standby pilots |
| Control Method | Independent manual control per burner |
| BTU Per Burner | 22,000 BTU/h |
| Total Input | 110,000 BTU/h |
| Gas Type | Propane (LP) |
| Gas Pressure | 10" W.C. |
| Gas Connection | 3/4" NPT rear, with 10" w.c. regulator |
| Thermostat | Millivolt T-Stat, 200°F - 400°F |
| Tank | Welded stainless steel with oil cooling zone |
| Safety | Safety valve with automatic voltage stabilizing; self-reset high temperature limiting device |
| Included | 2 nickel plated baskets with coated handles, wire mesh crumb screen, basket hanger |
| Basket Dimensions | 13-3/10" x 9-1/2" x 5-9/10" |
| Casters | 4, standard |
| Construction | Stainless steel exterior and interior |
| Exterior Dimensions (W x D x H) | 21-1/8" x 30-1/8" x 44-3/8" |
| Net Weight | 168 lb |
| Gross Weight | 200 lb |
| Certifications | ENERGY STAR qualified; conforms to NSF/ANSI STD.4 |
| Related Models | ATFS-40ES (3 burners, 66,000 BTU/h), ATFS-50ES (4 burners, 88,000 BTU/h) |
| Warranty | 1 year parts and labor |
Optional Accessories

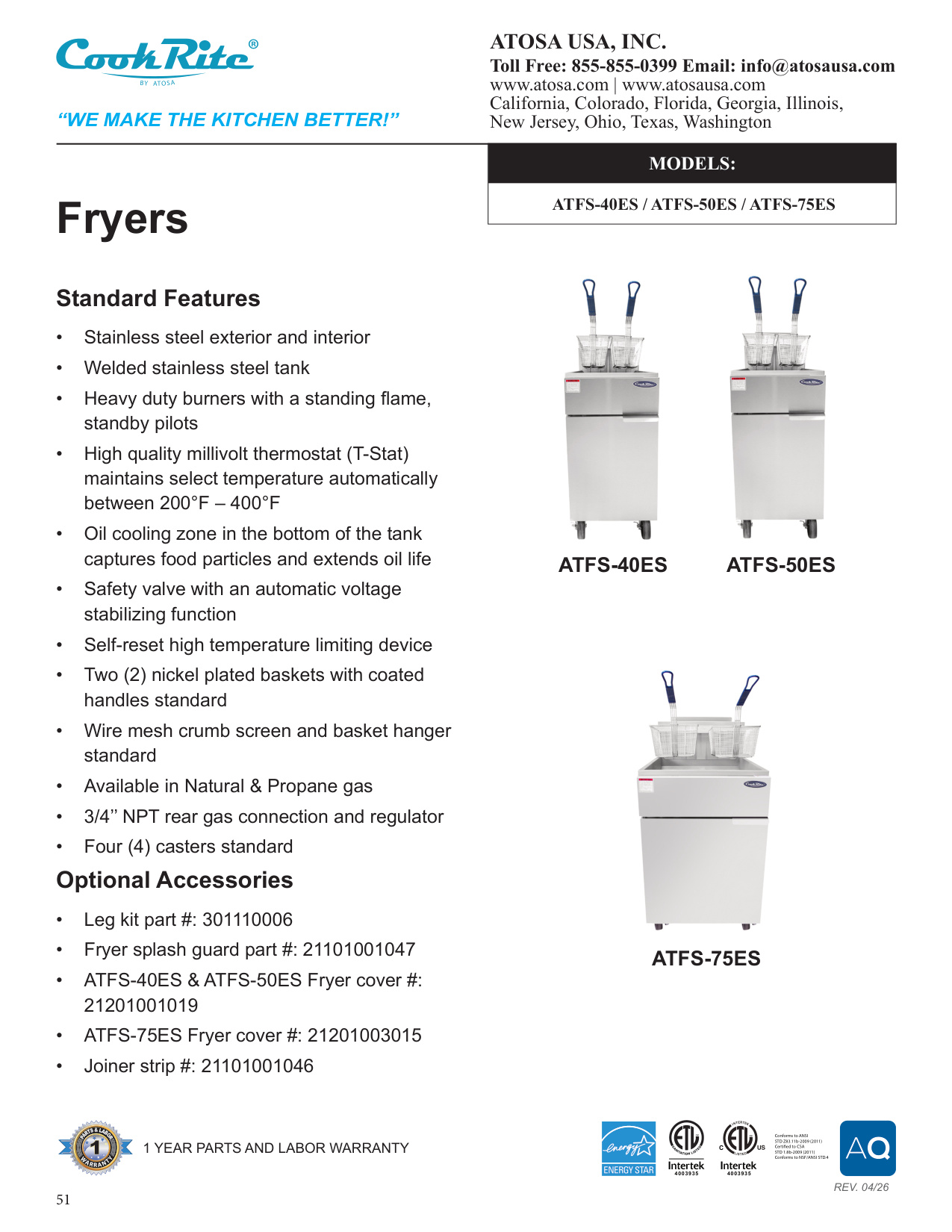

Atosa lists the following part numbers for the ATFS-ES series.
| 301110006 | Leg kit |
|---|---|
| 21101001047 | Fryer splash guard |
| 21201003015 | Fryer cover for ATFS-75ES |
| 21101001046 | Joiner strip |
Frequently Asked Questions
How much oil does the ATFS-75ES-LP hold, and how many BTUs does it produce?
It is a 75 lb full-pot fryer with five burners at 22,000 BTU/h each, for 110,000 BTU/h total.
What gas does it run on?
This is the propane (LP) version, supplied at 10" W.C. through a 3/4" NPT rear connection with a matching regulator. The natural gas version of the same fryer runs at 4" W.C.
What temperature range does the ATFS-75ES-LP hold?
The millivolt thermostat maintains the selected temperature automatically between 200°F and 400°F.
What comes with the fryer?
Two nickel plated baskets with coated handles, a wire mesh crumb screen, a basket hanger and four casters are all standard.
Does the ATFS-75ES-LP need electricity?
No. It uses standing flame burners with standby pilots and a millivolt thermostat, so it runs on gas alone.
How does the ATFS-75ES compare to the ATFS-40ES and ATFS-50ES?
All three use the same 22,000 BTU/h burners under independent manual control. The ATFS-40ES has 3 burners for 66,000 BTU/h and the ATFS-50ES 4 burners for 88,000 BTU/h, both in a 15-1/2" wide cabinet. The ATFS-75ES has 5 burners for 110,000 BTU/h in a 21-1/8" wide cabinet at 168 lb, with a wider 9-1/2" basket.
