Atosa USA AUR60D4 Undercounter Refrigerator, 60-1/4"W, 4 Drawers, 15.5 Cu Ft, Stainless Steel, R290

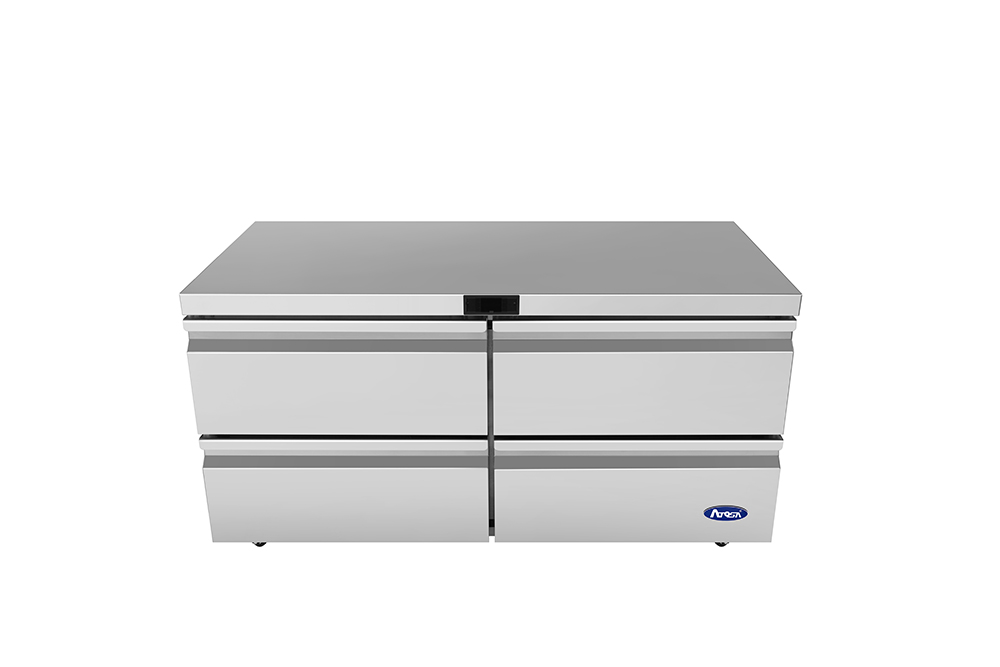

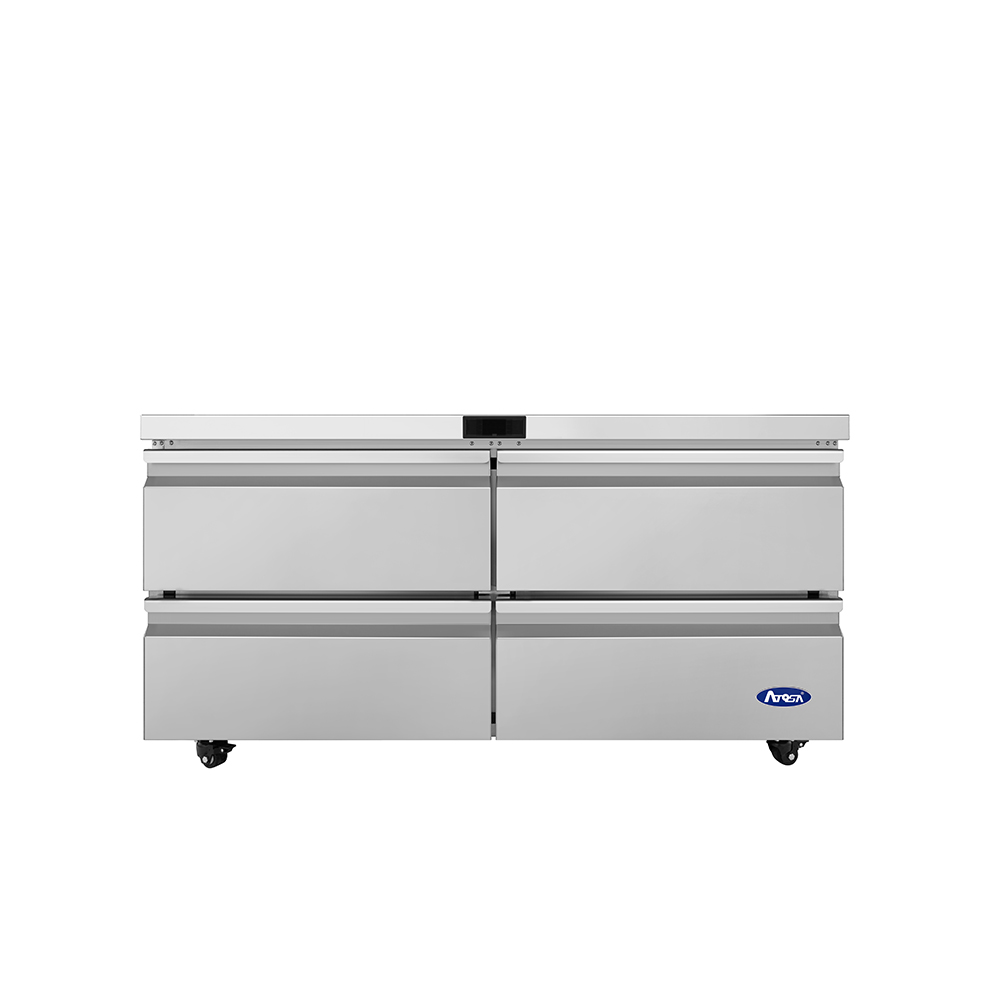

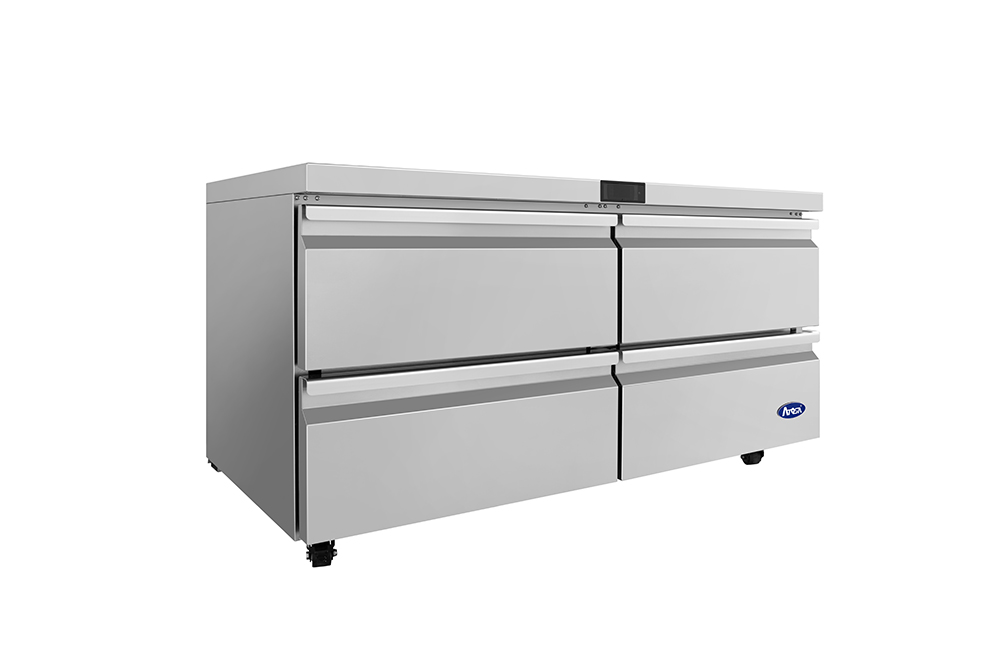

Atosa USA AUR60D4 — 60" Undercounter Refrigerator with Four Drawers
Five feet of counter-height cold storage: the AUR60D4 puts 15.5 cu ft across four drawers under a reinforced stainless steel top, holding 35°F to 38°F on an electronic controller and an R290 system. At 32-3/8" tall on standard 2" casters, it drops into a counter line and turns the space beneath the work surface into four separately organised cold zones.
Key Features of the AUR60D4
Four drawers means four chances a shift for something to be left open or loaded wrong. These are the details that keep the cabinet holding temperature anyway.
Four Independent Drawers
Two drawers per section across a 60-1/4" cabinet, so a busy line can dedicate each drawer to one product instead of digging through a shared shelf mid-ticket.
Reinforced Stainless Top
The top is reinforced stainless steel rather than a bare cabinet lid, so it takes the weight of cutting boards, loaded pans and equipment set on it without flexing.
R290 Natural Refrigerant
R290 has a global warming potential of 3 against the hundreds or thousands of legacy HFC blends, and transfers heat more efficiently — a 1/5+ HP system runs the whole four-drawer cabinet on 3.9 amps.
Electronic Temperature Control
A digital controller holds the cabinet between 35°F and 38°F — the band Atosa specifies for best food preservation — with a readable setpoint instead of a guessed dial position.
Recessed Handles, Magnetic Gaskets
Recessed handles keep four drawer fronts out of a busy aisle, and magnetic gaskets pull each drawer back to a positive seal rather than depending on a cook to push it shut.
2" Casters at Counter Height
Standard 2" heavy duty swivel plate casters put the cabinet at 32-3/8" — undercounter height — and still let 319 lb of equipment roll out for cleaning behind the line.
Installation note: the condenser breathes through the rear grate, so leave the cabinet room rather than pushing it tight to a wall, and clean the coil on a schedule. On a 60" four-drawer box carrying 15.5 cu ft of product, a starved condenser shows up as a temperature climb quickly.
Ideal Applications
Four drawers under five feet of counter suits a line that runs several separate ingredients at volume.
AUR60D4 Specifications
| Model | AUR60D4 |
|---|---|
| Brand | Atosa USA |
| Type | Undercounter refrigerator with drawers, 2 section |
| Capacity | 15.5 cu ft |
| Drawers | 4 |
| Exterior Dimensions (W x D x H) | 60-1/4" x 30" x 32-3/8" |
| Temperature Range | 35°F – 38°F |
| Refrigerant | R290 |
| Horsepower | 1/5+ HP |
| Rated Current | 3.9 A |
| Electrical | 115 V / 60 Hz / 1 Ph, NEMA 5-15P |
| Construction | Stainless steel exterior and interior, reinforced stainless steel top |
| Controls | Electronic temperature controller |
| Drawer Gaskets | Magnetic |
| Casters | 2" heavy duty swivel plate, pre-installed (B0604434 braked / B0604433 non-braked) |
| Pan Configuration | Ships with 1/6 size pans; optional 1/1, 1/2, 1/3 and 1/4 layouts |
| Net Weight | 319 lb |
| Gross Weight | 394 lb |
| Certifications | cETLus, ETL Sanitation |
| Warranty | 3 year parts and labor, 5 year compressor part |
Caster Options and Overall Height
Atosa publishes five caster options for this cabinet, each changing the finished height.
| 1.2" swivel plate casters | R06001000228 braked / R06001000229 non-braked — 31-1/4" overall |
|---|---|
| 1.5" swivel plate caster | R06001000063 braked — 31-7/8" overall |
| 2" heavy duty swivel plate (standard) | B0604434 braked / B0604433 non-braked — 32-3/8" overall |
| 4" swivel stem casters | B0604421 braked / B0604413 non-braked — 34-3/8" overall |
| 5" swivel stem casters | B0604007 braked / B0604006 non-braked — 35-1/4" overall |
| Extended warranty | Up to 5 years |
Frequently Asked Questions

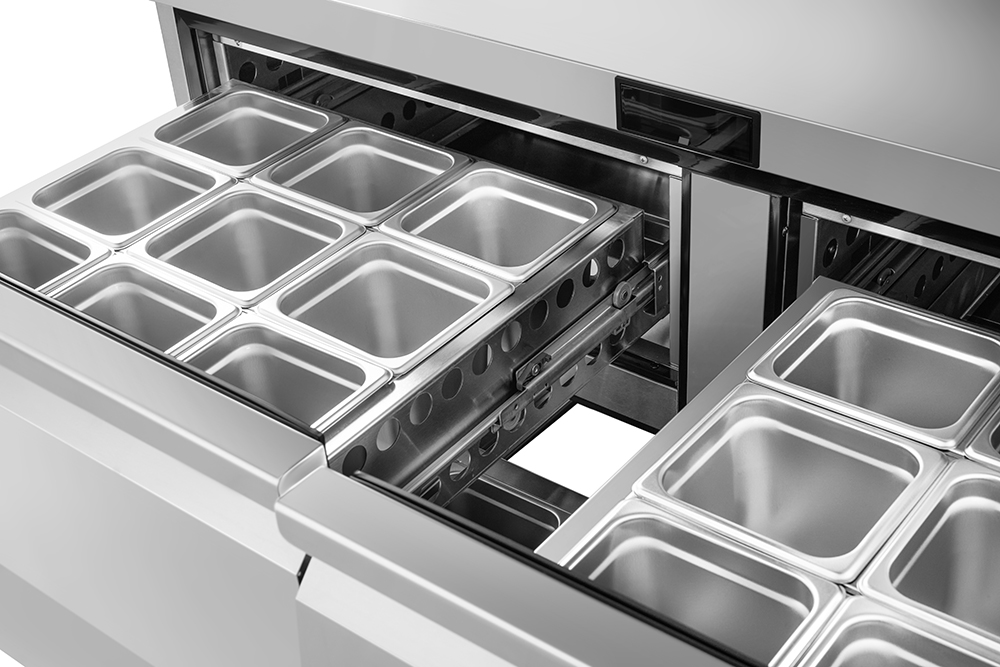

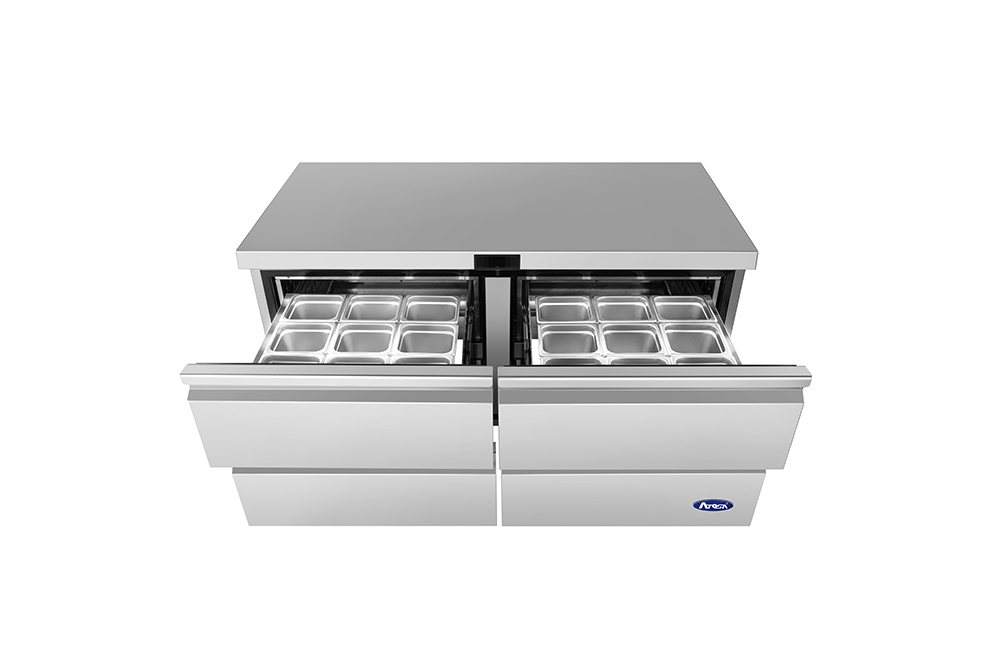

What size pans fit in the drawers?
Each unit comes standard with 1/6 size pans. Atosa also publishes optional drawer configurations using full-size 1/1 pans as well as 1/2, 1/3 and 1/4 sizes, so the layout can be matched to the station.
Will it fit under a standard counter?
Yes. On its standard 2" casters it stands 32-3/8" tall. Lower 1.5" and 1.2" casters bring that to 31-7/8" and 31-1/4" if the counter run is tighter, and 4" or 5" stem casters raise it to 34-3/8" or 35-1/4".
Is R290 refrigerant safe in a commercial kitchen?
Yes. R290 is purified propane in a small, sealed charge sized for the cabinet, and the unit is cETLus listed for the US and Canada. It is used for its very low global warming potential and better heat transfer than legacy HFC refrigerants.
What electrical connection does it need?
A standard 115 V, 60 Hz, single-phase circuit. Rated current is 3.9 amps on a 1/5+ HP system, terminating in a NEMA 5-15P plug rated 15 A / 125 V.
How does it compare to the rest of the AUR drawer line?
All share a 30" depth and 32-3/8" height on standard casters. The AUR27D2 is 6.5 cu ft with 2 drawers, AUR36D2 9 cu ft with 2, AUR48D4 12.2 cu ft with 4, this AUR60D4 15.5 cu ft with 4, and AUR72D6 18.9 cu ft with 6.
What temperature does it hold?
The electronic controller maintains 35°F to 38°F, the range Atosa recommends for best food preservation in this cabinet.
