Atosa USA MGF8464GR Chef Base Freezer, 76"W, 4 Drawers, 4.9 Cu Ft, Stainless Steel, R290

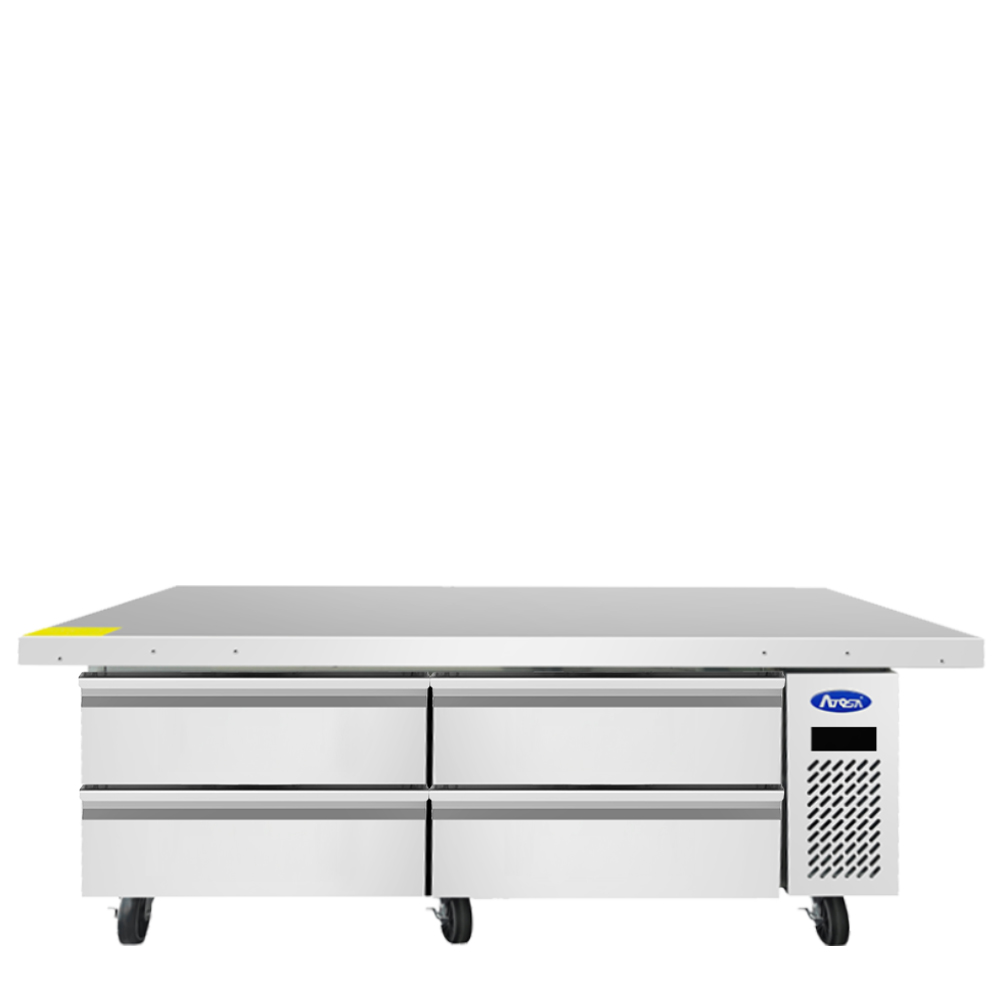

Atosa USA MGF8464GR — 76" Four Drawer Chef Base Freezer
The largest chef base in Atosa's line: 76 inches of one-piece reinforced stainless top to carry a full cooking battery, with 4.9 cu ft of freezer storage across four drawers underneath holding -8°F to 1°F. Eight full-size 12" x 20" stainless pans are included, and the whole cabinet runs on a heavy-duty compressor with R290 refrigerant from a single 115 V circuit.
Key Features of the MGF8464GR
A six-foot chef base carries a lot of equipment and holds a freezer under all of it. Both facts drive how it has to be built.
One-Piece Reinforced Top
Six feet of heavy-duty reinforced stainless in a single panel, built specifically to support countertop cooking equipment — a griddle and charbroiler side by side sit on it without deflection or a joint to trap grease.
True Freezer Under Heat
Holding -8°F to 1°F directly beneath a working cooking line is the hard part. A heavy-duty compressor on R290 and an electronic controller are what keep 4.9 cu ft frozen through a full service.
Eight Full-Size Pans Included
Four drawers carrying eight 12" x 20" stainless pans at 6" deep, supplied with the unit — the base arrives ready to load rather than needing a separate pan order.
Heavy Duty Slides and Rollers
Stainless steel drawer slides and rollers with pull-out handles included, so a drawer carrying two loaded full-size pans of frozen protein still opens with one hand mid-service.
Corner Guards Standard
Corner guards are included, because a six-foot base at knee height in the busiest aisle of the kitchen takes hits from carts, racks and sheet pans all day.
One 115 V Circuit, 5" Casters
The whole cabinet runs on 6.5 amps at 680 watts from a standard 115 V outlet, and pre-installed 5" casters let 332 lb of base roll out for the cleaning behind the line that would otherwise be impossible.
Installation note: a chef base works harder than any other refrigeration in the kitchen because it sits under a heat source. Leave it room to breathe rather than boxing it in, and clean the condenser on a strict schedule — on a freezer running under a full cooking battery, a dirty coil shows up as a rising cabinet temperature faster than anywhere else.
Ideal Applications
Six feet of chef base replaces an entire run of equipment stands and a reach-in freezer in one cabinet.
MGF8464GR Specifications
| Model | MGF8464GR |
|---|---|
| Brand | Atosa USA |
| Type | Chef base freezer / refrigerated equipment stand |
| Capacity | 4.9 cu ft |
| Drawers | 4 |
| Pans Included | 8 x 12" x 20" full size, 6" deep stainless steel |
| Exterior Dimensions (W x D x H) | 76" x 32" x 26-1/4" |
| Temperature Range | -8°F – 1°F |
| Refrigerant | R290, heavy duty compressor |
| Rated Current | 6.5 A |
| Power | 680 W |
| Electrical | 115 V / 60 Hz / 1 Ph, NEMA 5-15P |
| Construction | Stainless steel exterior and interior, one-piece reinforced stainless top, corner guards |
| Controls | Electronic temperature controller |
| Drawer Hardware | Heavy duty stainless slides and rollers, magnetic gaskets, recessed and pull-out handles |
| Casters | 5", pre-installed |
| Net Weight | 332 lb |
| Gross Weight | 428 lb |
| Certifications | cETLus, ETL Sanitation, ENERGY STAR |
| Warranty | 3 year parts and labor, 5 year compressor part |
Frequently Asked Questions
Can I put cooking equipment on top of it?
Yes — that is the point of a chef base. The top is a one-piece heavy duty reinforced stainless panel built specifically to support countertop cooking equipment, and the 26-1/4" height puts that equipment at standard working level.
Is this a refrigerator or a freezer?
A freezer. The MGF8464GR holds -8°F to 1°F, which is the range Atosa recommends for best frozen food preservation in this cabinet.
Does it come with pans?
Yes. Eight full-size 12" x 20" stainless steel pans at 6" deep are included with the unit and held by the four drawers.
What electrical connection does it need?
A standard 115 V, 60 Hz, single-phase circuit. Despite the size, it draws only 6.5 amps at 680 watts and terminates in a NEMA 5-15P plug rated 15 A / 125 V.
How does it compare to the MGF8463GR?
Both are 4-drawer, 4.9 cu ft chef bases holding eight 12" x 20" pans on the same electrical and refrigeration package. The difference is the top: the MGF8463GR is 72" wide, the MGF8464GR 76", which is 4 more inches of equipment surface.
Can it be cleaned behind and underneath?
Yes. It ships on pre-installed 5" casters, so the base rolls out of the line rather than being permanently fixed in place — important on a cabinet that sits under a grease-producing cooking surface.
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | MGF8464GR |
| Brand | Atosa USA |
| Weight | 428.00 lbs |
| Dimensions (HxWxD) | 29.00 x 79.00 x 35.00 inches |
| Height | 29.00 |
| Width | 79.00 |
| Depth | 35.00 |
| Drawer Qty | 4 drawers |
| Width | 74" - 88" wide |
| Refrigeration | self-contained refrigeration |
|
