Atosa USA AWF36D2 Worktop Freezer, 2 Drawers, 36-3/8"W, 8.97 cu. ft., Stainless Steel, R290

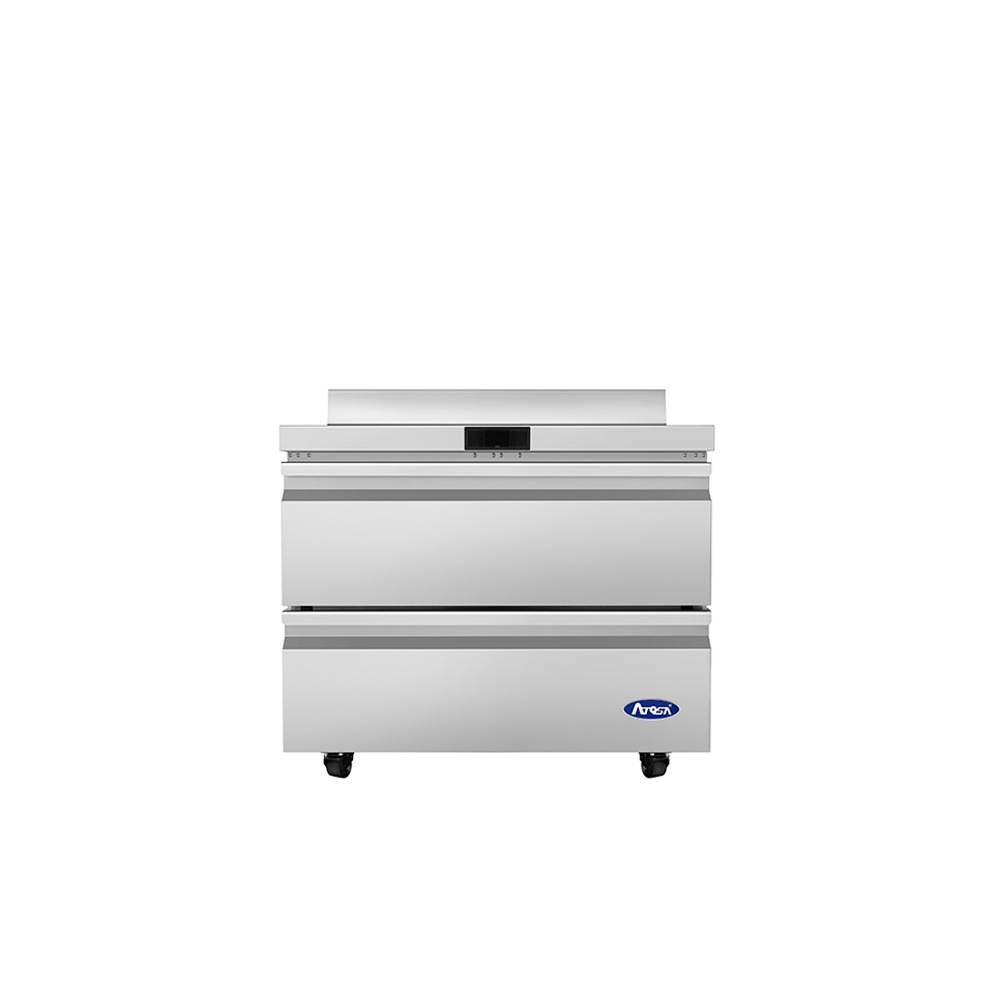

Atosa USA AWF36D2 — 36" Worktop Freezer, 2 Drawers
The AWF36D2 puts 8.97 cu. ft. of frozen storage in two pan drawers under a reinforced stainless steel top with a backsplash, in a 36-3/8" wide cabinet holding -8°F to 1°F. A 1/4+ HP R290 system runs under an electronic controller, and the unit ships on 5" swivel stem casters at a 38-7/8" working height.
Key Features of the AWF36D2
A worktop freezer is bought to be two things at once: a work surface at standing height and frozen storage directly under it, without either half being an afterthought.
Reinforced Stainless Top and Backsplash
The top is reinforced stainless steel with a backsplash, so it takes prep work directly and keeps splatter off the wall behind it.
Two Pan Drawers
Two drawers replace a swing door, so a cook pulls a pan straight out at working height and the cold air stays inside the cabinet.
-8°F to 1°F on R290
An environmentally friendly R290 system on a 1/4+ HP compressor holds true freezer temperature; Atosa recommends setting a freezer between -8°F and 0°F.
Electronic Temperature Controller
The set point is read and adjusted directly on an electronic controller instead of being estimated from a dial, so drift is caught early.
Recessed Handles, Magnetic Gaskets
Recessed handles keep the drawer fronts flush in a tight aisle, and magnetic drawer gaskets pull the seal closed on every push.
Pre-Installed 5" Stem Casters
It ships on 5" swivel stem casters for a 38-7/8" overall height, so the top lands at standing work height and the unit still rolls out for cleaning.

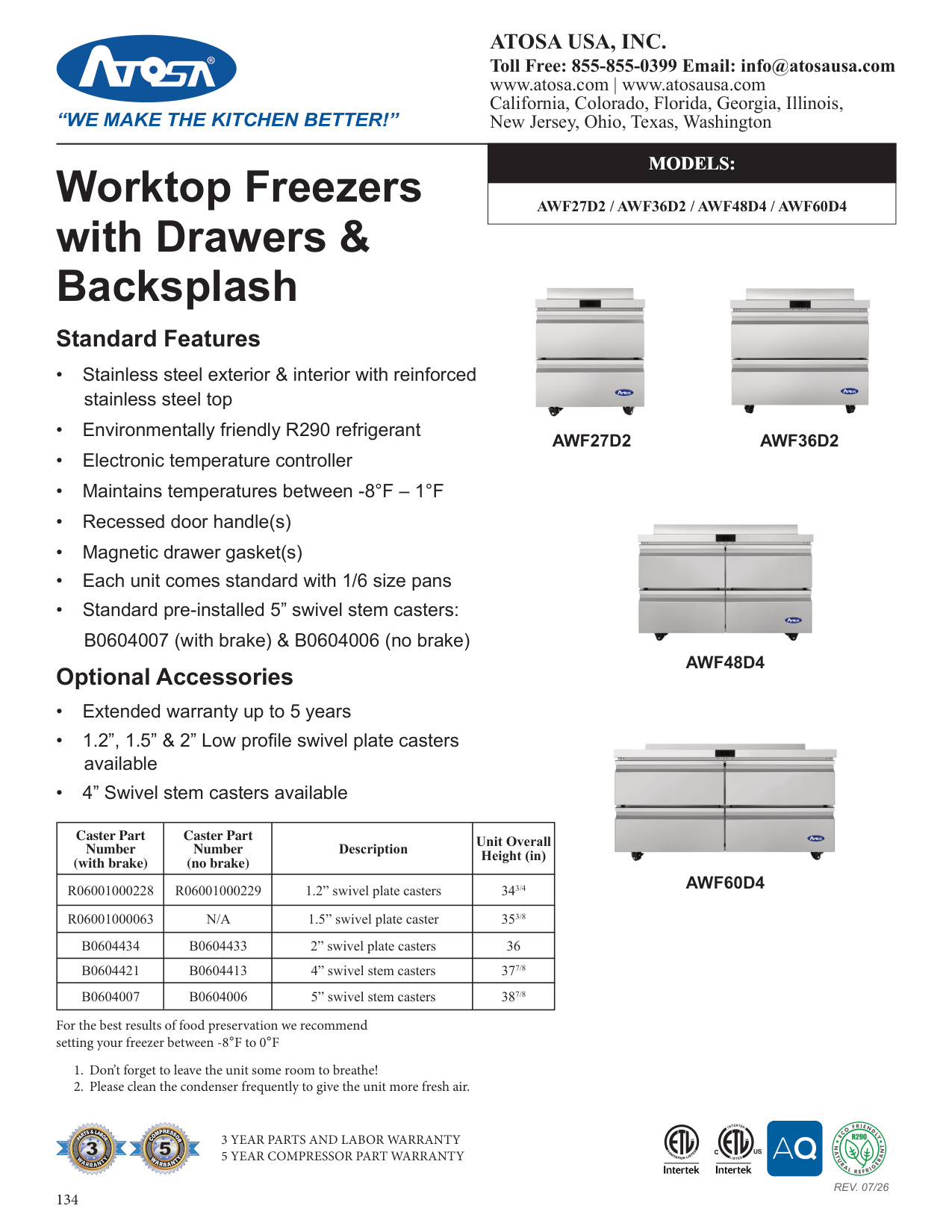

Pan configuration: each unit comes standard with 1/6 size pans. Atosa also publishes optional AWF layouts using 1/1, 1/2, 1/3 and 1/4 pans — see the pan configuration page of the cutsheet for the arrangement you want. Leave the unit room to breathe and clean the condenser frequently so it keeps drawing fresh air.
Ideal Applications
A 36" worktop freezer is what a station buys when it needs a bench and frozen product in the same three feet.
AWF36D2 Specifications
| Model | AWF36D2 |
|---|---|
| Brand | Atosa USA |
| Type | Worktop freezer with drawers and backsplash |
| Drawers | 2 |
| Capacity | 8.97 cu. ft. |
| Pans | 1/6 size pans standard |
| Temperature Range | -8°F - 1°F |
| Refrigerant | R290 |
| Horsepower | 1/4+ HP |
| Voltage | 115V / 60 Hz / 1 phase |
| Current | 4.8 A |
| Plug Type | NEMA 5-15P (15A / 125V) |
| Controller | Electronic temperature controller |
| Handles | Recessed |
| Gaskets | Magnetic drawer gaskets |
| Construction | Stainless steel exterior and interior with reinforced stainless steel top |
| Casters | 5" swivel stem, pre-installed |
| Exterior Dimensions (W x D x H) | 36-3/8" x 30" x 38-7/8" |
| Net Weight | 172 lb |
| Gross Weight | 236 lb |
| Related Models | AWF27D2 (2 drawers, 6.53 cu ft), AWF48D4 (4 drawers, 12.22 cu ft), AWF60D4 (4 drawers, 15.5 cu ft); AWR36D2 is the matching refrigerator |
| Warranty | 3 year parts and labor; 5 year compressor part |
Optional Accessories
Caster height changes the overall height of the cabinet, and coverage can be extended beyond the standard term.
| R06001000228 / R06001000229 | 1.2" swivel plate casters (with / without brake) — 34-3/4" overall height |
|---|---|
| R06001000063 | 1.5" swivel plate caster (with brake) — 35-3/8" overall height |
| B0604434 / B0604433 | 2" swivel plate casters (with / without brake) — 36" overall height |
| B0604421 / B0604413 | 4" swivel stem casters (with / without brake) — 37-7/8" overall height |
| B0604007 / B0604006 | 5" swivel stem casters (with / without brake) — 38-7/8" overall height, standard |
| Optional Pan Configurations | 1/1, 1/2, 1/3 and 1/4 size pan layouts published for the AWF series |
| Extended Warranty | Available up to 5 years |
Frequently Asked Questions
How much does the AWF36D2 hold?
8.97 cu. ft. across two pan drawers, in a 36-3/8" wide cabinet.
What temperature does the AWF36D2 hold?
Between -8°F and 1°F on an electronic temperature controller. Atosa recommends setting a freezer between -8°F and 0°F for the best results in food preservation.
Can food be prepared on top of the AWF36D2?
Yes. The top is reinforced stainless steel with a backsplash, built as a work surface, and on the standard 5" stem casters it sits at a 38-7/8" overall height.
What pans does the AWF36D2 take?
It comes standard with 1/6 size pans. Atosa also publishes optional AWF series layouts using 1/1, 1/2, 1/3 and 1/4 pans.
What are the electrical requirements?
115V, 60 Hz, single phase, drawing 4.8 A through a NEMA 5-15P plug rated 15A / 125V. The compressor is 1/4+ HP on R290 refrigerant.
How does the AWF36D2 compare to the other AWF drawer worktops?
The AWF36D2 is 36-3/8" wide with 2 drawers and 8.97 cu ft. The AWF27D2 is 27-1/2" with 2 drawers and 6.53 cu ft, the AWF48D4 has 4 drawers and 12.22 cu ft, and the AWF60D4 is 60-1/4" with 4 drawers and 15.5 cu ft. All are 30" deep and 38-7/8" high on standard casters.
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | AWF36D2 |
| Brand | Atosa USA |
| Weight | 236.00 lbs |
| Dimensions (HxWxD) | 42.00 x 40.00 x 34.00 inches |
| Height | 42.00 |
| Width | 40.00 |
| Depth | 34.00 |
| Style | drawers |
| Size | 2 section |
| Width (side - side) | 32" - 37" wide |
| Exterior Finish | all stainless steel exterior |
| Interior Finish | all stainless steel interior |
| Refrigeration | self-contained, rear mounted |
|
