Atosa USA AWF60SD Worktop Freezer, 2 Doors, 60-1/4"W, 15.5 cu. ft., Stainless Steel, R290, ENERGY STAR

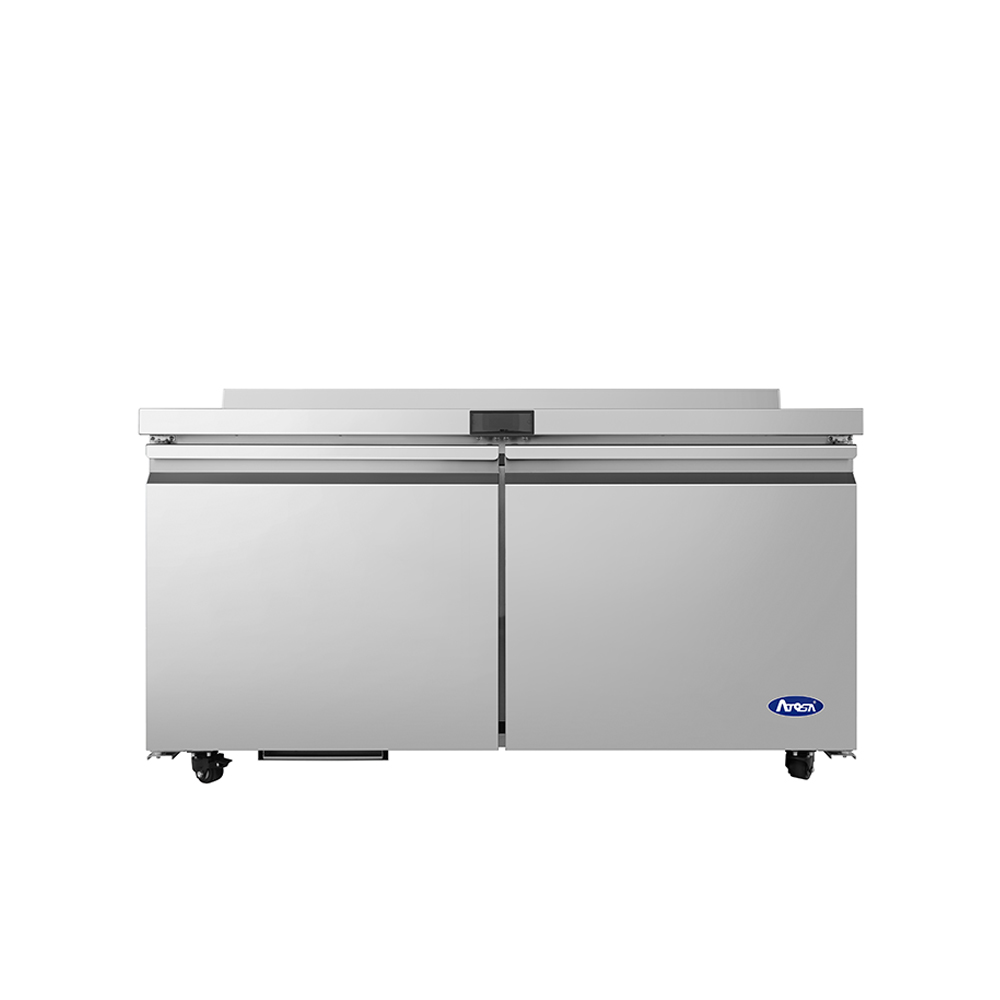

Atosa USA AWF60SD — 60" Work Top Freezer, 2 Doors
The AWF60SD is a two-door work top freezer: 15.5 cu. ft. of frozen storage under a reinforced stainless steel top with a foamed-in-place backsplash, in a 60-1/4" wide cabinet that holds -8°F to 0°F on an electronic controller. It runs a 1/4+ HP system on R290 refrigerant and comes on pre-installed 5" casters.
Key Features of the AWF60SD
A five-foot work top unit is two pieces of equipment in one: a long prep surface that gets worked on hard, and a freezer that has to hold temperature underneath it.
Reinforced Top with Backsplash
A reinforced stainless steel top with a foamed-in-place backsplash takes prep work directly on the surface and keeps splash from running down behind the cabinet.
-8°F to 0°F on R290
An environmentally friendly R290 system on a 1/4+ HP compressor holds the cabinet between -8°F and 0°F, which is the range Atosa specifies for its freezers.
Field Reversible, Self-Closing Doors
Both doors reverse on site to suit the aisle, and they self-close with a stay open feature so loading with both hands does not leave the freezer standing open.
Magnetic Door Gaskets
Magnetic gaskets are standard for a positive seal, and they lift out for cleaning rather than being glued into the door frame.
Four Epoxy Coated Shelves
Four shelves come pre-installed, so both sections are set up for organized frozen storage from the day the crate is opened.
5" Casters, Pre-Installed
The cabinet ships on 5" casters, so five feet of counter still rolls out for cleaning behind and underneath without a separate caster order.
Placement note: leave the unit room to breathe and keep the rear grate and condenser clear so the system keeps drawing fresh air. The AWF60SD runs on 115V, 60 Hz, single phase and draws 4.8 A on a 15A / 125V circuit.
Ideal Applications
A 60" work top freezer is the run of counter that has to carry a full station's frozen product underneath it.
AWF60SD Specifications
| Model | AWF60SD |
|---|---|
| Brand | Atosa USA |
| Type | Work top freezer |
| Doors | 2, field reversible, self-closing with stay open feature |
| Capacity | 15.5 cu. ft. |
| Shelves | 4, pre-installed |
| Temperature Range | -8°F - 0°F |
| Refrigerant | R290 |
| Horsepower | 1/4+ HP |
| Voltage | 115V / 60 Hz / 1 phase |
| Current | 4.8 A |
| Plug Rating | NEMA, 15A / 125V |
| Controller | Electronic temperature controller |
| Gaskets | Magnetic, standard |
| Top | Reinforced stainless steel with foamed-in-place backsplash |
| Construction | Stainless steel exterior and interior |
| Casters | 5", pre-installed |
| Exterior Dimensions (W x D x H) | 60-1/4" x 30" x 38-7/8" |
| Net Weight | 227 lb |
| Gross Weight | 324 lb |
| Certifications | ENERGY STAR qualified |
| Related Models | AWF27SD (1 door, 6.53 cu ft), AWF36SD (2 doors, 8.97 cu ft), AWF48SD (2 doors, 12.22 cu ft); AWR60SD is the matching refrigerator |
| Warranty | Extended warranty available up to 5 years |
Optional Accessories
The AWF60SD ships complete with shelves, casters and gaskets. The option Atosa lists for this series is longer coverage.
| Extended Warranty | Available up to 5 years |
|---|
Frequently Asked Questions
How much does the AWF60SD hold?
15.5 cu. ft. behind two doors, with four shelves pre-installed.
What temperature does the AWF60SD hold?
Between -8°F and 0°F, managed by an electronic temperature controller. The matching AWR60SD refrigerator holds 35°F to 38°F instead.
Can the doors be reversed?
Yes. Both doors are field reversible, and they are self-closing with a stay open feature and magnetic gaskets.
What are the electrical requirements?
115V, 60 Hz, single phase, drawing 4.8 A on a 15A / 125V circuit. The compressor is 1/4+ HP running R290 refrigerant.
Is the AWF60SD ENERGY STAR qualified?
Yes. The AWF60SD is ENERGY STAR qualified.
How does the AWF60SD compare to the other AWF work top freezers?
The AWF27SD is 27-1/2" wide with 1 door, 6.53 cu ft and 2 shelves; the AWF36SD is 36-3/8" with 2 doors, 8.97 cu ft and 4 shelves; the AWF48SD is 48-1/4" with 2 doors and 12.22 cu ft; the AWF60SD is 60-1/4" with 2 doors and 15.5 cu ft. All are 30" deep and 38-7/8" high on 5" casters.
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor |
