Atosa USA MGF8428GR Worktop Freezer with Backsplash, 2 Drawers, 27-1/2"W, 7.15 cu. ft., Stainless Steel, R290

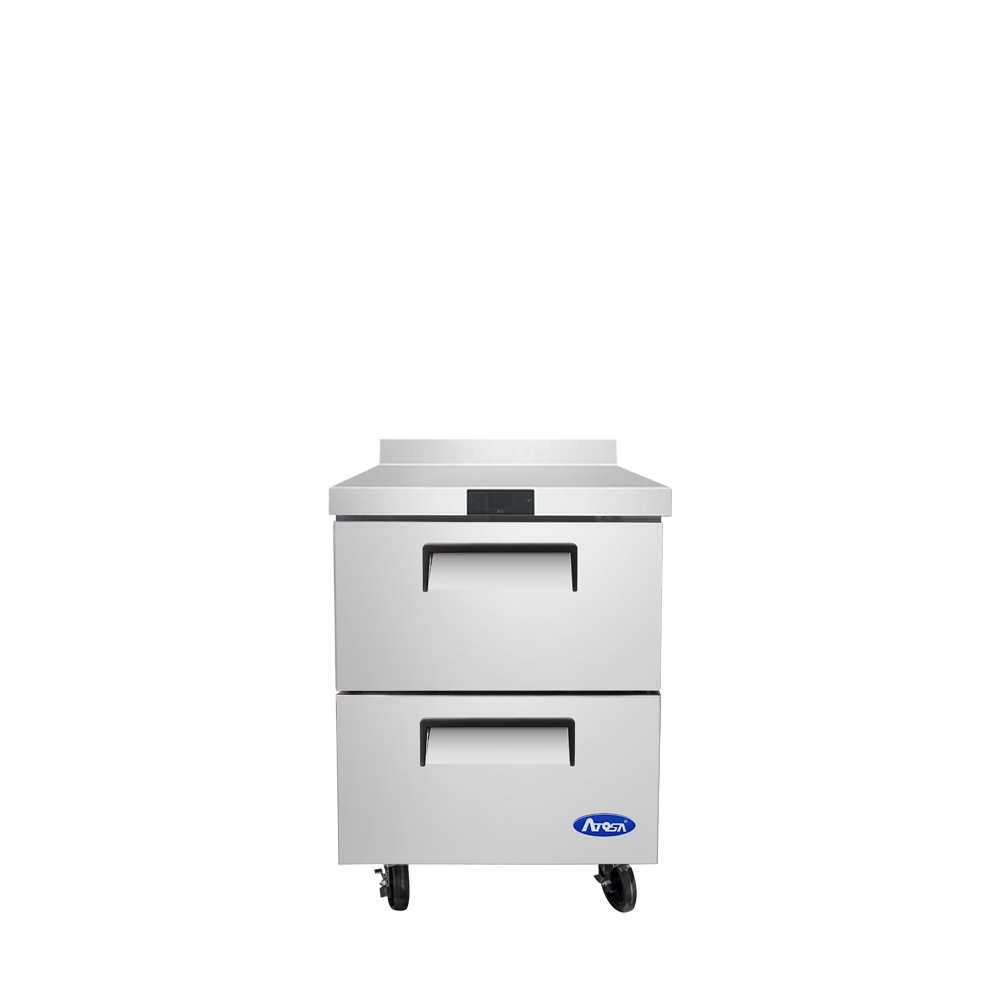

Atosa USA MGF8428GR — 27" Worktop Freezer, 2 Drawers
The MGF8428GR puts 7.15 cu. ft. of frozen storage in two pan drawers under a reinforced stainless steel top with a backsplash, in a 27-1/2" wide cabinet holding -8°F to 1°F. Each drawer takes a full size 12" x 20" pan or six 1/6 size pans, and a 1/5 HP R290 system runs under an electronic controller.
Key Features of the MGF8428GR
A worktop freezer is bought to be two things at once: a work surface at standing height and frozen storage directly under it, without either half being an afterthought.
Reinforced Stainless Top and Backsplash
The top is reinforced stainless steel with a backsplash, so it takes prep work directly and keeps splatter off the wall behind it.
Two Pan Drawers
Two drawers replace a swing door, so a cook pulls a pan straight out at working height and the cold air stays inside the cabinet. Each drawer takes a full size 12" x 20" pan or six 1/6 size pans.
-8°F to 1°F on R290
An environmentally friendly R290 system on a 1/5 HP compressor holds true freezer temperature; Atosa recommends setting a freezer between -8°F and 0°F.
Electronic Temperature Controller
The set point is read and adjusted directly on an electronic controller instead of being estimated from a dial, so drift is caught early.
Recessed Handles, Magnetic Gaskets
Recessed handles keep the drawer fronts flush in a tight aisle, and magnetic drawer gaskets pull the seal closed on every push.
Pre-Installed 4" Casters
It ships on pre-installed 4" casters for a 39-3/4" overall height, so the unit rolls out for cleaning behind and underneath without a separate caster order.
Pan configuration: each drawer accommodates a full size 12" x 20" pan, or six 1/6 size pans. Atosa recommends setting the freezer between -8°F and 0°F for the best results in food preservation. Leave the unit room to breathe and clean the condenser frequently so it keeps drawing fresh air.
Ideal Applications
A 27" worktop freezer is what a station buys when it needs a bench and frozen product in the same two and a half feet.
MGF8428GR Specifications
| Model | MGF8428GR |
|---|---|
| Brand | Atosa USA |
| Type | Worktop freezer with drawers and backsplash |
| Drawers | 2 |
| Capacity | 7.15 cu. ft. |
| Pans | Full size 12" x 20" pan per drawer, or six 1/6 size pans per drawer |
| Temperature Range | -8°F - 1°F |
| Refrigerant | R290 |
| Horsepower | 1/5 HP |
| Voltage | 115V / 60 Hz / 1 phase |
| Current | 1.8 A |
| Plug Type | NEMA 5-15P (15A / 125V) |
| Controller | Electronic temperature controller |
| Handles | Recessed |
| Gaskets | Magnetic drawer gaskets |
| Construction | Stainless steel exterior and interior with reinforced stainless steel top |
| Casters | 4", pre-installed |
| Exterior Dimensions (W x D x H) | 27-1/2" x 30" x 39-3/4" |
| Net Weight | 178 lb |
| Gross Weight | 209 lb |
| Related Models | AWF27D2 (2 drawers, 6.53 cu ft, 27-1/2" wide) is the AWF series equivalent |
| Warranty | 2 year parts and labor; 5 year compressor part |
Optional Accessories
The MGF8428GR ships complete with drawers, gaskets and casters. The option Atosa lists for this model is longer coverage.
| Extended Warranty | Available up to 5 years |
|---|
Frequently Asked Questions
How much does the MGF8428GR hold?
7.15 cu. ft. across two pan drawers, in a 27-1/2" wide cabinet.
What temperature does the MGF8428GR hold?
Between -8°F and 1°F on an electronic temperature controller. Atosa recommends setting a freezer between -8°F and 0°F for the best results in food preservation.
What pans does the MGF8428GR take?
Each drawer accommodates a full size 12" x 20" pan, or six 1/6 size pans.
Can food be prepared on top of the MGF8428GR?
Yes. The top is reinforced stainless steel with a backsplash, built as a work surface, and on its pre-installed 4" casters the cabinet stands 39-3/4" high.
What are the electrical requirements?
115V, 60 Hz, single phase, drawing 1.8 A through a NEMA 5-15P plug rated 15A / 125V. The compressor is 1/5 HP on R290 refrigerant.
What warranty comes with the MGF8428GR?
Two years on parts and labor and five years on the compressor part, with extended coverage available up to 5 years.
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | MGF8428GR |
| Brand | Atosa USA |
| Weight | 209.00 lbs |
| Dimensions (HxWxD) | 39.75 x 27.50 x 30.00 inches |
| Height | 39.75 |
| Width | 27.50 |
| Depth | 30.00 |
| Interior Finish | all stainless steel interior |
| Exterior Finish | all stainless steel exterior |
| Style | drawers |
| Refrigeration | self-contained, rear mounted |
| Compressor HP | 1/5 HP |
| Width (side - side) | 27" - 30" wide |
| Size | 1 section |
|
