Atosa USA AWR48D4 Worktop Refrigerator, 4 Drawers, 48-1/4"W, 12.22 cu. ft., Backsplash, Stainless Steel, R290
Atosa USA AWR48D4 — 48-1/4" Four-Drawer Worktop Refrigerator

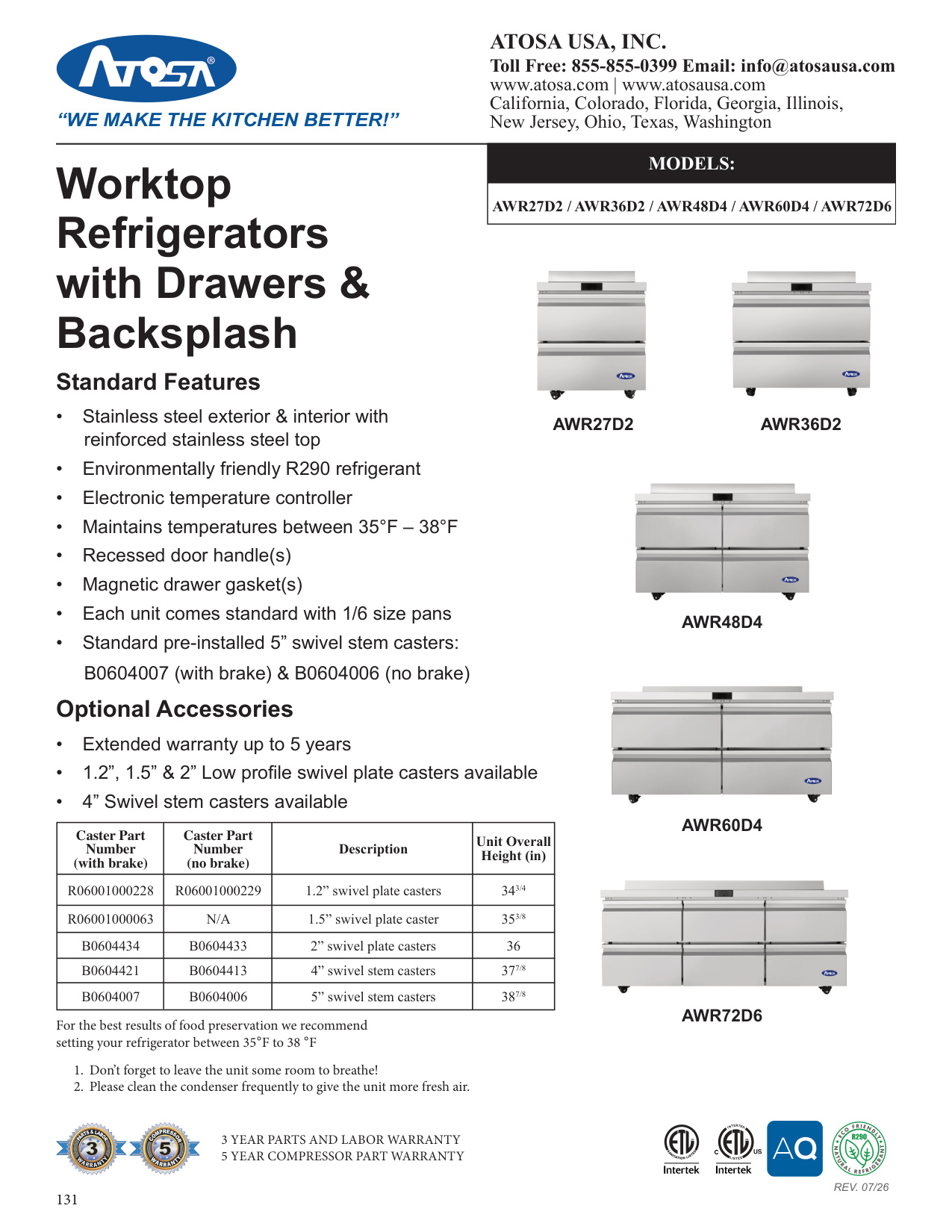

The AWR48D4 is a refrigerated work counter with four drawers and a backsplash, giving a station 12.22 cu. ft. of cold storage underneath a reinforced stainless steel work surface. Built in stainless steel inside and out, it runs on environmentally friendly R290 refrigerant with an electronic temperature controller that holds 35°F to 38°F, and ships on pre-installed 5" swivel stem casters at a 38-7/8" working height.
Key Features of the AWR48D4
A worktop refrigerator has to do two jobs at once: hold cold product and take the abuse of a working surface. Here is how the AWR48D4 handles both.
Four Refrigerated Drawers
Four drawers split the 12.22 cu. ft. cabinet into workable zones. Each drawer takes one full size 12" x 20" x 6" deep pan, or six 1/6 size pans for mise en place.
Reinforced Top with Backsplash
The reinforced stainless steel work top takes cutting boards, slicers and mixers, and the integral backsplash keeps splatter off the wall behind the station.
Electronic Control, 35°F–38°F
An electronic temperature controller maintains 35°F to 38°F — the range Atosa recommends for the best food preservation results — even with drawers opening all shift.
R290 Refrigerant, 1/7+ HP
Environmentally friendly R290 refrigerant paired with a 1/7+ HP compressor keeps the draw to 3.4 amps on a standard 115V circuit.
5" Casters Pre-Installed
Standard 5" swivel stem casters — B0604007 with brake, B0604006 without — set the top at 38-7/8" and let the whole counter roll out for floor cleaning.
Magnetic Gaskets, Recessed Handles
Magnetic drawer gaskets pull out for washing and reseat cleanly, while recessed handles keep the front face flush in a tight aisle.
Installation and care: This unit vents through a rear grate, so Atosa asks that it be left room to breathe and that the condenser be cleaned frequently for fresh air flow. For the best food preservation results, set the refrigerator between 35°F and 38°F.
Optional Casters and Overall Height
The AWR48D4 ships on 5" swivel stem casters, but four other caster sets are available when the top has to line up with an existing run of counter.
| 1.2" swivel plate casters (R06001000228 brake / R06001000229 no brake) | Overall height 34-3/4" |
|---|---|
| 1.5" swivel plate caster (R06001000063, with brake) | Overall height 35-3/8" |
| 2" swivel plate casters (B0604434 brake / B0604433 no brake) | Overall height 36" |
| 4" swivel stem casters (B0604421 brake / B0604413 no brake) | Overall height 37-7/8" |
| 5" swivel stem casters (B0604007 brake / B0604006 no brake) — standard | Overall height 38-7/8" |
Ideal Applications
A 48-1/4" refrigerated counter is the workhorse width — long enough to build on, short enough to fit a single station.
AWR48D4 Specifications
| Model | AWR48D4 |
|---|---|
| Type | Worktop refrigerator with drawers and backsplash |
| Drawers | 4 |
| Capacity | 12.22 cu. ft. |
| Exterior Dimensions (W x D x H) | 48-1/4" x 30" x 38-7/8" |
| Pan Capacity per Drawer | (1) full size 12" x 20" x 6" deep pan, or (6) 1/6 size pans |
| Temperature Range | 35°F – 38°F |
| Refrigerant | R290 |
| Horsepower | 1/7+ HP |
| Electrical | 115V / 60 Hz / 1-phase, 3.4 amps, NEMA 5-15P |
| Construction | Stainless steel exterior and interior, reinforced stainless steel top |
| Casters | 5" swivel stem, pre-installed |
| Venting | Rear grate |
| Included | 1/6 size pans |
| Certifications | cETLus, ETL Sanitation |
| Net Weight | 201 lb |
| Gross Weight | 278 lb |
| Brand | Atosa USA |
Frequently Asked Questions
What are the dimensions of the Atosa AWR48D4?
Exterior dimensions are 48-1/4" wide x 30" deep x 38-7/8" high on the standard 5" swivel stem casters. Net weight is 201 lb and gross shipping weight is 278 lb.
What size pans do the drawers take?
Each drawer accommodates one full size 12" x 20" pan up to 6" deep, or six 1/6 size pans. Each unit comes standard with 1/6 size pans.
What temperature does the AWR48D4 hold?
The electronic temperature controller maintains temperatures between 35°F and 38°F, which is the range Atosa recommends for the best food preservation results.
What electrical connection does it need?
It runs on 115V / 60 Hz / 1-phase, draws 3.4 amps and plugs into a standard NEMA 5-15P receptacle. The compressor is 1/7+ HP using R290 refrigerant.
Can the counter height be changed?
Yes. The standard 5" swivel stem casters give a 38-7/8" overall height. Optional casters change that to 34-3/4" (1.2" plate), 35-3/8" (1.5" plate), 36" (2" plate) or 37-7/8" (4" stem).
How does the AWR48D4 compare to the other AWR worktop models?
The AWR48D4 is the 48-1/4", 4-drawer, 12.22 cu. ft. model. The series also includes the AWR27D2 (2 drawers, 6.53 cu. ft.), AWR36D2 (2 drawers, 8.97 cu. ft.), AWR60D4 (4 drawers, 15.5 cu. ft.) and AWR72D6 (6 drawers, 18.89 cu. ft.).
