Atosa USA AUR27D2 Undercounter Refrigerator, 2 Drawers, 27-1/2"W, 6.5 cu. ft., Stainless Steel, R290, ETL

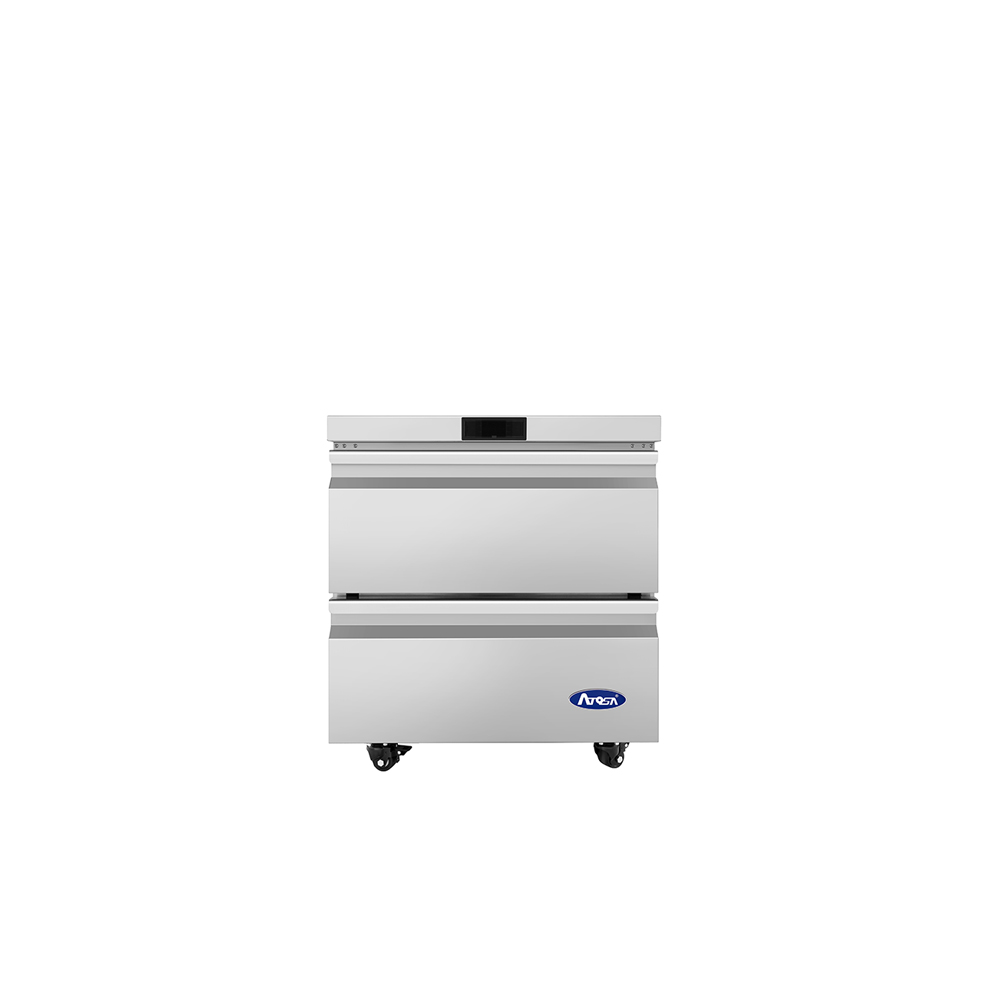

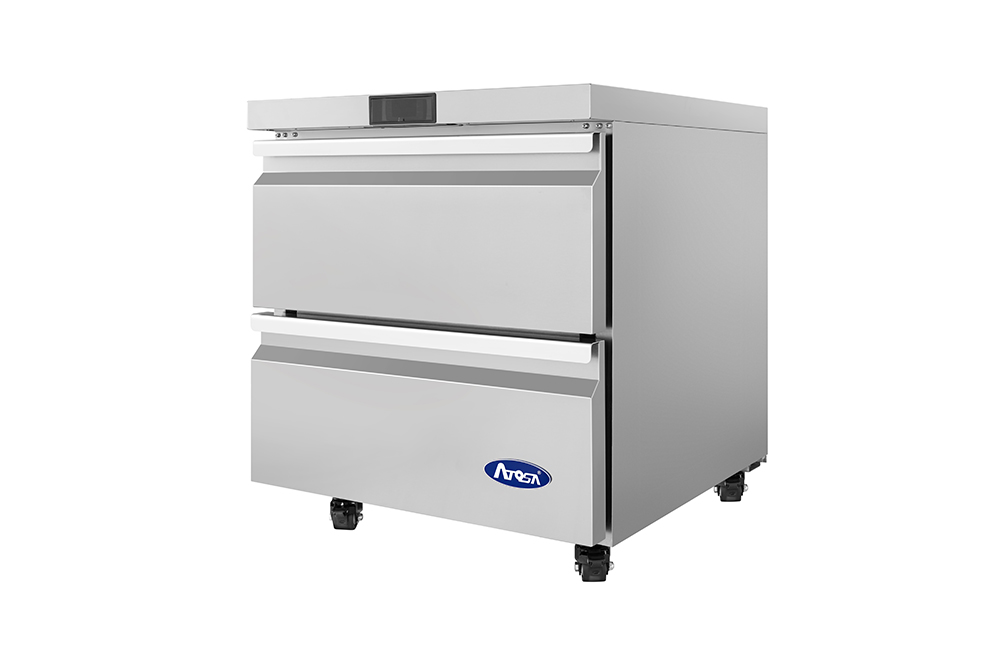

Atosa USA AUR27D2 — 27-1/2" Two-Drawer Undercounter Refrigerator
The AUR27D2 puts 6.5 cu. ft. of refrigerated storage into a 27-1/2" wide undercounter cabinet with two full-extension style drawers instead of a swing door, so a cook can reach prepped product without stepping back from the line. Stainless steel inside and out with a reinforced stainless top, it runs on environmentally friendly R290 refrigerant under an electronic temperature controller that holds 35°F to 38°F.
Key Features of the AUR27D2
A drawer base earns its footprint by keeping the most-used product within arm's reach and holding temperature while the line is moving. Here is how the AUR27D2 is built for that.

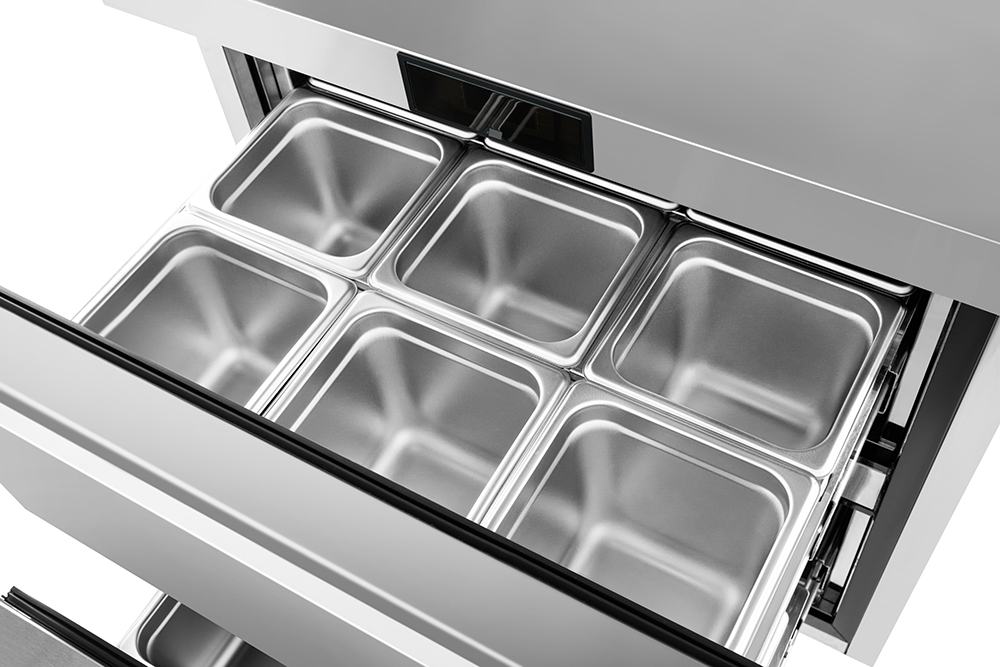

Two Drawers, 1/6 Pans Included
Two refrigerated drawers replace a swing door, and each unit comes standard with 1/6 size pans so the cabinet is ready to load the day it lands.
Electronic Temperature Control, 35°F–38°F
An electronic temperature controller maintains 35°F to 38°F, the range Atosa recommends for the best food preservation results.
R290 Hydrocarbon Refrigerant
Environmentally friendly R290 refrigerant runs efficiently in a compact 1/6 HP system while meeting current low-GWP expectations.
Stainless Steel, Reinforced Top
Stainless steel exterior and interior with a reinforced stainless steel top, so the unit can carry counter-top equipment and take the daily beating of a working station.
Casters Pre-Installed
Ships with 2" heavy duty swivel plate casters already installed — part B0604434 with brake and B0604433 without — so the unit rolls out for cleaning behind the line.
Magnetic Gaskets, Recessed Handles
Magnetic drawer gaskets seal the cold in and are simple to pull and wash, while recessed handles keep the front flush so nothing catches passing staff.
Installation and care: Atosa asks that the unit be left room to breathe and that the condenser be cleaned frequently so it gets fresh air. For the best food preservation results, set the refrigerator between 35°F and 38°F.
Optional Casters and Overall Height
The AUR27D2 ships on 2" casters, but Atosa offers four other caster sets that change the unit's overall height — useful when the base has to line up under an existing counter.
| 1.2" swivel plate casters (R06001000228 brake / R06001000229 no brake) | Overall height 31-1/4" |
|---|---|
| 1.5" swivel plate caster (R06001000063, with brake) | Overall height 31-7/8" |
| 2" heavy duty swivel plate casters (B0604434 brake / B0604433 no brake) — standard | Overall height 32-3/8" |
| 4" swivel stem casters (B0604421 brake / B0604413 no brake) | Overall height 34-3/8" |
| 5" swivel stem casters (B0604007 brake / B0604006 no brake) | Overall height 35-1/4" |
Ideal Applications
At 27-1/2" wide this is the smallest drawer base in the AUR series, which makes it the one that fits where a full reach-in never will.
AUR27D2 Specifications
| Model | AUR27D2 |
|---|---|
| Type | Undercounter refrigerator with drawers |
| Drawers | 2 |
| Capacity | 6.5 cu. ft. |
| Exterior Dimensions (W x D x H) | 27-1/2" x 30" x 32-3/8" |
| Temperature Range | 35°F – 38°F |
| Refrigerant | R290 |
| Horsepower | 1/6 HP |
| Electrical | 115V / 60 Hz / 1-phase, 3.4 amps, NEMA 5-15P |
| Construction | Stainless steel exterior and interior, reinforced stainless steel top |
| Casters | 2" heavy duty swivel plate, pre-installed |
| Included | 1/6 size pans |
| Certifications | ETL, cETLus |
| Net Weight | 178 lb |
| Gross Weight | 233 lb |
| Brand | Atosa USA |
Frequently Asked Questions
What are the dimensions of the Atosa AUR27D2?
Exterior dimensions are 27-1/2" wide x 30" deep x 32-3/8" high on the standard 2" casters. Net weight is 178 lb and gross shipping weight is 233 lb.
How cold does the AUR27D2 hold?
The electronic temperature controller maintains temperatures between 35°F and 38°F, which is the range Atosa recommends for the best food preservation results.
Does the AUR27D2 come with pans?
Yes. Each unit comes standard with 1/6 size pans. Optional pan configurations using 1/1, 1/2, 1/3 and 1/4 size pans are also supported.
What electrical connection does it need?
The AUR27D2 runs on 115V / 60 Hz / 1-phase, draws 3.4 amps and plugs into a standard NEMA 5-15P receptacle. The compressor is 1/6 HP.
Can the overall height be changed?
Yes. The unit ships on 2" heavy duty swivel plate casters for a 32-3/8" overall height. Optional 1.2" and 1.5" low profile plate casters lower it to 31-1/4" or 31-7/8", and optional 4" or 5" swivel stem casters raise it to 34-3/8" or 35-1/4".
How does the AUR27D2 compare to the larger AUR models?
The AUR27D2 is the 27-1/2", 2-drawer, 6.5 cu. ft. model. The series continues with the AUR36D2 (2 drawers, 9 cu. ft.), AUR48D4 (4 drawers, 12.2 cu. ft.), AUR60D4 (4 drawers, 15.5 cu. ft.) and AUR72D6 (6 drawers, 18.9 cu. ft.).
