Atosa USA AWR60SD Worktop Refrigerator, 2 Doors, 60-1/4"W, 15.5 cu. ft., Backsplash, R290, ENERGY STAR

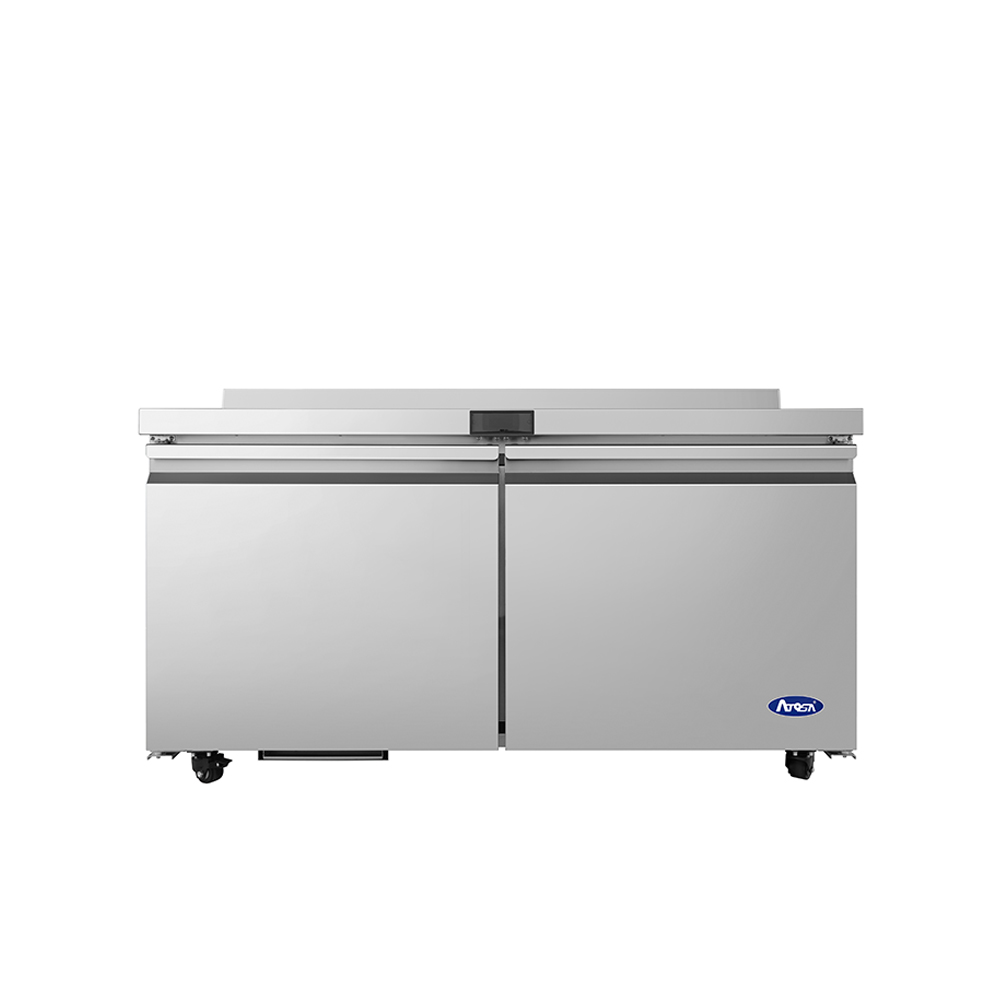

Atosa USA AWR60SD — 60" Work Top Refrigerator, 2 Doors
The AWR60SD is a five-foot refrigerated work counter with two solid doors, four pre-installed shelves and 15.5 cu. ft. of cold storage under a reinforced stainless steel top with a foamed-in-place backsplash. It runs environmentally friendly R290 refrigerant on a 1/5 HP system under electronic temperature control at 35°F to 38°F, and it is ENERGY STAR qualified.
Key Features of the AWR60SD
A work top unit is a prep surface first and a cabinet second. These are the details that let the AWR60SD be both without compromise.
Reinforced Top, Foamed-in-Place Backsplash
The reinforced stainless steel top takes cutting boards, slicers and mixers, and the backsplash is foamed in place rather than bolted on, so there is no seam behind the counter to collect debris.
Field Reversible, Self-Closing Doors
Both doors can be re-hung in the field, close themselves after a quick reach and have a stay open feature for loading. Magnetic gaskets are standard for a positive door seal.
Electronic Control, 35°F to 38°F
An electronic temperature controller maintains 35°F to 38°F — the range Atosa recommends for the best food preservation results — through a full service.
ENERGY STAR Qualified, R290
The AWR60SD is ENERGY STAR qualified and runs environmentally friendly R290 refrigerant on a 1/5 HP system drawing 3.9 amps from a standard 115V circuit.
Four Epoxy Coated Shelves
Four shelves come pre-installed across the two sections, so the 15.5 cu. ft. cabinet is ready for organized cold storage the day the crate is opened.
5" Casters, Pre-Installed
Standard 5" casters set the working surface at 38-7/8" and let a five-foot counter roll clear of the wall for floor cleaning.
Placement note: the unit vents through a rear grate, so leave it room to breathe and clean the condenser frequently to give it more fresh air. The AWR60SD runs on 115V, 60 Hz, single phase and draws 3.9 A on a 15A / 125V circuit.
Ideal Applications
Five feet of refrigerated counter can carry a whole station, or bridge two of them.
AWR60SD Specifications
| Model | AWR60SD |
|---|---|
| Brand | Atosa USA |
| Type | Work top refrigerator with foamed-in-place backsplash |
| Doors | 2 solid, field reversible, self-closing with stay open feature |
| Capacity | 15.5 cu. ft. |
| Shelves | 4, epoxy coated, pre-installed |
| Temperature Range | 35°F – 38°F |
| Refrigerant | R290 |
| Horsepower | 1/5 HP |
| Current | 3.9 A |
| Voltage | 115V / 60 Hz / 1 phase |
| Plug Rating | NEMA, 15A / 125V |
| Controller | Electronic temperature controller |
| Gaskets | Magnetic, standard for positive door seal |
| Construction | Stainless steel exterior and interior, reinforced stainless top with foamed-in-place backsplash |
| Casters | 5", pre-installed |
| Venting | Rear grate |
| Exterior Dimensions (W x D x H) | 60-1/4" x 30" x 38-7/8" |
| Net Weight | 227 lb |
| Gross Weight | 324 lb |
| Certifications | ENERGY STAR qualified |
| Related Models | AWR27SD (1 door, 6.53 cu ft), AWR36SD (2 doors, 8.97 cu ft), AWR48SD (2 doors, 12.22 cu ft), AWR72SD (3 doors, 18.89 cu ft); AWF60SD is the matching freezer |
| Warranty | Extended warranty available up to 5 years |
Optional Accessories
The AWR60SD ships complete with shelves, casters and gaskets. The option Atosa lists for this series is longer coverage.
| Extended Warranty | Available up to 5 years |
|---|
Frequently Asked Questions
What are the dimensions of the Atosa AWR60SD?
Exterior dimensions are 60-1/4" wide x 30" deep x 38-7/8" high on the pre-installed 5" casters. Net weight is 227 lb and gross shipping weight is 324 lb.
Is the AWR60SD ENERGY STAR qualified?
Yes. The AWR60SD is ENERGY STAR qualified and uses environmentally friendly R290 refrigerant on a 1/5 HP system.
How many shelves does it include?
Four epoxy coated shelves, pre-installed across the two sections of the 15.5 cu. ft. cabinet.
Can the doors be reversed?
Yes. Both doors are field reversible, so they can be re-hung to open away from an aisle or the next piece of equipment. They are self-closing with a stay open feature and magnetic gaskets.
What electrical connection does it need?
It runs on 115V, 60 Hz, single phase, draws 3.9 amps and plugs into a standard 15A / 125V receptacle.
How does the AWR60SD compare to the other AWR work top refrigerators?
The AWR27SD is 27-1/2" wide with 1 door, 6.53 cu ft and 2 shelves; the AWR36SD is 36-3/8" with 2 doors and 8.97 cu ft; the AWR48SD is 48-1/4" with 2 doors and 12.22 cu ft; the AWR60SD is 60-1/4" with 2 doors and 15.5 cu ft; the AWR72SD is 72-5/8" with 3 doors and 18.89 cu ft. All are 30" deep and 38-7/8" high on 5" casters, and matching AWF work top freezers are available in the same cabinet sizes.
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | AWR60SD |
| Brand | Atosa USA |
| Weight | 324.00 lbs |
| Dimensions (HxWxD) | 42.00 x 66.00 x 34.00 inches |
| Height | 42.00 |
| Width | 66.00 |
| Depth | 34.00 |
| Exterior Finish | all stainless steel exterior |
| Sections | 2 section |
| Compressor HP | 1/7 HP |
| Width (side - side) | 52" - 63" wide |
| No of Doors | 2 doors |
| Access Type | doors |
| Energy Efficiency | ENERGY STAR® |
| Refrigeration | self-contained, rear mounted |
|
