Atosa USA AUR36D2 Undercounter Refrigerator, 2 Drawers, 36-3/8"W, 9 cu. ft., Stainless Steel, R290, ETL

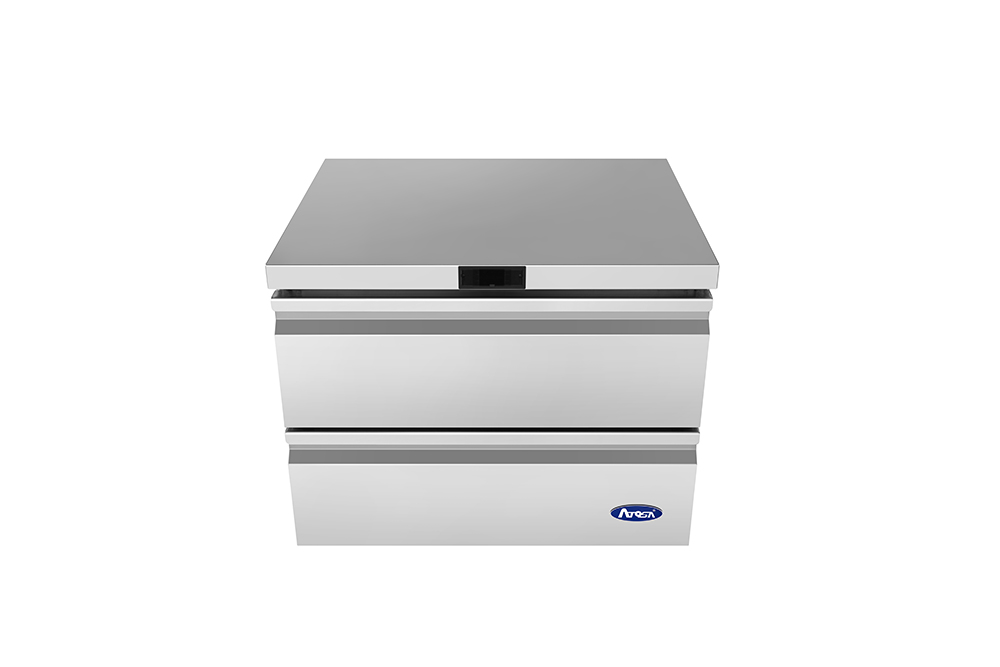

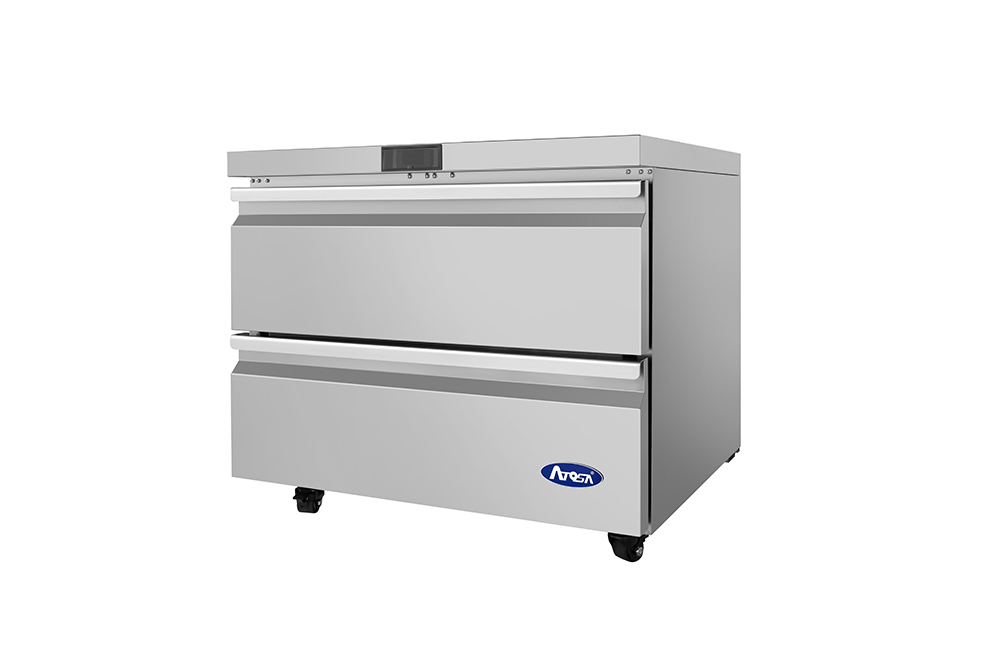

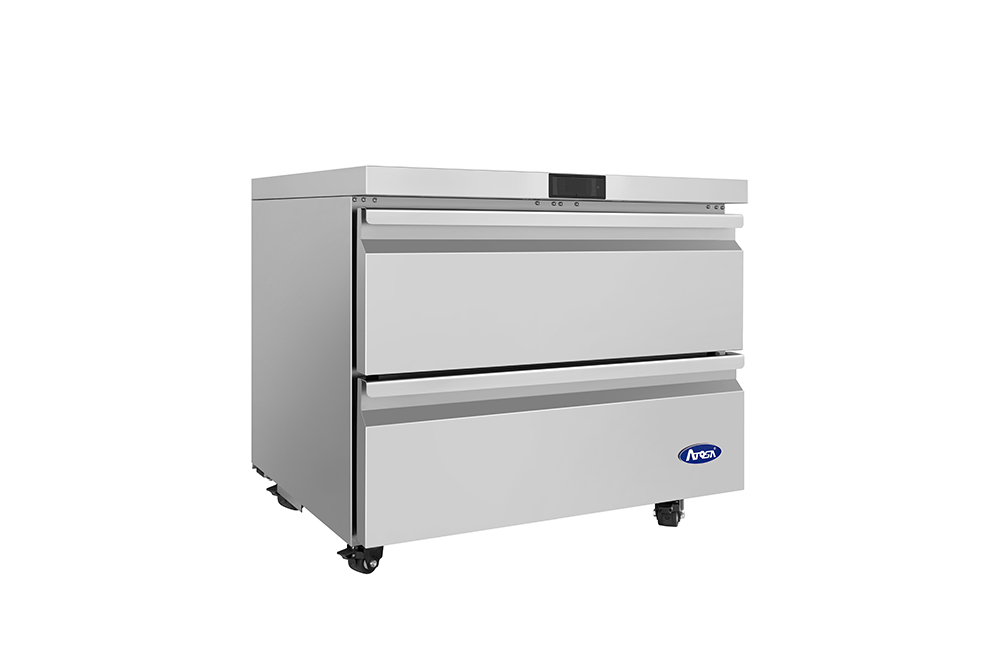

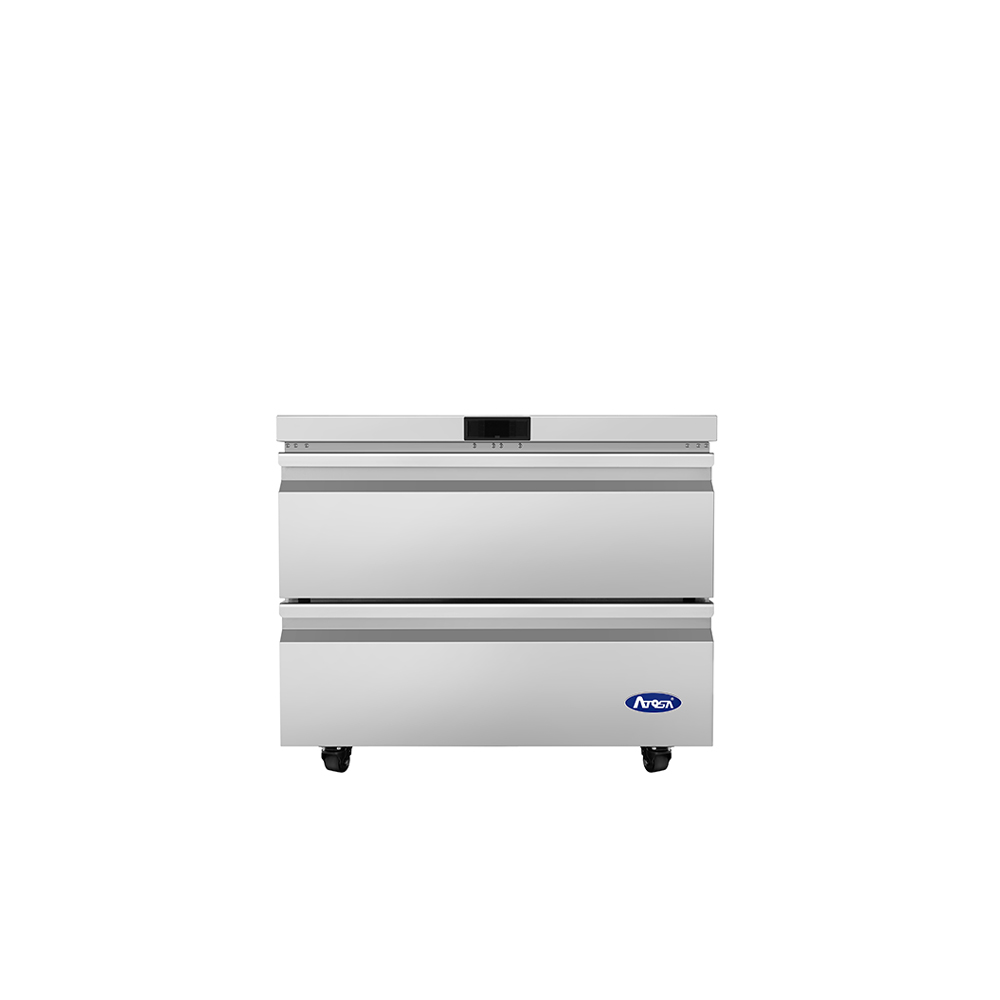

Atosa USA AUR36D2 — 36-3/8" Two-Drawer Undercounter Refrigerator
The AUR36D2 gives a station 9 cu. ft. of refrigerated storage in a 36-3/8" wide undercounter cabinet with two wide drawers in place of a swing door, so a cook pulls product without stepping back from the line. Stainless steel inside and out under a reinforced stainless top, it runs environmentally friendly R290 refrigerant with an electronic temperature controller holding 35°F to 38°F.
Key Features of the AUR36D2
A drawer base earns its footprint by keeping the most-used product within arm's reach and holding temperature while the line is moving. Here is how the AUR36D2 is built for that.
Two Wide Drawers, 1/6 Pans Included
At 36-3/8" wide the drawers hold noticeably more than the 27" model, and each unit comes standard with 1/6 size pans so the cabinet is ready to load on arrival.
Electronic Temperature Control, 35°F–38°F
An electronic temperature controller maintains 35°F to 38°F, the range Atosa recommends for the best food preservation results.
R290 Hydrocarbon Refrigerant
Environmentally friendly R290 refrigerant runs efficiently on a 1/6 HP system that draws only 3.4 amps from a standard 115V circuit.
Stainless Steel, Reinforced Top
Stainless steel exterior and interior with a reinforced stainless steel top, so the unit can carry counter-top equipment and take the daily beating of a working station.
Casters Pre-Installed
Ships with 2" heavy duty swivel plate casters already installed — part B0604434 with brake and B0604433 without — so the unit rolls out for cleaning behind the line.
Magnetic Gaskets, Recessed Handles
Magnetic drawer gaskets seal the cold in and are simple to pull and wash, while recessed handles keep the front flush so nothing catches passing staff.
Installation and care: The unit vents through a rear grate, so leave it room to breathe and clean the condenser frequently to give it more fresh air. For the best food preservation results, set the refrigerator between 35°F and 38°F.
Optional Casters and Overall Height
The AUR36D2 ships on 2" casters for a 32-3/8" overall height. Four other caster sets are available when the base has to line up under an existing counter.
| 1.2" swivel plate casters (R06001000228 brake / R06001000229 no brake) | Overall height 31-1/4" |
|---|---|
| 1.5" swivel plate caster (R06001000063, with brake) | Overall height 31-7/8" |
| 2" heavy duty swivel plate casters (B0604434 brake / B0604433 no brake) — standard | Overall height 32-3/8" |
| 4" swivel stem casters (B0604421 brake / B0604413 no brake) | Overall height 34-3/8" |
| 5" swivel stem casters (B0604007 brake / B0604006 no brake) | Overall height 35-1/4" |
Ideal Applications
36-3/8" is the middle of the AUR drawer range: real capacity for a busy station without committing a four-foot run of counter.
AUR36D2 Specifications
| Model | AUR36D2 |
|---|---|
| Type | Undercounter refrigerator with drawers |
| Drawers | 2 |
| Capacity | 9 cu. ft. |
| Exterior Dimensions (W x D x H) | 36-3/8" x 30" x 32-3/8" |
| Temperature Range | 35°F – 38°F |
| Refrigerant | R290 |
| Horsepower | 1/6 HP |
| Electrical | 115V / 60 Hz / 1-phase, 3.4 amps, NEMA 5-15P |
| Construction | Stainless steel exterior and interior, reinforced stainless steel top |
| Casters | 2" heavy duty swivel plate, pre-installed |
| Venting | Rear grate |
| Included | 1/6 size pans |
| Certifications | cETLus, ETL Sanitation |
| Net Weight | 207 lb |
| Gross Weight | 271 lb |
| Brand | Atosa USA |
Frequently Asked Questions
What are the dimensions of the Atosa AUR36D2?
Exterior dimensions are 36-3/8" wide x 30" deep x 32-3/8" high on the standard 2" casters. Net weight is 207 lb and gross shipping weight is 271 lb.
How cold does the AUR36D2 hold?
The electronic temperature controller maintains temperatures between 35°F and 38°F, which is the range Atosa recommends for the best food preservation results.
Does the AUR36D2 come with pans?
Yes. Each unit comes standard with 1/6 size pans. Optional pan configurations using 1/1, 1/2, 1/3 and 1/4 size pans are also supported.
What electrical connection does it need?
The AUR36D2 runs on 115V / 60 Hz / 1-phase, draws 3.4 amps and plugs into a standard NEMA 5-15P receptacle. The compressor is 1/6 HP.
Can the overall height be changed?
Yes. The unit ships on 2" heavy duty swivel plate casters for a 32-3/8" overall height. Optional 1.2" and 1.5" low profile plate casters lower it to 31-1/4" or 31-7/8", and optional 4" or 5" swivel stem casters raise it to 34-3/8" or 35-1/4".
How does the AUR36D2 compare to the other AUR drawer models?
The AUR36D2 is the 36-3/8", 2-drawer, 9 cu. ft. model. The series also includes the AUR27D2 (2 drawers, 6.5 cu. ft.), AUR48D4 (4 drawers, 12.2 cu. ft.), AUR60D4 (4 drawers, 15.5 cu. ft.) and AUR72D6 (6 drawers, 18.9 cu. ft.).
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | AUR36D2 |
| Brand | Atosa USA |
| Weight | 271.00 lbs |
| Dimensions (HxWxD) | 32.50 x 36.37 x 30.00 inches |
| Height | 32.50 |
| Width | 36.37 |
| Depth | 30.00 |
| Access Type | drawers |
| Size | 1 section |
| Exterior Finish | stainless steel exterior |
| Refrigeration | self-contained, rear mounted |
| Compressor HP | 1/6 HP |
| Width | 36" - 47" |
|
