Atosa USA CB3L011 Coffee & Tea Brewer, Short Single, 1 Gallon, 160 Cups/hr, Dual Voltage, Touchscreen

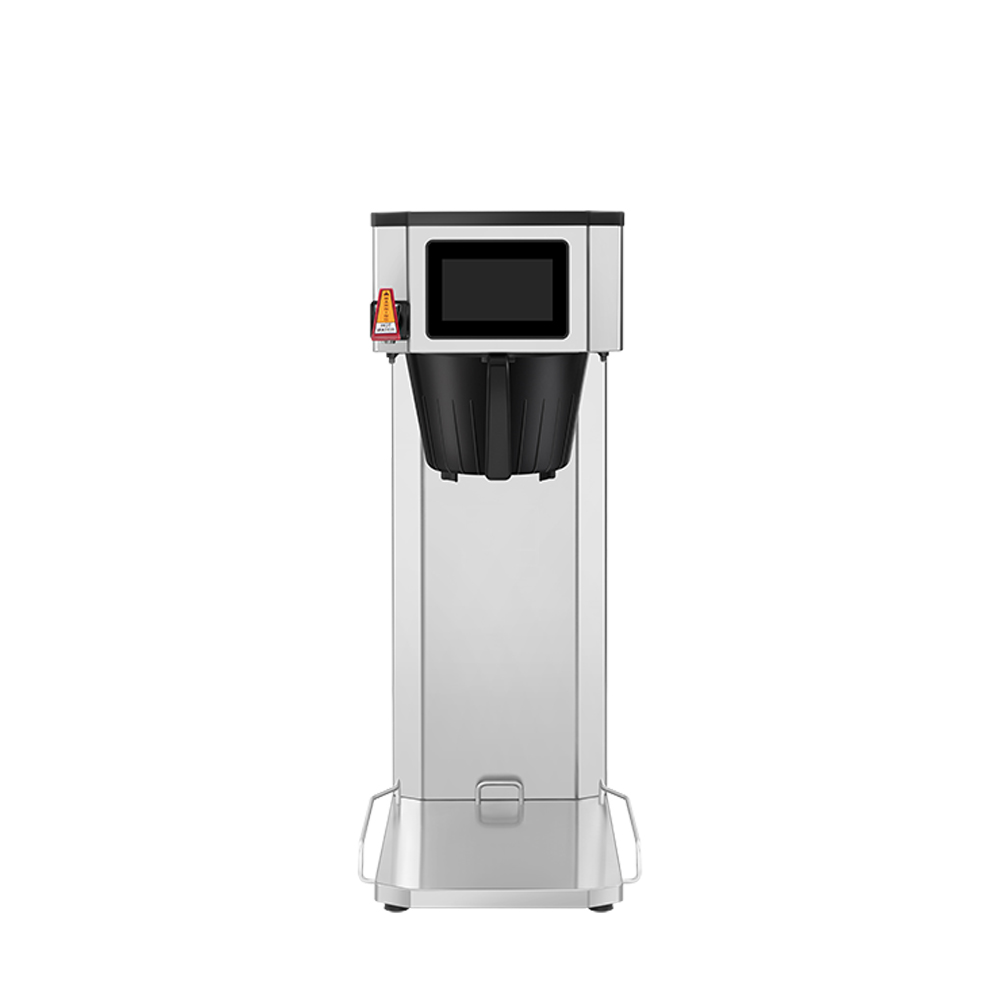

Atosa USA CB3L011 — Short Single Coffee and Tea Brewer
The CB3L011 is the short single station brewer in Atosa's CB3 line: up to 160 cups (12 gallons) of coffee or tea per hour from one 11-5/8" wide stainless body, with a 5" color touchscreen, programmable brew recipes and a built-in hot water dispenser. At 28-1/2" high it is the version that fits under a low shelf or wall cabinet.
Key Features of the CB3L011
A commercial brewer is judged on two things: how fast it refills the line at peak, and whether every batch tastes like the last one.
Up to 160 Cups per Hour
12 gallons an hour from a single station keeps a breakfast rush or a conference break supplied without a second machine.
Sprayhead, Pre-Infusion and Pulse Brew
The sprayhead spreads water evenly over the bed, pre-infusion lets the grounds bloom first, and timed pulses keep saturation even through the cycle.
5" Color Touchscreen
Programmable brew recipes are saved and recalled with one touch on a 5" color touchscreen, and settings upload over USB.
Field Adjustable Dual Voltage
The same machine runs 120V two wire plus ground or 208-240V three wire plus ground, so it suits the circuit the site already has.
Built-In Hot Water Dispenser
Hot water is drawn straight off the machine for tea and instant service, recovering 3.0 to 3.7 gal/hr at 1440W and 4.6 to 7.4 gal/hr at 2180-2880W.
Energy-Saver Mode and Brew Counter
Energy-saver mode drops tank temperature during idle periods, and a brew counter tracks total cycles for maintenance scheduling.
Installation note: the water inlet is 3/4" MNPT and the brewer ships with a 3/8" O.D. push-to-connect x 3/4" FNPT connector and 3/8" O.D. tubing. Supply water pressure must be between 7.3 and 87 psi (0.05 to 0.6 MPa). Leave at least 5-7/8" (150 mm) of clearance on all sides for operation and heat dissipation.
Ideal Applications
A short single brewer is for the counter that needs volume coffee and hot water but has a shelf or cabinet overhead.
CB3L011 Specifications
| Model | CB3L011 |
|---|---|
| Brand | Atosa USA |
| Type | Coffee and tea brewer, short, single station |
| Brew Capacity | Up to 160 cups (12 gallons) per hour |
| Server Capacity | 1 gal / 3.79 L |
| Controls | 5" color touchscreen, programmable brew recipes, USB programming |
| Brewing Technology | Sprayhead, pre-infusion, pulse brew |
| Hot Water Dispenser | Standard |
| Hot Water Recovery | 3.0 - 3.7 gal/hr at 1440W; 4.6 - 7.4 gal/hr at 2180-2880W |
| Voltage | 120V or 208-240V / 60 Hz, field adjustable |
| Power | 1440W at 120V; 2180-2880W at 208-240V |
| Current | 12 A at 120V; 10.4-12 A at 208-240V |
| Plug Type | NEMA 5-15P standard; NEMA L14-20 optional |
| Water Inlet | 3/4" MNPT; 3/8" O.D. push-to-connect x 3/4" FNPT connector and 3/8" O.D. tubing included |
| Water Pressure | 7.3 - 87 psi (0.05 - 0.6 MPa) |
| Clearance | 5-7/8" (150 mm) on all sides |
| Construction | Stainless steel body |
| Exterior Dimensions (W x D x H) | 11-5/8" x 21-7/8" x 28-1/2" |
| Shipping Dimensions (W x D x H) | 14-5/8" x 26" x 30-3/4" |
| Net Weight | 36.44 lb |
| Gross Weight | 46.30 lb |
| Certifications | Conforms to NSF/ANSI STD. 4 |
| Related Models | CB3L021 (short, twin), CB3T011 (tall, single), CB3T021 (tall, twin) |
| Warranty | 1 year parts and labor |
Optional Accessories
Short brewers take both the no-drip-tray dispensers and the taller drip tray versions.
| TD-3L-ND | 3 gal (11.36 L) short tea dispenser, no drip tray — fits the short brewers only |
|---|---|
| TD-5L-ND | 5 gal (18.93 L) short tea dispenser, no drip tray — fits the short brewers only |
| TD-3T-DT / TD-5T-DT | Tall tea dispensers with drip tray, 3 gal and 5 gal, fit short and tall brewers |
| NEMA L14-20 | Optional plug configuration for 208-240V installation |
Frequently Asked Questions
How much coffee can the CB3L011 brew in an hour?
Up to 160 cups, which is 12 gallons of coffee or tea per hour.
What voltage does the CB3L011 need?
It is field adjustable for either 120V two wire plus ground or 208-240V three wire plus ground. At 120V it draws 12 A and 1440W; at 208-240V it draws 10.4 to 12 A and 2180 to 2880W. NEMA 5-15P is standard and NEMA L14-20 is optional.
Does the CB3L011 dispense hot water?
Yes. A hot water dispenser is standard, recovering 3.0 to 3.7 gal/hr at 1440W and 4.6 to 7.4 gal/hr at 2180-2880W.
Which tea dispensers fit the short CB3L011?
All four. The short TD-3L-ND and TD-5L-ND without a drip tray fit the short brewers only, and the tall TD-3T-DT and TD-5T-DT with drip tray fit both short and tall brewers.
What plumbing does the CB3L011 need?
A 3/4" MNPT water inlet with supply pressure between 7.3 and 87 psi (0.05 to 0.6 MPa). A 3/8" O.D. push-to-connect x 3/4" FNPT connector and 3/8" O.D. tubing are included.
How does the CB3L011 compare to the other CB3 brewers?
The CB3L011 is the short single at 11-5/8" wide and 28-1/2" high with a 1 gal capacity — the smallest and lightest of the four at 36.44 lb. The CB3L021 is the short twin at 21-5/8" wide with 3 gal, the CB3T011 is the tall single at 35-3/4" high with 1.5 gal, and the CB3T021 is the tall twin with 3 gal. All four brew up to 160 cups per hour.
