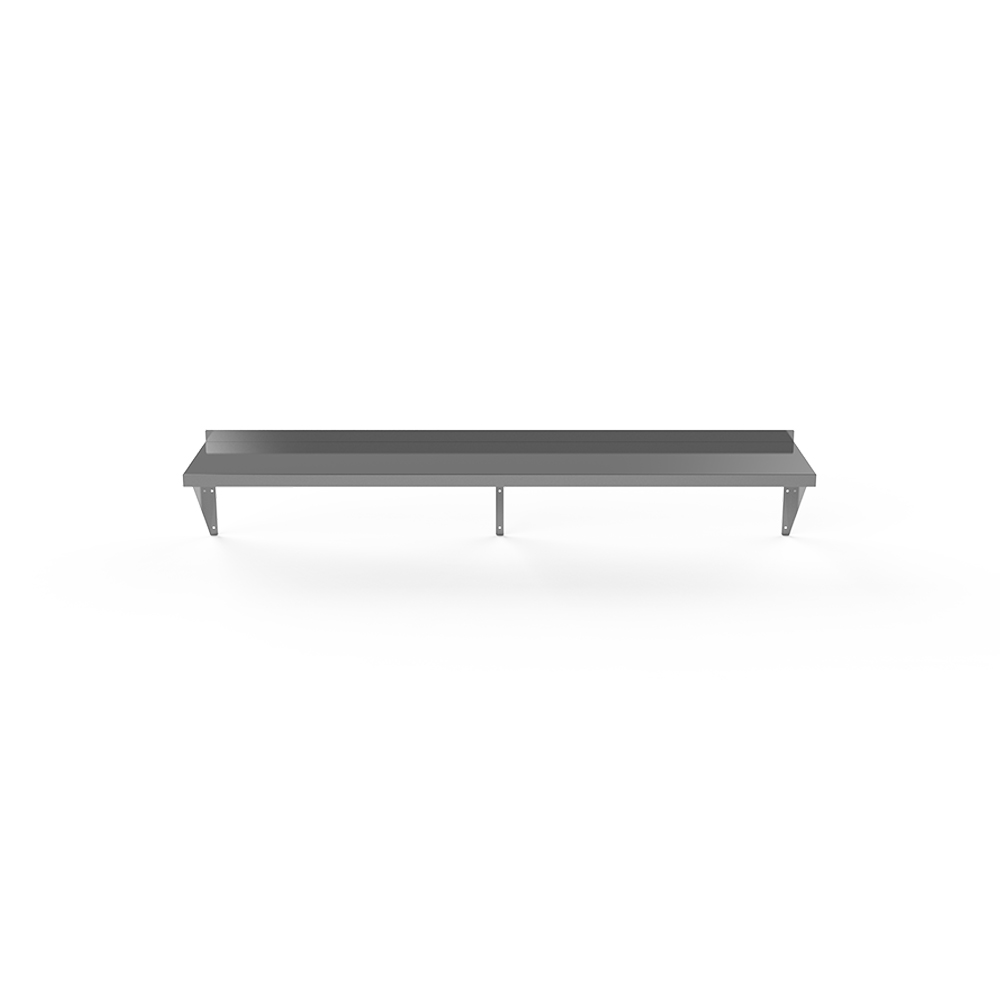

Atosa USA SWS1284/304 Wall Mount Shelf, 84"W x 12"D, 18 Ga 304 Stainless Steel, 3 Brackets
Wall Mount Shelf
84" Stainless Steel Wall Shelf, 12" Deep, with Three Brackets
The Atosa USA SWS1284/304 is a seven-foot wall shelf in 18 gauge 304 stainless steel — the length that clears a whole prep run at once and puts dry goods, pans or a line of squeeze bottles above the work surface instead of on it. It ships with three brackets rather than two, which is what Atosa specifies on 72" and longer shelves so the middle of the span does not sag under load.
What It Does
Three Brackets at 84"
Shelves 72" and longer get a third bracket at the middle of the span — the difference between a shelf that stays flat and one that bows under stacked pans.
18 Gauge 304 Stainless
The /304 models are built in 304 stainless — the higher-alloy grade that stands up better to salt, acid and constant wipe-downs than 430.
12" Working Depth
Twelve inches deep is the size that takes hotel pans, bottles and dry stock without crowding the head of anyone working underneath.
Turned Edges
The shelf is formed with a 1-1/2" turn-down and a 1" return, so there is no raw sheet edge in reach of a forearm.
Ten Lengths Available
The 12" deep series runs 24", 30", 36", 48", 60", 72", 84", 96", 108" and 120" — so a wall can be filled without a gap or an overhang.
Three Depths in the Line
Atosa also builds the same shelf 15" deep (13" high) and 18" deep (12-3/4" high) for heavier or bulkier storage.
Where It Works
Specifications
| Model | SWS1284/304 |
|---|---|
| Type | Wall mounted shelf |
| Exterior Dimensions | 84"W × 12"D × 10"H |
| Material | 18 gauge 304 stainless steel |
| Brackets | 3 |

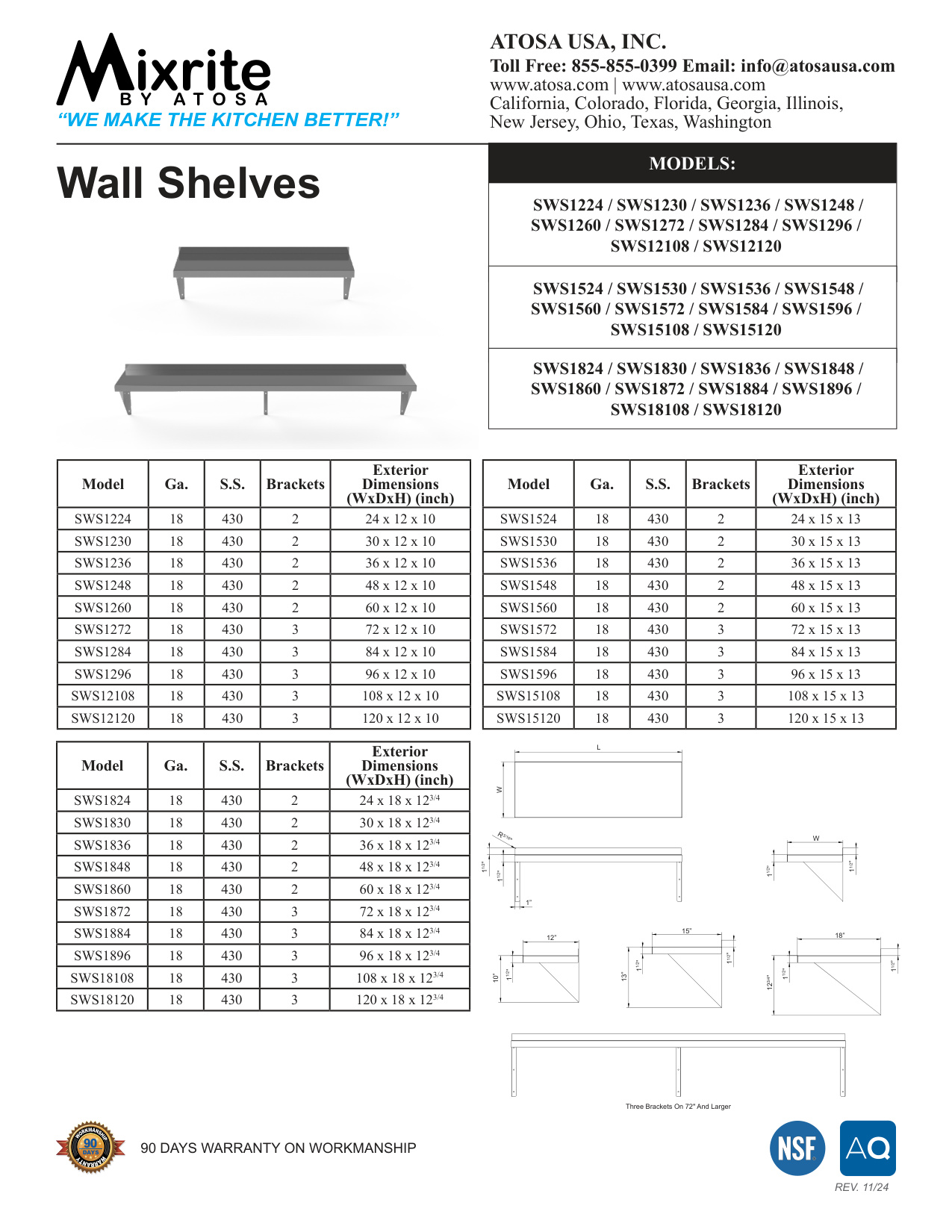

| Series Lengths (12" deep) | 24", 30", 36", 48", 60", 72", 84", 96", 108", 120" |
The SWS1284/304 carries a 90 day warranty on workmanship from Atosa USA.
Frequently Asked Questions
How many brackets does the SWS1284/304 include?
Three. Atosa supplies three brackets on all shelves 72" and longer; shorter shelves come with two.
What does the /304 in the model number mean?
It identifies the 304 stainless steel version of the shelf, at 18 gauge.
How deep is it?
12" deep, with an overall height of 10" including the bracket.
What other lengths are available?
The 12" deep series runs from 24" up to 120": SWS1224, 1230, 1236, 1248, 1260, 1272, 1284, 1296, 12108 and 12120.
Are deeper shelves available?
Yes. Atosa builds a 15" deep series (SWS15xx) and an 18" deep series (SWS18xx) in the same lengths.
What warranty does it carry?
A 90 day warranty on workmanship.
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | SWS1284/304 |
| Brand | Atosa USA |
| Weight | 25.00 lbs |
| Dimensions (HxWxD) | 10.00 x 84.00 x 12.00 inches |
| Height | 10.00 |
| Width | 84.00 |
| Depth | 12.00 |
| Gauge | 18 gauge |
| Type | 400 series |
| Depth (front - back) | 12" |
| Width (side - side) | 84" |
| Construction | stainless steel |
|
Resources
