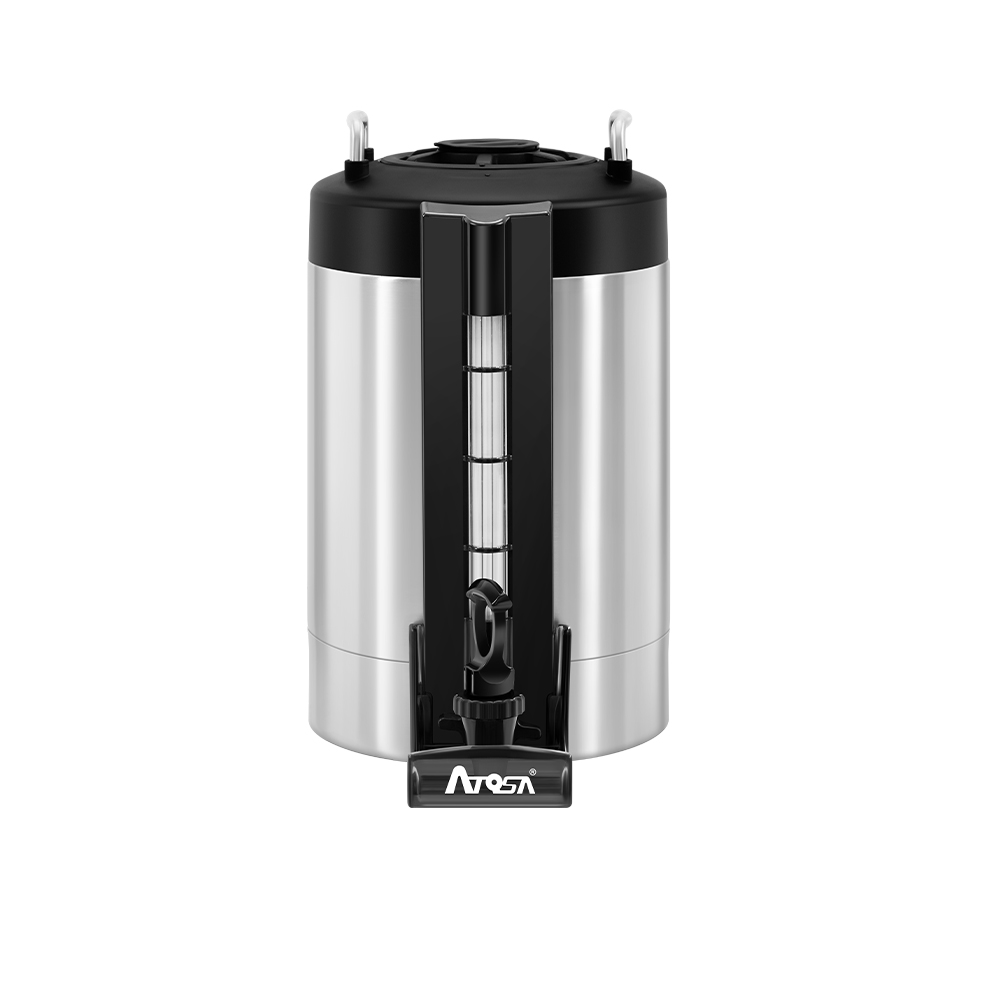

Atosa USA CD-15-L Coffee Dispenser, 1.5 Gal., Level Indicator, No Stand, Vacuum Insulated, Stainless Steel, NSF
Atosa USA CD-15-L — 1.5 Gallon Coffee Dispenser with Level Indicator
The CD-15-L is a 1.5 gallon vacuum insulated coffee dispenser with a built-in level indicator. Double-wall vacuum insulation holds the coffee at or above 180°F for up to four hours with no power and no heating element, and the level indicator shows how much is left without lifting the lid. The matching L-Stand is available separately.
Key Features of the CD-15-L
A vacuum dispenser is a thermos built for service: no cord, no burner, a level you can read from the counter, and a pour that does not drip between customers.
Built-In Level Indicator
A sight gauge on the body shows the remaining volume at a glance, so staff know when to brew again without opening the dispenser.
Double-Wall Vacuum Insulation
The vacuum wall holds the coffee at or above 180°F for up to four hours without power, so flavor is not cooked off on a warmer plate.
1.5 Gallon Stainless Interior
A 5.68 liter stainless interior retains heat and takes a full brew cycle from a CB3L brewer in one pass.
Brew-Through Lid
The lid lets the brewer discharge directly into the dispenser, so coffee is never transferred from a pot and never sits open to the air.
Drip-Free Dispensing Spout
The spout is built for precise pouring and closes clean, which keeps the counter and the stand dry through a self-serve shift.
L-Stand Available
The matching L-Stand is an option, raising the spout to cup height when the dispenser sits on a self-serve counter rather than under a brewer.
Compatibility note: the CD-15 coffee dispensers are specified for the short coffee brewer models, CB3L011 and CB3L021. This L version has the built-in level indicator; the CD-15-NL is the same 1.5 gallon dispenser without one, and the -WS versions ship with the stand fitted.
Ideal Applications
A vacuum dispenser is what moves brewed coffee away from the brewer and out to where people pour it.
CD-15-L Specifications
| Model | CD-15-L |
|---|---|
| Brand | Atosa USA |
| Type | Vacuum insulated coffee dispenser with level indicator |
| Capacity | 1.5 gal / 5.68 L |
| Insulation | Double-wall vacuum |
| Heat Retention | At or above 180°F for up to 4 hours |
| Level Indicator | Built-in |
| Stand | Optional, L-Stand |
| Lid | Brew-through, removable |
| Spout | Drip-free dispensing spout |
| Construction | Stainless steel interior |
| Compatible Brewers | CB3L011 and CB3L021 short coffee brewers |
| Exterior Dimensions (W x D x H) | 8-7/8" x 13-5/8" x 15-1/4" |
| Shipping Dimensions (W x D x H) | 11-1/2" x 15-5/8" x 17" |
| Net Weight | 6.61 lb |
| Gross Weight | 7.72 lb |
| Certifications | NSF certified |
| Related Models | CD-15-L-WS (level indicator, with stand), CD-15-NL (no level indicator, no stand), CD-15-NL-WS (no level indicator, with stand) |
| Warranty | 1 year parts and labor |
Optional Accessories
The stand is the one option for this dispenser; the alternatives below cover the rest of the CD-15 range.
| L-Stand | Stand for the CD-15-L, ordered separately |
|---|---|
| CD-15-L-WS | Same dispenser and level indicator supplied with the stand |
| CD-15-NL | Same 1.5 gal dispenser without a level indicator |
| Compatible Brewers | CB3L011 (short, single) and CB3L021 (short, twin) |
Frequently Asked Questions
How much coffee does the CD-15-L hold?
1.5 gallons, which is 5.68 liters.
How long does it keep coffee hot?
Double-wall vacuum insulation holds the liquid at or above 180°F for up to four hours. It needs no power and has no heating element.
What does the level indicator do?
It is a built-in sight gauge showing the remaining volume, so staff can see when the dispenser is running low without opening the lid.
Does the CD-15-L come with a stand?
No. This is the no-stand version. The matching L-Stand is available separately, or the CD-15-L-WS ships with it fitted.
Which brewers can brew directly into it?
The short Atosa brewers, CB3L011 and CB3L021. The brew-through lid lets the brewer discharge straight into the dispenser.
How does the CD-15-L compare to the other CD-15 dispensers?
All four are 1.5 gallon vacuum insulated dispensers. The CD-15-L has the level indicator only, the CD-15-L-WS has both the level indicator and the stand, the CD-15-NL-WS has the stand only, and the CD-15-NL has neither.
