Atosa USA MGF8463GR Chef Base Freezer, 4 Drawers, 72"W, 4.9 cu. ft., Stainless Steel, R290, ENERGY STAR

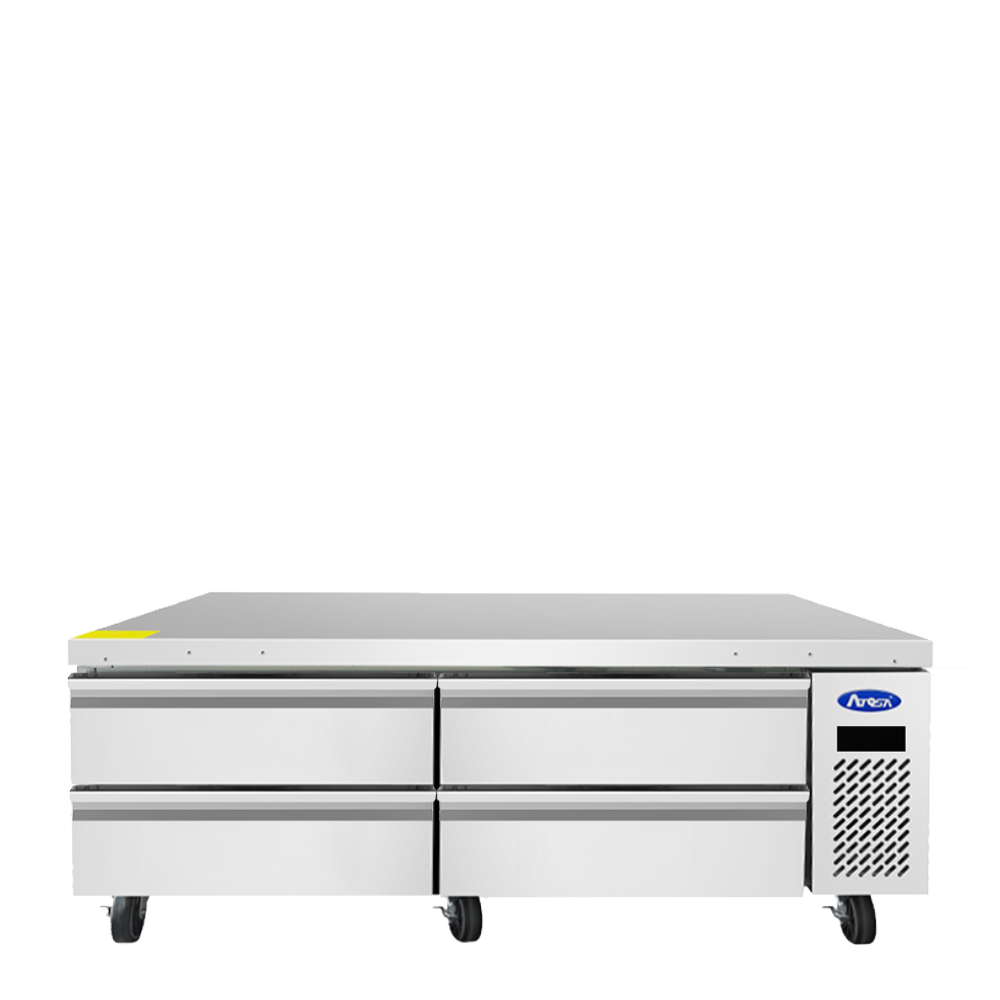

Atosa MGF8463GR Chef Base Freezer — 72"W, 4 Drawers, 4.9 cu. ft.
The MGF8463GR is a 72"-wide chef base freezer: frozen storage in four drawers under a one-piece reinforced stainless top rated to carry countertop cooking equipment. It turns the dead space under a char broiler or griddle into 4.9 cubic feet of freezer holding -8°F to 1°F, with eight 12" x 20" pans included and heavy-duty stainless slides and rollers under every drawer.
Why a Chef Base
Reinforced Top for Equipment
A one-piece heavy-duty reinforced stainless top is built to support countertop equipment, so a griddle, char broiler or fryer battery sits directly on the base.
Four Drawers, Eight 12x20 Pans
Four drawers hold eight 12" x 20" stainless pans, included — 6" deep, so a full day's frozen product sits within arm's reach of the cook.
-8°F to 1°F Freezer
An electronic temperature controller holds true freezer temperature, the range Atosa recommends for food preservation, driven by a heavy-duty compressor on R290 refrigerant.
Heavy Duty Slides and Gaskets
Heavy-duty stainless steel drawer slides and rollers take the weight of full pans all shift, and magnetic drawer gaskets pull the seal shut and lift out for cleaning.
Recessed and Pull-Out Handles
Recessed handles keep the front flush in a tight aisle, and pull-out handles are included for grabbing a loaded drawer with a full hand.
Casters and Corner Guards
Pre-installed 5" casters let the whole cooking suite roll out for floor cleaning, and corner guards come standard to take the knocks that a low unit always gets.
Where It Works
Specifications
| Model | MGF8463GR |
|---|---|
| Type | Chef base freezer / refrigerated equipment stand |
| Capacity | 4.9 cu. ft. |
| Drawers | 4 |
| Pans per Unit | 8 x 12" x 20" (6" deep stainless, included) |
| Temperature Range | -8°F - 1°F |
| Refrigerant | R290 |
| Electrical | 115 V / 60 Hz / 1 phase |
| Rated Current | 6.5 A |
| Power | 680 W |
| Plug | NEMA 5-15P |
| Casters | 5", pre-installed |
| Exterior Dimensions (W x D x H) | 72" x 32" x 26-1/4" |
| Net / Gross Weight | 308 lb / 417 lb |
| Construction | Stainless steel exterior and interior; one-piece reinforced stainless top; corner guards |
| Certifications | ETL-Sanitation, cETLus, ENERGY STAR |
| Related Models | MGF8458GR (36"), MGF8460GR (48"), MGF8461GR (52"), MGF8462GR (60"), MGF8464GR (76") |
| Warranty | 3 years parts and labor; 5 years compressor parts (extended warranty up to 5 years available) |
3-Year Parts & Labor / 5-Year Compressor
Atosa USA covers the MGF8463GR with a 3 year parts and labor warranty and a 5 year compressor part warranty. Extended coverage up to 5 years is available as an option.
Frequently Asked Questions
How many drawers and pans does the Atosa MGF8463GR hold?
Four drawers holding eight 12" x 20" stainless pans, 6" deep, all included.
Can cooking equipment sit on top of the MGF8463GR?
Yes — it has a one-piece heavy duty reinforced stainless steel top designed to support countertop equipment.
What temperature does the MGF8463GR hold?
-8°F to 1°F on an electronic temperature controller, which is the range Atosa recommends for frozen food preservation.
What electrical connection does it need?
115V, 60 Hz, single phase, 6.5 amps, 680 W, on a NEMA 5-15P plug.
What are the dimensions of the MGF8463GR?
72" wide x 32" deep x 26-1/4" high on 5" pre-installed casters, weighing 308 lb net and 417 lb crated.
What warranty comes with the MGF8463GR?
3 years parts and labor plus a 5 year compressor part warranty, with extended coverage up to 5 years available.
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | MGF8463GR |
| Brand | Atosa USA |
| Weight | 417.00 lbs |
| Dimensions (HxWxD) | 29.00 x 75.00 x 35.00 inches |
| Height | 29.00 |
| Width | 75.00 |
| Depth | 35.00 |
| Width | 53" - 73" wide |
| Drawer Qty | 4 drawers |
| Refrigeration | self-contained refrigeration |
|
