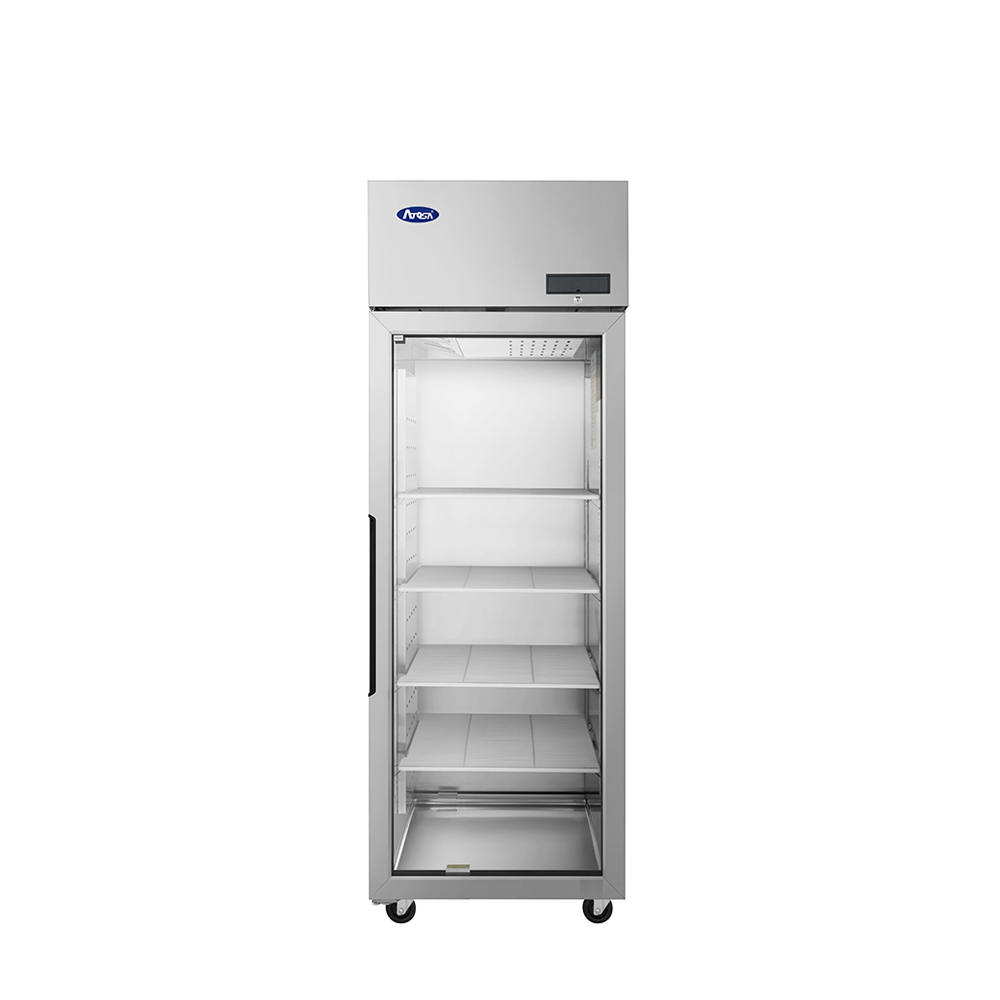

Atosa USA PLUS-R1-GS-R-PT Pass-Thru Refrigerator, 1 Section, Front Glass / Rear Solid Door, 23.7 cu. ft., R290
Atosa PLUS-R1-GS-R-PT Pass-Thru Refrigerator — 23.7 cu. ft., Glass Front / Solid Rear
The PLUS-R1-GS-R-PT is a single-section pass-thru refrigerator built for the wall between the kitchen and the service side: a double-pane glass door out front so staff or guests can see what is stocked, and a solid insulated door at the back where the kitchen loads it. 23.7 cubic feet on four epoxy shelves, a top-mounted heavy-duty Cubigel compressor on R290, and a full electronic controller holding 35°F to 38°F.
Built for Two-Sided Service
Pass-Thru Door Layout
Load from the kitchen through the solid rear door, pull from the service side through the glass front — stock rotates without anyone crossing the line.

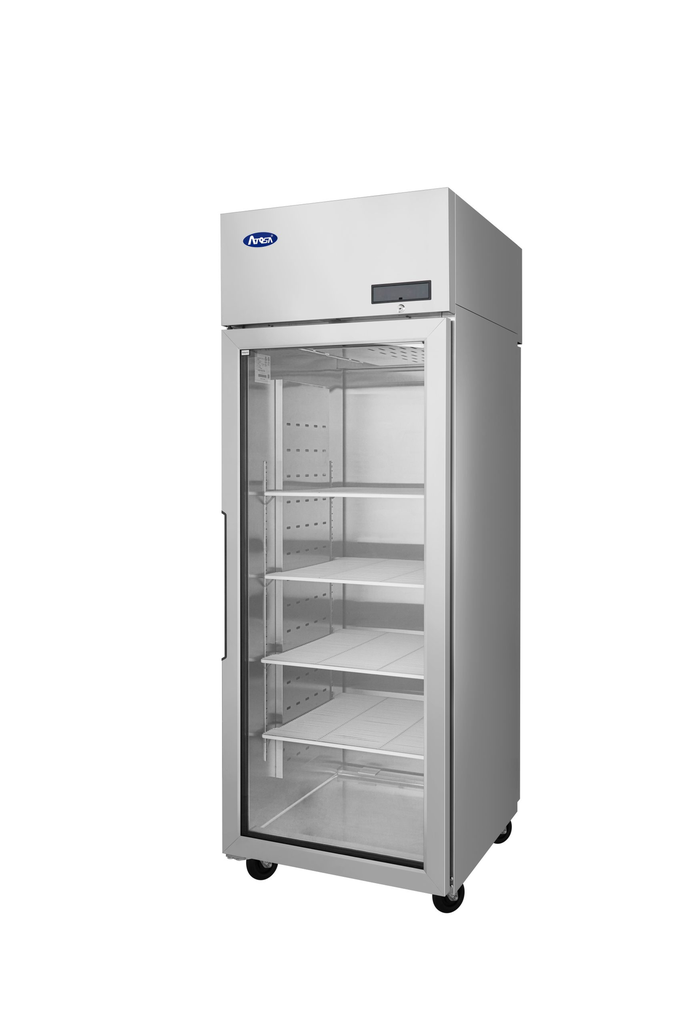

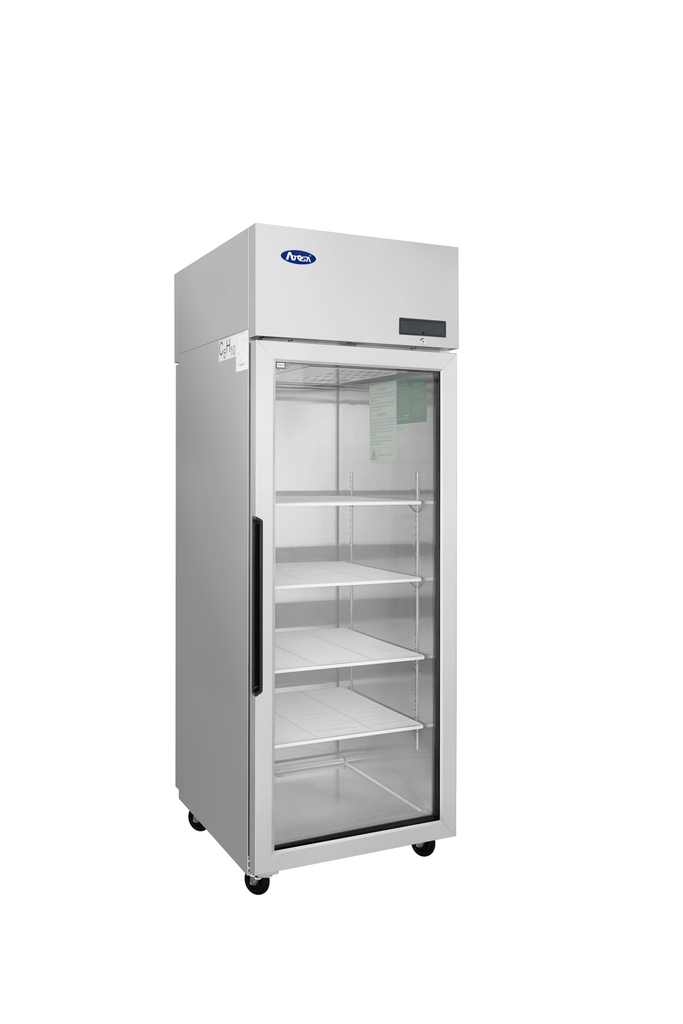

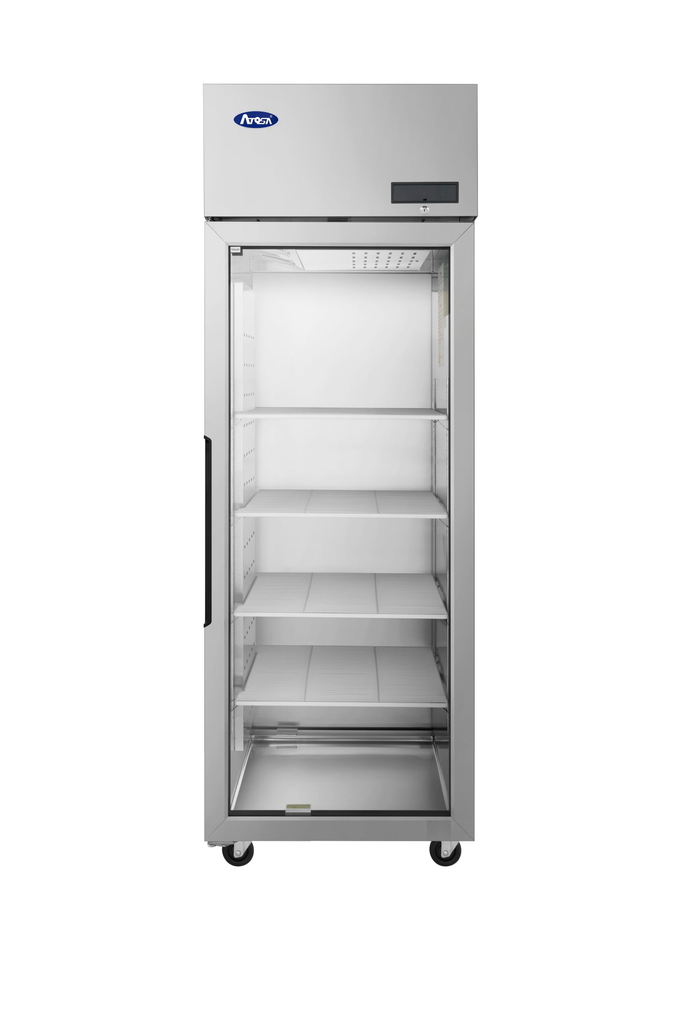

Double Pane Glass Door
The front door is double-pane glass with LED interior lighting, so product shows clearly while the second pane limits heat gain and condensation.
Top-Mount Cubigel Compressor, R290
A heavy-duty Cubigel compressor mounted on top stays clear of floor dust and mop water, running environmentally friendly R290 refrigerant at 1/3 HP.
Down-Duct Air Flow
A down-duct air flow channel spreads cold air evenly top to bottom, so the shelf nearest the door holds the same temperature as the one at the back.
Self-Closing Doors and Locks
Both doors self-close with an automatic stay-open feature for loading, seal on magnetic gaskets, and lock as standard.
Casters and Shelf Clips Pre-Installed
4" casters and shelf clips are installed at the factory, so the cabinet rolls into place and the shelves go where you need them without extra hardware.
Where It Works

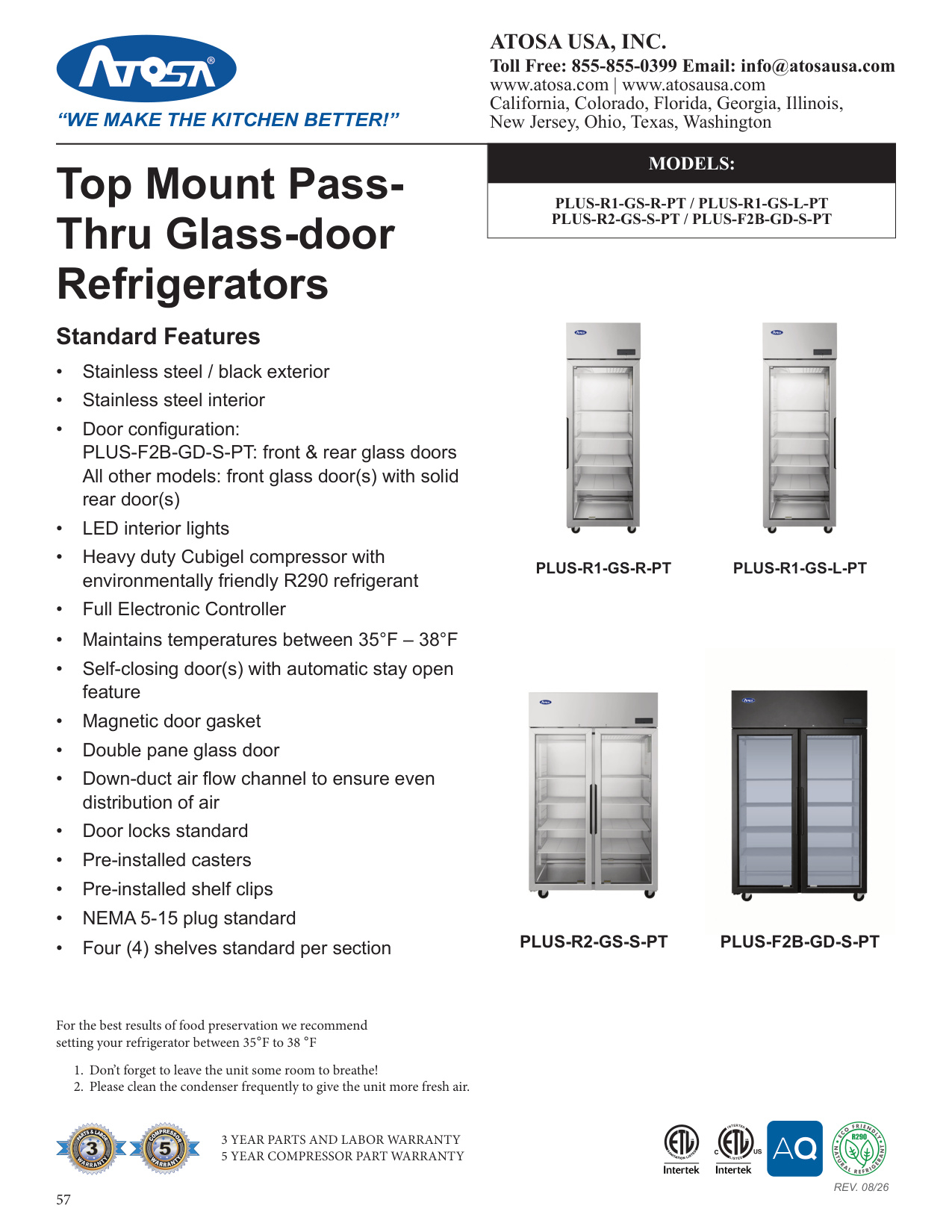

Specifications
| Model | PLUS-R1-GS-R-PT |
|---|---|
| Type | Top mount pass-thru refrigerator, 1 section |
| Capacity | 23.7 cu. ft. |
| Doors | 2 — front glass door, solid rear door |

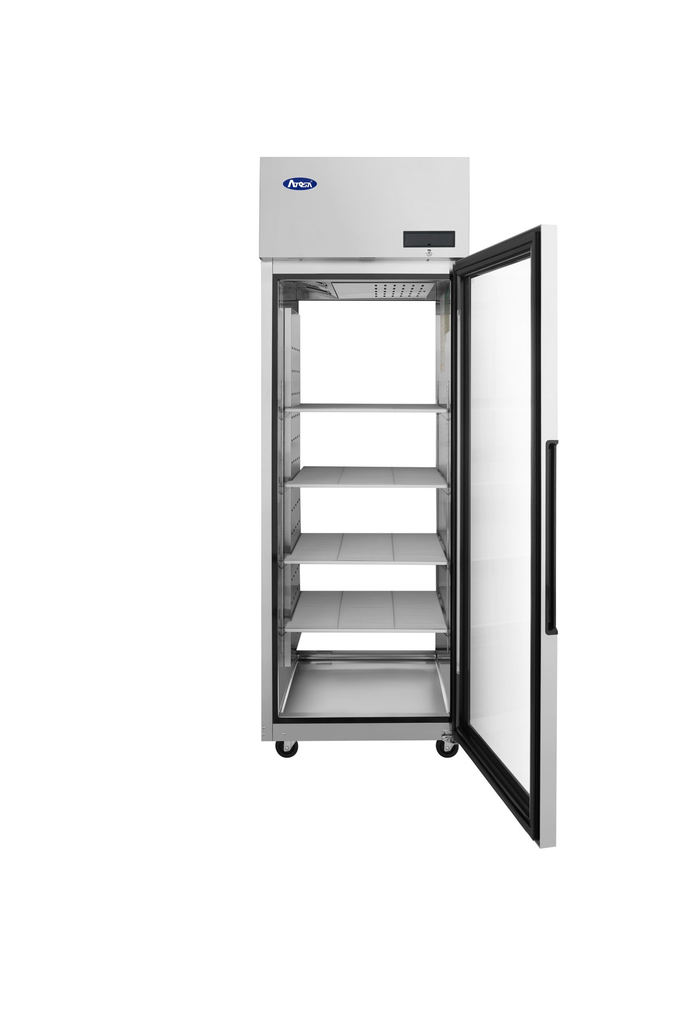

| Shelves | 4 epoxy shelves, pre-installed shelf clips |
| Temperature Range | 35°F - 38°F, full electronic controller |
| Refrigerant | R290 |
| Compressor | Heavy duty Cubigel, top mounted, 1/3 HP |
| Electrical | 115 V / 60 Hz / 1 phase |
| Rated Current | 3.7 A |
| Plug | NEMA 5-15P |
| Casters | 4", pre-installed |
| Exterior Dimensions (W x D x H) | 28-3/4" x 33-7/8" x 82-7/8" |
| Net / Gross Weight | 313 lb / 357 lb |
| Construction | Stainless steel / black exterior, stainless steel interior |
| Lighting | LED interior |
| Certifications | ETL-Sanitation, cETLus |
| Related Models | PLUS-R1-GS-L-PT, PLUS-R2-GS-S-PT (46.3 cu ft), PLUS-F2B-GD-S-PT (front & rear glass) |
| Warranty | 3 years parts and labor; 5 years compressor parts |
3-Year Parts & Labor / 5-Year Compressor
Atosa USA covers the PLUS-R1-GS-R-PT with a 3 year parts and labor warranty and a 5 year compressor part warranty.
Frequently Asked Questions
What door configuration does the PLUS-R1-GS-R-PT have?
Two doors: a double-pane glass door on the front and a solid door at the rear, so the cabinet can be loaded from the kitchen and served from the front.
How much does the PLUS-R1-GS-R-PT hold?
23.7 cubic feet on four epoxy shelves, in a 28-3/4" wide x 33-7/8" deep x 82-7/8" high cabinet.
What is the difference between the -R-PT and -L-PT models?
They are the two mirror-image door configurations of the same cabinet. Capacity, shelving, electrical and dimensions are identical; only the door hand differs.
What temperature does it maintain?
35°F to 38°F on a full electronic controller — the range Atosa recommends for food preservation.
What electrical connection does the PLUS-R1-GS-R-PT need?
115V, 60 Hz, single phase, 3.7 amps, on a NEMA 5-15P plug. The compressor is 1/3 HP running R290.
Does it come with door locks and casters?
Yes — door locks are standard, and 4" casters plus shelf clips are pre-installed.
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
