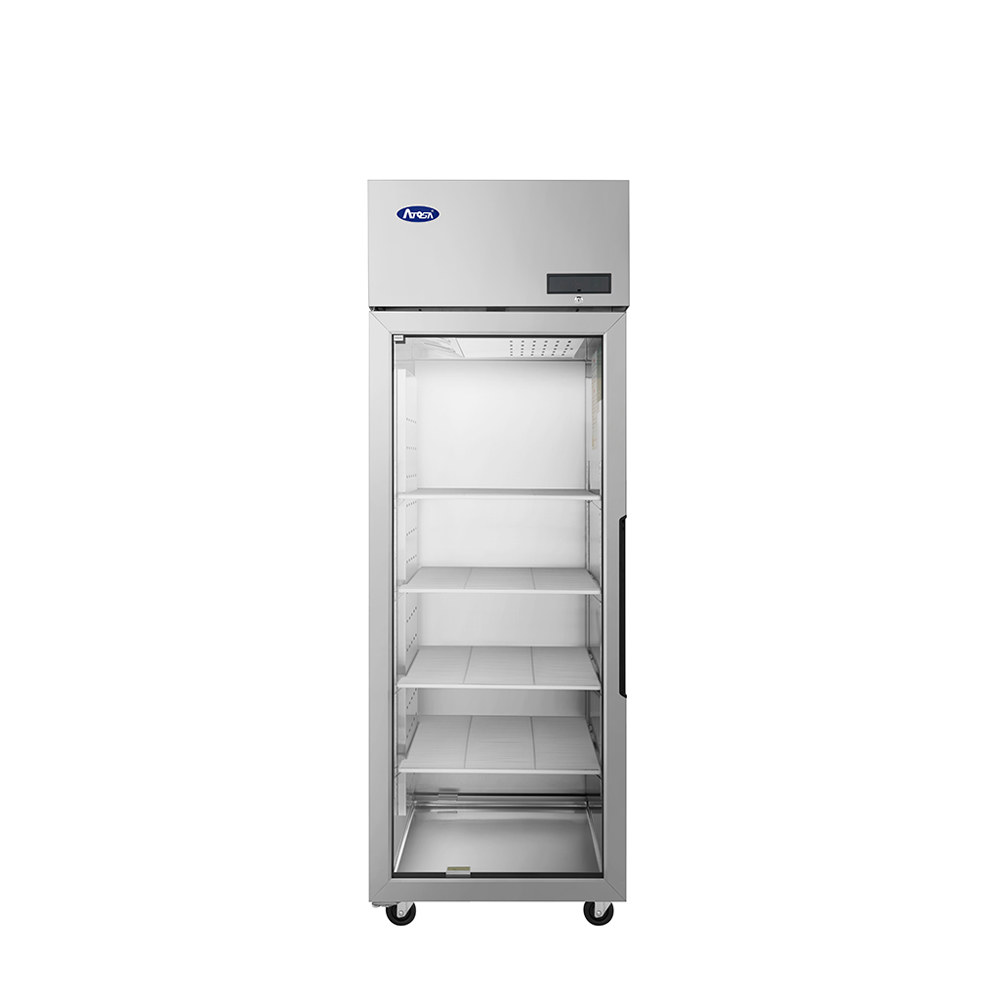

Atosa USA PLUS-R1-GS-L-PT Pass-Thru Refrigerator, 1 Section, Glass Front / Solid Rear Door, 23.7 cu. ft., R290
Atosa USA PLUS-R1-GS-L-PT — One-Section Top Mount Pass-Thru Refrigerator

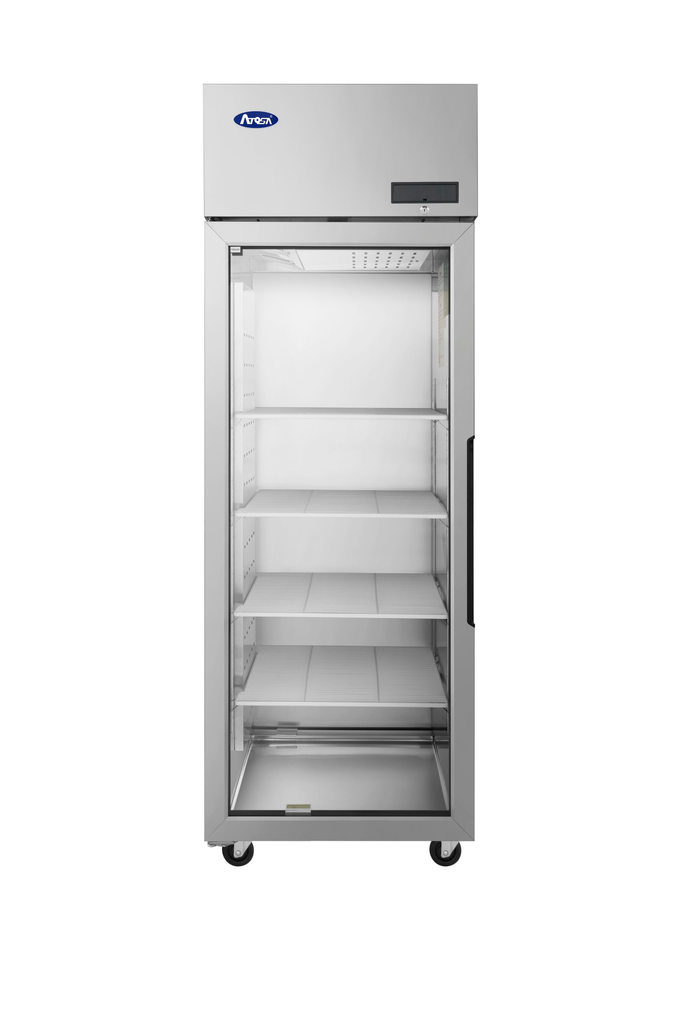

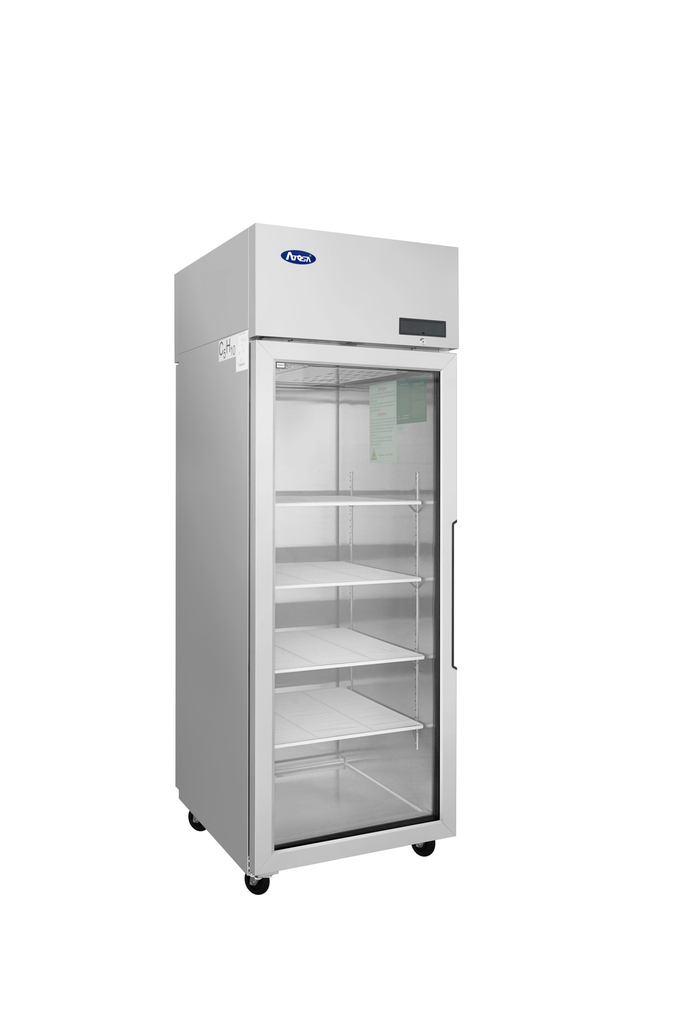

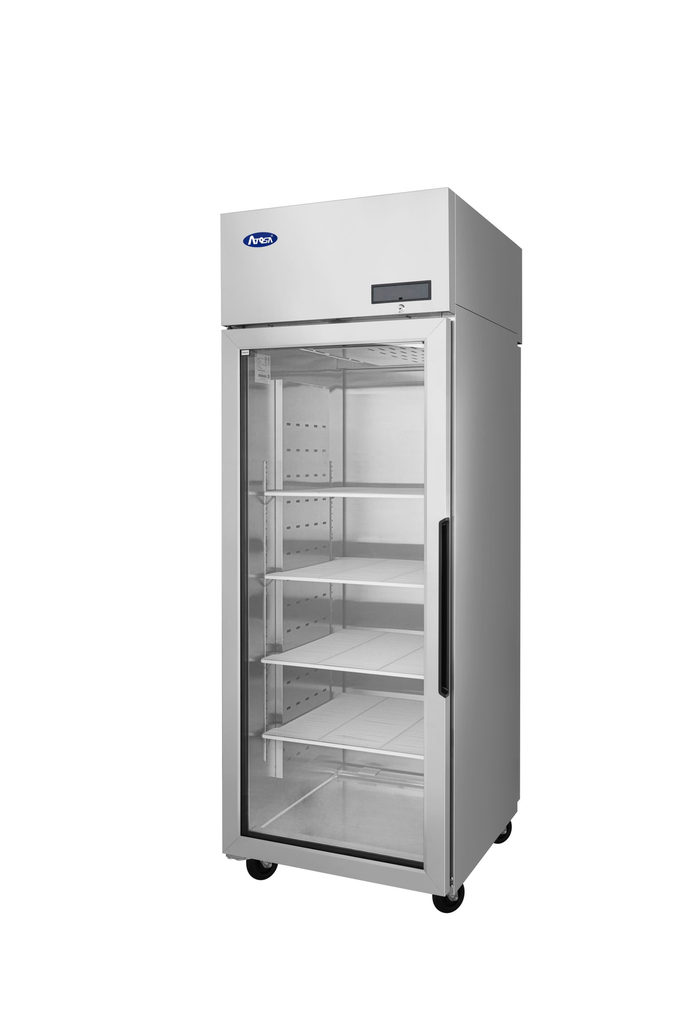

The PLUS-R1-GS-L-PT is a 23.7 cu. ft. pass-thru refrigerator that opens on both sides: a double pane glass door at the front for the service side and a solid door at the rear for the kitchen. Stock from the back, serve from the front. A heavy duty Cubigel top-mounted compressor on R290 refrigerant holds 35°F to 38°F, with LED interior lighting, door locks and four shelves standard.
Key Features of the PLUS-R1-GS-L-PT
A pass-thru lives in a wall between two rooms, which means it has to look right on the service side and work hard on the kitchen side. Here is how this one does both.
Glass Front, Solid Rear
A double pane glass door faces the service side so guests and staff can see the product, while the solid rear door lets the kitchen restock without ever crossing the counter.
Cubigel Compressor, R290
A heavy duty Cubigel top-mounted compressor running environmentally friendly R290 refrigerant keeps the mechanicals out of the floor dirt and away from the warm air near the ground.
Down-Duct Air Flow Channel
A down-duct air flow channel distributes cold air evenly from top to bottom, so product on the top shelf holds the same temperature as product on the bottom.
Door Locks Standard
Both doors lock as standard — the detail that matters when the front of a pass-thru faces a public or unattended space.
LED Interior Lighting
LED interior lights show the product through the glass without adding the heat load an older lamp would put into the cabinet.
Self-Closing with Stay-Open

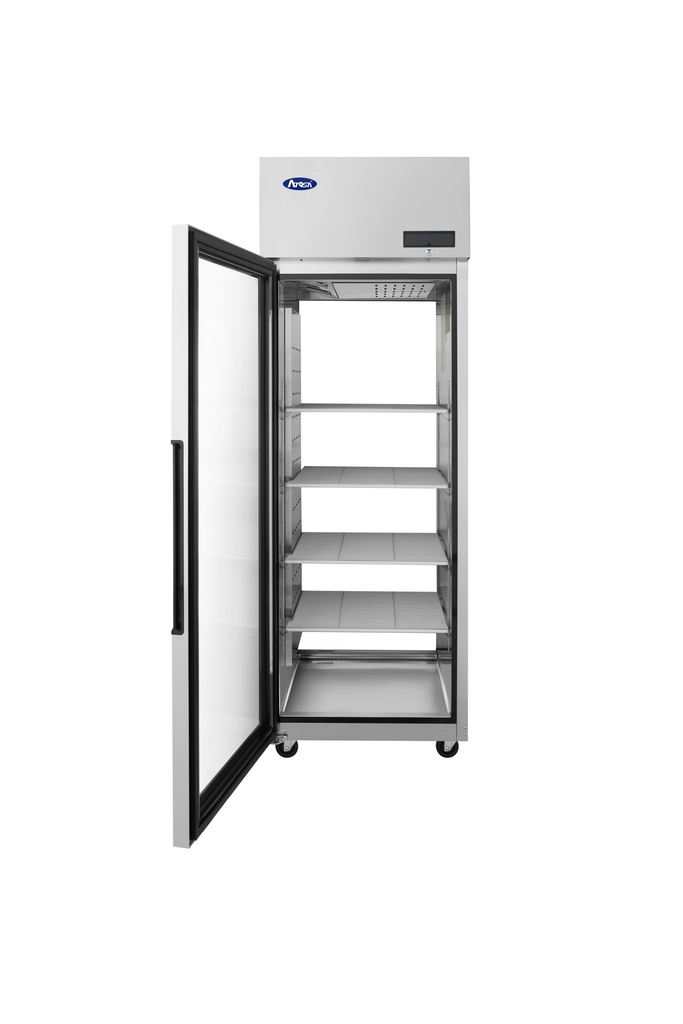

Both doors close themselves after a quick reach and have an automatic stay-open feature for restocking, with magnetic gaskets holding a positive seal.
Configuration note: The L and R suffixes designate the two mirror-image door configurations of the same cabinet — the PLUS-R1-GS-L-PT and PLUS-R1-GS-R-PT are otherwise identical in capacity, dimensions and electrical. Specify the hand that suits the opening before ordering, because a pass-thru is built into a wall.
Ideal Applications
A pass-thru pays for itself wherever product is stocked in one room and taken in another.
PLUS-R1-GS-L-PT Specifications
| Model | PLUS-R1-GS-L-PT |
|---|---|
| Type | Top mount pass-thru glass door refrigerator, one section |
| Doors | 2 — double pane glass front, solid rear; self-closing with automatic stay open feature, magnetic gaskets, locks standard |
| Capacity | 23.7 cu. ft. |
| Shelves | (4) epoxy coated, with pre-installed shelf clips |
| Exterior Dimensions (W x D x H) | 28-3/4" x 33-7/8" x 82-7/8" |
| Temperature Range | 35°F – 38°F |
| Refrigeration | Heavy duty Cubigel top-mounted compressor |
| Refrigerant | R290 |
| Horsepower | 1/3 HP |
| Electrical | 115V / 60 Hz / 1-phase, 3.7 amps, NEMA 5-15P |
| Air Flow | Down-duct channel for even distribution |
| Lighting | LED interior |
| Construction | Stainless steel / black exterior, stainless steel interior |
| Casters | 4", pre-installed |
| Certifications | cETLus, ETL Sanitation |
| Net Weight | 313 lb |
| Gross Weight | 357 lb |
| Brand | Atosa USA |
Frequently Asked Questions
What is a pass-thru refrigerator?
A pass-thru has doors on both the front and the back of the same cabinet, so it can be built into a wall between two spaces. On the PLUS-R1-GS-L-PT the front door is double pane glass for the service side and the rear door is solid for the kitchen side.
What are the dimensions of the PLUS-R1-GS-L-PT?
Exterior dimensions are 28-3/4" wide x 33-7/8" deep x 82-7/8" high on the pre-installed 4" casters. Net weight is 313 lb and gross shipping weight is 357 lb.
What is the difference between the L and R models?
They are the two mirror-image door configurations of the same cabinet. Capacity, dimensions, shelving and electrical are identical; only the door hand differs, so specify the one that suits the opening.
How many shelves does it include?
Four shelves per section, with shelf clips pre-installed.
What electrical connection does it need?
115V / 60 Hz / 1-phase, 3.7 amps, on a standard NEMA 5-15P plug. The compressor is 1/3 HP on R290 refrigerant.
What other models are in this pass-thru line?

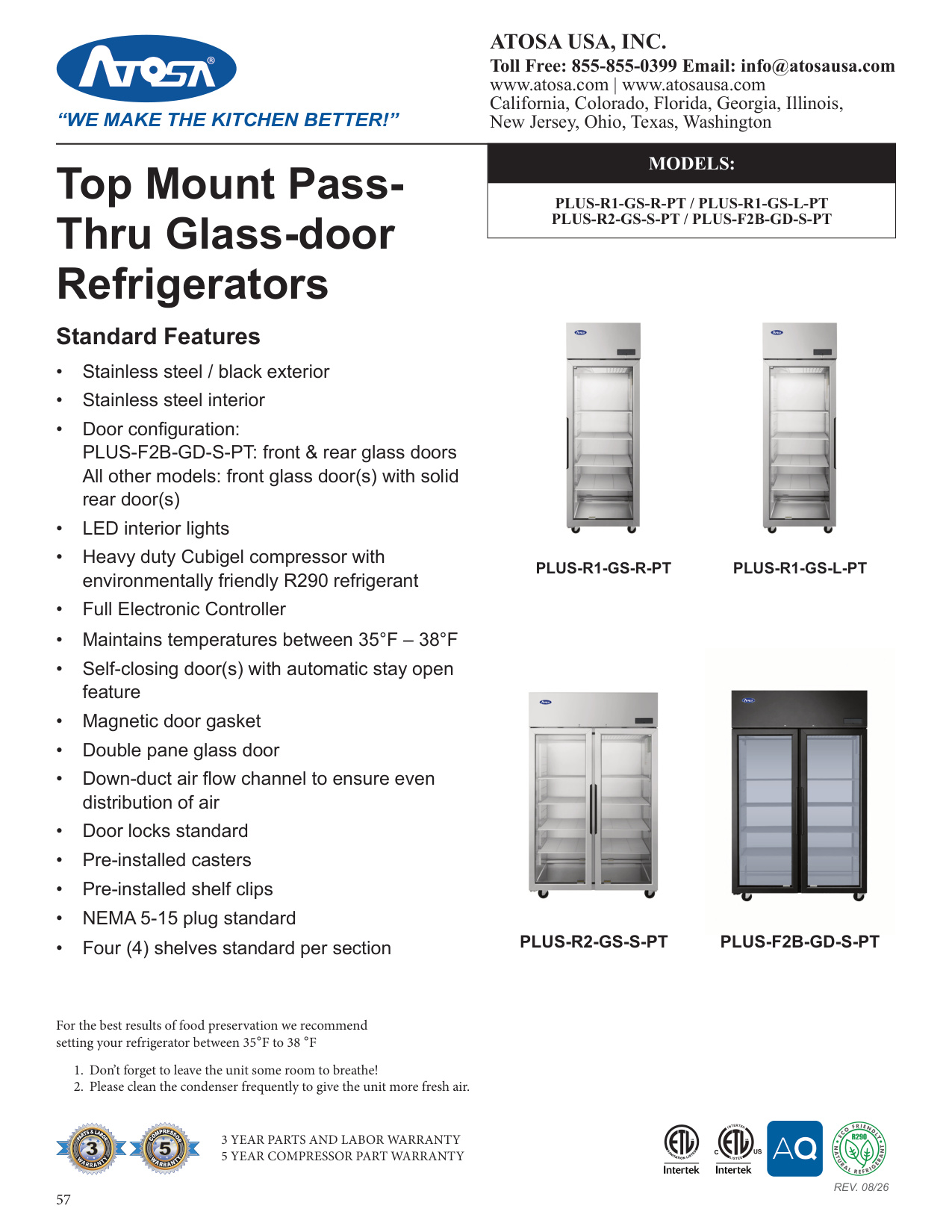

The line includes the PLUS-R1-GS-R-PT and PLUS-R1-GS-L-PT (one section, 23.7 cu. ft., 2 doors), the PLUS-R2-GS-S-PT (two sections, 46.3 cu. ft., 4 doors) and the PLUS-F2B-GD-S-PT, which has glass doors front and rear.
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | PLUS-R1-GS-L-PT |
| Brand | Atosa USA |
| Weight | 357.00 lbs |
| Dimensions (HxWxD) | 86.00 x 30.00 x 36.00 inches |
| Height | 86.00 |
| Width | 30.00 |
| Depth | 36.00 |
| Exterior Finish | stainless steel |
| Compressor HP | 1/3 HP |
| Size | 1 section |
| Refrigeration | self-contained, top mounted |
| Interior Finish | all stainless steel interior |
| Door Style | hinged / swing |
| Depth (front - back) | 35" - 36" |
|
