Atosa USA AWF27D2 Worktop Freezer, 2 Drawers, 27-1/2"W, 6.53 cu. ft., Backsplash, Stainless Steel, R290

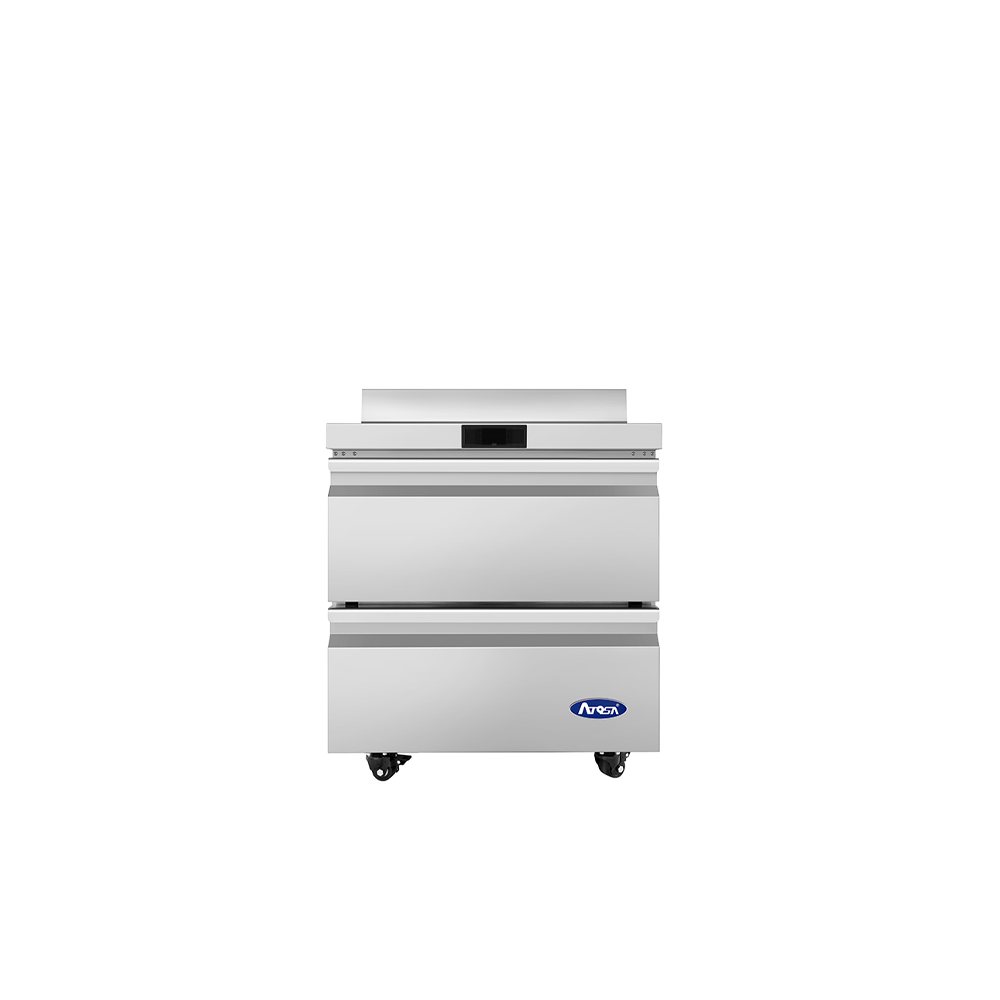

Atosa USA AWF27D2 — 27-1/2" Two-Drawer Worktop Freezer
The AWF27D2 is a frozen work counter with two drawers and a backsplash: 6.53 cu. ft. of freezer under a reinforced stainless steel work surface at a 38-7/8" working height. Stainless steel inside and out, it runs environmentally friendly R290 refrigerant on a 1/5 HP system with an electronic temperature controller holding -8°F to 1°F, and 1/6 size pans ship standard.
Key Features of the AWF27D2
A worktop freezer has the hardest job in the cold line: hold below zero while a cook works on top of it and opens a drawer every few minutes. Here is how the AWF27D2 is built for it.
Holds -8°F to 1°F
An electronic temperature controller keeps the cabinet between -8°F and 1°F. Atosa recommends a setting of -8°F to 0°F for the best food preservation results.
Reinforced Top with Backsplash
The reinforced stainless steel top takes cutting boards, slicers and mixers, and the backsplash keeps splatter off the wall behind the station.
Two Drawers, Flexible Pan Layout
Each drawer takes one full size 12" x 20" x 6" deep pan, or six 1/6 size pans for portioned product — and 1/6 size pans come standard with the unit.
R290 Refrigerant, 1/5 HP
Environmentally friendly R290 refrigerant on a 1/5 HP compressor gives a worktop freezer the recovery it needs, drawing 3.9 amps on a standard 115V circuit.
5" Casters Pre-Installed
Standard 5" swivel stem casters — B0604007 with brake, B0604006 without — set the top at 38-7/8" and let the counter roll out for floor cleaning.
Magnetic Gaskets, Recessed Handles
Magnetic drawer gaskets hold the seal a freezer depends on and pull out for washing, while recessed handles keep the front face flush in a tight aisle.
Installation and care: The unit vents through a rear grate, so leave it room to breathe and clean the condenser frequently to give it more fresh air. For the best food preservation results Atosa recommends setting the freezer between -8°F and 0°F.
Optional Casters and Overall Height
The AWF27D2 ships on 5" swivel stem casters, and four other caster sets are available when the top has to line up with an existing run of counter.
| 1.2" swivel plate casters (R06001000228 brake / R06001000229 no brake) | Overall height 34-3/4" |
|---|---|
| 1.5" swivel plate caster (R06001000063, with brake) | Overall height 35-3/8" |
| 2" swivel plate casters (B0604434 brake / B0604433 no brake) | Overall height 36" |
| 4" swivel stem casters (B0604421 brake / B0604413 no brake) | Overall height 37-7/8" |
| 5" swivel stem casters (B0604007 brake / B0604006 no brake) — standard | Overall height 38-7/8" |
Ideal Applications
At 27-1/2" wide this is the smallest worktop freezer in the AWF series — the one that fits where a wider counter will not.
AWF27D2 Specifications
| Model | AWF27D2 |
|---|---|
| Type | Worktop freezer with drawers and backsplash |
| Drawers | 2 |
| Capacity | 6.53 cu. ft. |
| Exterior Dimensions (W x D x H) | 27-1/2" x 30" x 38-7/8" |
| Pan Capacity per Drawer | (1) full size 12" x 20" x 6" deep pan, or (6) 1/6 size pans |
| Temperature Range | -8°F – 1°F |
| Refrigerant | R290 |
| Horsepower | 1/5 HP |
| Electrical | 115V / 60 Hz / 1-phase, 3.9 amps, NEMA 5-15P |
| Construction | Stainless steel exterior and interior, reinforced stainless steel top |
| Casters | 5" swivel stem, pre-installed |
| Venting | Rear grate |
| Included | 1/6 size pans |
| Certifications | cETLus, ETL Sanitation |
| Net Weight | 143 lb |
| Gross Weight | 198 lb |
| Brand | Atosa USA |
Frequently Asked Questions
What are the dimensions of the Atosa AWF27D2?
Exterior dimensions are 27-1/2" wide x 30" deep x 38-7/8" high on the standard 5" swivel stem casters. Net weight is 143 lb and gross shipping weight is 198 lb.
How cold does the AWF27D2 get?
The electronic temperature controller maintains the cabinet between -8°F and 1°F. For the best food preservation results Atosa recommends setting the freezer between -8°F and 0°F.
What size pans do the drawers take?
Each drawer accommodates one full size 12" x 20" pan up to 6" deep, or six 1/6 size pans. Each unit comes standard with 1/6 size pans.
What electrical connection does it need?
It runs on 115V / 60 Hz / 1-phase, draws 3.9 amps and plugs into a standard NEMA 5-15P receptacle. The compressor is 1/5 HP using R290 refrigerant.
Can the counter height be changed?
Yes. The standard 5" swivel stem casters give a 38-7/8" overall height. Optional casters change that to 34-3/4" (1.2" plate), 35-3/8" (1.5" plate), 36" (2" plate) or 37-7/8" (4" stem).
How does the AWF27D2 compare to the other AWF worktop freezers?
The AWF27D2 is the 27-1/2", 2-drawer, 6.53 cu. ft. model. The series also includes the AWF36D2 (2 drawers, 8.97 cu. ft.), AWF48D4 (4 drawers, 12.22 cu. ft.) and AWF60D4 (4 drawers, 15.5 cu. ft.). Matching AWR worktop refrigerators use the same cabinets.
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | AWF27D2 |
| Brand | Atosa USA |
| Weight | 198.00 lbs |
| Dimensions (HxWxD) | 42.00 x 30.00 x 34.00 inches |
| Height | 42.00 |
| Width | 30.00 |
| Depth | 34.00 |
| Refrigeration | self-contained, rear mounted |
| Style | drawers |
| Size | 2 section |
| Interior Finish | all stainless steel interior |
| Exterior Finish | all stainless steel exterior |
| Width (side - side) | 27" - 30" wide |
|
