Atosa USA ATFS-50ES-LP Gas Fryer, Floor Model, 50 lb, 4 Burners, 88,000 BTU, Propane, Stainless Steel, NSF
Atosa USA ATFS-50ES-LP — 50 lb Propane Floor Fryer, 88,000 BTU
The ATFS-50ES-LP is a 50 lb floor model deep fryer running on propane, with four heavy duty burners at 22,000 BTU/hr each for 88,000 BTU/hr total. A high quality millivolt thermostat holds the selected temperature automatically between 200°F and 400°F, and an oil cooling zone in the bottom of the welded stainless tank captures crumbs and extends oil life. Two nickel plated baskets, a crumb screen and four casters are standard.
Key Features of the ATFS-50ES-LP
A gas fryer earns its keep on recovery, oil life and the safety devices that keep a hot tank from becoming a problem. This one covers all three.
Four 22,000 BTU Burners

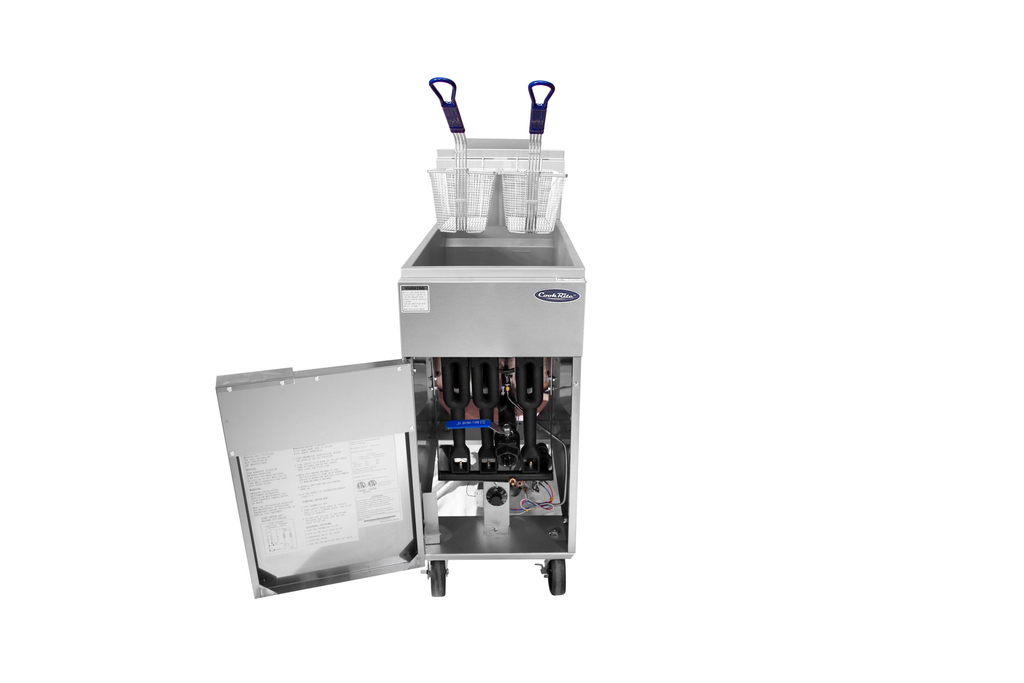

Heavy duty burners with a standing flame and standby pilots put 88,000 BTU/hr under the tank — the recovery a 50 lb vat needs when a full basket of frozen product drops.
Millivolt Thermostat, 200°F–400°F
A high quality millivolt thermostat holds the selected temperature automatically between 200°F and 400°F, and needs no electrical supply to do it.
Oil Cooling Zone Extends Oil Life
A cooling zone in the bottom of the welded stainless steel tank captures food particles below the heat, so crumbs stop burning and the oil lasts longer between changes.
Safety Valve and High Limit
A safety valve with an automatic voltage stabilizing function and a self-reset high temperature limiting device protect the fryer and the crew working beside it.
Two Baskets, Crumb Screen, Hanger
Two nickel plated baskets with coated handles, a wire mesh crumb screen and a basket hanger all come standard — nothing extra to order to start frying.
Four Casters Standard
Four casters come standard, so the fryer rolls out from the line for cleaning behind and underneath. A leg kit is available if a fixed installation is preferred.
Gas note: This is the LP (propane) version, supplied with a 10" W.C. regulator and a 3/4" NPT rear gas connection. The same fryer is available for natural gas at 4" W.C. — confirm the gas type at the site before ordering.
Optional Accessories
Four factory accessories adapt the fryer to the line it lands in.
| Leg kit | Part 301110006 — for a fixed installation instead of casters |
|---|---|
| Fryer splash guard | Part 21101001047 |
| Fryer cover | Part 21201001019 (fits ATFS-40ES and ATFS-50ES) |
| Joiner strip | Part 21101001046 — for battery installations of two or more fryers |
Ideal Applications
A 50 lb gas fryer on a 15-1/2" footprint is the workhorse of most fry programs — and the propane version goes where there is no gas main.
ATFS-50ES-LP Specifications
| Model | ATFS-50ES-LP |
|---|---|
| Type | Gas deep fryer, floor model, full pot |
| Gas Type | LP (propane) |
| Capacity | 50 lb |
| Burners | 4, independent manual control |
| Power per Burner | 22,000 BTU/hr |
| Total Power | 88,000 BTU/hr |
| Temperature Range | 200°F – 400°F, millivolt thermostat |
| Gas Connection | 3/4" NPT rear, regulator included |
| Gas Pressure | 10" W.C. (LP) |
| Tank | Welded stainless steel with oil cooling zone in the bottom |
| Ignition | Standing flame with standby pilots |
| Safety | Safety valve with automatic voltage stabilizing function, self-reset high temperature limiting device |
| Baskets | (2) nickel plated with coated handles, 13-3/10" x 6-1/2" x 5-9/10" |
| Also Included | Wire mesh crumb screen, basket hanger, (4) casters |
| Exterior Dimensions (W x D x H) | 15-1/2" x 30-1/8" x 44-1/4" |
| Construction | Stainless steel exterior and interior |
| Certifications | cETLus, ETL Sanitation, ENERGY STAR, conforms to NSF/ANSI STD.4 |
| Net Weight | 143 lb |
| Gross Weight | 171 lb |
| Brand | Atosa USA |
Frequently Asked Questions
How much oil does the ATFS-50ES-LP hold?
50 lb. Four burners at 22,000 BTU/hr each heat the tank, for 88,000 BTU/hr total.
Does it run on propane or natural gas?
This is the LP (propane) version, supplied with a 10" W.C. regulator. The same fryer is available for natural gas at 4" W.C. Both use a 3/4" NPT rear gas connection.
What does the oil cooling zone do?
It sits in the bottom of the tank, below the heated zone, and captures food particles that fall off the product. Crumbs settle there instead of burning in the hot oil, which extends the life of the oil.
Does it need an electrical connection?
The fryer uses a millivolt thermostat and standing pilot ignition, so the controls do not depend on an external electrical supply.
What comes with the fryer?
Two nickel plated baskets with coated handles, a wire mesh crumb screen, a basket hanger, four casters and a regulator. A leg kit, splash guard, cover and joiner strip are available as options.
What other sizes are in this fryer series?
The line runs ATFS-40ES (3 burners, 66,000 BTU, 15-1/2" wide), ATFS-50ES (4 burners, 88,000 BTU, 15-1/2" wide) and ATFS-75ES (5 burners, 110,000 BTU, 21-1/8" wide). All are available in natural gas and propane.
| Warranty Option | 1-Year Parts & Labor Warranty or 3-Year Parts & Labor Warranty or 4-Year Parts & Labor Warranty or 5-Year Parts & Labor Warranty |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | ATFS-50ES-LP |
| Brand | Atosa USA |
| Dimensions (HxWxD) | 44.37 x 15.62 x 30.12 inches |
| Height | 44.37 |
| Width | 15.62 |
| Depth | 30.12 |
| Fry pot | stainless steel fry pot |
| Controls | manual controls |
| Basket Lifts | with basket lifts |
| Energy Efficiency | ENERGY STAR® |
| Type | heavy duty, range match |
| Exterior Finish | all stainless steel exterior |
|
