Atosa USA YRU0280A-161 Undercounter Ice Machine with Bin, 280 lb/24 hr, 88 lb Storage, Half Cube, R290, NSF

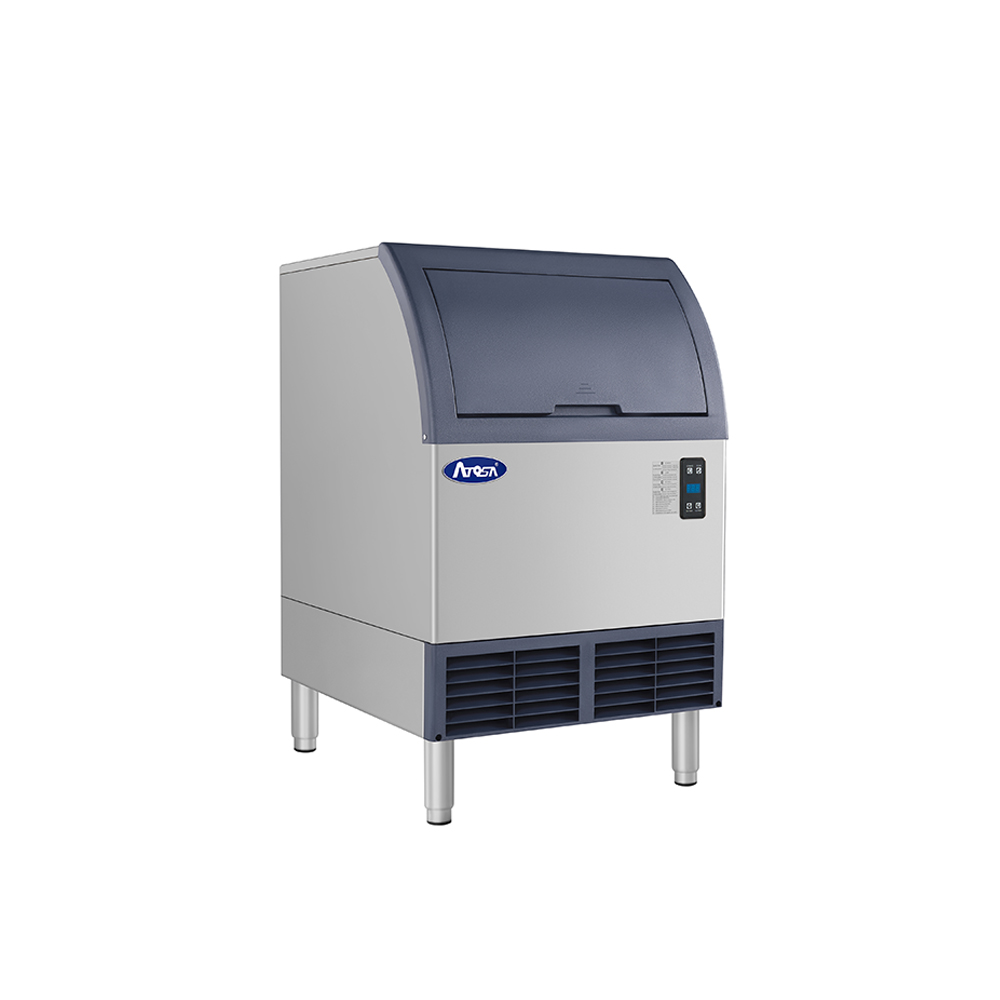

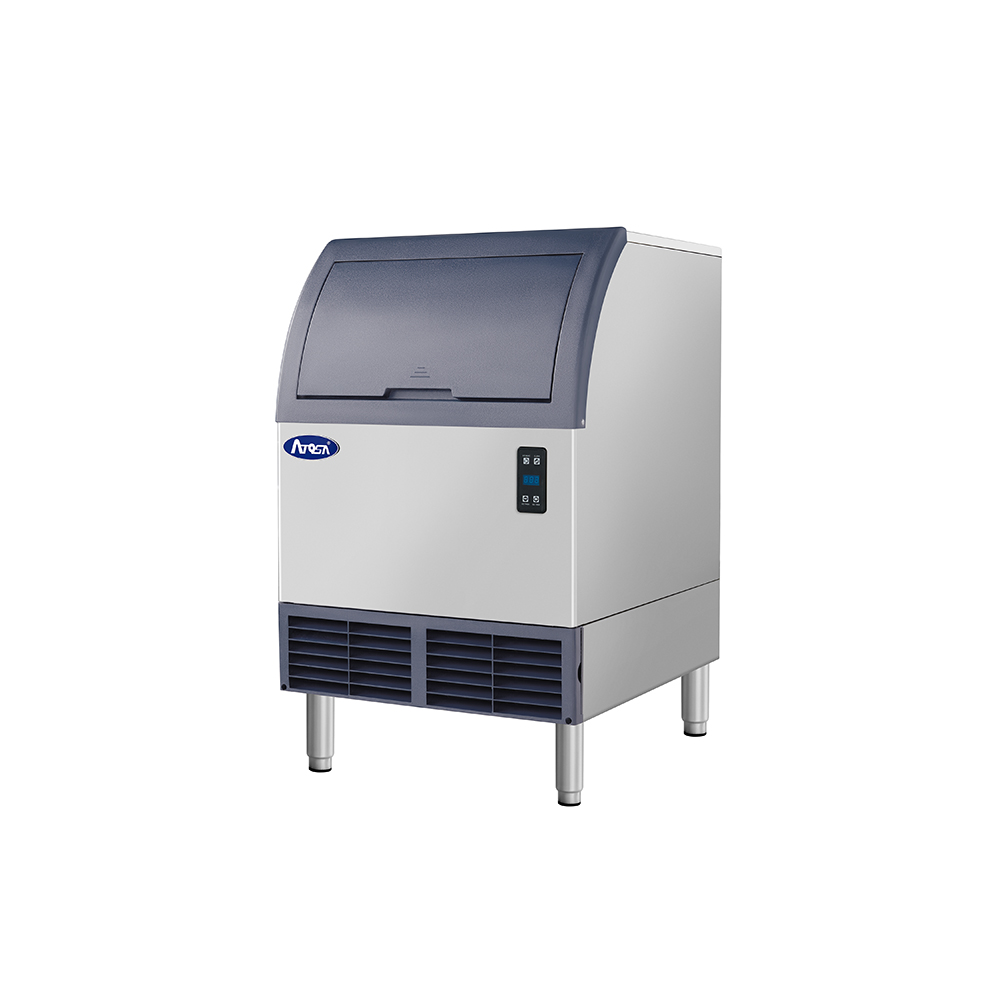

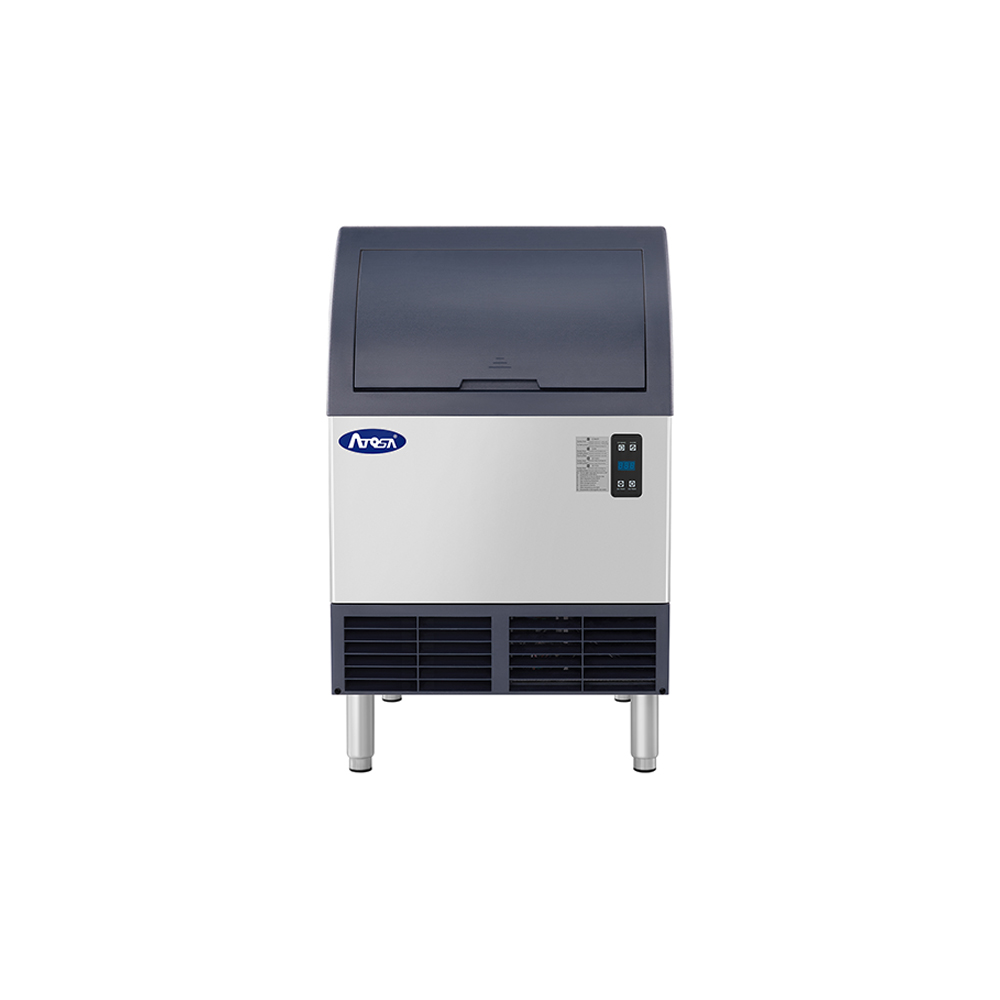

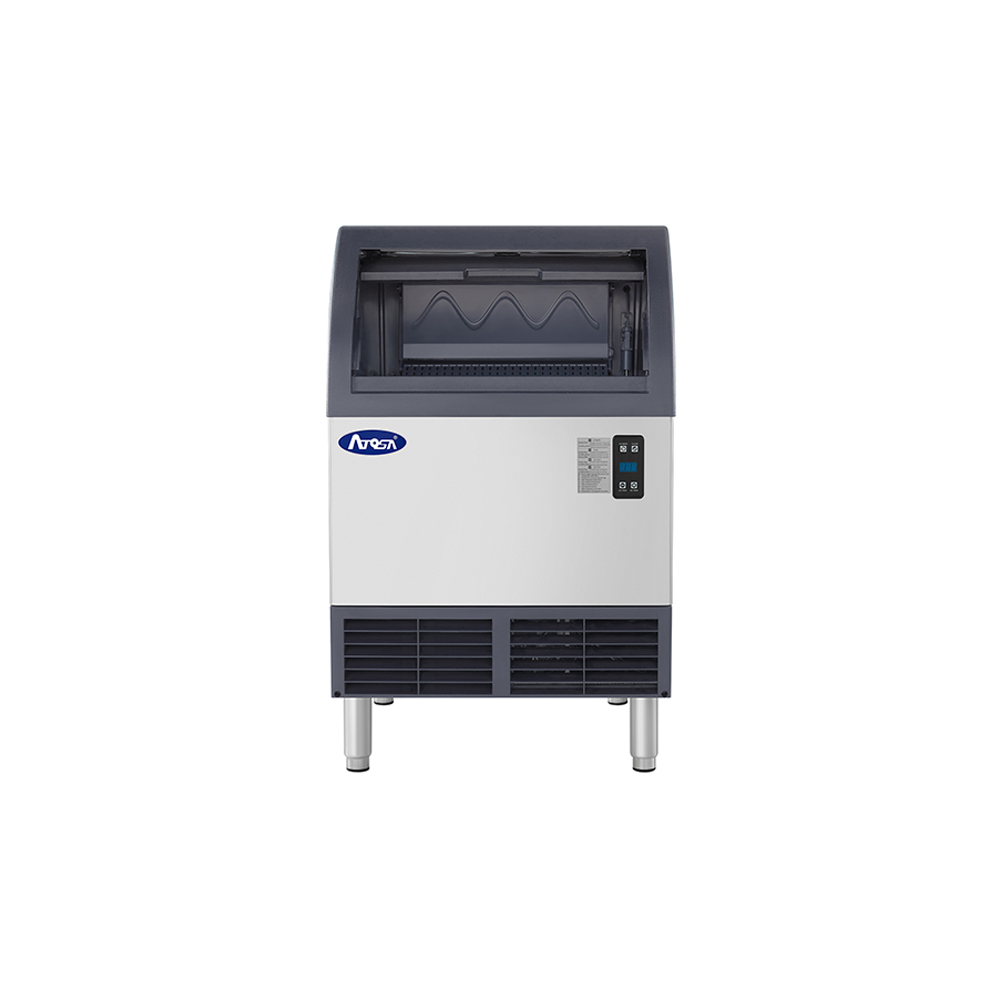

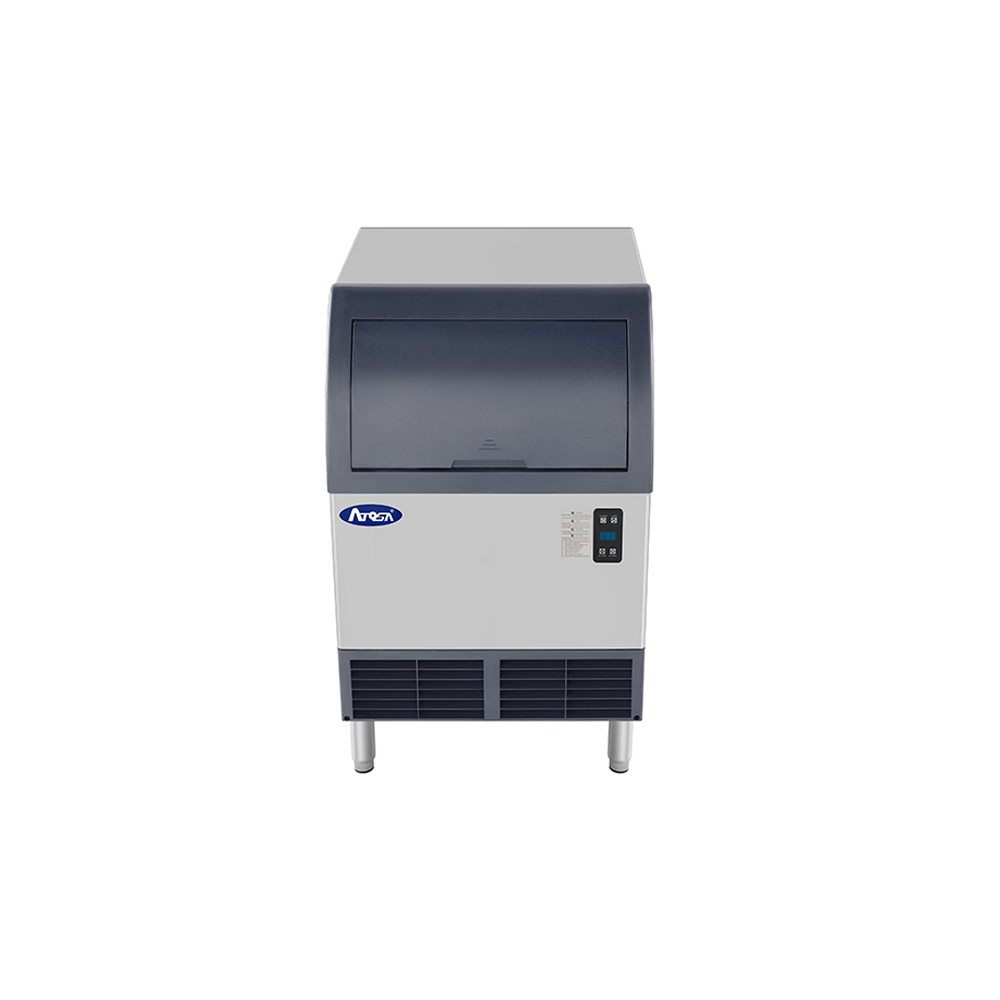

Atosa USA YRU0280A-161 — 280 lb Undercounter Ice Machine with Built-In Bin
The YRU0280A-161 is a self-contained undercounter ice machine: it makes up to 280 lb of half cube ice per 24 hours and stores 88 lb in its own built-in bin, all in a 24-1/4" wide stainless cabinet that fits under a counter. Air cooled, R290 refrigerant, a slanted blue plastic bin door, and a 3M water filter system included standard.
Key Features of the YRU0280A-161
An undercounter machine has to make and store ice in one cabinet, under a counter, with the condenser breathing through the front. These are the details that let it.
280 lb a Day, 88 lb on Hand
Up to 280 lb of production per 24 hours with 88 lb of built-in storage, so the bin carries a service period even when demand outruns the harvest cycle.
Freestanding or Built-In
The cabinet is rated for freestanding or built-in installation, so it can slot under a bar counter or stand on its own with 6" leg levelers setting the height.
Removable Air Filter, Front Power Switch
The air filter pulls out for cleaning and the power switch is accessible without removing a panel — both of which matter when the machine is boxed in under a counter.
3M Water Filter System Included
A 3M water filter system and cartridge ship with the machine. Filtration protects the evaporator and produces cleaner, clearer ice from the first harvest.
R290 Refrigerant, 7.49 kWh per 100 lb
An air cooled system on environmentally friendly R290 refrigerant uses 7.49 kWh per 100 lb of ice and needs nothing more than power, water and a drain.
NSF and ETL Listed
NSF and ETL listings mean the machine meets the sanitation and electrical standards an inspector looks for in a commercial installation.
Installation and maintenance: The machine requires the use of a drain, and should be left room to breathe with the condenser cleaned frequently. Install the included 3M water filter system and cartridge; Atosa recommends replacing the cartridge every 6 months, which may vary with water quality. Maintenance and cleaning are not covered under warranty.
Water Connections
What the plumber needs to know before the machine is set under the counter.
| Water inlet | 3/8" "slip" style connector, accepts 3/8" OD tubing |
|---|---|
| Water outlet | 3/4" hose barb, accepts 3/4" rubber hose (hose clamp needed) |
| Bin drain | Incorporated in the water outlet |
| Included | Inlet hose, drain hose, ice scoop, 3M water filter system |
Ideal Applications
A machine and bin in one 24-1/4" cabinet is the answer wherever there is no floor space for a separate head and bin.
YRU0280A-161 Specifications
| Model | YRU0280A-161 |
|---|---|
| Type | Undercounter cube-style ice machine with built-in bin, air cooled |
| Ice Type | 1/2 cube (half diced) ice |
| Ice Dimension | 3/8" x 7/8" x 7/8" |
| Ice-Making Capacity | 280 lb per 24 hours |
| Built-In Storage | 88 lb |
| Exterior Dimensions (W x D x H) | 24-1/4" x 28-3/4" x 38-1/2" (height includes leg levelers) |
| Legs | 6", with levelers |
| Condenser | Air cooled, removable air filter |
| Refrigerant | R290 |
| Rated Power | 800 watts |
| Energy Use | 7.49 kWh per 100 lb of ice |
| Electrical | 115V / 60 Hz / 1-phase, 8.6 amps, NEMA 5-15P |
| Exterior | Durable stainless steel, slanted blue plastic bin door |
| Installation | Freestanding or built-in; requires use of a drain |
| Included | 3M water filter system, inlet hose, drain hose, ice scoop |
| Certifications | NSF, ETL, cETLus, ENERGY STAR |
| Net Weight | 62 lb |
| Brand | Atosa USA |
Frequently Asked Questions
Does the YRU0280A-161 include a storage bin?
Yes. The bin is built into the cabinet with 88 lb of storage capacity, so no separate bin purchase is needed.
How much ice does it make?
Up to 280 lb per 24 hours, in a 1/2 cube measuring 3/8" x 7/8" x 7/8".
What are the dimensions?
24-1/4" wide x 28-3/4" deep x 38-1/2" high, with the height including the leg levelers on the 6" legs. Net weight is 62 lb.
Can it be built in under a counter?
Yes. The machine is rated for both freestanding and built-in applications. The power switch is accessible without removing a panel and the air filter pulls out for cleaning, both of which help in a built-in position.
What plumbing does it need?
A water supply to a 3/8" "slip" style connector accepting 3/8" OD tubing, and a drain to a 3/4" hose barb accepting 3/4" rubber hose (a hose clamp is needed). The bin drain is incorporated in the water outlet.
How often should the water filter cartridge be replaced?
Atosa recommends replacing the 3M cartridge every 6 months, though this may vary based on water quality. All Atosa ice machines should have the included 3M water filter system and cartridge installed.
| Warranty Option | 2-Year Parts & Labor with 5-year parts warranty on Compressor or 3-Year Parts & Labor with 5-year parts warranty on Compressor or 4-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | YRU0280A-161 |
| Brand | Atosa USA |
| Weight | 187.00 lbs |
| Dimensions (HxWxD) | 39.00 x 24.00 x 29.00 inches |
| Height | 39.00 |
| Width | 24.00 |
| Depth | 29.00 |
| Condenser Type | air-cooled |
| Bin Storage Capacity | 200 - 299 lb bin capacity |
| Cube Type | half size/half dice |
| Energy Efficiency | ENERGY STAR® |
| Production per 24 hr | 201 - 300 lb = 91 - 136 kg |
| Finish | stainless steel |
|
