Atosa USA SH12SD Hand Sink, Wall Mount, 12"W, 18 Ga 304 Stainless Steel, Side Splashes, Gooseneck Faucet, NSF

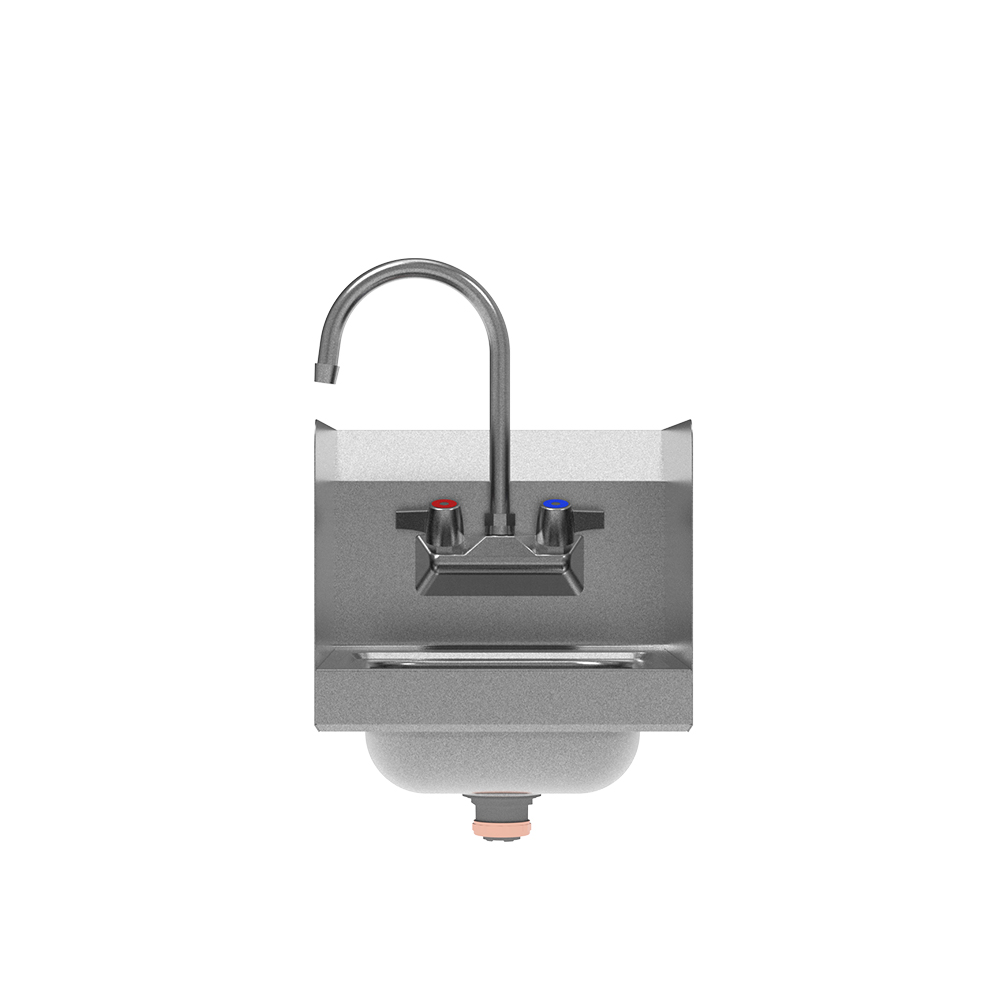

Atosa USA SH12SD — 12" Wall Mount Hand Sink with Side Splashes
The SH12SD is Atosa's heavy-duty 12-inch hand sink, built for the spot every health code requires one and nobody has room for. It uses 18-gauge 304 stainless steel instead of the 20-gauge body on the standard SH12, adds 18-gauge side splashes to contain overspray in tight corners, and arrives complete with a gooseneck faucet, strainer and Z-clip mounting bracket — nothing else to source before it goes on the wall.
Key Features of the SH12SD
A hand sink gets used hundreds of times a shift and is the first fixture an inspector looks at. These are the details that separate the SD model from a bare-bones hand sink.
18-Gauge 304 Body
The SD version steps the sink body up from 20-gauge to 18-gauge 304 stainless. Thicker material means less flex around the bowl and far better resistance to dents in a high-traffic aisle.
18-Gauge Side Splashes
The "SD" suffix means side splashes. They keep water off adjacent walls, equipment and dry storage — essential when the sink is squeezed between a prep table and a reach-in.
Gooseneck Faucet Included
Ships with a gooseneck faucet and knob handles already matched to the sink's 1-1/8" faucet holes on 4" centers — no separate faucet order, no drilling, no fit surprises.
1-1/2" Drain with Strainer
A 1-1/2" waste drain opening with strainer and 1-1/4" pipe size, so it ties into standard commercial hand sink plumbing without adapters.
6" Backsplash, 2" Return
A 6-inch rear backsplash with a 2-inch return seals the wall joint and directs splash back into the bowl instead of down behind the sink.
Z-Clip Mount, NSF Listed
The included 18-gauge 304 Z-clip bracket hangs the sink flat and level on the wall, and the unit is NSF listed for commercial hand washing.
Handle type: Atosa supplies knob handles on the 12" hand sinks; wrist-blade handles come on the 15" and 17" models. If your jurisdiction requires hands-free or wrist-blade operation at the hand wash station, specify an SH15 or SH17 instead.
Ideal Applications
At 12 inches wide and 16 inches deep, the SH12SD fits the narrow gaps where a hand sink is legally required but space is not available.
SH12SD Specifications
| Model | SH12SD |
|---|---|
| Brand | Atosa USA |
| Type | Wall mount hand sink, one compartment |
| Overall Dimensions (W x D x H) | 12" x 16" x 12-1/4" |
| Bowl Size (W x F/B x D) | 9" x 9" x 4" |
| Material | 304 stainless steel |
| Gauge | 18 gauge |
| Side Splashes | 18 gauge 304 stainless, included (SD model) |
| Backsplash | 6" with 2" return |
| Faucet | Gooseneck faucet with knob handles, included |
| Faucet Holes | 1-1/8" on 4" centers |
| Drain | 1-1/2" waste drain opening with strainer |
| Pipe Size | 1-1/4" |
| Mounting | 18 gauge 304 stainless Z-clip bracket, included |
| Net Weight | 11.24 lb |
| Gross Weight | 14.77 lb |
| Sanitation | NSF listed |
| Warranty | 90 day workmanship warranty |
Frequently Asked Questions
What is the difference between the SH12 and the SH12SD?
Both share the same 12" x 16" x 12-1/4" footprint and 9" x 9" x 4" bowl. The SH12 body is 20-gauge 304 stainless with no side splashes; the SH12SD is 18-gauge 304 stainless and adds 18-gauge side splashes, which is why it weighs 11.24 lb versus 7.93 lb.
Does the SH12SD come with a faucet?
Yes. A gooseneck faucet is included, along with a strainer and the Z-clip mounting bracket. The sink is drilled with 1-1/8" faucet holes on 4" centers.
Does it have wrist-blade handles?
No. Atosa fits knob handles on the 12" hand sinks and reserves wrist-blade handles for the 15" and 17" models. Choose an SH15 or SH17 if wrist blades are required by your local health department.
What size drain and plumbing does it use?
The bowl has a 1-1/2" waste drain opening with a strainer, and the listed pipe size is 1-1/4", matching standard commercial hand sink plumbing.
How is it mounted to the wall?
An 18-gauge 304 stainless Z-clip bracket is included. The bracket fastens to the wall and the sink hangs onto it; use anchors rated for the wall type, as fasteners are not supplied.
Is the SH12SD NSF listed?
Yes. It is NSF listed, with smooth, easy-to-sanitize surfaces suited to a required hand wash station in a commercial kitchen.
