Atosa USA SWS1236/304 Wall Mount Shelf, 36"W x 12"D, 304 Stainless Steel, 18 Gauge, NSF

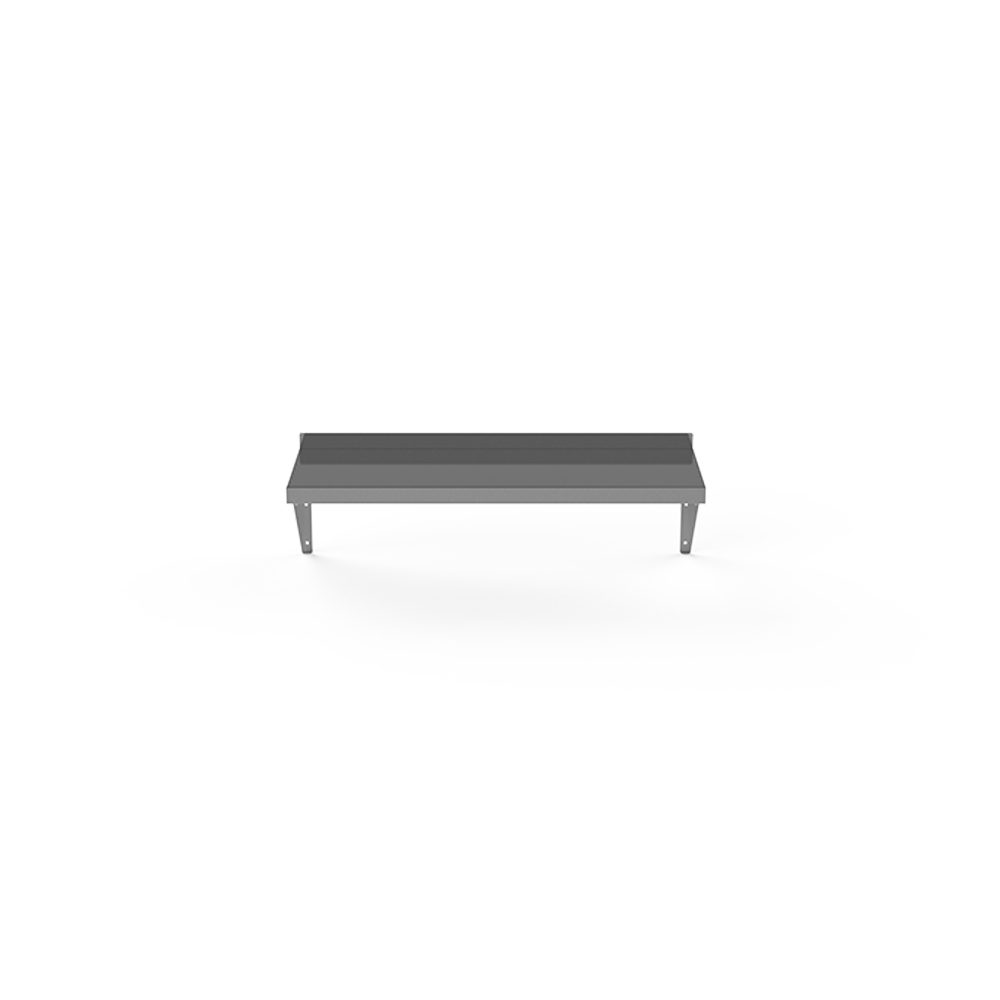

Atosa USA SWS1236/304 — 36" x 12" Wall Mount Shelf in 304 Stainless Steel
The Atosa SWS1236/304 turns unused wall space above a prep table, dish sink or bar station into 3 feet of solid, wipe-clean storage. It is formed from 18-gauge 304 stainless steel — the higher-nickel, more corrosion-resistant alloy — and ships with two welded support brackets rated for a 210 lb distributed load, so it holds full hotel pans, stacked china and dry goods without deflecting.
Key Features of the SWS1236/304
Wall shelving lives in the wettest, greasiest part of the kitchen and gets loaded far past what anyone plans for. These are the details that decide whether a shelf stays flat and rust-free.
304 Stainless, Not 430
The /304 suffix denotes 304-series stainless. Its higher nickel content resists pitting from salt, acid and chlorinated sanitizers far better than the 430 alloy used on economy shelving.
18-Gauge Deck
An 18-gauge shelf surface is meaningfully stiffer than the 20- and 22-gauge decks common at this price, which is what keeps the middle of a 36-inch span from bowing under loaded pans.
210 lb Rated Capacity
Rated for a 210 lb evenly distributed load on the two included brackets — enough headroom for stacked full-size hotel pans, cambros of dry goods or a run of plated china.
NSF Listed
Built to NSF sanitation standards with smooth, coved surfaces and no open seams to trap debris — the baseline most local health inspectors expect on any food-contact-adjacent surface.
10" Vertical Clearance
The bracket geometry sets the shelf 10 inches off the mounting line, leaving room to slide sixth pans, squeeze bottles and small containers underneath on the wall.
Part of a Full Size Range
The SWS series runs 24" through 120" wide in 12", 15" and 18" depths, so a single wall can be finished in matching shelving without mixing brands or finishes.
Mounting note: wall anchors are not supplied, because the correct fastener depends entirely on your wall. Anchor the brackets into studs or use hardware rated for the substrate (block, stud, or reinforced FRP panel) and for the full 210 lb load — the shelf is only as strong as what it is bolted to.
Ideal Applications
At 36 inches wide and only 12 inches deep, this is the size that fits the narrow runs most kitchens actually have left over.
SWS1236/304 Specifications
| Model | SWS1236/304 |
|---|---|
| Brand | Atosa USA |
| Type | Wall mounted shelf |
| Overall Dimensions (W x D x H) | 36" x 12" x 10" |
| Material | 304 stainless steel |
| Gauge | 18 gauge |
| Support Brackets | 2 included |
| Load Capacity | 210 lb, evenly distributed |
| Sanitation | NSF listed |
| Warranty | 90 day workmanship warranty |
Frequently Asked Questions
What does the /304 in the model number mean?
It identifies the stainless alloy. The SWS1236/304 is built from 304 stainless steel rather than the 430 used on Atosa's standard-grade wall shelves. 304 contains nickel, which makes it noticeably more resistant to pitting and staining from salt, acidic foods and chlorine sanitizers.
How much weight will this shelf hold?
Atosa rates the 36" x 12" shelf at 210 pounds evenly distributed across the deck on its two brackets. Concentrating that load at one point, or mounting into a wall that cannot carry it, will reduce the safe working limit.
Are mounting screws or wall anchors included?
No. The shelf ships with its two support brackets, but fasteners are left to the installer because the right anchor depends on whether you are mounting into wood studs, metal studs, concrete block or a reinforced panel. Use hardware rated for the full load.
How much clearance is there under the shelf?
The bracket sets the shelf 10 inches above the mounting line, which is enough room underneath for sixth-size pans, squeeze bottle racks and similar small-format storage.
Is the SWS1236/304 NSF listed?
Yes. It is NSF listed for commercial foodservice use, which is what most health departments look for on shelving installed over prep and warewashing areas.
What other sizes are available in this series?
The SWS wall shelf line spans 24", 30", 36", 48", 60", 72", 84", 96", 108" and 120" widths in 12", 15" and 18" depths. Models 72" and wider ship with three brackets instead of two.
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | SWS1236/304 |
| Brand | Atosa USA |
| Weight | 12.00 lbs |
| Dimensions (HxWxD) | 10.00 x 36.00 x 12.00 inches |
| Height | 10.00 |
| Width | 36.00 |
| Depth | 12.00 |
| Width (side - side) | 36" |
| Depth (front - back) | 12" |
| Type | 400 series |
| Gauge | 18 gauge |
| Construction | stainless steel |
|
