Atosa USA SS2424F11D24 One Compartment Sink, 24"x24"x14" Bowl, Two 24" Drainboards, 18 Ga 304 Stainless, NSF

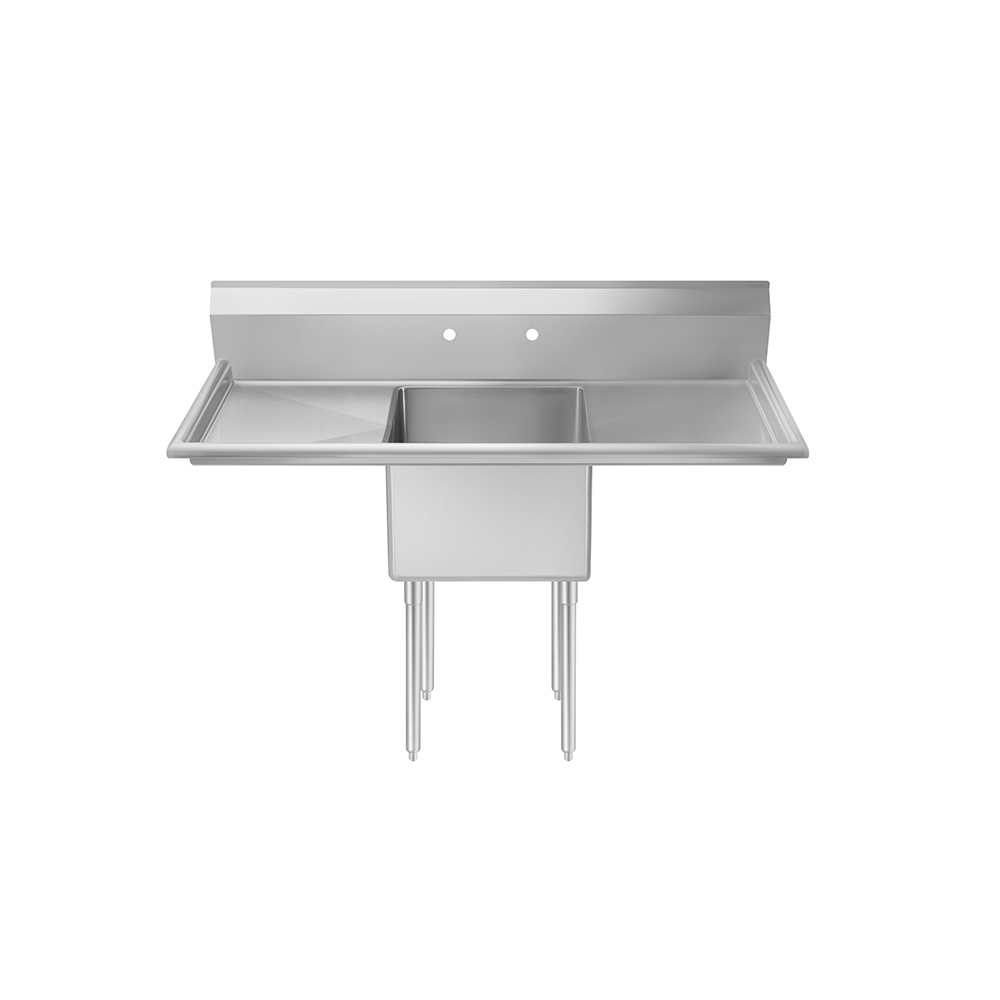

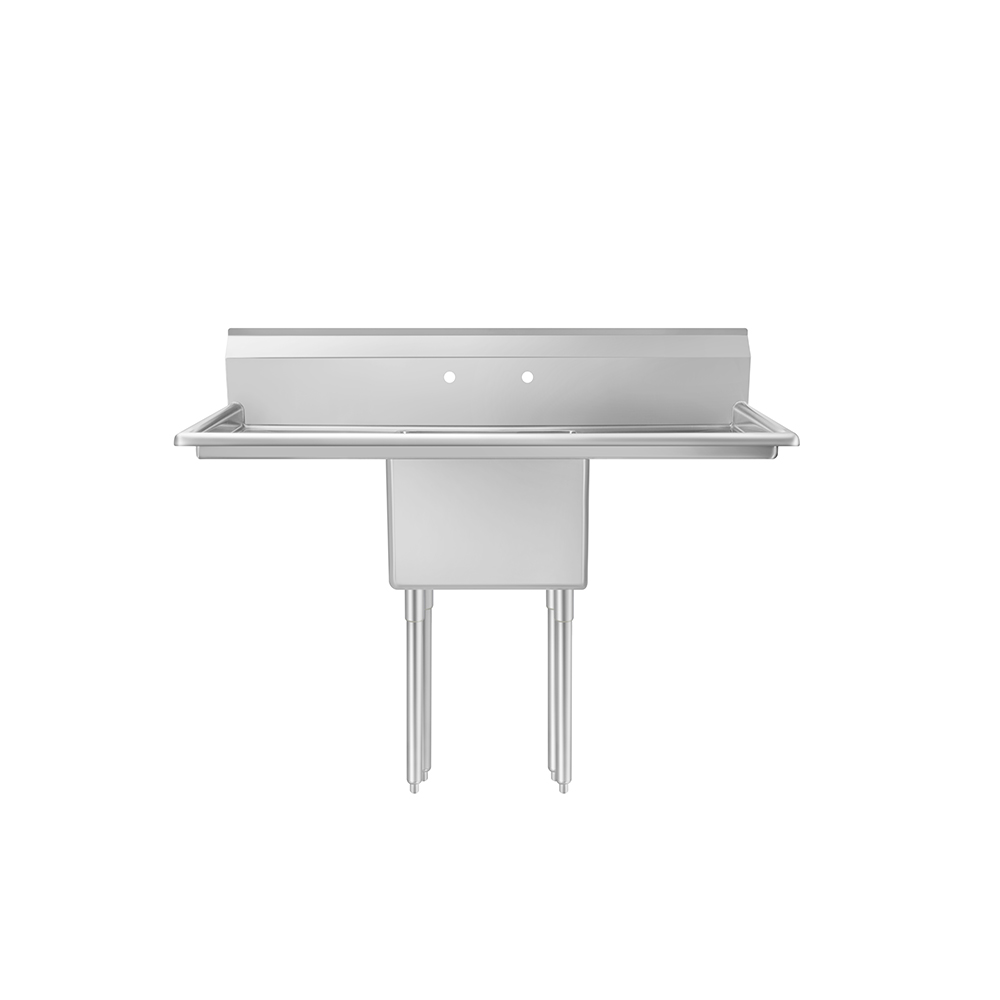

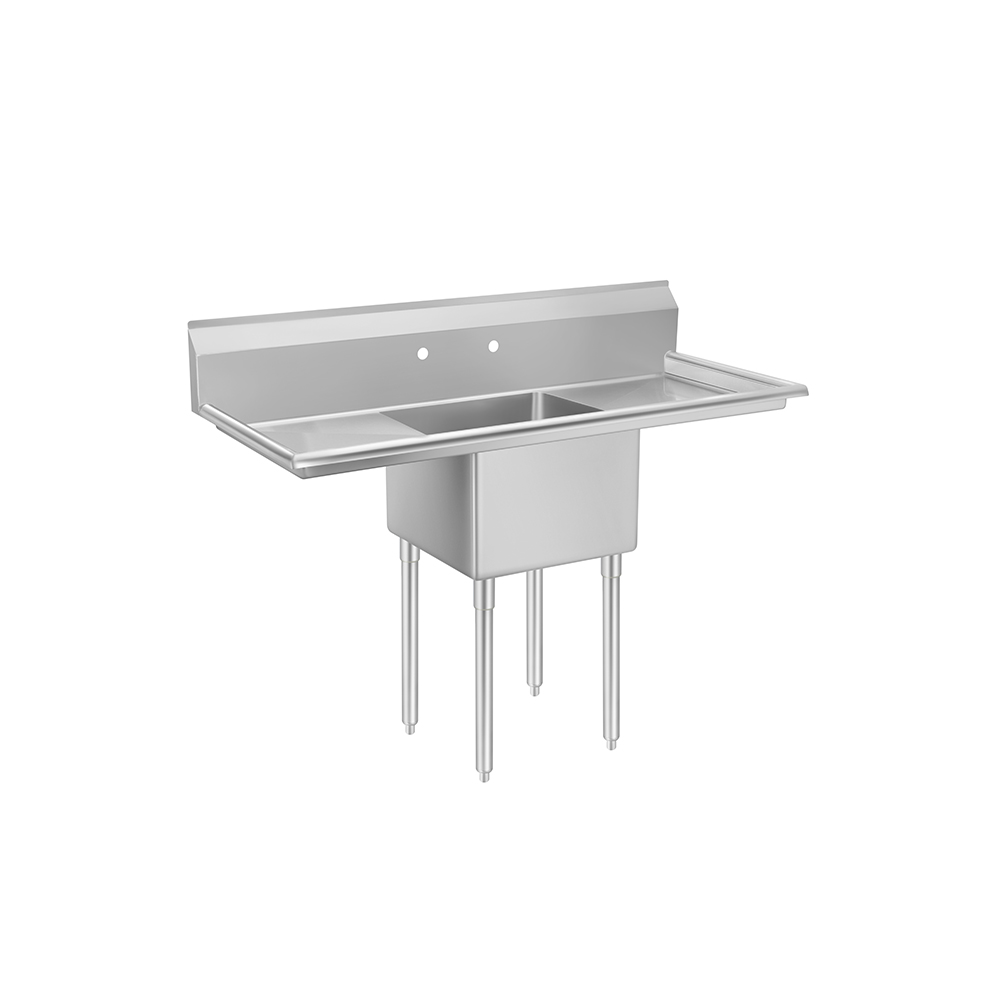

Atosa USA SS2424F11D24 — One Compartment Sink with Two 24" Drainboards
A 24" x 24" x 14" deep bowl flanked by two 24-inch creased and angled drainboards, across a 72-inch run. What sets it apart is the construction: the entire sink is formed from a single sheet of 18-gauge 304 stainless, fused and polished into a one-piece sanitary unit — no bolted-on drainboards, no seam for water to sit in.
Key Features of the SS2424F11D24
A sink is judged on where water can hide and how hard the corners are to clean. Atosa's answer to both is to not have joints in the first place.
One-Piece Sanitary Construction
The entire sink — bowl and both drainboards — is formed from a single sheet, then fused and polished into one continuous unit. There is no seam between bowl and board for standing water or debris to collect in.
18-Gauge 304 Stainless
304 is the nickel-bearing alloy that stands up to salt, acidic food residue and chlorinated sanitizers — and 18 gauge means a bowl bottom that does not drum or flex when a full stock pot lands in it.
Creased and Angled Drainboards
Both 24" drainboards are creased and angled so water actually runs back into the bowl instead of pooling — the detail that separates a working drainboard from a flat shelf.
Large Radius Corners
Generous radii on every corner, vertical and horizontal, so there is no square internal corner where a brush cannot reach and grease builds up.
Polished Welds, Satin Finish
Every exposed weld is ground smooth and polished to blend with the adjacent surface in a satin finish — it looks finished rather than fabricated, and there is nothing raised to catch a rag.
Stainless Legs, Adjustable Feet
Stainless steel legs and sockets on 1" adjustable bullet feet level the sink on an uneven floor, and a 3.5" drain basket is included so the bowl is ready to plumb.
Two things to know before ordering: faucets are sold separately — specify one to match your bowl and splash. And this sink must be purchased in quantities of five unless you are doing a will-call pickup, because of how it crates for freight.
Ideal Applications
A deep single bowl with landing space on both sides is the configuration for wet work that flows in one direction and out the other.
SS2424F11D24 Specifications
| Model | SS2424F11D24 |
|---|---|
| Brand | Atosa USA |
| Type | One compartment sink with two drainboards |
| Bowl Dimensions (W x D x H) | 24" x 24" x 14" |
| Compartments | 1 |
| Drainboards | Both sides, 24" each, creased and angled |
| Exterior Dimensions (W x D x H) | 72" x 29-1/2" x 43-3/4" |
| Material | 18-gauge 304 stainless steel |
| Construction | Formed from a single sheet, fused and polished into a one-piece sanitary unit; exposed welds ground smooth and polished to a satin finish; large radius corners |
| Legs | Stainless steel with stainless sockets, 22-1/2" leg size, 1" adjustable bullet feet |
| Drain | 3.5" drain basket included |
| Faucet | Sold separately |
| Net Weight | 63 lb |
| Gross Weight | 78 lb |
| Sanitation | NSF |
| Minimum Order | Quantities of 5, unless will-call pickup |
| Warranty | 90 day workmanship warranty |
Optional Accessories
| Leg cross bar (pair) | Part #7020201209210 — for 24-inch depth bowl size sinks |
|---|---|
| Faucet | Sold separately — specify to match the bowl and splash configuration |
Frequently Asked Questions
Is a faucet included?
No. Faucets are sold separately on Atosa's SS series sinks, so you can specify the spout height, reach and handle style your work actually needs.
Is there a minimum order quantity?
Yes. This sink must be purchased in quantities of five, unless you are collecting it yourself on a will-call pickup.
What does one-piece construction mean here?
The bowl and both drainboards are formed from a single sheet of stainless, then fused and polished into one continuous unit. There is no bolted joint between bowl and board, which is where water and debris collect on a fabricated sink.
Does it come with a drain?
A 3.5" drain basket is included with the sink. Plumbing beyond that is site work.
Can I add a leg cross bar?
Yes. Atosa offers a leg cross bar pair, part number 7020201209210, for the 24-inch depth bowl sinks including this model.
What other configurations are in this series?

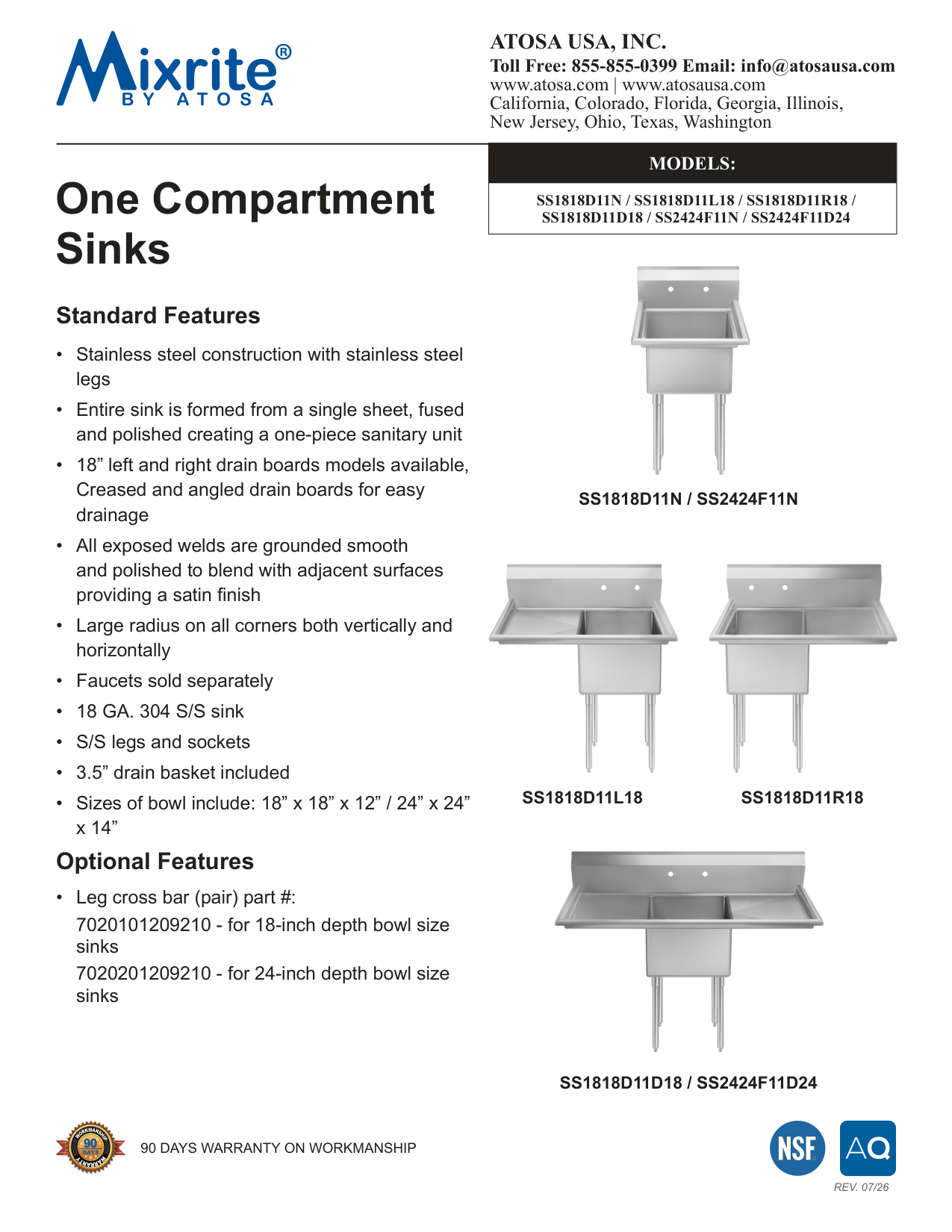

The SS one-compartment line covers an 18" x 18" x 12" bowl with no drainboard (SS1818D11N), left (L18), right (R18) or both (D18) 18" boards, plus the 24" x 24" x 14" bowl with no board (SS2424F11N) or both 24" boards, which is this model.
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | SS2424F11D24 |
| Brand | Atosa USA |
| Weight | 78.60 lbs |
| Dimensions (HxWxD) | 90.00 x 72.00 x 30.00 inches |
| Height | 90.00 |
| Width | 72.00 |
| Depth | 30.00 |
| Base Type | legs |
| Compartment (front - back) | 24" |
| Drainboards | with left & right-hand drainboards |
| Base Construction | stainless steel |
| Top Gauge | 18 gauge |
| Overall Length | 63" - 72" |
| Top Stainless Series | 300 series |
| Compartment Width (side - side) | 24" |
| Package | 12 pieces in package |
|
